1. What is the main function of Schneider 170ADO74050 discrete output module?

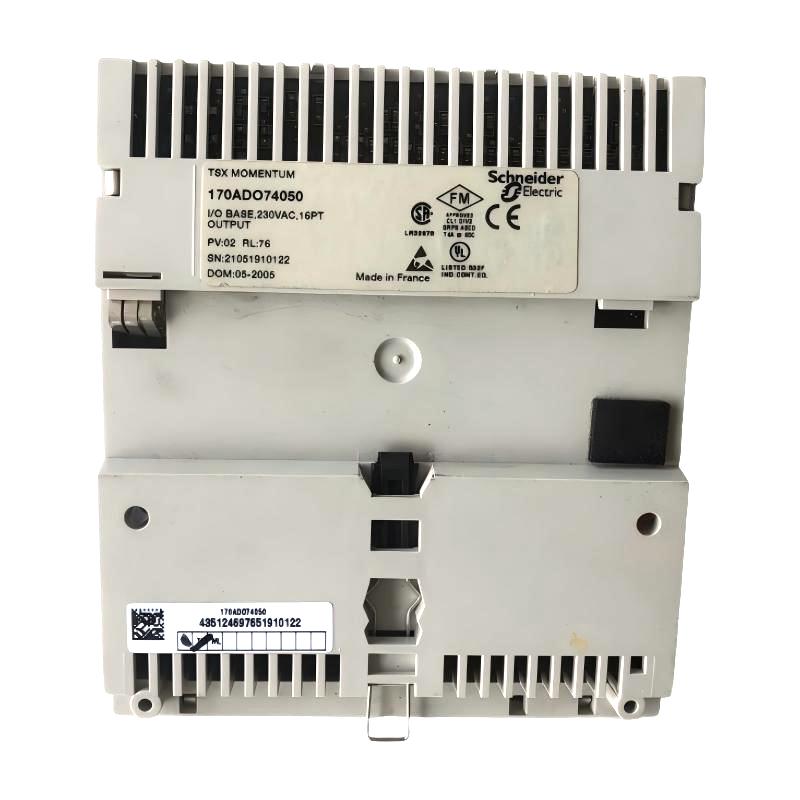

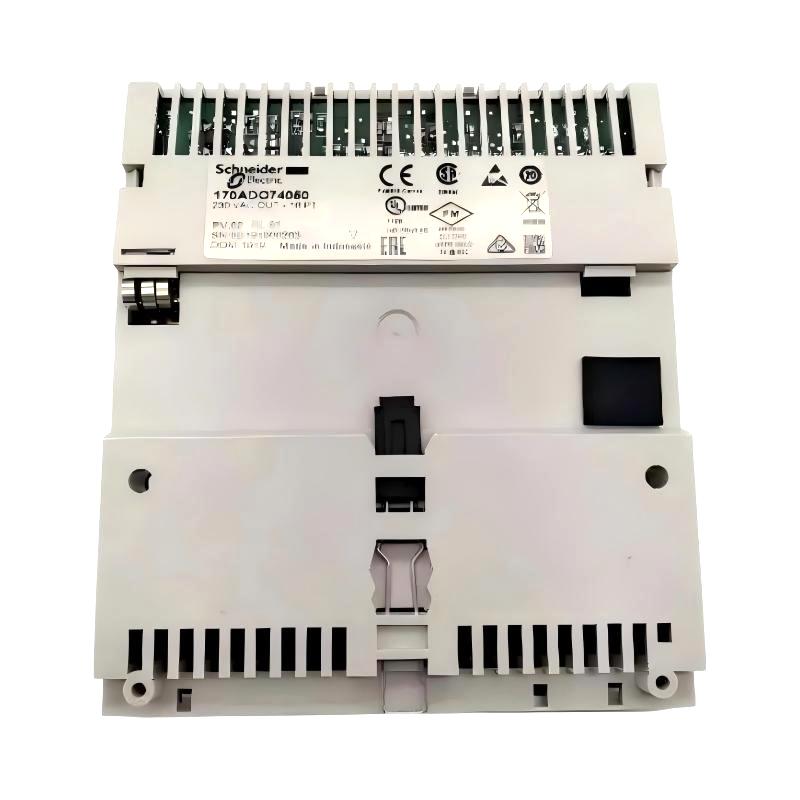

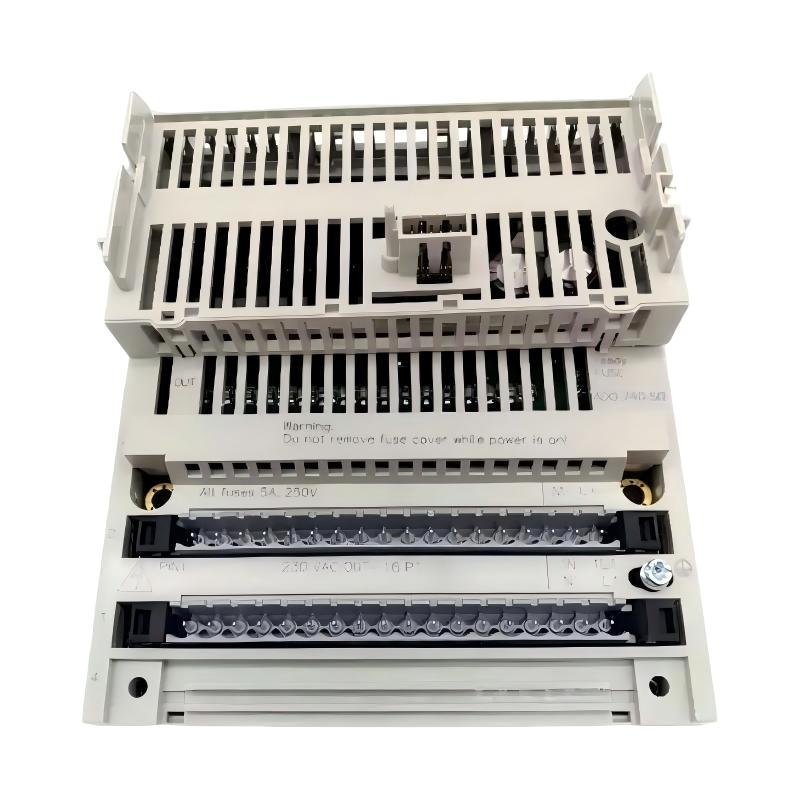

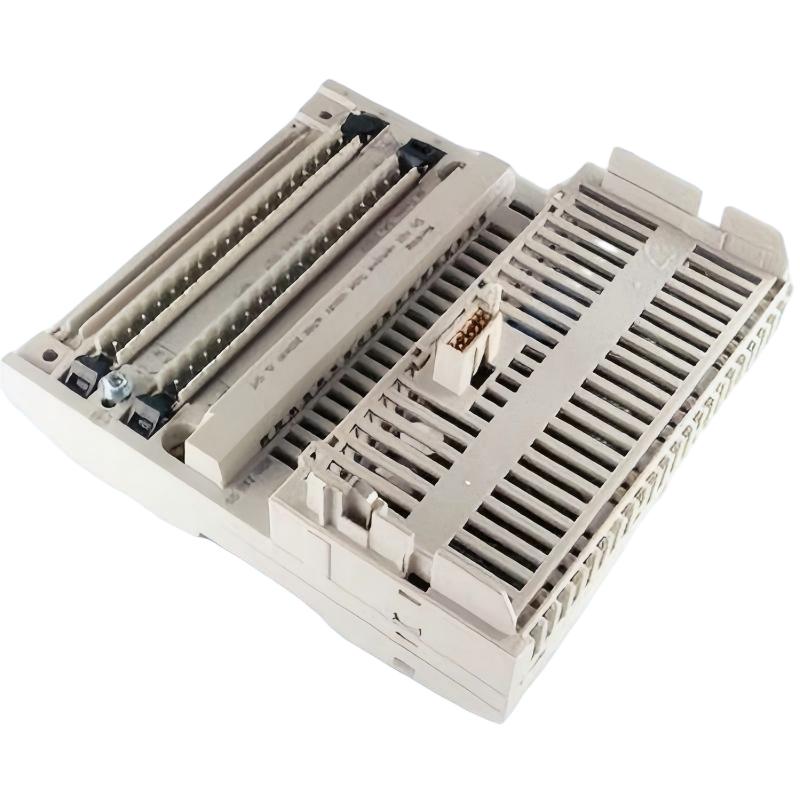

Schneider 170ADO74050 is a digital output module designed for Modicon Momentum PLC systems. Its main function is to convert control commands from the PLC processor into actual 24 V DC switching output signals for controlling field devices. The module allows the PLC system to operate various industrial components such as solenoid valves, relays, contactors, indicator lamps, and other actuators.

During the operation of an automation system, the PLC CPU executes the user program and generates output commands according to the programmed logic conditions. These commands are transmitted to the 170ADO74050 module, which activates the corresponding output channels to control connected devices. By providing reliable digital output control, the module helps improve automation efficiency and ensures stable operation of industrial equipment.

2. What types of industrial devices can be connected to 170ADO74050?

170ADO74050 can be connected to various 24 V DC industrial devices that require digital switching control signals. Common applications include controlling electromagnetic valves, relay circuits, contactors, alarm indicators, and machine actuators.

In automated production systems, the module can control pneumatic valves to perform mechanical operations, switch relays for equipment control, or activate warning indicators according to production conditions. It is widely used in manufacturing machines, assembly systems, material handling equipment, and industrial control applications.

Before connecting external devices, users should confirm that the operating voltage, current requirements, and load characteristics match the specifications of the module. Proper load selection helps prevent output faults and improves long-term system reliability.

3. How does 170ADO74050 communicate with a Modicon Momentum PLC system?

170ADO74050 communicates with the Modicon Momentum PLC system through the internal Momentum communication structure. After installation into the appropriate system configuration, the module receives output commands from the PLC processor and updates the output channels according to the user program.

The PLC CPU is responsible for executing control logic, processing input information, and generating output instructions. The 170ADO74050 performs the actual switching operation of connected field devices. LED status indicators on the module provide visual information about output conditions, helping engineers during commissioning, maintenance, and troubleshooting.

Correct hardware configuration, module addressing, and PLC software setup are essential to ensure stable communication between the controller and the output module.

4. What are the common causes of output failure on 170ADO74050?

Output failure on 170ADO74050 may be caused by several factors, including incorrect PLC programming, improper module configuration, wiring problems, power supply issues, damaged external devices, or excessive output load.

When an output channel does not operate correctly, the first step is to check whether the PLC program is sending the correct output command. Then, the module status indicators, terminal connections, and external device power supply should be inspected.

If the connected load has a short circuit, excessive current consumption, or abnormal electrical characteristics, the module protection function may be activated and disable the output channel. Effective troubleshooting requires checking both the PLC software status and the actual field wiring conditions.

5. How should 170ADO74050 be installed correctly?

170ADO74050 should be installed according to the requirements of the Modicon Momentum PLC system. Before installation, the control system power should be switched off to prevent damage caused by incorrect electrical connections or live installation.

During installation, the module should be securely connected to the system base, and all communication and electrical connections should be properly installed. After installation, the module configuration should be completed through the PLC programming software to ensure that the controller correctly recognizes the output module and assigns the correct output addresses.

The installation environment should also be considered. Avoiding excessive vibration, high temperature, moisture, and strong electromagnetic interference can improve the stability and service life of the module.

6. What protection and diagnostic functions does 170ADO74050 provide?

170ADO74050 provides several protection and diagnostic functions designed to improve the safety and reliability of industrial control systems. The module supports short-circuit protection and overload protection, helping reduce the risk of damage caused by abnormal output conditions.

The LED status indicators allow maintenance personnel to quickly check the operating condition of output channels. When a fault occurs, engineers can combine module status information, PLC diagnostic data, and field wiring inspection to identify the problem more efficiently.

Although protection functions improve system safety, proper system design, correct load selection, and appropriate wiring practices are still required to ensure reliable long-term operation.

7. Can 170ADO74050 be used in continuously operating industrial automation systems?

Yes. 170ADO74050 is designed for industrial automation applications that require reliable digital output control and can be used in production lines, machine control systems, and industrial monitoring applications.

The module provides multiple output channels that allow PLC systems to control different field devices simultaneously. For example, in manufacturing processes, it can control solenoid valves, relays, and other actuators according to programmed sequences. In machine automation systems, it can manage equipment start/stop operations and coordinate different mechanical actions.

To maintain stable operation during continuous use, the connected loads should remain within the specified limits, and regular inspection of wiring and field devices is recommended.

8. How can the operating reliability of 170ADO74050 be improved?

To improve the long-term reliability of 170ADO74050, users should focus on proper installation, correct wiring, suitable load selection, and regular maintenance.

First, the module should be installed in an environment that meets industrial control requirements, avoiding excessive temperature, humidity, dust, and electromagnetic interference. Second, all terminal connections should be properly tightened to prevent signal interruption or output instability. External devices connected to the module must operate within the specified voltage and current range to avoid continuous overload conditions.

During routine maintenance, engineers should check LED status indicators, output signals, terminal conditions, and the operating status of connected equipment. Proper PLC configuration, standardized installation practices, and preventive maintenance can significantly improve system stability and reduce unexpected downtime.
