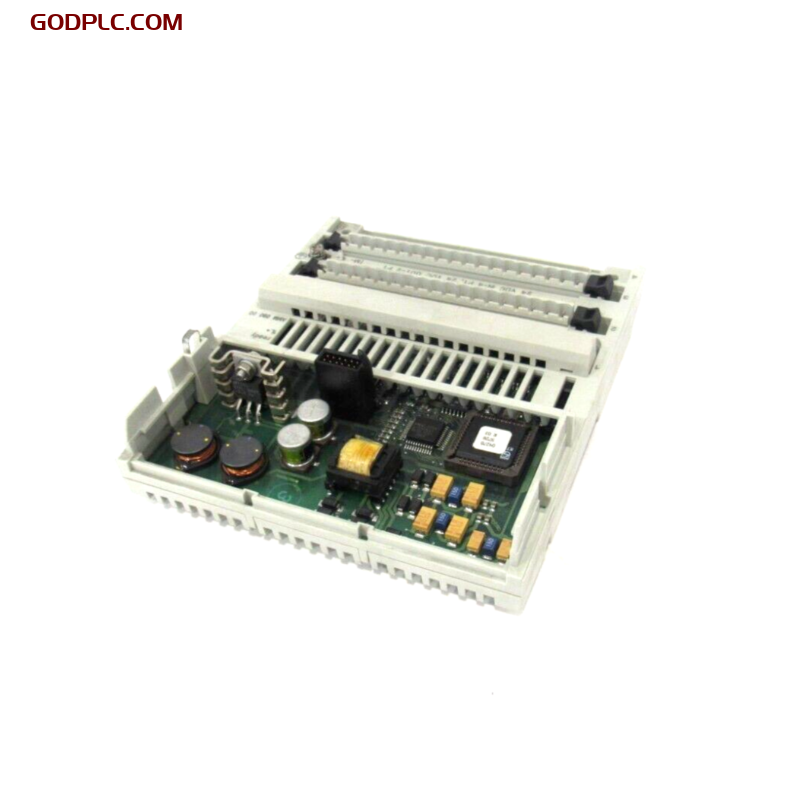

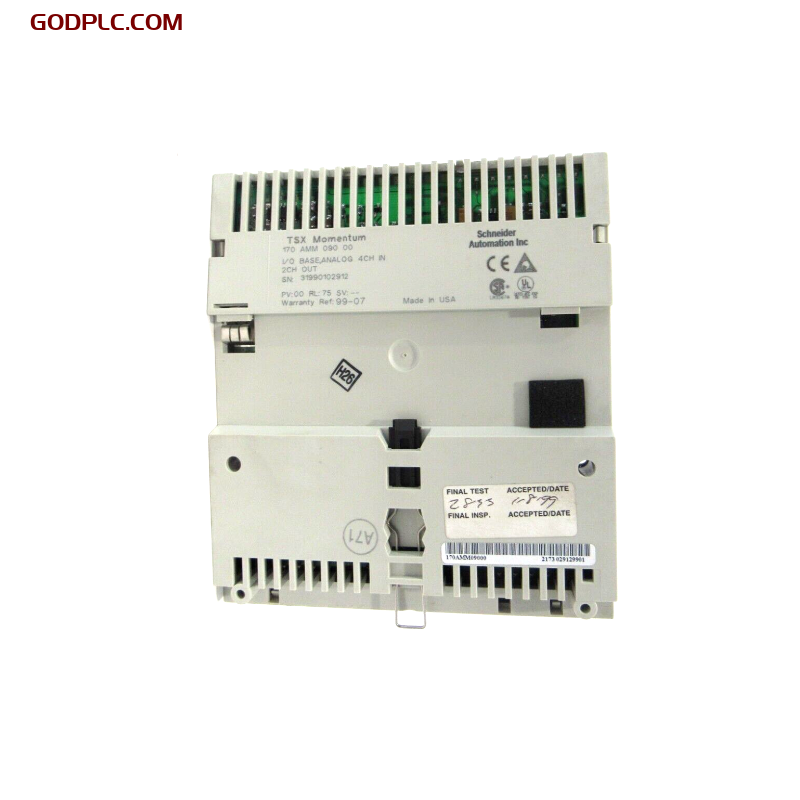

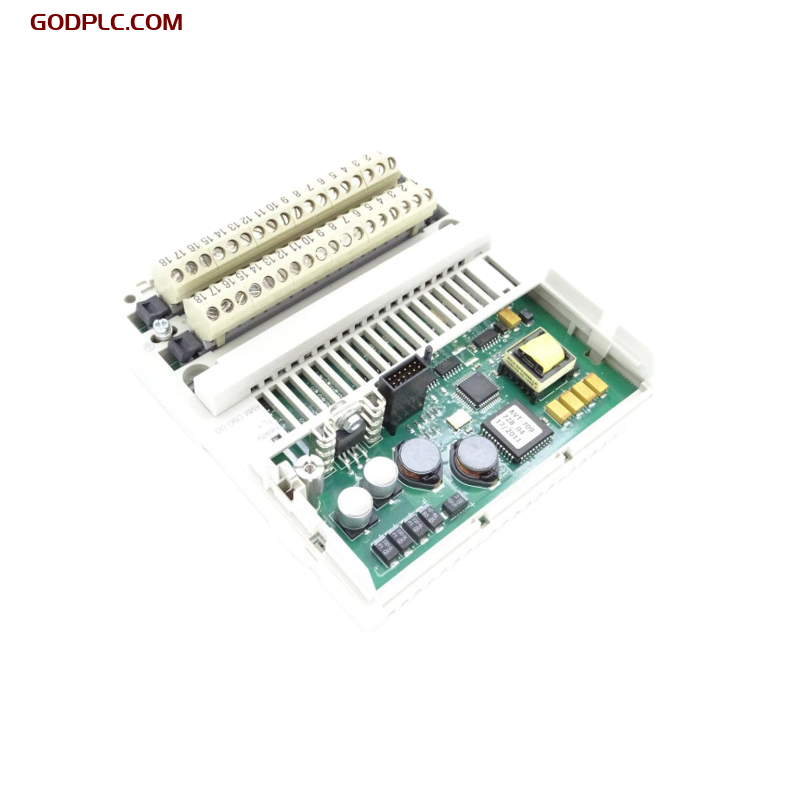

Schneider 170AMM09000 Distributed Analog/Discrete I/O Modules
1. Product Overview
The Schneider Electric 170AMM09000 module is part of its distributed I/O system, designed for industrial automation applications. This module supports both analog and discrete signal inputs and outputs, widely used in control systems that require high-precision signal processing and real-time data transmission. It handles multiple input/output formats and is capable of processing signals from various sensors and actuators, making it a crucial component for automation equipment and control systems.
The 170AMM09000 module is designed with high performance and reliability in mind, ensuring stable operation even in complex industrial environments. It is fully compatible with Schneider Electric’s other automation products, allowing for easy integration and flexible expansion, making it an ideal choice for a wide range of industrial automation applications.
2. Key Features
-
Multi-function Input/Output
The 170AMM09000 module supports both analog and discrete signal inputs and outputs, capable of handling a wide variety of signal types such as current, voltage, and digital signals to meet diverse application needs. -
High-precision Data Acquisition
This module offers high-precision analog input and output, ensuring that the control system can respond quickly and make precise adjustments, suitable for applications with strict signal accuracy requirements. -
Flexible Expansion Capability
The module is compatible with Schneider Electric’s other control systems and modules, allowing users to easily expand and upgrade their systems based on specific needs. -
High Reliability and Interference Resistance
With strong resistance to interference, the module is suitable for use in harsh industrial environments, ensuring stable and reliable system operation. -
Remote Monitoring and Control
The module supports remote monitoring and control functions, allowing users to monitor and adjust the system in real-time via network connectivity, improving operational convenience and flexibility.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Parameter |
|---|---|
| Dimensions | 47.5 x 125 x 141.5mm |
| Weight | 0.24kg |
3.2 General Information
| Item | Parameter |
|---|---|
| Model | Schneider 170AMM09000 |
| Module Type | Distributed Analog/Discrete I/O Module |
| Input/Output Type | Analog Input/Output, Discrete Input/Output |
| Input/Output Channels | 8 Analog Inputs, 8 Analog Outputs, 16 Discrete Inputs, 16 Discrete Outputs |
| Power Requirement | 24V DC ± 10% |
| Output Range | Voltage Output 0 – 10 V, Current Output 4 – 20 mA |
| Accuracy | ±0.1% |
| Operating Temperature Range | -20°C to 70°C |
| Storage Temperature Range | -40°C to 85°C |
| Relative Humidity | 5% to 95%, non-condensing |
3.3 Performance and Protection Features
| Item | Parameter |
|---|---|
| Isolation Type | High-level isolation |
| Max Load | 500Ω (current output) |
| Max Output Voltage | 10V (voltage output) |
| Max Output Current | 20mA (current output) |
| Short Circuit Protection | Equipped with short-circuit protection |
| Protection Class | IP20 (for use within control cabinets) |
| Safety Certification | CE certified, UL certified |
4. Industry Applications
The Schneider 170AMM09000 module is ideal for a wide range of industrial automation applications, particularly those requiring both analog and discrete signal input/output capabilities. It is widely used in the following industries:
-
Process Control Systems
The module provides high-precision signal processing, ensuring accurate control in industries such as chemicals, oil and gas, and food processing. -
Machine Automation
It supports precision control for machinery, ensuring smooth and stable operation by providing reliable analog and discrete signals. -
Energy Management and Monitoring Systems
The module is suitable for energy systems, providing real-time data acquisition and control for electricity monitoring, lighting control, and automated energy management. -
Building Automation
Ideal for smart building automation systems, the module enables efficient interaction with building equipment, ensuring optimal environmental control and management.
Schneider 170AMM09000 Distributed Analog/Discrete I/O Modules is in stock. Please contact us for a quick quote and competitive pricing.
