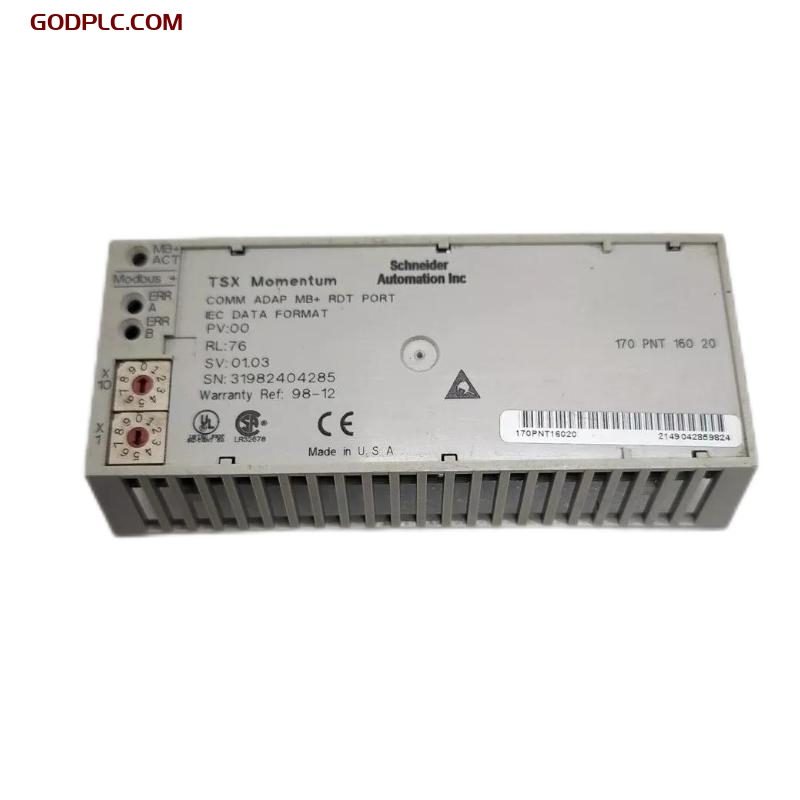

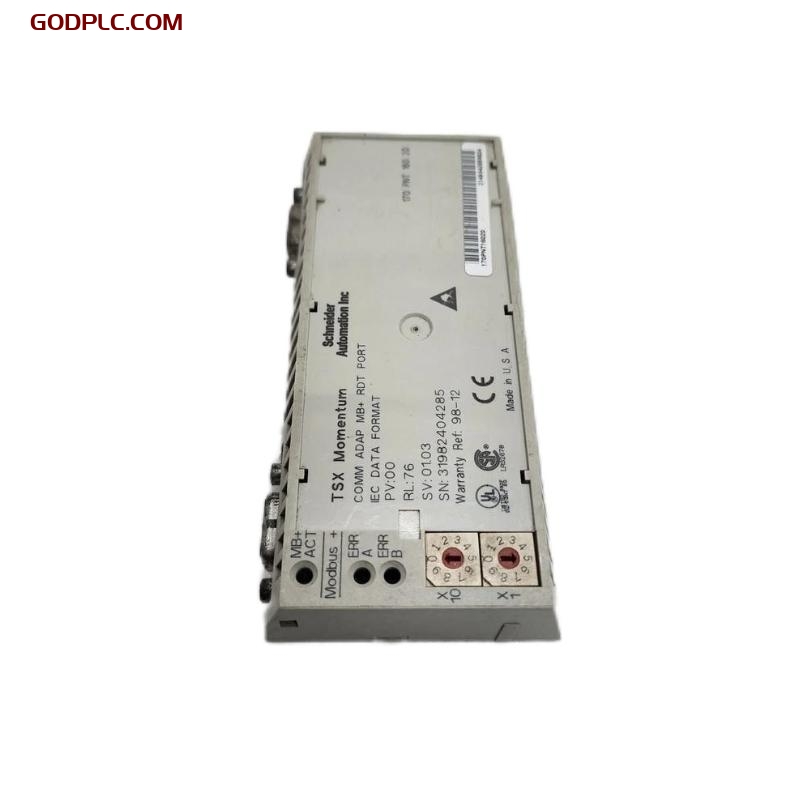

Schneider 170PNT16020 Modbus Plus Communication Adapter
__________________________________________________________________________________________
Product Overview
The Schneider 170PNT16020 Modbus Plus Communication Adapter is designed to provide seamless integration between Schneider Electric’s control systems and Modbus Plus networks. This communication adapter acts as a bridge, enabling Modbus Plus devices to communicate with controllers, remote I/O systems, and other devices within the automation network. With its robust performance and flexibility, it is an ideal solution for applications requiring reliable communication in a variety of industrial settings.
Key Features
-
Modbus Plus Protocol: Supports the Modbus Plus communication protocol, ensuring compatibility with a wide range of Modbus Plus devices.
-
Seamless Integration: Fully compatible with Schneider Electric’s control systems, including Modicon PLCs and remote I/O modules.
-
High-Speed Data Transfer: Facilitates fast, reliable data exchange between devices, enhancing system performance and reducing latency.
-
Easy Installation: Plug-and-play functionality for quick and easy integration into existing Modbus Plus networks.
-
Modular Design: Compact and flexible design allows for easy expansion and configuration based on system requirements.
-
Built-in Diagnostic LEDs: Provides real-time monitoring of communication and operational status, simplifying troubleshooting and system maintenance.
-
High Reliability: Engineered for industrial environments, ensuring continuous operation in demanding conditions.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Package size 55 ×180 ×260 mm |
| Weight | 0.091 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | 170PNT16020 |
| Module Type | Modbus Plus Communication Adapter |
| Mounting | Modicon PLC or I/O rack |
| Communication | Modbus Plus protocol |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Supply Voltage | 24 V DC |
| Power Consumption | < 4 W |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible System | Schneider Modicon PLCs, I/O modules |
| Communication Interface | Modbus Plus Network |
| Software Configuration | Unity Pro, Concept, or EcoStruxure Control Expert |
Industry Applications
-
Industrial Automation: Ideal for connecting Modbus Plus devices with control systems, enhancing data exchange and communication efficiency.
-
Process Control: Used in process industries, such as chemicals, pharmaceuticals, and oil and gas, where reliable and high-speed communication is crucial.
-
Energy Management: Facilitates communication between energy monitoring devices and controllers, supporting energy optimization and load management systems.
-
Building Automation: Enables communication between control devices, such as HVAC systems, lights, and security devices, ensuring efficient operation of building management systems.
-
Water and Wastewater Treatment: Supports communication for monitoring and controlling field devices in water treatment plants.
The Schneider 170PNT16020 Modbus Plus Communication Adapter provides a reliable and efficient solution for integrating Modbus Plus devices into Schneider Electric’s automation systems. Its modular design, high-speed data transfer, and ease of integration make it a valuable tool for a wide range of industrial applications.
Schneider 170PNT16020 Modbus Plus Communication Adapter is in stock. Please contact us for a quick quote and competitive pricing.
