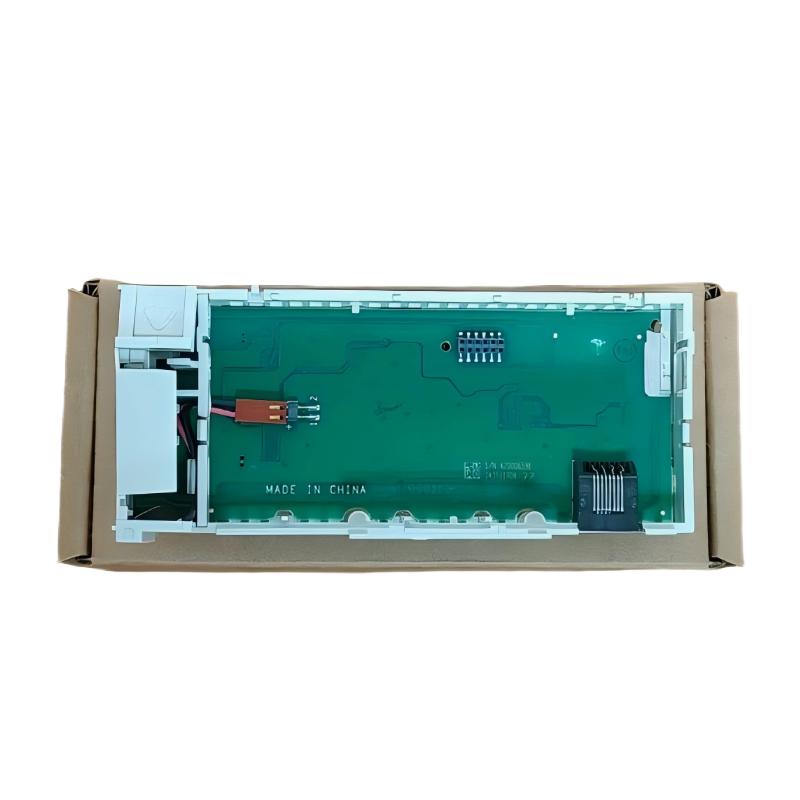

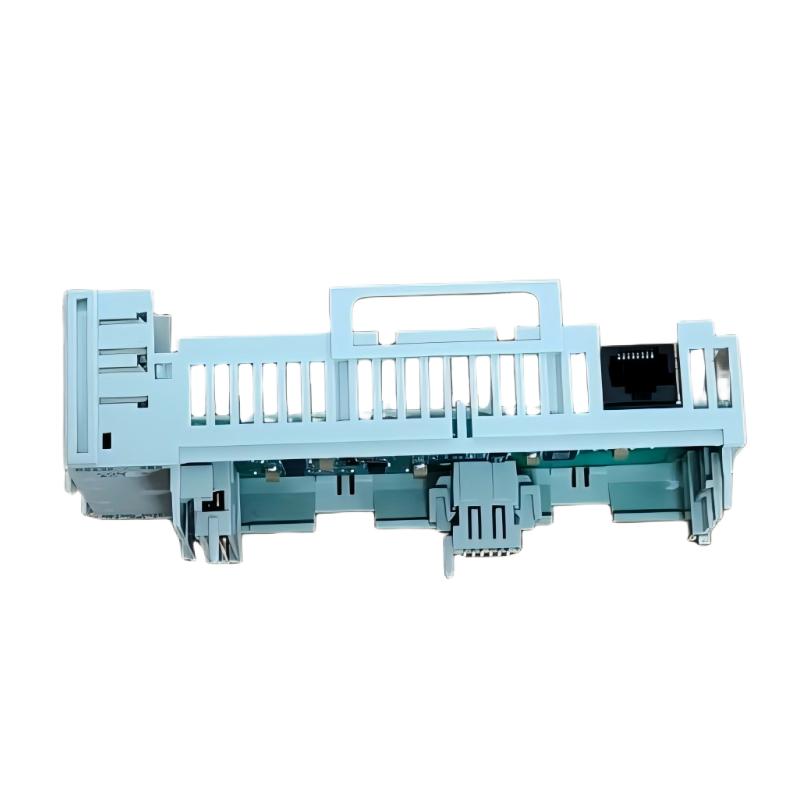

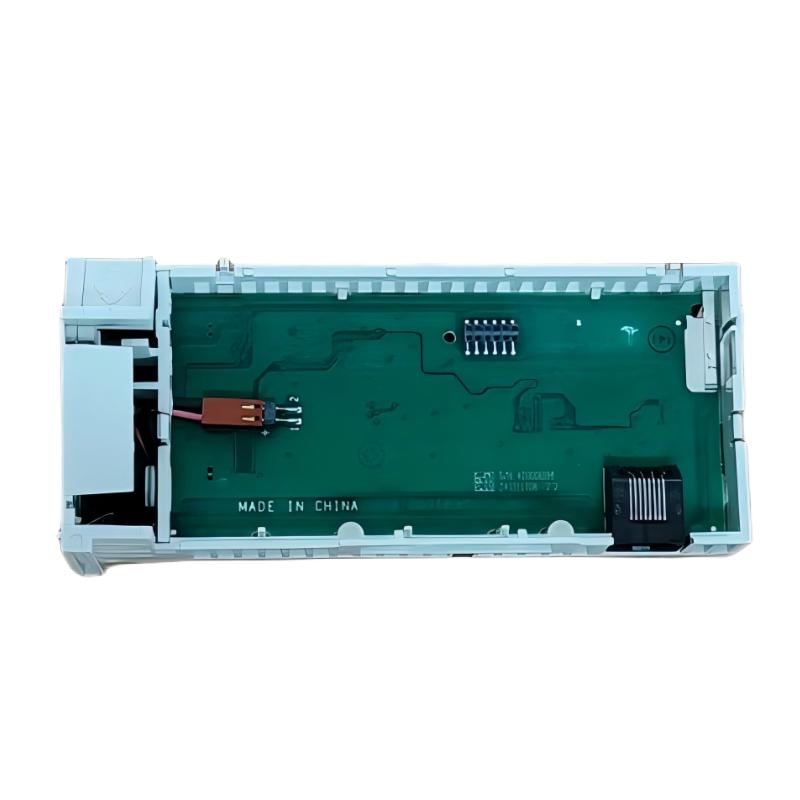

Schneider 172JNN21032 Serial Link Option Adapter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Serial Link Option Adapter |
| Brand | Schneider |
| Model | 172JNN21032 |
| Product Type | Serial Communication Adapter Module |
| Function Type | Serial Link Interface Expansion Module |
| Main Function | Provides serial communication interface expansion for Schneider automation systems and enables data exchange between controllers and external serial devices. |
| Communication Function | Supports serial communication connection between automation controllers and peripheral devices. |
| Interface Type | Serial Link communication interface adapter. |
| Application System | Schneider Modicon automation platform. |
| Communication Application | Used for connecting serial devices such as operator terminals, industrial instruments, and external communication equipment. |
| Data Transmission | Provides reliable serial data exchange for industrial automation applications. |
| System Integration | Used to expand communication capability and improve connectivity between automation components. |
| Installation Method | Installed in compatible Schneider automation hardware configurations. |
| Application Area | Suitable for industrial automation, machine control, manufacturing equipment, and process monitoring applications. |
| Reliability Design | Industrial grade design for continuous operation in automation environments. |
| Operating Environment | Suitable for industrial control cabinet installation environments. |
| Dimensions | 25 x 143.1 x 60.06 mm |
| Weight | 0.085 kg |
FAQ
1. What is the main function of the Schneider 172JNN21032 Serial Link Option Adapter?
The Schneider 172JNN21032 Serial Link Option Adapter is a communication expansion module designed to provide serial communication capability for Schneider automation systems.
Its main function is to establish a communication connection between automation controllers and external serial devices. In industrial environments, many devices such as operator interfaces, instruments, monitoring equipment, and third party controllers require serial communication for data exchange.
The 172JNN21032 helps extend system communication capabilities, allowing automation systems to connect with additional devices while maintaining reliable data transmission.
This module is commonly used in applications where serial communication integration is required for machine control, process monitoring, and industrial data exchange.
2. How does the Schneider 172JNN21032 improve automation system communication?
The Schneider 172JNN21032 improves automation system communication by providing an additional serial interface for connecting external devices.
In industrial control systems, communication flexibility is important because different field devices may use different communication methods. The serial link adapter allows controllers to exchange information with compatible serial equipment.
The module helps simplify system integration by providing a dedicated communication interface instead of requiring complex additional hardware solutions.
By improving connectivity between automation components, the 172JNN21032 helps enhance system flexibility and supports efficient industrial data communication.
3. What applications use the Schneider 172JNN21032 Serial Link Option Adapter?
The Schneider 172JNN21032 is mainly used in industrial automation systems that require serial communication expansion.
Typical applications include:
Industrial machine control systems
Factory automation equipment
Operator interface communication
Industrial instrument connection
Process monitoring systems
Manufacturing production lines
Data collection applications
In these applications, the adapter allows controllers to exchange information with external serial devices.
It is suitable for systems that require reliable communication between automation controllers and peripheral equipment.
4. What are the common causes of communication problems with the Schneider 172JNN21032?
Communication problems related to the 172JNN21032 are usually caused by configuration errors, connection issues, or incompatible communication settings.
Common causes include:
Incorrect communication parameters
Improper cable connection
Incorrect device addressing
Unsupported communication settings
External device failure
Controller configuration errors
When communication problems occur, technicians should first check system diagnostics and verify communication settings.
The next step is to inspect physical connections and confirm that connected devices are operating correctly.
A systematic troubleshooting process can quickly identify the source of communication failure and restore normal operation.
5. What installation precautions should be considered for the Schneider 172JNN21032?
Before installing the 172JNN21032, engineers should confirm that the adapter is compatible with the existing Schneider automation system configuration.
During installation, attention should be paid to:
Confirming system compatibility
Checking communication settings
Ensuring proper cable connections
Verifying device configuration
Avoiding electrical interference
After installation, communication tests should be performed to confirm that the connected devices can exchange data correctly.
Proper installation helps improve communication stability and prevents unnecessary system errors.
6. How can technicians troubleshoot abnormal communication on the 172JNN21032?
When communication problems occur, technicians should follow a structured troubleshooting procedure.
First, check the controller status and system diagnostic information to determine whether communication errors are present.
Then inspect:
Communication parameters
Connected device status
Cable connections
Interface configuration
External equipment operation
If the settings and connections are correct, technicians can test communication with known working devices to identify whether the issue comes from the adapter or external equipment.
A step by step diagnostic approach helps reduce troubleshooting time and improves maintenance efficiency.
7. Can the Schneider 172JNN21032 replace another serial communication module?
The Schneider 172JNN21032 can only replace another communication module when compatibility requirements are satisfied.
Before replacement, engineers should confirm:
Supported automation platform
Communication protocol requirements
Device connection method
System configuration compatibility
Different serial communication modules may have different functions and supported devices.
Using an incompatible replacement module may cause communication failures or require additional system modifications.
Selecting the correct communication adapter ensures stable operation and reduces configuration changes.
8. How can users maintain long term reliability of the Schneider 172JNN21032?
To maintain long term reliability of the 172JNN21032, users should perform regular inspections and preventive maintenance.
Recommended maintenance activities include:
Checking communication status
Reviewing system diagnostic information
Inspecting connection conditions
Monitoring connected device performance
Maintaining a clean control cabinet environment
The installation environment should be protected from excessive dust, moisture, vibration, and electromagnetic interference.
During system upgrades or maintenance operations, technicians should follow proper procedures to avoid communication configuration errors.
With correct installation, regular monitoring, and timely troubleshooting, the Schneider 172JNN21032 can provide stable serial communication support for industrial automation systems over long operating periods.
Schneider 172JNN21032 Serial Link Option Adapter is in stock. Please contact us for a quick quote and competitive pricing.
