1. What is the main function of the Schneider 499TWD01100 Ethernet interface?

The Schneider 499TWD01100 is a TwidoPort Ethernet interface module designed to connect compatible Twido controllers to an Ethernet TCP/IP network. It acts as a gateway between the controller’s RS-485 Modbus serial communication interface and the Ethernet network. This allows a Twido controller to participate in an industrial Ethernet network without requiring a built-in Ethernet port on the controller base. The module operates as a passive network device and is suitable for exchanging Modbus data between the controller and Ethernet-based automation equipment.

2. Which PLC controllers are compatible with the 499TWD01100?

The 499TWD01100 is designed for Twido compact and modular controllers with version 3.0 or later. It connects to the controller’s integrated RS-485 serial interface and provides an additional Ethernet communication interface. When installing the module, the controller version and hardware configuration should be checked first. The module is also associated with Modicon M238 applications. Since Twido and M238 platforms are legacy products, compatibility should be confirmed before replacing or expanding an existing installation.

3. What Ethernet communication speed does the 499TWD01100 support?

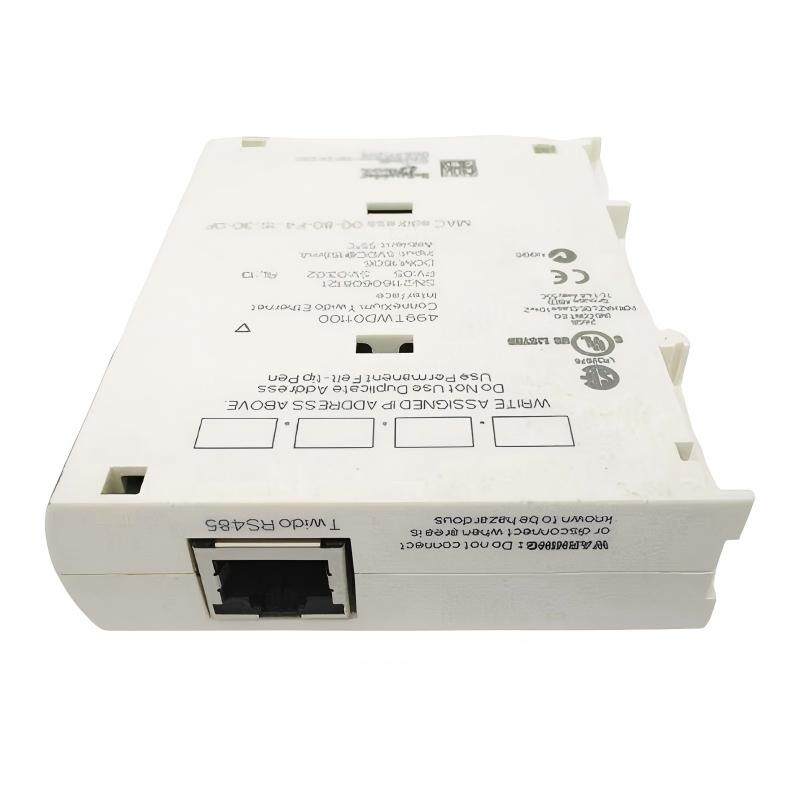

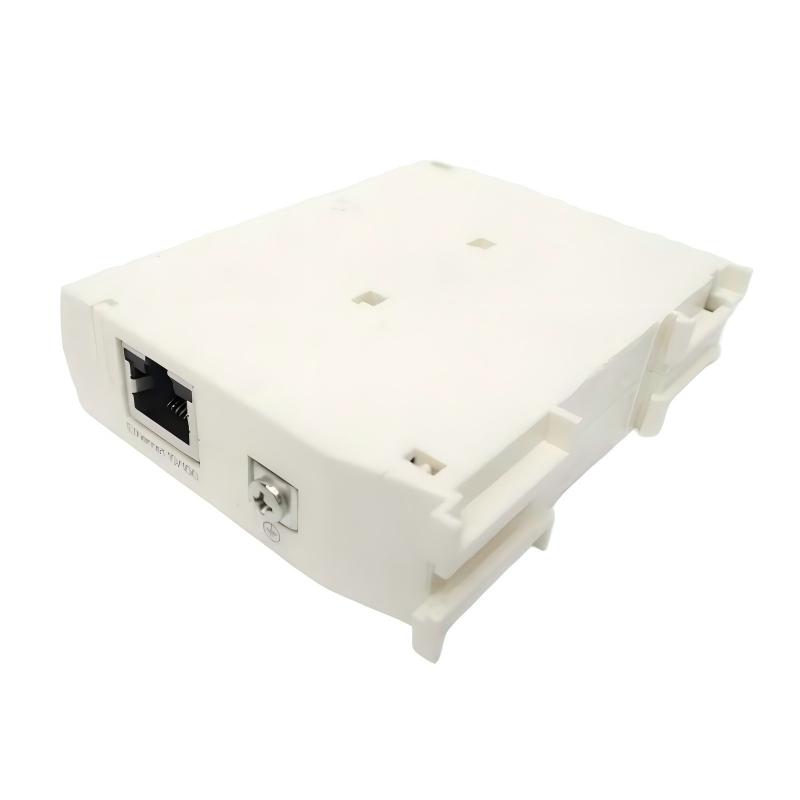

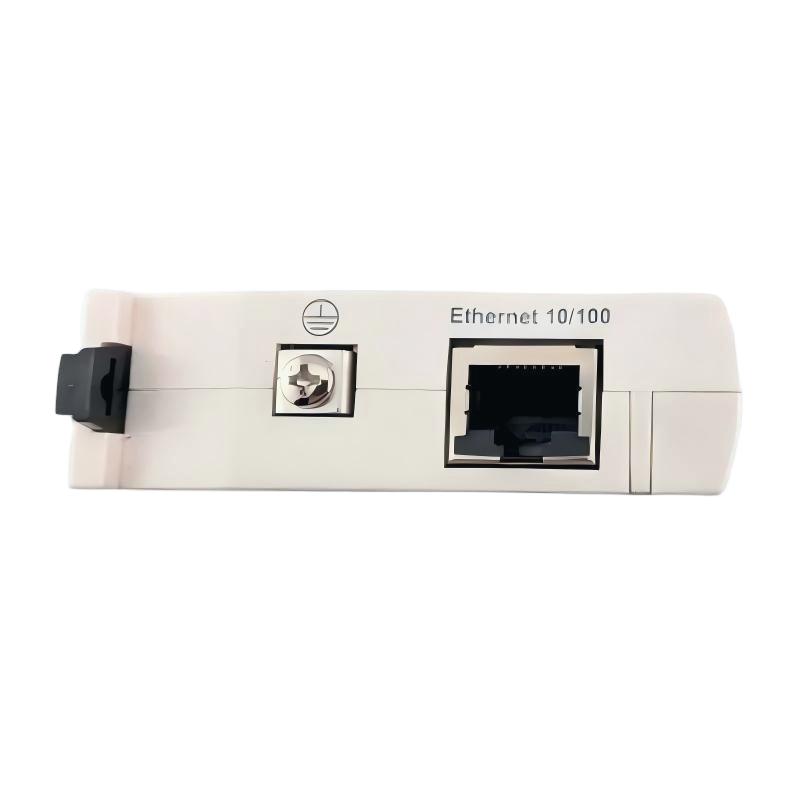

The 499TWD01100 supports 10BASE-T and 100BASE-TX Ethernet communication with automatic speed negotiation. The Ethernet interface uses an RJ45 connector and can automatically select the appropriate supported speed according to the connected network equipment. During commissioning, the Ethernet link status can be checked through the LINK and 100MB indicators. If the expected network link is not established, technicians should inspect the Ethernet cable, network port, switch configuration, and physical connection before changing controller parameters.

4. Does the 499TWD01100 support Modbus communication over Ethernet?

Yes. The 499TWD01100 functions as a gateway between Ethernet TCP/IP and the Twido controller’s RS-485 Modbus communication link. It supports Modbus messaging and allows Ethernet-connected devices to exchange data with the Twido controller through the module. This architecture is useful when an existing Twido system needs to communicate with an industrial Ethernet network. The serial side and Ethernet side should both be configured according to the control-system requirements, and the network addressing and Modbus communication parameters should be checked carefully during commissioning.

5. What should be checked if the 499TWD01100 cannot communicate with the Ethernet network?

First check the Ethernet cable and RJ45 connection to make sure the connector is fully inserted and the cable is not damaged. Next, check the LINK and ETH ACT indicators to determine whether the module detects an Ethernet connection or network activity. The Ethernet switch port and network configuration should then be inspected. If the Ethernet connection appears normal, check the RS-485 connection between the Twido controller and the interface module. The controller status and Modbus communication should also be verified. A systematic check of the Ethernet side, serial side, controller status, and network configuration can help determine whether the problem is caused by wiring, configuration, or hardware.

6. What do the LEDs on the 499TWD01100 indicate?

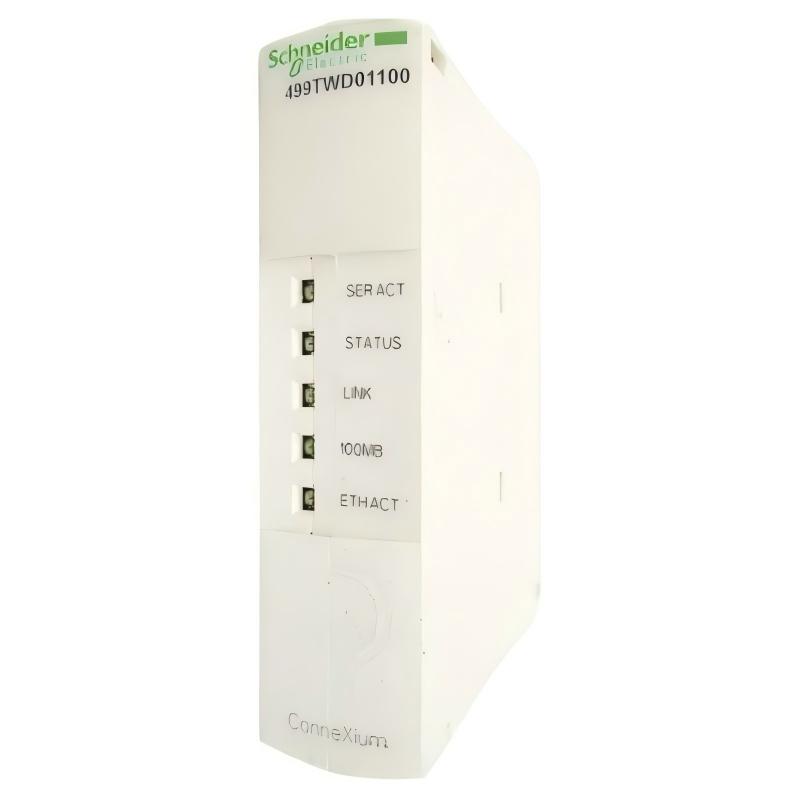

The 499TWD01100 provides several LEDs for monitoring operating and communication status. SER ACT indicates activity on the Modbus serial connection, while ETH ACT indicates Ethernet network activity. The LINK indicator shows whether an Ethernet link has been established, and the 100MB indicator identifies operation at 100 Mbit/s. The STATUS indicator provides information about the module and controller communication condition. These indicators are useful during commissioning because technicians can quickly determine whether the module has established a network connection and whether data is being exchanged. Abnormal LED behavior can also provide an initial indication of wiring, network, or configuration problems.

7. How is the 499TWD01100 powered?

The 499TWD01100 receives its operating power from the compatible Twido compact or modular controller base rather than requiring a separate external power supply. The rated supply is 5 V DC, with an operating supply range of approximately 4.5–5.5 V DC. Maximum current consumption is specified at approximately 180 mA at 5 V. During troubleshooting, the controller base should therefore be checked if the Ethernet interface does not power up or if the status indicators remain inactive. The connection between the interface module and the controller should also be inspected to ensure that the module is correctly installed.

8. What are common causes of communication faults on the 499TWD01100?

Common communication problems can result from incorrect Ethernet connections, damaged network cables, incorrect IP configuration, RS-485 connection problems, incompatible controller settings, or abnormal network equipment. The troubleshooting process should begin with the physical connections and LED indicators. Check the Ethernet LINK status first, then verify Ethernet activity and controller status. If the Ethernet side is operating normally but Modbus data is not being exchanged, inspect the RS-485 connection and controller communication settings. The network configuration should also be checked for incorrect addressing or duplicate IP conditions. By separating the Ethernet side and serial Modbus side during testing, technicians can more efficiently identify the source of the communication problem.
