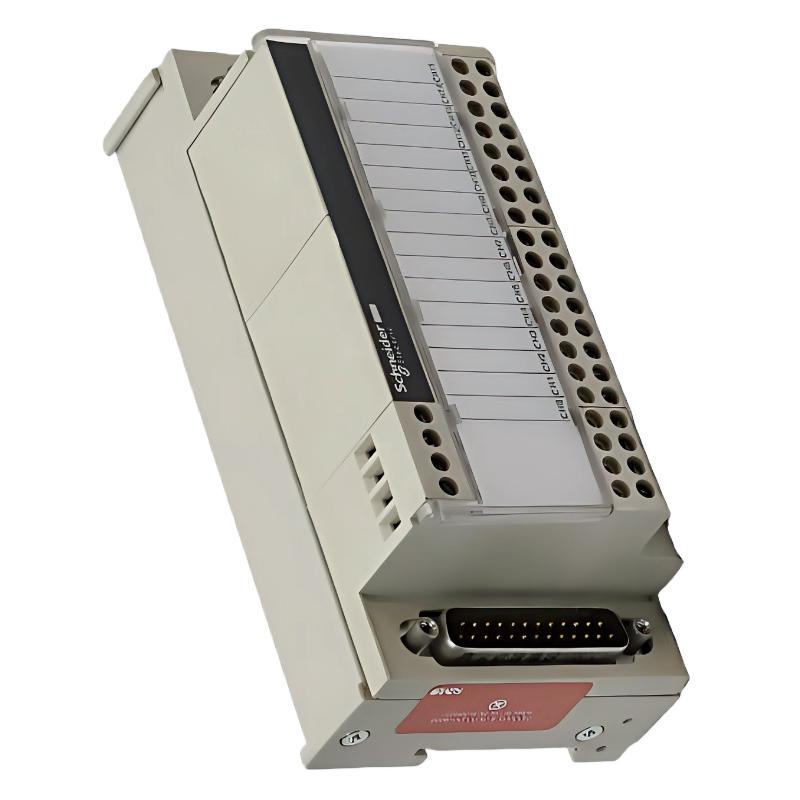

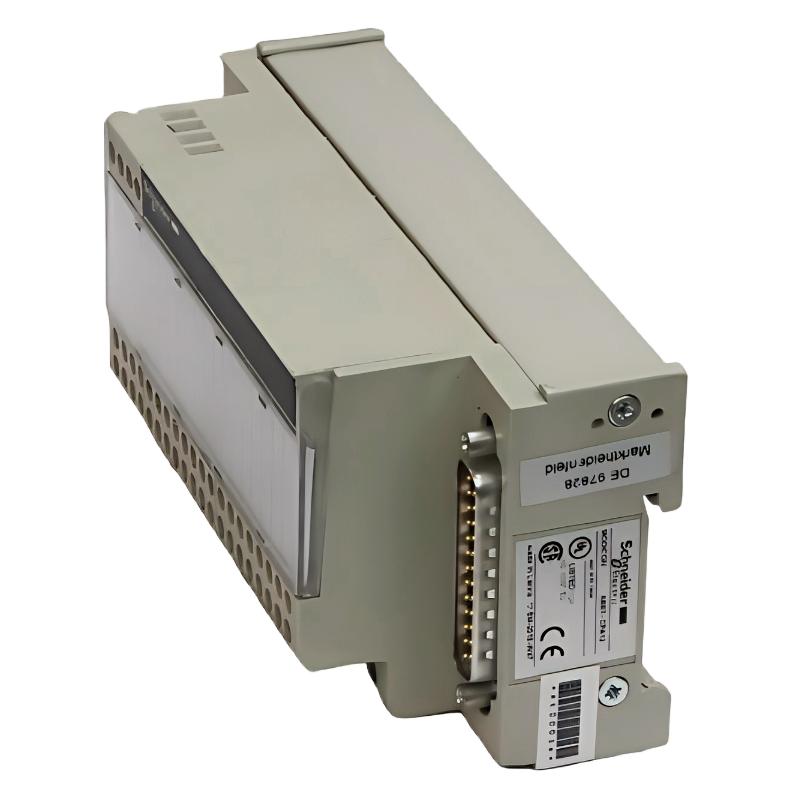

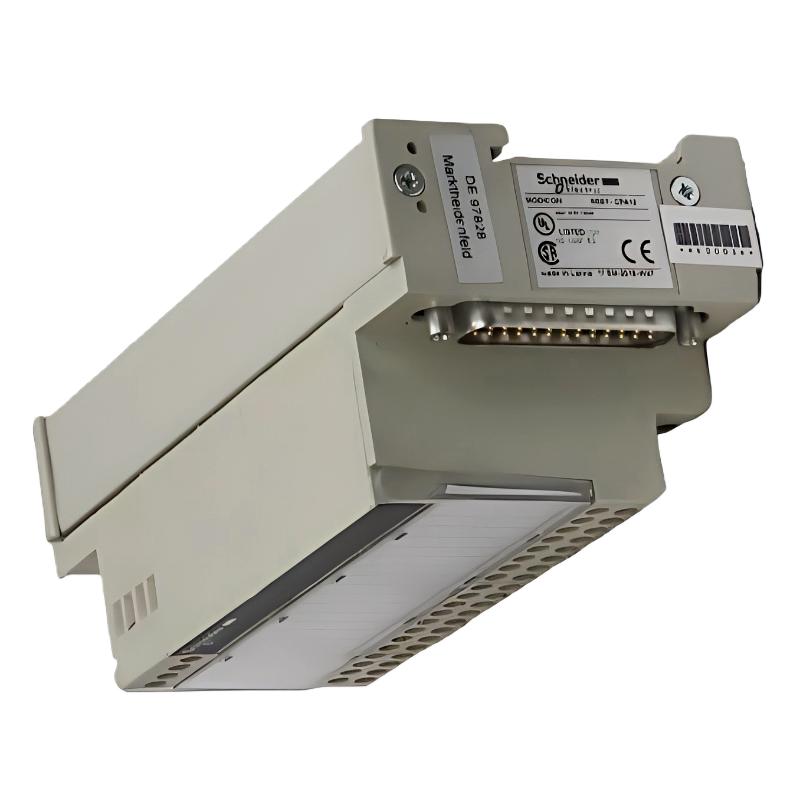

Schneider ABE7CPA12 Connecting Base
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ABE7CPA12 |
| Product Type | Connecting Base |
| Brand | Schneider Electric |
| Function | Provides interface connection and signal distribution between PLC interface modules and field I/O devices |
| Application Range | Industrial automation systems, PLC I/O expansion |
| Compatible Modules | Schneider Telefast ABE7 series interface modules |
| Installation Type | DIN rail mounting |
| Wiring Method | Screw terminal connection |
| Signal Types | Digital and analog signal transmission |
| Electrical Isolation | Supports electrical isolation between control and field sides |
| Structure Type | Modular connection base |
| Operating Environment | Industrial control cabinet environment |
| Protection Class | IP20 |
| Material | Industrial-grade engineering plastic and metal conductive structure |
| Dimensions | 142 × 70 × 67 mm |
| Weight | 0.3 kg |
FAQ
1. What is the main function of this connecting base?
This connecting base is used to interface PLC I/O modules with field devices. It provides a centralized connection point for signal distribution, helping to simplify wiring and improve system organization.
2. What systems is it compatible with?
It is designed for use with Schneider Electric Telefast ABE7 series interface modules and is commonly applied in PLC-based I/O expansion systems.
3. What role does it play in automation systems?
It acts as an intermediate connection platform between PLCs and field sensors or actuators, ensuring reliable signal transmission and structured wiring management.
4. Is the installation process complicated?
No. It uses standard DIN rail mounting, allowing fast and easy installation inside industrial control cabinets without special tools.
5. Does it support electrical isolation?
Yes. It provides electrical separation between the control side and field side, improving system safety and reducing electrical noise interference.
6. What types of signals can it handle?
It supports both digital and certain analog signal connections, depending on the connected interface modules.
7. What precautions should be taken during use?
Ensure all terminals are securely tightened and avoid plugging or unplugging under power to prevent equipment damage or signal interruption.
8. Does it require regular maintenance?
Maintenance requirements are minimal. Periodic inspection of terminal tightness and cleanliness of the control cabinet is recommended for reliable operation.
Schneider ABE7CPA12 Connecting Base is in stock. Please contact us for a quick quote and competitive pricing.
