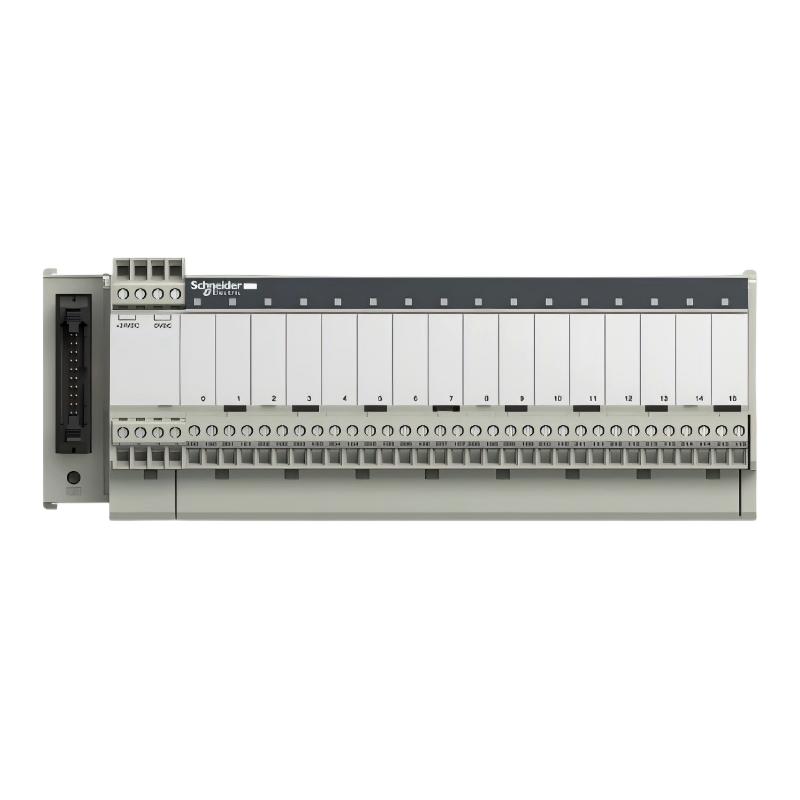

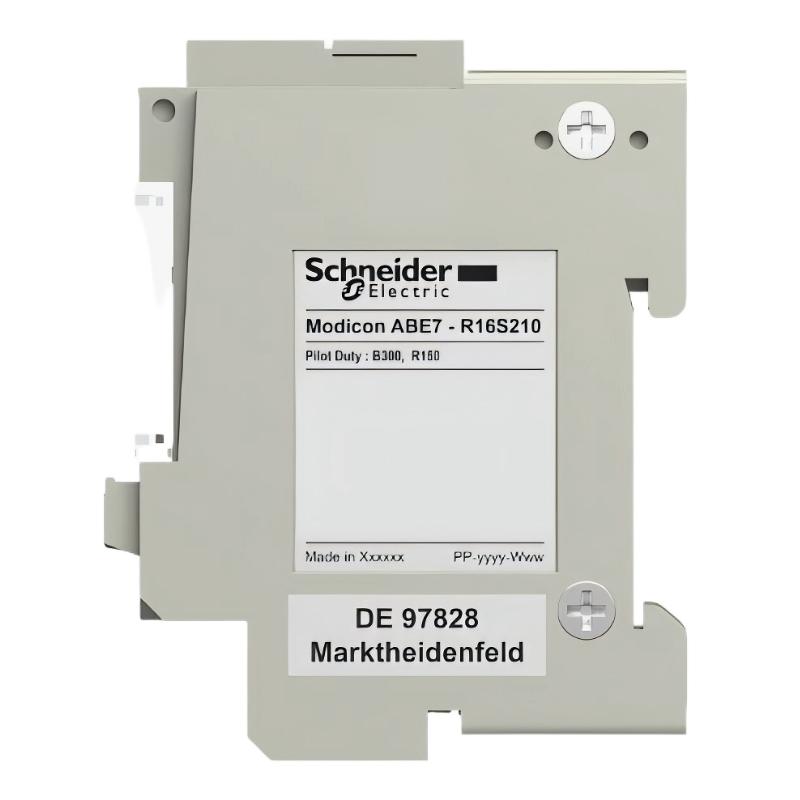

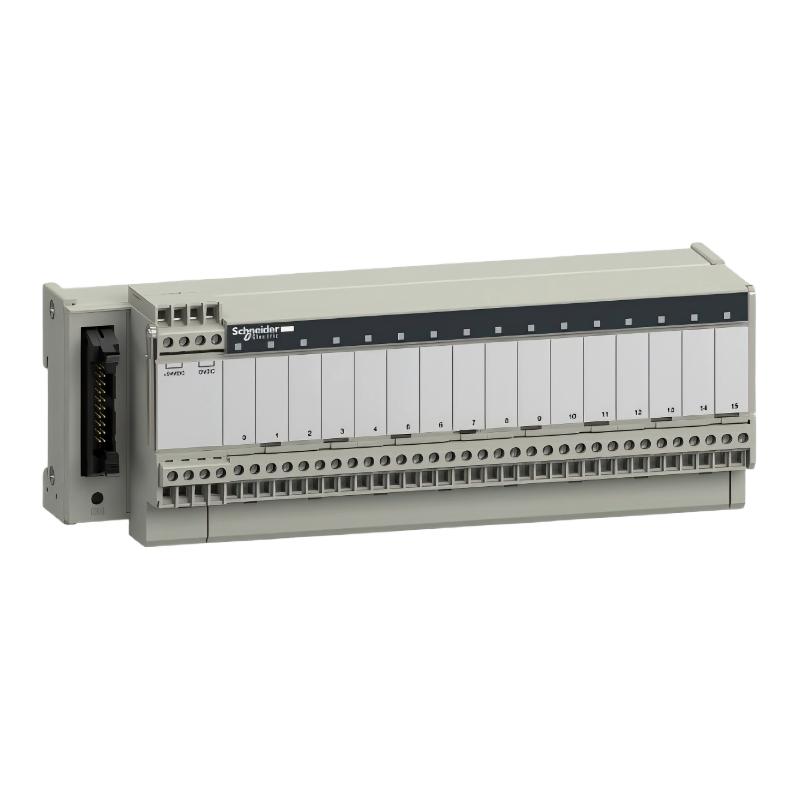

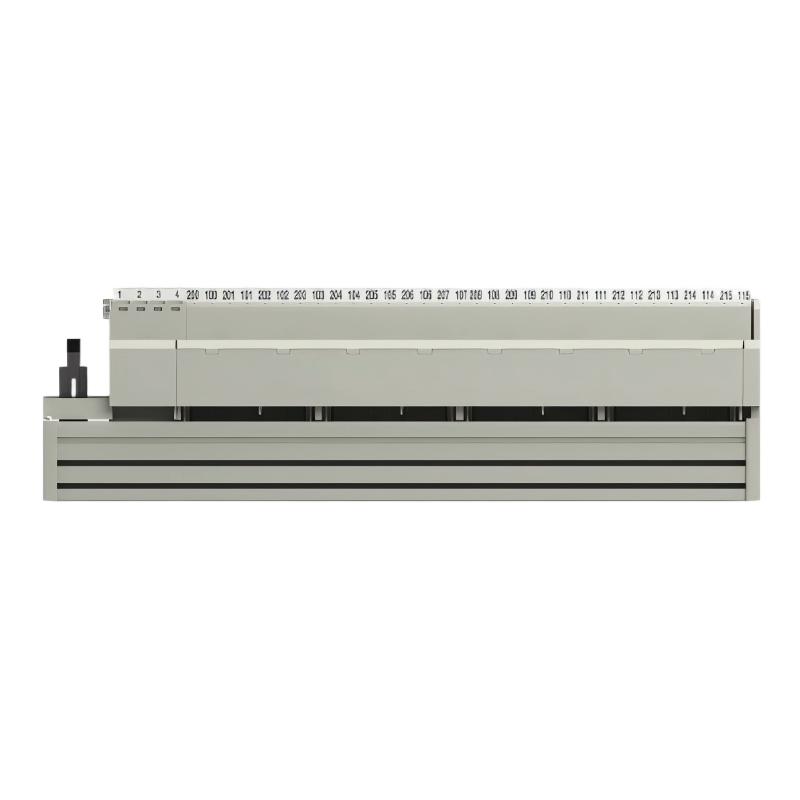

Schneider ABE7R16S210 Welded Electromechanical Relay Base
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ABE7R16S210 |
| Product Name | Welded Electromechanical Relay Base |
| Manufacturer | Schneider Electric |
| Product Type | Electromechanical relay interface base |
| Application System | Industrial automation / PLC relay control systems |
| Function | Relay mounting and signal switching interface |
| Relay Type | Electromechanical relay (welded construction) |
| Channel Capacity | 16 channels |
| Wiring Method | Screw terminal connection |
| Mounting Type | DIN rail mounting |
| Electrical Function | Signal isolation and relay switching control |
| Operating Voltage | Industrial control voltage level |
| Operating Environment | Industrial environment |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Design | Industrial-grade insulation and mechanical housing |
| Dimensions | 206 x 77 x 71 mm |
| Weight | 0.405 kg |
FAQ
1. What is the main function of the ABE7R16S210 relay base?
The ABE7R16S210 is designed to provide a structured interface for electromechanical relays in industrial automation systems. It enables reliable signal switching and isolation between PLC outputs and field devices, ensuring stable control of external loads while improving overall system safety and organization.
2. What does “welded electromechanical relay” mean?
A welded electromechanical relay refers to a relay construction where key internal contacts are welded for enhanced mechanical strength and electrical reliability. This design improves durability under frequent switching operations and demanding industrial conditions.
3. Which systems is this product used in?
It is used in Schneider Electric industrial automation systems, particularly PLC-based control panels where relay switching, signal isolation, and load control are required in manufacturing and process automation environments.
4. What are the advantages of using this relay base?
It simplifies wiring, improves cabinet organization, and allows modular relay installation. It also supports faster maintenance and replacement, reducing system downtime while enhancing operational reliability.
5. How is the relay base installed?
The base is mounted on a standard DIN rail inside a control cabinet. Field wiring is connected via screw terminals, and compatible electromechanical relay modules are inserted directly into the base.
6. Does it require programming or configuration?
No configuration or programming is required for the relay base itself. However, the relay control logic is managed by the PLC or control system that drives the relay operation.
7. What should be considered during installation and wiring?
Ensure all terminal connections are properly tightened to avoid loose contacts. Correct relay selection and proper separation of power and signal wiring are important to minimize electrical noise and ensure stable operation.
8. How can long-term reliability be maintained?
Regular inspection of relay contact condition, terminal tightness, and cabinet cleanliness is recommended. Avoiding excessive vibration and maintaining a stable temperature environment also helps ensure long-term reliable performance.
Schneider ABE7R16S210 Welded Electromechanical Relay Base is in stock. Please contact us for a quick quote and competitive pricing.
