Product Introduction

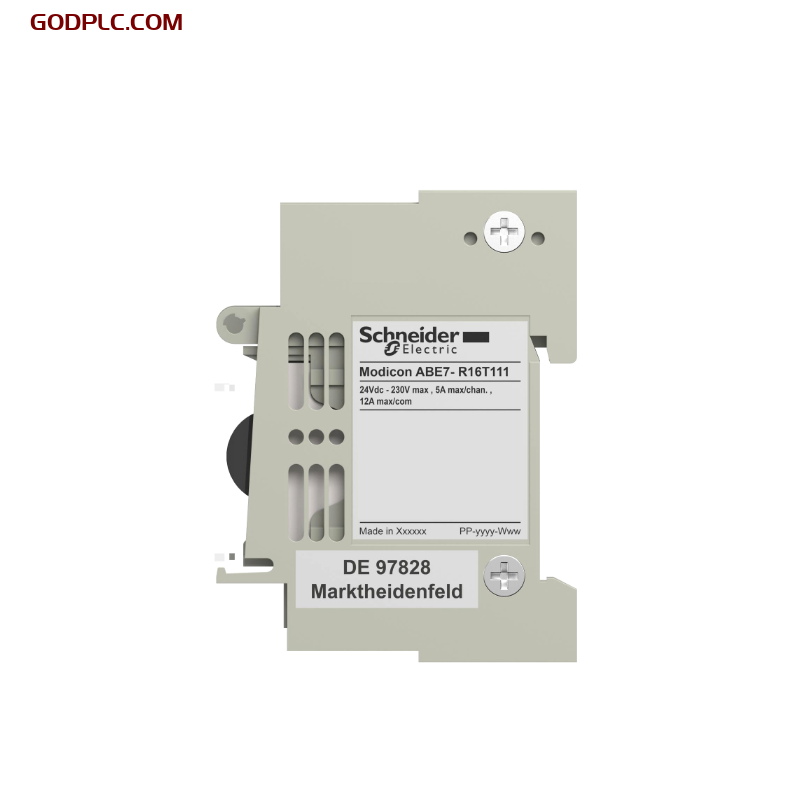

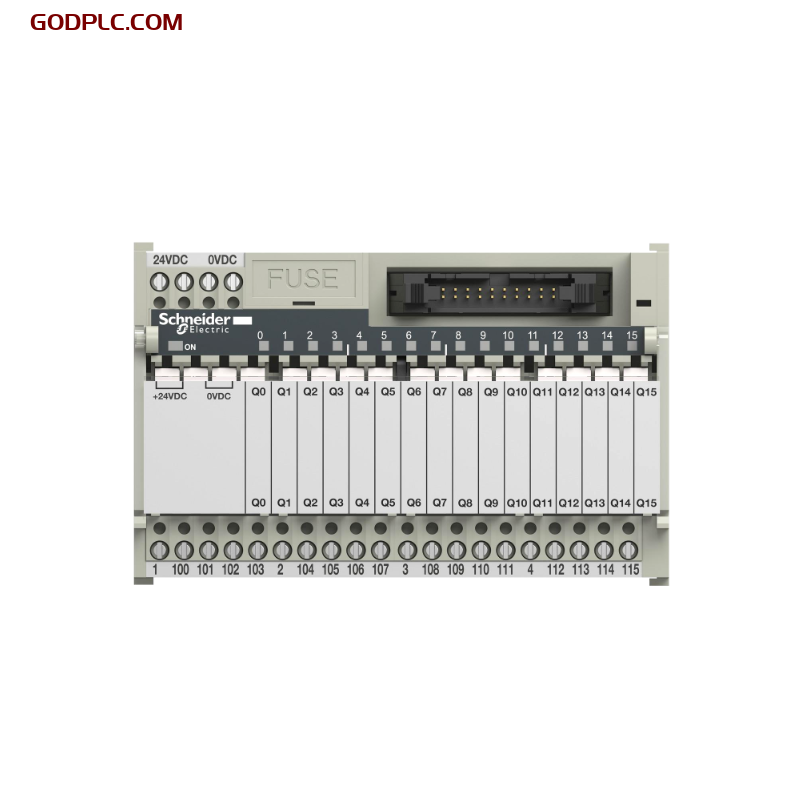

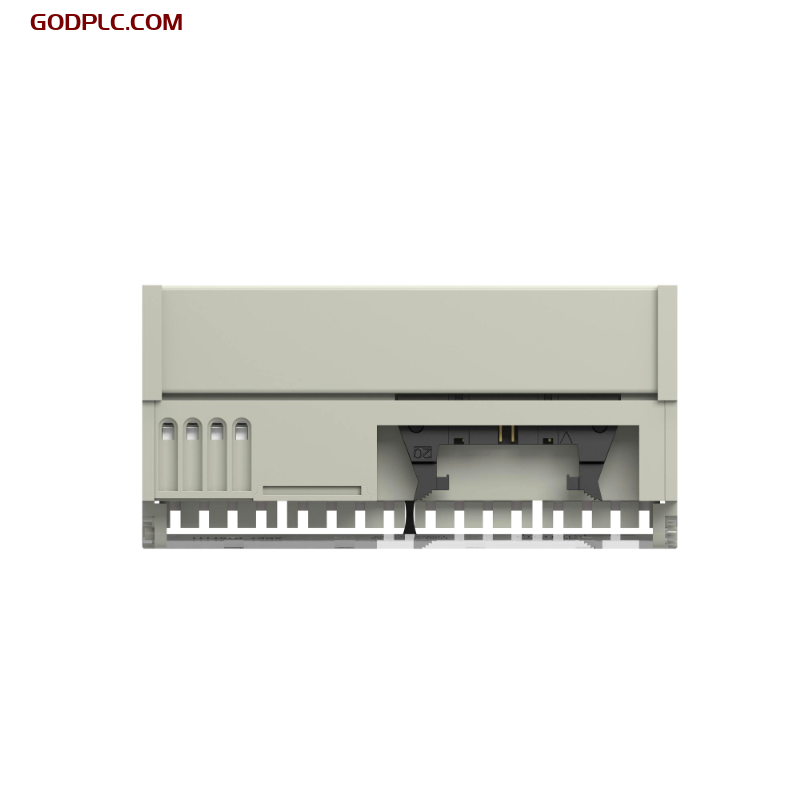

The Schneider ABE7R16T111 is a sub-base module designed to work with plug-in electromechanical relays, a key component in industrial control and automation systems. This sub-base is part of Schneider Electric’s comprehensive portfolio of relay components, known for their reliability, ease of use, and compatibility with a variety of industrial applications. The ABE7R16T111 sub-base module provides a secure and efficient platform for installing and connecting electromechanical relays, making it an essential component in control systems for automation processes.

This product is designed for seamless integration with Schneider Electric’s Zelio range of relays and is primarily used in industrial control panels, electrical installations, and automation systems. Its user-friendly plug-in design allows for easy maintenance, replacements, and system expansions. It offers excellent connectivity, durability, and safety features that are ideal for industrial environments.

Product Specifications

Product Applications

The Schneider ABE7R16T111 sub-base with plug-in electromechanical relay is used in a wide range of applications within industrial control systems. Some common use cases include:

• Industrial Automation: Controls actuators, sensors, motors, and other components within automated systems.

• Building Management Systems: Used in the control of lighting, HVAC systems, and other essential services within commercial buildings.

• Power Distribution Systems: Acts as a relay for switching electrical circuits in power distribution panels.

• Control Panels: Integral in control panels for managing various electrical circuits, including switching and signaling devices.

• Machine Control: Provides efficient relay switching for machinery, ensuring smooth and automated operation in manufacturing plants.

• Automated Manufacturing: Controls robotic arms, conveyor systems, and automated tools in production lines.

• HVAC Systems: Operates solenoids, motors, and other relays to ensure HVAC systems run efficiently and as needed.

• Energy Management: Regulates energy distribution and ensures that power systems are safely and efficiently managed in critical energy applications.

Product Advantages

1. Ease of Maintenance: The plug-in relay design allows for easy installation and quick replacement, reducing downtime and increasing system efficiency.

2. Compact Design: The sub-base module’s compact form factor makes it ideal for use in systems with limited space.

3. High Durability: The unit is built to withstand harsh industrial environments, with an operating temperature range of -20°C to +60°C.

4. Flexible Voltage Options: Compatible with multiple input voltages (12V DC, 24V DC, 110V AC, and 230V AC), allowing for use in a wide range of applications.

5. User-Friendly Installation: Designed for Din rail mounting, which simplifies installation in control panels and electrical cabinets.

6. Safety Compliance: Meets global safety standards with certifications such as CE, UL, CSA, and RoHS, ensuring reliability in safety-critical applications.

7. Robust Construction: Built with high-quality materials to offer protection against environmental factors, including dust and moisture.

8. Wide Range of Applications: Suitable for use in power distribution, automation, building management, and many other industrial sectors.

9. Improved Reliability: The sub-base ensures secure and reliable electrical connections, which enhances the performance and longevity of the relay.

10. Efficient Switching: The relay offers efficient switching for controlling high-power equipment like motors, lights, and alarms.
