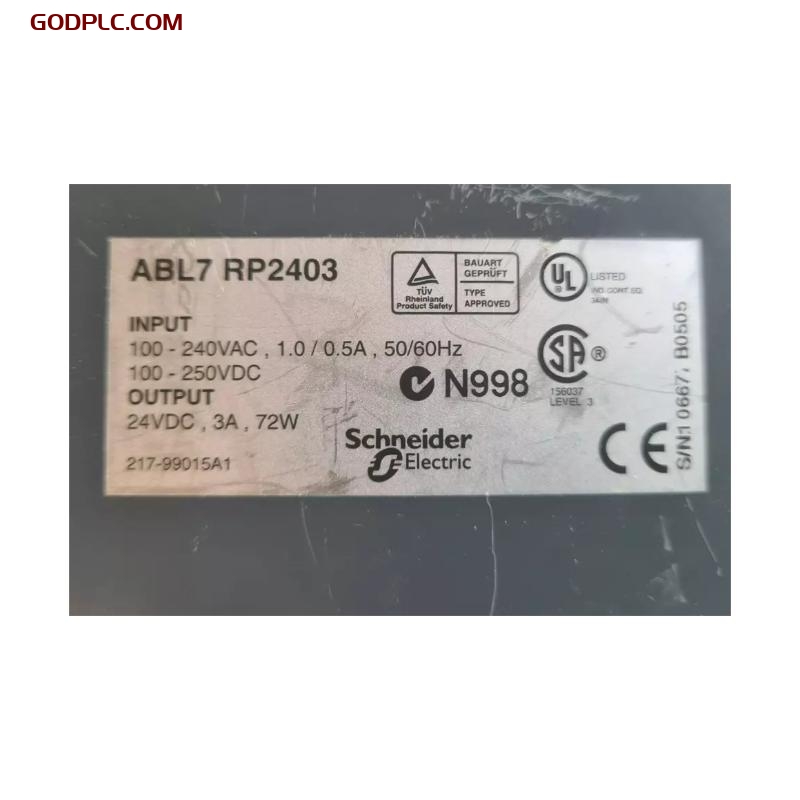

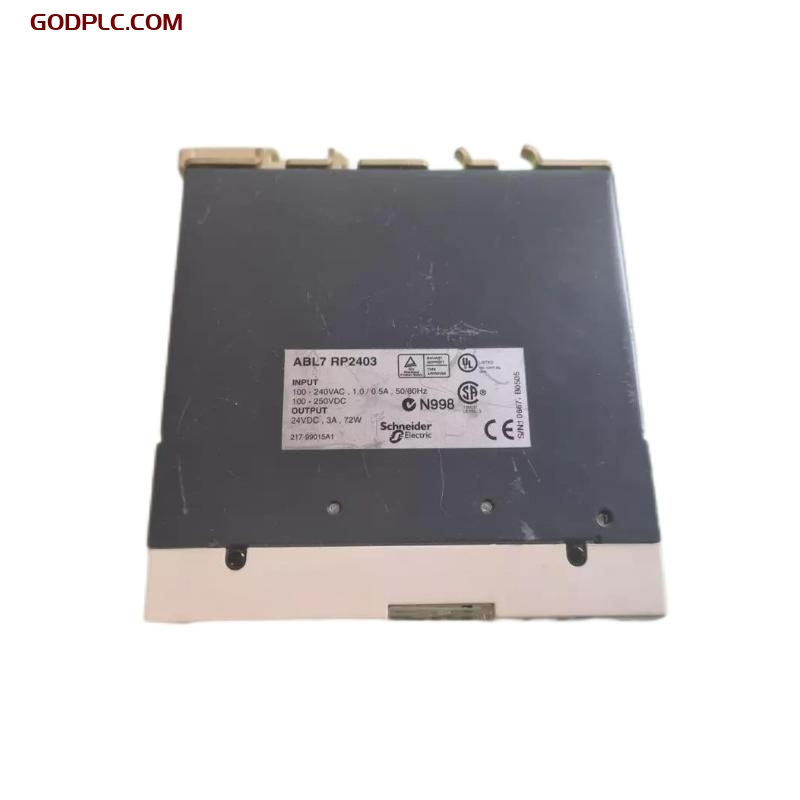

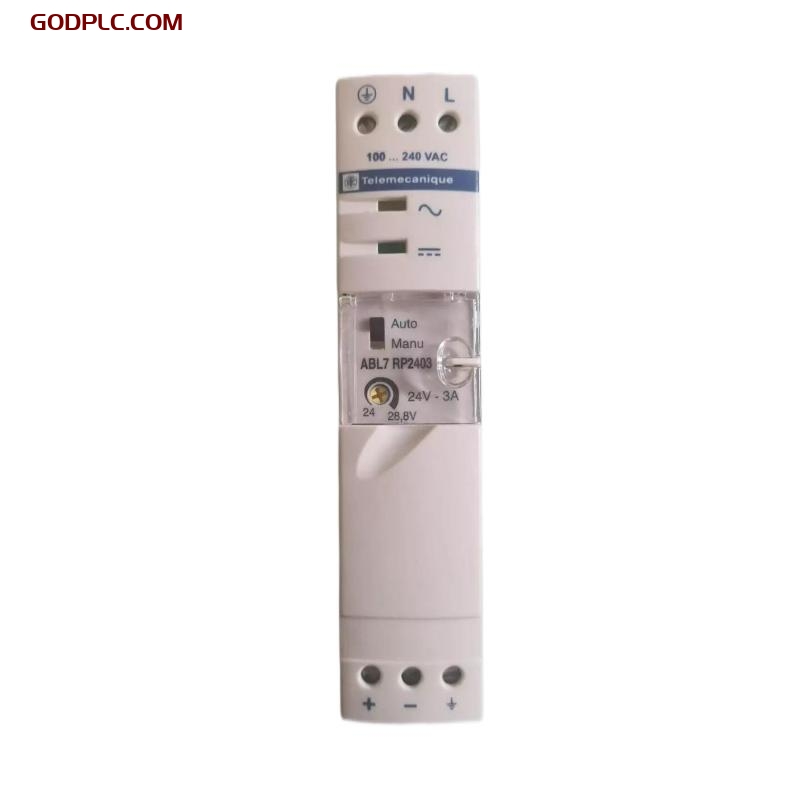

Schneider ABL7 RP2403 Switching Power Supply

1. Product Overview

The Schneider ABL7 RP2403 Switching Power Supply is a highly efficient and reliable power supply module designed for industrial automation systems to meet the power requirements of various devices and systems. The ABL7 RP2403 power supply provides stable 24V DC output with a wide input voltage range and high power density, suitable for use in various environments and working conditions. Its compact design and excellent heat dissipation performance ensure stable operation even under high load conditions.

Designed with efficiency and energy savings in mind, the ABL7 RP2403 is widely used in control systems, machinery, automation production lines, and various industrial applications. Its outstanding performance and high reliability make it an ideal choice for automation control and energy management.

2. Key Features

1. High Efficiency Output
   The ABL7 RP2403 provides 24V DC output and features highly efficient energy conversion capabilities to ensure system stability while reducing energy consumption.

2. Wide Input Voltage Range
   The power supply module supports a wide input voltage range of 85V to 264V, making it adaptable to global power supplies and ensuring stable operation in various environments.

3. Compact Design
   With its compact shape and high power density, the ABL7 RP2403 can be easily integrated into various automation devices and control systems, saving space and enhancing overall system performance.

4. High Reliability
   Equipped with high-quality electronic components, it includes overcurrent, overvoltage, and short-circuit protection functions, ensuring stability and long-term operation in complex environments.

5. Easy Installation and Maintenance
   The module is simple to use, with easy installation, commissioning, and maintenance. Its modular structure allows maintenance personnel to quickly detect and replace damaged components.

3. Technical Specifications

3.1 Dimensions and Weight

3.2 General Information

3.3 Performance and Protection Features

4. Industry Applications

The Schneider ABL7 RP2403 power supply module is widely used across many industries and fields, especially those requiring a stable power supply for automation control systems. The main application areas include:

1. Industrial Automation Control Systems
   Used in various automation production lines and equipment to provide power support, ensuring stability and reliability.

2. Machinery Equipment
   In machinery, the ABL7 RP2403 power supply module can provide continuous and stable power for drive and control systems.

3. Energy Management Systems
   Used in energy management and monitoring systems to provide stable power support for various energy devices.

4. Building Automation
   In smart building control systems, the ABL7 RP2403 provides reliable power support for control panels, sensors, and actuators.

5. Data Centers and Communication Systems
   Provides efficient and stable power support for data centers, communication base stations, and server equipment, ensuring long-term stable operation.
