1. What is the main function of the Schneider AS-BDEP-217?

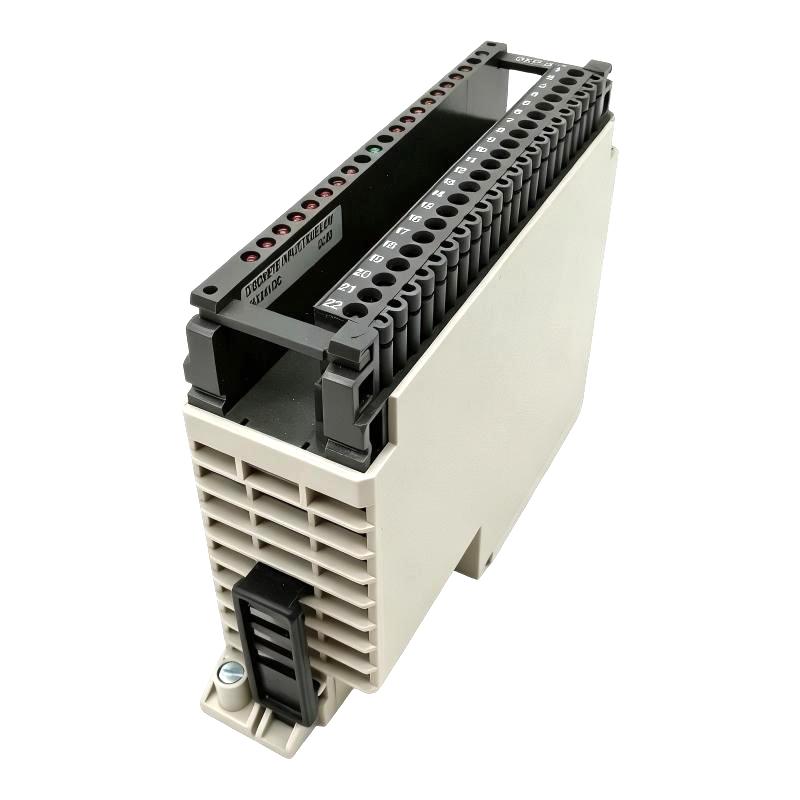

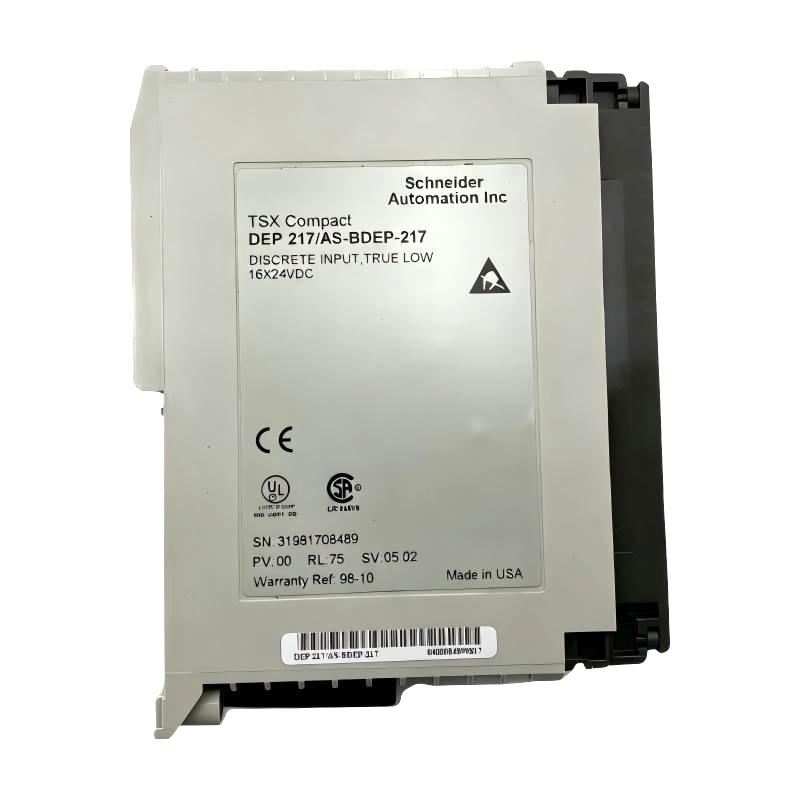

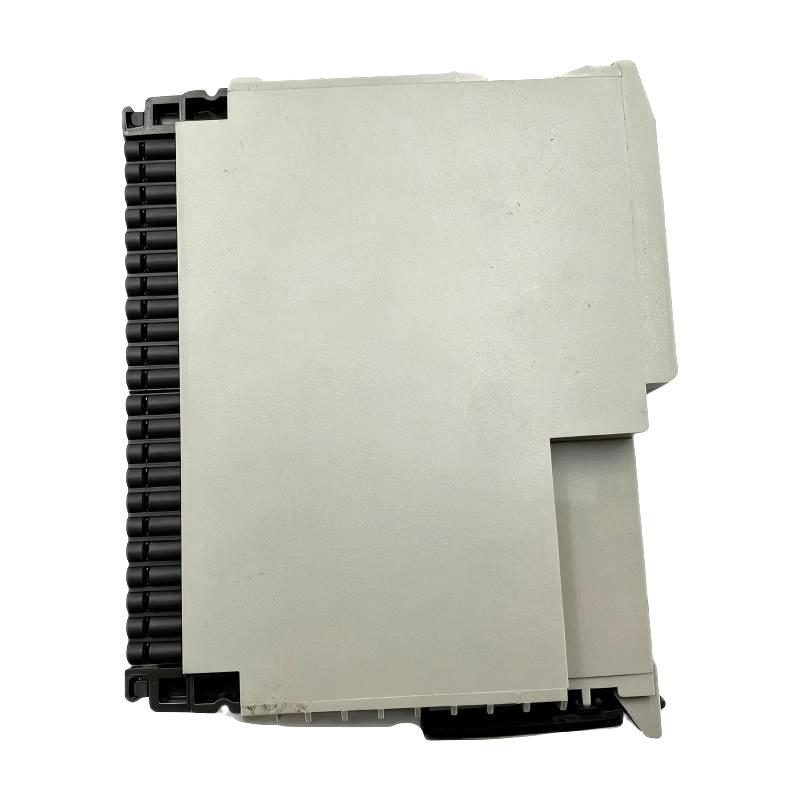

The Schneider AS-BDEP-217 is a 16-point discrete input module designed for 24 V DC industrial automation applications. Its primary function is to receive binary field signals and transfer their status to the PLC or control processor. Unlike a conventional true-high input module, the AS-BDEP-217 uses a true-low input logic, meaning the input is recognized as active when the external signal is pulled toward the low side. This makes the module suitable for specific sinking-input applications where the control system requires negative logic. Each input is optically isolated, helping separate the field signal circuits from the internal logic and improving electrical isolation within the automation system.

2. How many input channels does the AS-BDEP-217 provide?

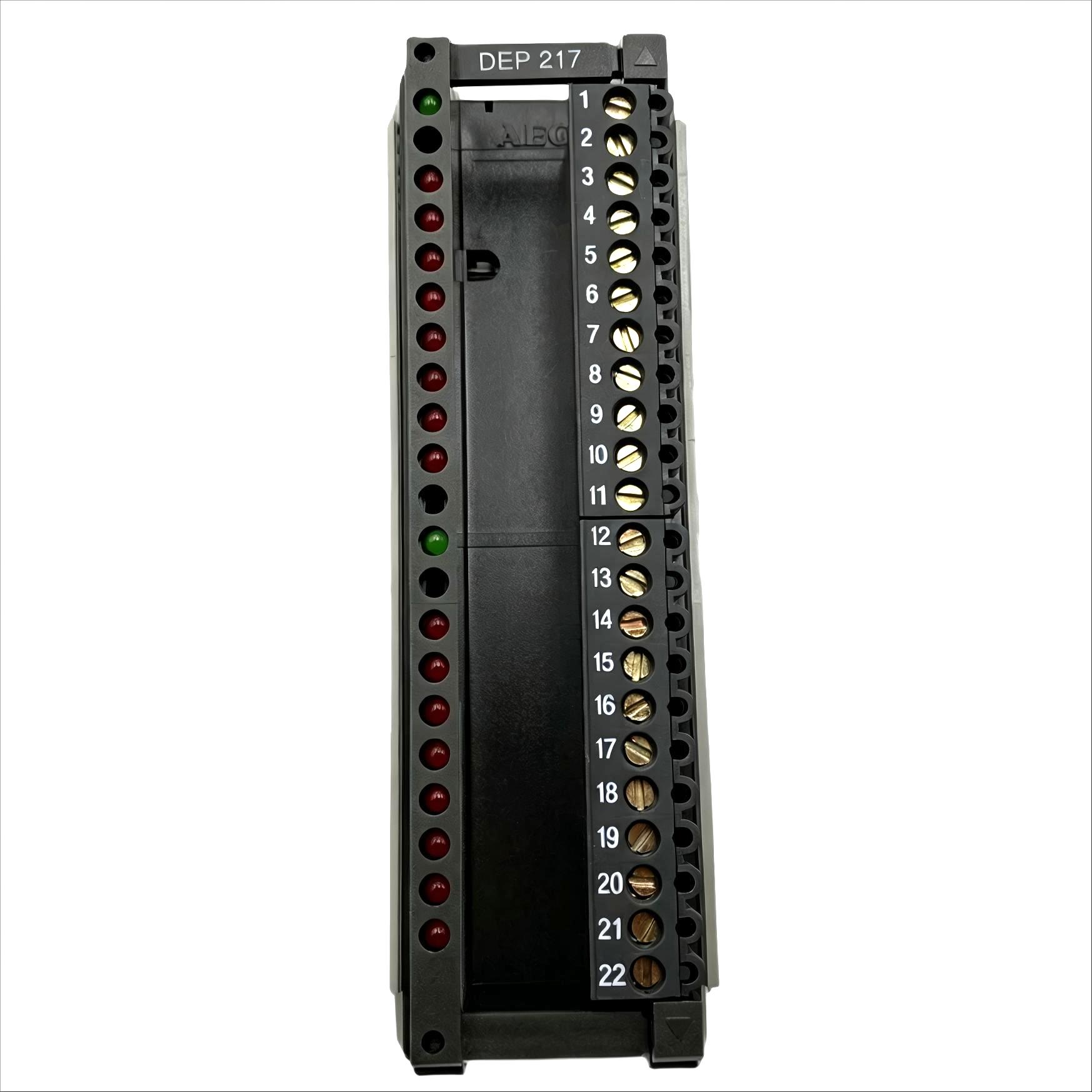

The AS-BDEP-217 provides 16 discrete input points arranged in two groups of eight inputs. This configuration allows multiple field devices, switches, sensors, or other binary signal sources to be monitored by one PLC input module. During system commissioning, each input should be mapped carefully to its corresponding PLC address so that the physical field device matches the correct software input. Because the module uses true-low logic, the PLC program should also account for the active-low signal behavior. Incorrect interpretation of the input logic can cause a field device to appear active or inactive at the wrong time.

3. What does the true-low input characteristic of the AS-BDEP-217 mean?

The true-low characteristic means that the module interprets a low-level input condition as the active state. In practical terms, when the field signal is pulled toward the low or 0 V DC side, the PLC can read the corresponding input as logically ON. This is different from a conventional true-high input, where a positive voltage normally represents an active condition. The true-low design is useful in applications using sinking signal devices or negative-logic control circuits. When programming the PLC, engineers should take this input behavior into account so that the physical ON/OFF condition is correctly represented in the control logic.

4. What operating voltage does the AS-BDEP-217 use?

The AS-BDEP-217 is designed for a nominal 24 V DC input system and has an operating voltage tolerance of approximately ±15%. The module’s input thresholds are based on its true-low operating principle rather than simply detecting a conventional positive voltage level. The field power supply should therefore be stable and properly referenced to the module’s input circuitry. During commissioning, technicians should verify the actual voltage at the input terminals under operating conditions. If the voltage is outside the expected range, the module may incorrectly interpret the field signal or fail to recognize an input transition. Power supply wiring and common connections should also be checked carefully.

5. Does the AS-BDEP-217 provide electrical isolation for each input?

Yes. The AS-BDEP-217 uses optocoupler isolation on each input. Individual optical isolation helps separate the field-side input signals from the module’s internal logic circuitry and reduces the direct electrical coupling between external devices and the PLC electronics. This design is particularly useful in industrial environments where field devices may be connected to different wiring networks or exposed to electrical noise. Although the input isolation provides an important level of protection, correct grounding, wiring, and power-supply practices are still necessary. The module should always be installed and wired according to the requirements of the complete control system.

6. What is the typical response time of the AS-BDEP-217?

The typical response time of the AS-BDEP-217 is approximately 4 ms. This represents the time required for a valid change in the discrete input signal to be recognized by the module. For normal industrial switching applications, this response is suitable for monitoring many types of binary field signals, including switches, contacts, and machine status signals. However, the module should not automatically be considered a high-speed input device. If the application involves very short pulses, rapid counting, high-speed sensors, or precise event timing, the complete signal-processing chain should be evaluated to determine whether the standard discrete input response is sufficient.

7. What should be checked if an AS-BDEP-217 input remains active or inactive?

Troubleshooting should begin with the physical input wiring and the signal source. Because the AS-BDEP-217 uses true-low logic, verify that the field device is actually switching the input toward the correct electrical level. Measure the voltage at the relevant input terminal and compare the measured condition with the expected true-low threshold. Next, inspect the common wiring, field device contacts, connectors, and terminal connections for loose or damaged connections. The PLC program should also be checked to confirm that the input address corresponds to the correct physical channel and that the active-low logic has been handled correctly. If several channels exhibit similar behavior simultaneously, the common power supply, group wiring, or module-level configuration should be investigated before assuming multiple individual input failures.

8. Is any special software required for the AS-BDEP-217?

The AS-BDEP-217 is associated with the SW-IODR-001 Software Loadable Driver for proper operation in its supported control system. During commissioning or replacement of an existing module, the appropriate driver and PLC configuration should therefore be verified before attempting to operate the input channels. The software configuration should match the actual hardware module and its 16-point true-low input characteristics. If a replacement module is installed but the PLC does not correctly recognize or process the input data, the hardware configuration, driver, I/O addressing, and application logic should all be reviewed. Particular attention should be paid to the active-low behavior so that the software interpretation matches the electrical state of the field signals.
