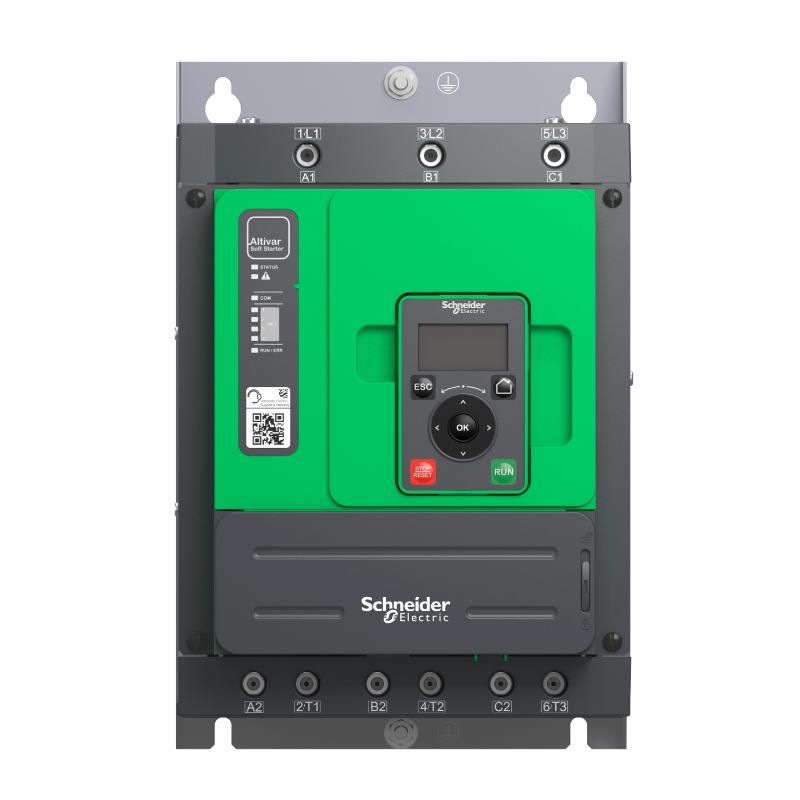

Q1: What is the main function of the Schneider ATS480C11Y Soft Starter?

A: The ATS480C11Y soft starter from Schneider Electric is designed to control the starting and stopping process of three-phase asynchronous motors. Instead of applying full voltage instantly like a direct-on-line starter, it gradually increases voltage to the motor, allowing smooth acceleration. This reduces mechanical stress on shafts, belts, and couplings, while also limiting electrical inrush current in the power system.

Q2: Where is this soft starter typically used?

A: It is widely used in industrial applications such as pumps, fans, compressors, conveyors, and mixers. These applications benefit from controlled acceleration and deceleration because sudden torque changes can damage equipment or cause process instability. It is especially useful in systems where smooth motor operation and reduced maintenance costs are important.

Q3: How does soft starting improve motor and system performance?

A: Soft starting reduces the initial current surge and mechanical shock that occur during direct motor startup. By gradually ramping up voltage, the motor accelerates smoothly, which minimizes stress on both electrical and mechanical components. This leads to longer motor life, reduced wear on mechanical parts, and improved overall system stability.

Q4: What protection functions are integrated into this device?

A: The ATS480C11Y includes multiple protection features such as motor overload protection, phase loss detection, overcurrent protection, and thermal monitoring. These protections continuously monitor operating conditions and help prevent damage to both the motor and the soft starter in abnormal situations.

Q5: How does the bypass function work?

A: Once the motor reaches its rated speed, the soft starter automatically engages an internal bypass contactor. This allows the motor to run directly from the supply voltage without passing through the power electronics, reducing heat generation and improving energy efficiency during steady-state operation.

Q6: Can this soft starter improve energy efficiency?

A: Yes. While the primary function is controlled starting, the bypass mode reduces power losses during normal operation. Additionally, by avoiding high inrush currents and mechanical shocks, it reduces overall system energy stress and helps improve long-term operational efficiency of the motor-driven system.

Q7: How does it protect mechanical equipment connected to the motor?

A: By controlling acceleration and deceleration, the soft starter reduces sudden torque spikes that can damage gearboxes, couplings, belts, and driven equipment. This controlled motion helps prevent mechanical fatigue and extends the lifespan of the entire drive system.

Q8: What maintenance practices help ensure long-term reliable operation?

A: Regular inspection of power and control wiring is important to ensure secure connections. It is also recommended to monitor fault logs and diagnostic indicators to detect early signs of abnormal operation. Keeping the installation environment clean, well-ventilated, and free from excessive heat or dust helps maintain stable performance and extends service life.
