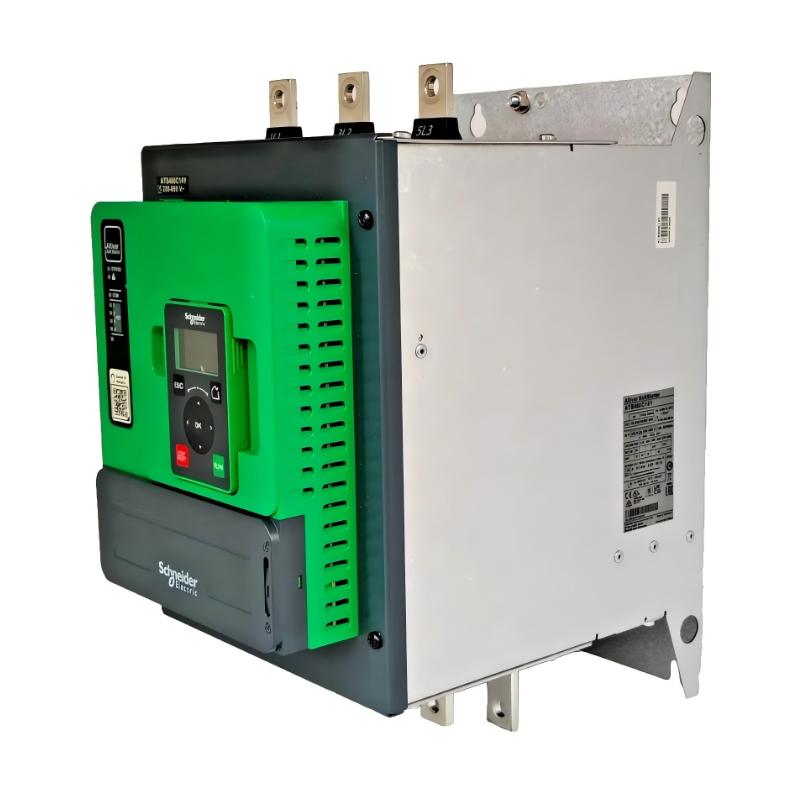

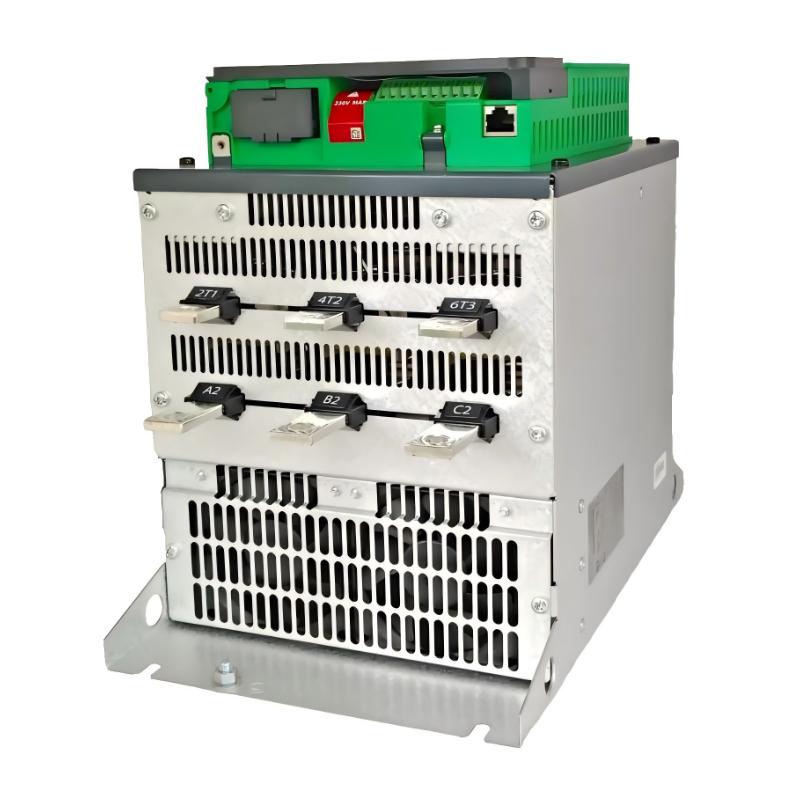

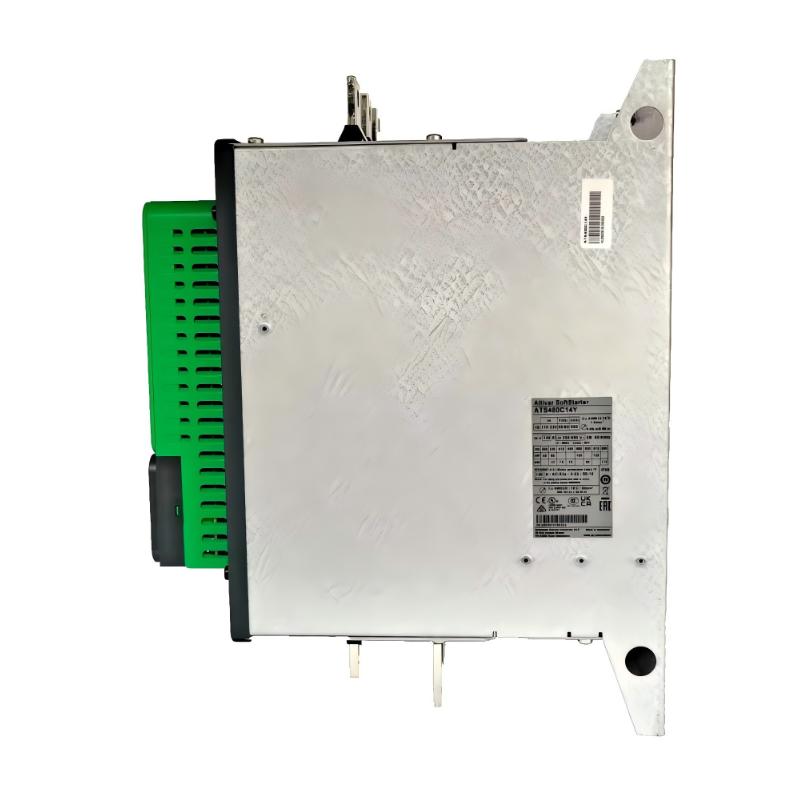

1. What is the main function of the Schneider ATS480C14Y Soft Starter?

The Schneider ATS480C14Y Soft Starter is a high-performance motor control device designed to manage the starting and stopping process of three-phase asynchronous motors through advanced torque control technology.

During traditional direct-on-line starting, motors can generate high inrush current and significant mechanical stress. The ATS480C14Y controls motor torque and acceleration gradually, reducing current impact and minimizing stress on mechanical systems.

The soft starter supports smooth starting, controlled stopping, and operational monitoring functions, improving the stability of motor-driven equipment.

It is widely used in applications such as pumps, fans, compressors, conveyors, and industrial machinery, providing reliable control for medium and high power motors.

2. What types of motors are suitable for the Schneider ATS480C14Y?

The Schneider ATS480C14Y is designed for controlling three-phase asynchronous induction motors used in industrial applications.

It is suitable for motors driving centrifugal pumps, fan systems, compressors, conveyors, mixers, and other mechanical equipment requiring smooth acceleration and deceleration.

Before installation, users should confirm that the motor rated current, voltage level, load characteristics, and operating conditions are compatible with the soft starter.

Correct matching between the motor and soft starter ensures stable startup performance, reduces unnecessary protection trips, and improves the reliability of the complete motor control system.

3. How does the Schneider ATS480C14Y achieve torque control during motor startup?

The Schneider ATS480C14Y uses advanced torque control technology to regulate motor voltage and current during the starting process.

Compared with traditional voltage ramp control, torque control provides smoother acceleration by adjusting the motor torque according to load requirements.

During startup, the soft starter manages the torque output to allow the motor to reach operating speed gradually and smoothly.

This control method is especially suitable for applications requiring precise starting performance, including large pump systems, conveyor equipment, and industrial machinery.

4. How can faults on the Schneider ATS480C14Y be diagnosed?

When the Schneider ATS480C14Y detects a fault, the first step is to check the displayed alarm information and fault codes.

Maintenance personnel should inspect the incoming power supply, motor connections, control signals, parameter settings, and protection functions.

For overload faults, the actual motor load should be checked to determine whether it exceeds normal operating conditions.

For phase loss or current-related faults, technicians should verify the three-phase power supply, cable connections, and electrical system status.

A complete analysis combining fault information, operating conditions, and mechanical load conditions helps identify the root cause quickly and restore normal operation.

5. How is the Schneider ATS480C14Y configured for different applications?

The Schneider ATS480C14Y can be configured through the operation panel or configuration tools.

Main settings include starting torque, acceleration time, deceleration time, motor protection parameters, control modes, and communication settings.

Different applications require optimized parameter adjustments according to load characteristics.

For example, pump applications may require optimized stopping control to reduce pressure fluctuations, while conveyor systems may require customized acceleration curves to minimize mechanical stress.

Proper parameter configuration improves system efficiency, reduces faults, and ensures reliable motor operation.

6. What are the common faults of the Schneider ATS480C14Y?

Common faults of the Schneider ATS480C14Y include motor overload, power supply problems, phase loss, startup failure, incorrect parameters, and communication errors.

When the motor load exceeds the allowable operating range, protection functions may activate to prevent equipment damage.

Incorrect startup settings, such as insufficient torque or excessively short acceleration time, may also cause abnormal starting performance.

In addition, unstable power quality, incorrect wiring, and environmental changes can affect the normal operation of the soft starter.

Regular inspection of system conditions and operating parameters helps reduce unexpected failures.

7. What are the advantages of the Schneider ATS480C14Y Soft Starter?

The Schneider ATS480C14Y provides advanced torque control, comprehensive protection functions, and strong industrial adaptability.

Compared with traditional motor starting methods, it reduces starting current impact, minimizes mechanical wear, and improves overall system stability.

The soft starter supports multiple control functions, allowing it to meet different industrial load requirements.

Integrated motor protection features help reduce risks caused by abnormal operating conditions.

With reliable performance, the ATS480C14Y is widely used in industrial automation, power systems, water treatment, manufacturing, and other demanding applications.

8. What maintenance practices are recommended for the Schneider ATS480C14Y?

To ensure long-term reliable operation of the Schneider ATS480C14Y, regular inspection and preventive maintenance should be performed.

Maintenance personnel should check power connections, motor operating conditions, fault records, parameter settings, and communication status.

The installation environment should be kept clean and protected from dust, moisture, and excessive heat that may affect electronic components.

Protection parameters should be reviewed regularly to ensure they match the actual application requirements.

A proper maintenance program helps reduce unexpected downtime, improve system reliability, and extend the service life of the soft starter and connected motor system.
