1. What is the main function of the Schneider ATV12H075F1?

The Schneider ATV12H075F1 is a variable frequency drive from the Altivar 12 series, designed to control the speed, acceleration, deceleration and stopping of asynchronous AC motors. It is rated for a 0.75 kW (1 hp) motor and is designed for a single-phase 100–120 V AC supply. The drive regulates the frequency and voltage supplied to the motor, allowing the motor speed to be adjusted according to the machine requirements. It is intended primarily for simple industrial machines and can be used in applications such as small pumps, fans, conveyors and other equipment requiring controlled motor operation. The drive also provides multiple motor control profiles, Modbus communication and integrated electronic protection functions.

2. What type of motor can be used with the ATV12H075F1?

The ATV12H075F1 is designed for asynchronous AC motors with a rated power of 0.75 kW (1 hp). Its nominal output current is 4.2 A, so the motor nameplate current should be checked before connecting the motor. The motor’s rated voltage, frequency and current must be compatible with the configured drive parameters. During commissioning, the motor nameplate information should be entered accurately so that the drive can calculate the appropriate voltage, frequency and thermal behavior. The ATV12H075F1 supports V/f control, sensorless flux vector control and quadratic V/f control, allowing the control method to be selected according to the motor and mechanical load characteristics.

3. What input power supply does the ATV12H075F1 require?

The ATV12H075F1 requires a single-phase 100–120 V AC power supply with a nominal frequency of 50/60 Hz. The permitted input voltage tolerance is approximately -15% to +10%. The line current is approximately 18.9 A at 100 V and 15.7 A at 120 V under the specified operating conditions. Because the input current is relatively high for a single-phase supply, the upstream circuit protection, wiring and disconnecting equipment should be selected appropriately. Before commissioning, the supply voltage should be measured and verified. Excessively low or high input voltage can cause protective trips and may prevent the drive from operating normally.

4. Which motor control modes are supported by the ATV12H075F1?

The ATV12H075F1 supports V/f control, sensorless flux vector control and quadratic V/f control. V/f control is suitable for general-purpose applications where straightforward speed regulation is required. Sensorless flux vector control provides improved torque characteristics without the need for an encoder and can be useful when better low-speed motor performance is required. Quadratic V/f control is particularly suitable for variable-torque loads such as fans and centrifugal pumps. The selected control method should match the mechanical characteristics of the application. Correct motor nameplate data and suitable acceleration and deceleration parameters are also important for obtaining stable motor performance.

5. Does the ATV12H075F1 support Modbus communication?

Yes. The ATV12H075F1 supports Modbus RTU communication through a 2-wire RS-485 interface and provides an RJ45 connector on the front of the drive. The communication interface can be used to connect the drive to a PLC, HMI, SCADA system or other automation controller. Through Modbus, the control system can send commands and speed references while reading operating status, parameters, alarms and diagnostic information. Communication speeds include 4800, 9600, 19200 and 38400 bit/s, and the available Modbus address range is 1–247. If communication does not work correctly, the RS-485 wiring, device address, transmission rate, parity and PLC communication configuration should be checked systematically.

6. Why might the ATV12H075F1 trip during motor acceleration?

An acceleration trip can be caused by excessive mechanical load, insufficient acceleration time, incorrect motor parameters or an electrical problem in the motor circuit. First, check whether the motor and machine can rotate freely and whether the load is higher than expected. Then compare the motor parameters programmed into the drive with the actual motor nameplate values, especially rated voltage, current, frequency and power. If the acceleration ramp is too short, the motor may require excessive current while accelerating a high-inertia load. Increasing the acceleration time can reduce the instantaneous current demand. Motor cables and terminals should also be inspected for loose connections, phase problems or insulation faults. The exact fault indication should be reviewed to determine whether the drive has detected overcurrent, overheating, undervoltage, phase loss or another abnormal condition.

7. What protection functions are available on the ATV12H075F1?

The ATV12H075F1 provides protection against several electrical and thermal conditions, including line overvoltage, line undervoltage, output overcurrent, motor phase-to-earth short circuit, motor phase-to-phase short circuit, overheating and input phase loss. It also uses electronic motor thermal protection based on continuous I²t calculation. This function evaluates the thermal load imposed on the motor according to current and operating time. Correct motor parameters are important because incorrect settings can affect the accuracy of the thermal model. The drive can also monitor its own thermal operating condition. For applications with frequent starts, stops, high inertia or changing loads, the protection and operating parameters should be reviewed during commissioning rather than relying only on factory defaults.

8. What should be checked during installation and commissioning of the ATV12H075F1?

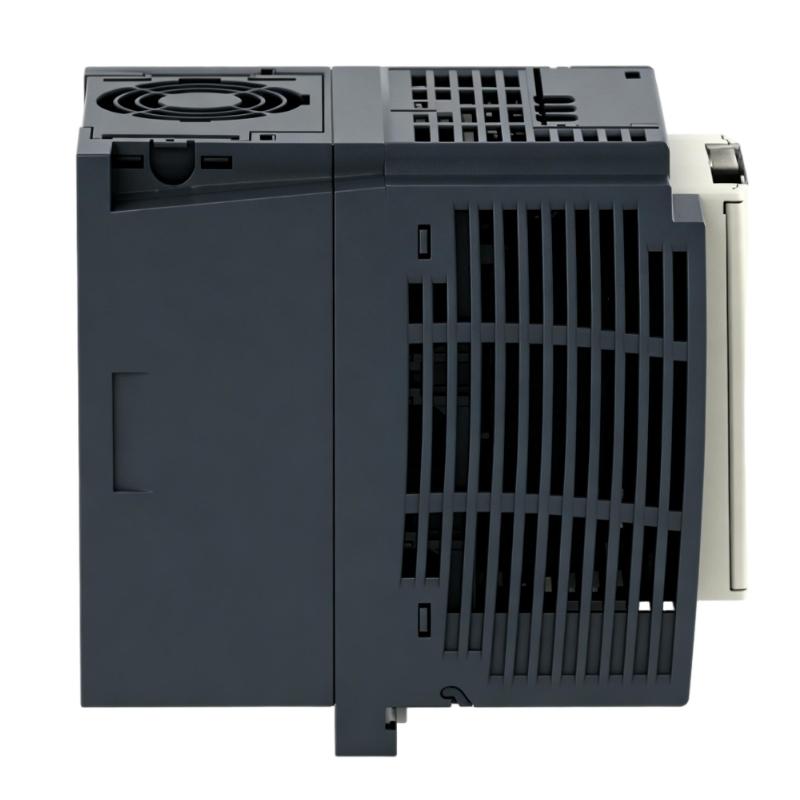

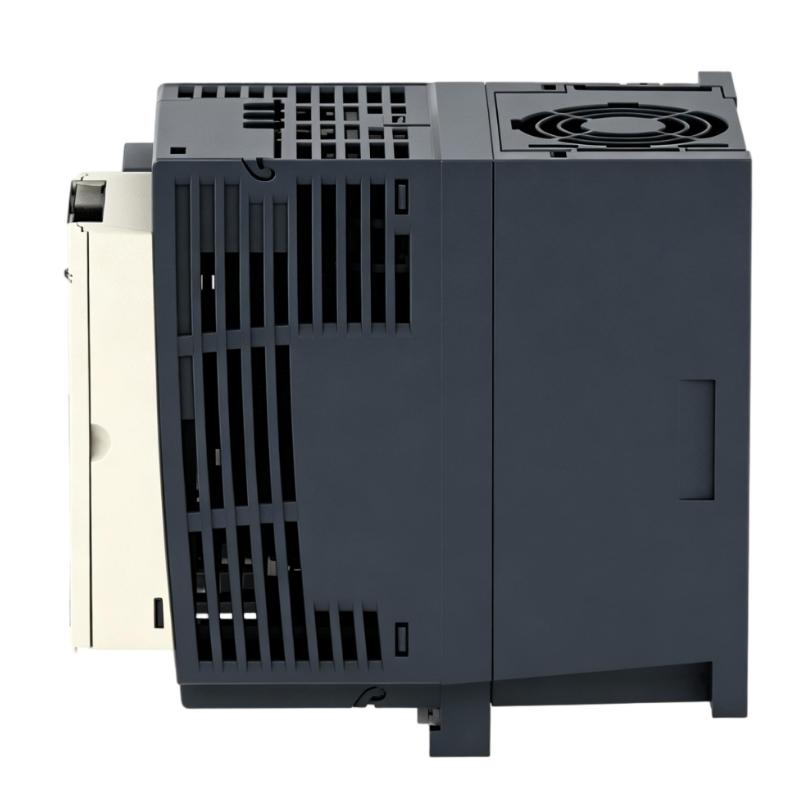

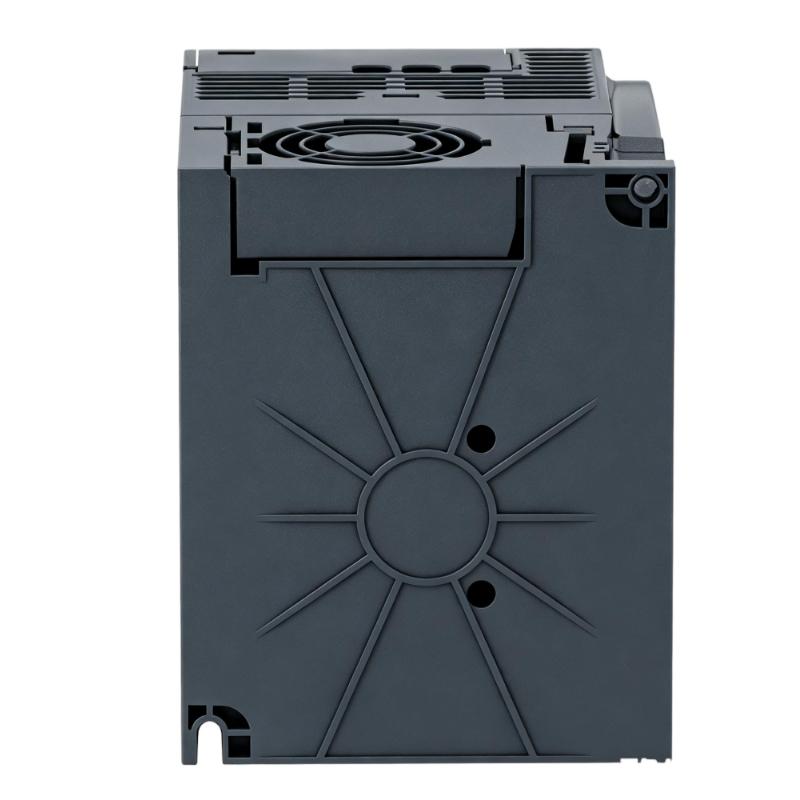

Before commissioning the ATV12H075F1, verify the single-phase 100–120 V AC supply, motor wiring, protective grounding and control connections. Because this model uses forced cooling and includes a built-in fan, adequate airflow around the drive should be maintained and the ventilation openings should not be blocked. The motor nameplate parameters should be entered accurately, followed by configuration of the motor control mode, minimum and maximum frequency, acceleration and deceleration times and speed reference. If Modbus is being used, check the RS-485 wiring and communication parameters before starting the motor. During the initial test, monitor motor current, output frequency, acceleration behavior and any abnormal sound or vibration. If the drive reports a fault, stop the equipment and inspect the motor, mechanical load, wiring and configuration before restarting.
