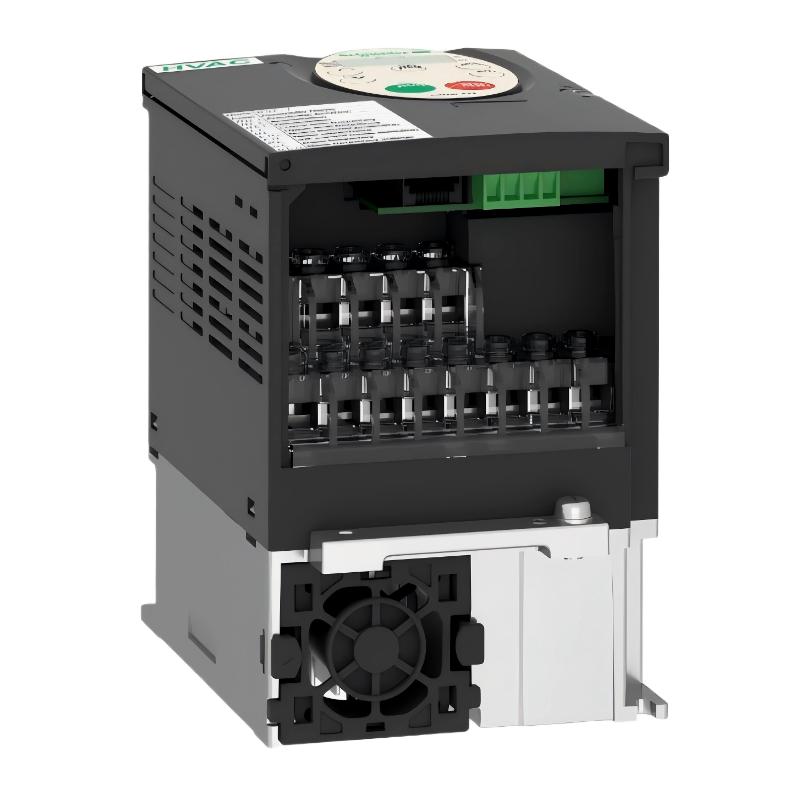

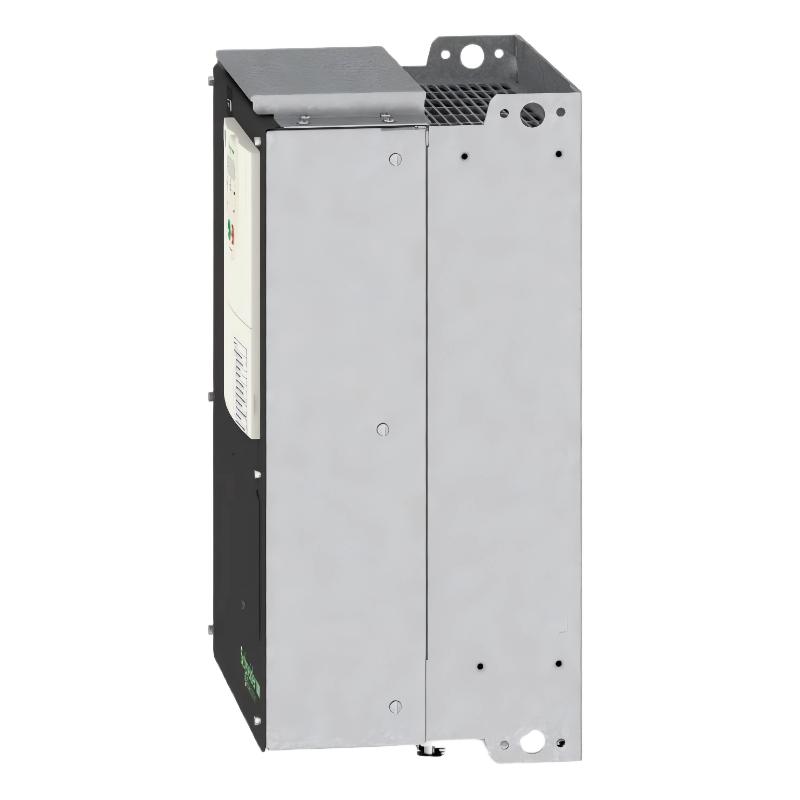

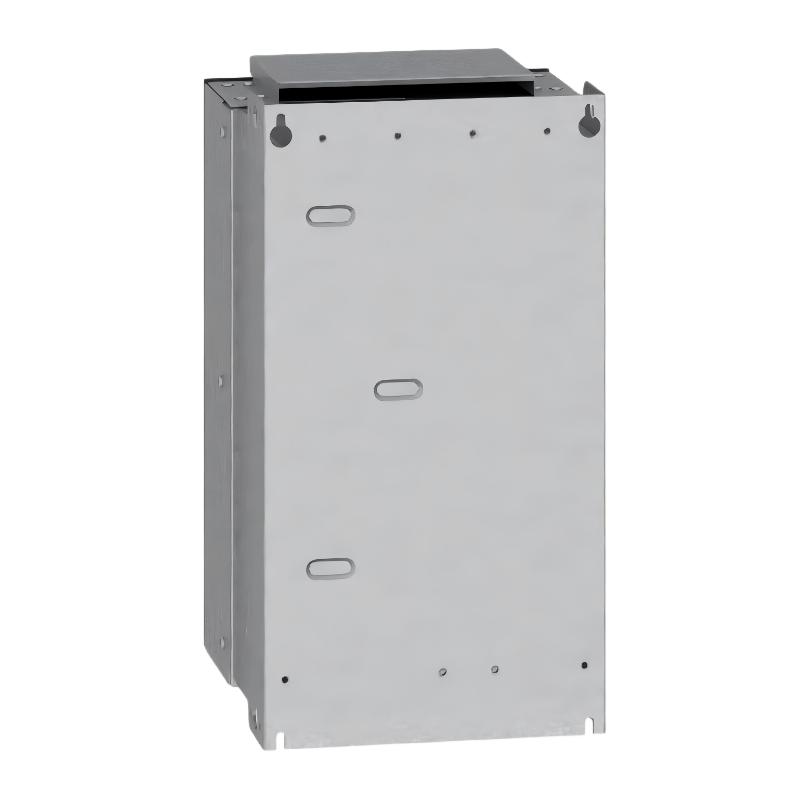

Schneider ATV212HD22N4 Frequency Converter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATV212HD22N4 |
| Product Type | Frequency Converter (VFD) |
| Brand | Schneider Electric |
| Application | HVAC systems, pumps, fans, and industrial energy-efficient motor control |
| Input Voltage | 3-phase 380–480 V AC |
| Rated Power | 22 kW (approx. 30 HP) |
| Output Frequency Range | 0.5 – 200 Hz |
| Control Method | V/F control, optimized energy-saving control |
| Overload Capacity | 120% for 60 s, 150% for 2 s |
| EMC Filter | Built-in industrial-grade EMC filter |
| Communication Interfaces | Modbus, BACnet (optional) |
| Protection Functions | Overcurrent, overvoltage, undervoltage, overheating, short-circuit protection |
| Cooling Method | Forced air cooling |
| Installation Type | Wall-mounted / cabinet installation |
| Protection Rating | IP21 (standard) |
| Operating Environment | Industrial and building automation environments |
| Dimensions | 420 × 214 × 240 mm |
| Weight | 26.4 kg |
FAQ
1. What is the main application of the ATV212HD22N4 frequency converter?
This drive is primarily used in HVAC systems such as pumps, fans, and ventilation equipment. It is designed to optimize motor speed control and improve overall energy efficiency in building and industrial applications.
2. What type of motors is this VFD suitable for?
It is suitable for standard asynchronous AC motors commonly used in HVAC applications, especially centrifugal loads like water pumps and air handling fans.
3. Does the drive support energy-saving operation?
Yes, it includes built-in energy optimization algorithms that automatically adjust voltage and frequency according to load demand, reducing unnecessary power consumption.
4. What control modes are available?
The unit supports V/F control and optimized energy-saving control, providing stable operation under varying load conditions without requiring complex tuning.
5. Can it be integrated into building automation systems?
Yes, it supports Modbus communication as standard and optionally BACnet, making it suitable for integration into BMS and industrial automation networks.
6. What protection features are included?
It provides multiple protections including overcurrent, overvoltage, undervoltage, overheating, and short-circuit protection to ensure safe operation under all conditions.
7. What should be considered during operation and maintenance?
Proper ventilation, correct grounding, and periodic inspection of cooling fans and wiring are important to ensure long-term stable performance.
8. What happens when a fault occurs in the drive?
When a fault is detected, the inverter stops output immediately and displays an error code. This allows quick diagnosis and helps prevent damage to both the drive and connected motor system.
Schneider ATV212HD22N4 Frequency Converter is in stock. Please contact us for a quick quote and competitive pricing.
