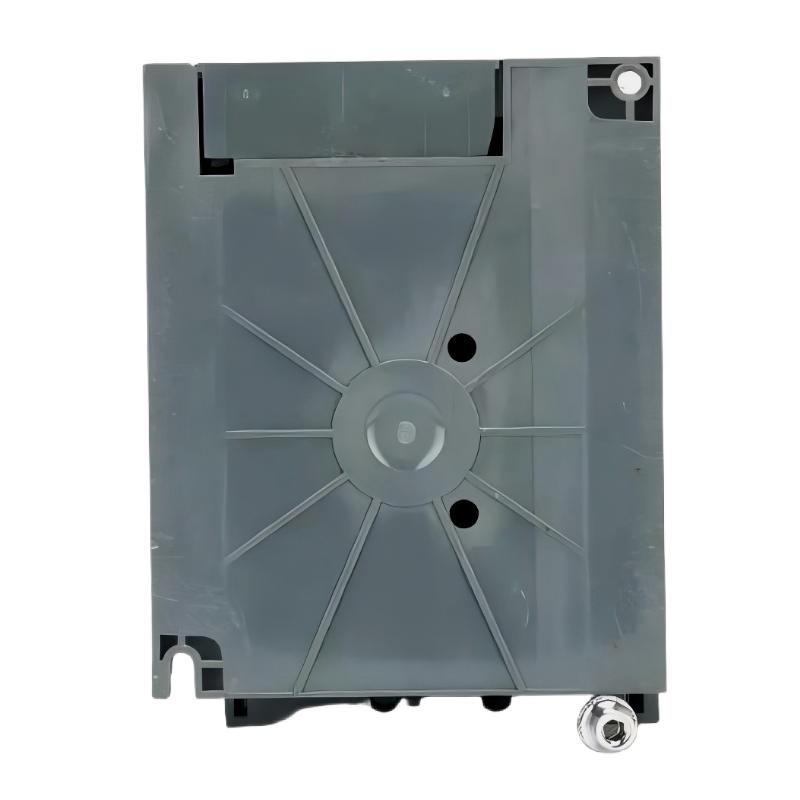

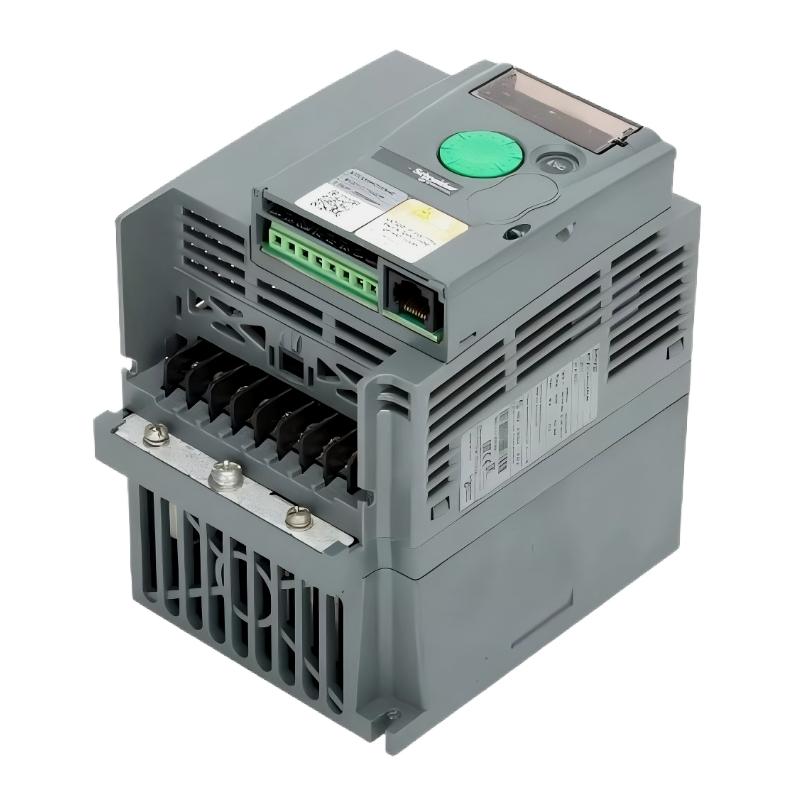

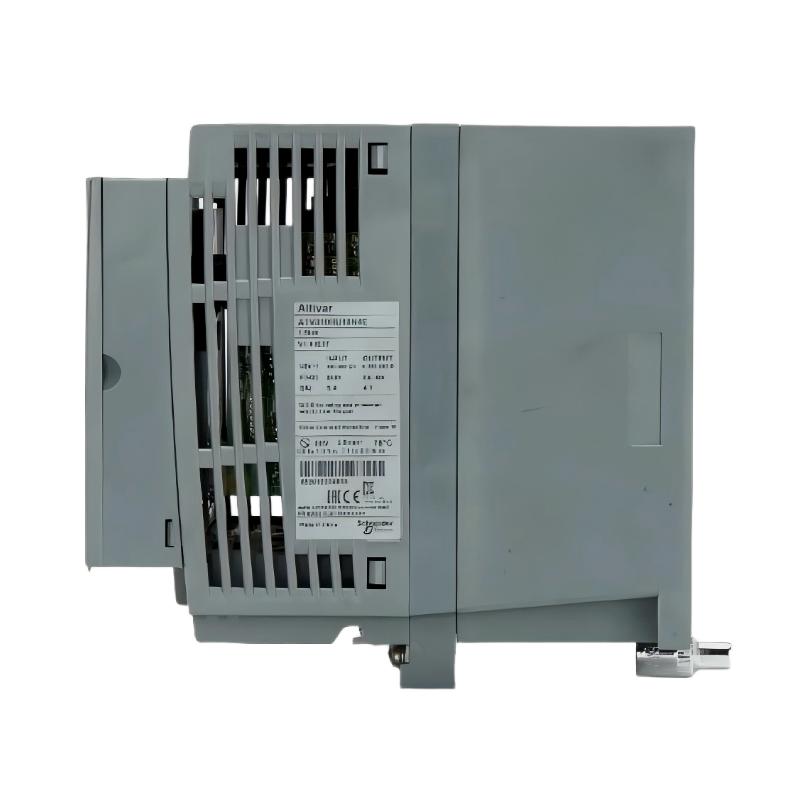

Schneider ATV310HU15N4E Variable Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Model | ATV310HU15N4E |
| Product Name | Variable Speed Drive |
| Brand | Schneider |
| Product Type | Variable Frequency Drive (VFD) |
| Application Areas | Industrial automation, pumps, fans, small conveyor systems, light industrial machinery |
| Function | Controls three-phase motor speed by adjusting output frequency and voltage for energy-efficient operation |
| Input Voltage | Three-phase AC supply (industrial standard voltage range depending on configuration) |
| Output Voltage | Three-phase variable frequency output |
| Control Method | V/F control (Voltage/Frequency control) |
| Power Rating | 15 kW class |
| Overload Capacity | Short-time overload protection depending on load conditions |
| Cooling Method | Natural cooling with fan-assisted heat dissipation |
| Protection Level | Industrial-grade protection design |
| Communication Interface | Optional industrial communication expansion modules |
| Installation Method | Wall-mounted or panel-mounted inside control cabinet |
| Operating Environment | Industrial environments |
| Structural Design | Compact integrated design |
| Maintenance Method | Parameter configuration and modular maintenance |
| Dimensions | 143 × 105 × 151 mm |
| Weight | 1.1 kg |
FAQ
1. What is the main function of the Schneider ATV310HU15N4E Variable Speed Drive?
The main function of this variable speed drive is to regulate the speed of three-phase induction motors by adjusting output frequency and voltage. This allows smooth motor starting, precise speed control, and improved energy efficiency in industrial applications.
2. What types of equipment is this drive commonly used with?
This drive is commonly used with pumps, fans, small conveyor systems, mixers, and other light industrial machinery where variable speed control is required to optimize performance and reduce energy consumption.
3. What is V/F control and why is it used?
V/F (Voltage/Frequency) control maintains a constant ratio between voltage and frequency to regulate motor speed. It is widely used because it is simple, stable, and suitable for most standard industrial motor applications.
4. What protection features does this drive include?
The drive includes multiple protection functions such as overcurrent protection, overvoltage protection, undervoltage protection, overheating protection, and short-circuit protection to ensure safe operation of both the drive and the motor.
5. What should be considered during installation?
The drive should be installed in a well-ventilated control cabinet, away from excessive heat and moisture. Proper grounding is required, and power wiring should be separated from control wiring to minimize electromagnetic interference.
6. Does the drive support communication integration?
Yes, it supports optional communication expansion modules, allowing integration with PLC or DCS systems for remote monitoring, control, and industrial automation applications.
7. How can normal operation be verified?
Normal operation can be confirmed through the control panel display, status indicators, and diagnostic messages. Stable motor performance without fault alarms indicates correct functioning.
8. How can the service life of the drive be extended?
Service life can be extended by ensuring proper cooling, avoiding continuous overload operation, regularly cleaning ventilation paths, and maintaining stable electrical and environmental conditions.
Schneider ATV310HU15N4E Variable Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
