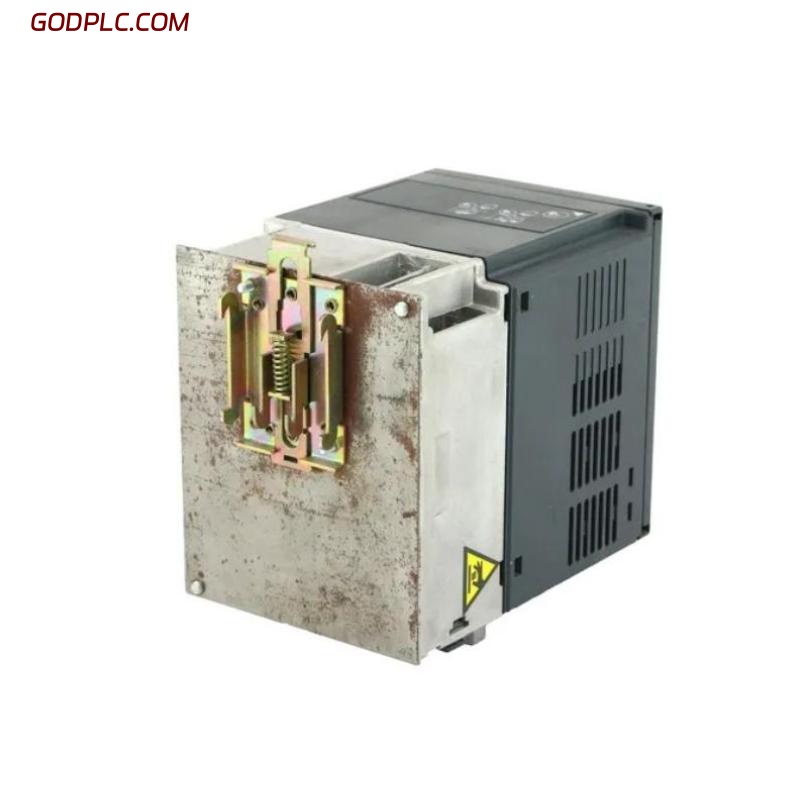

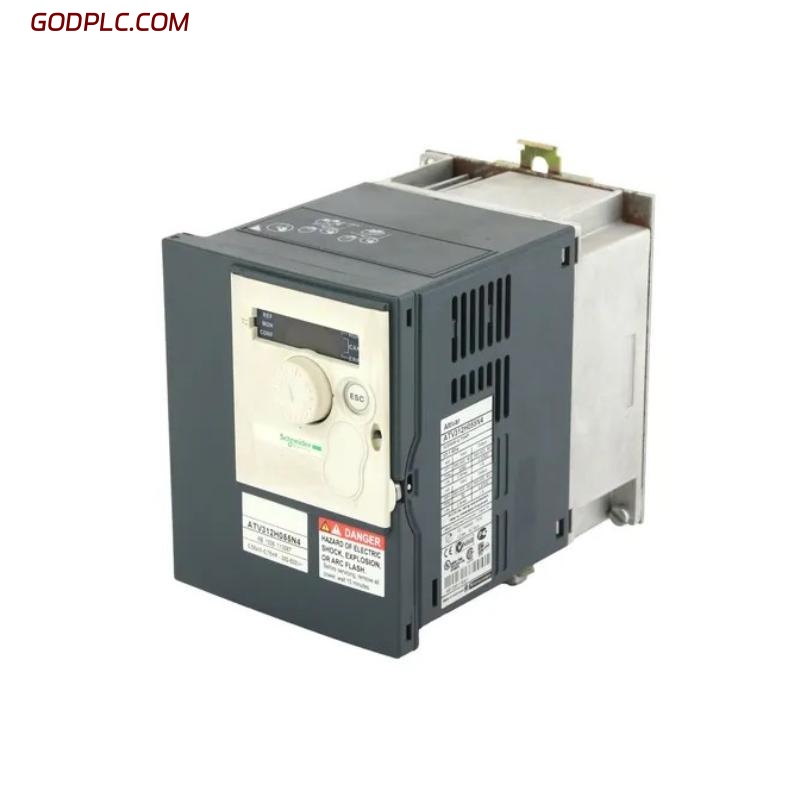

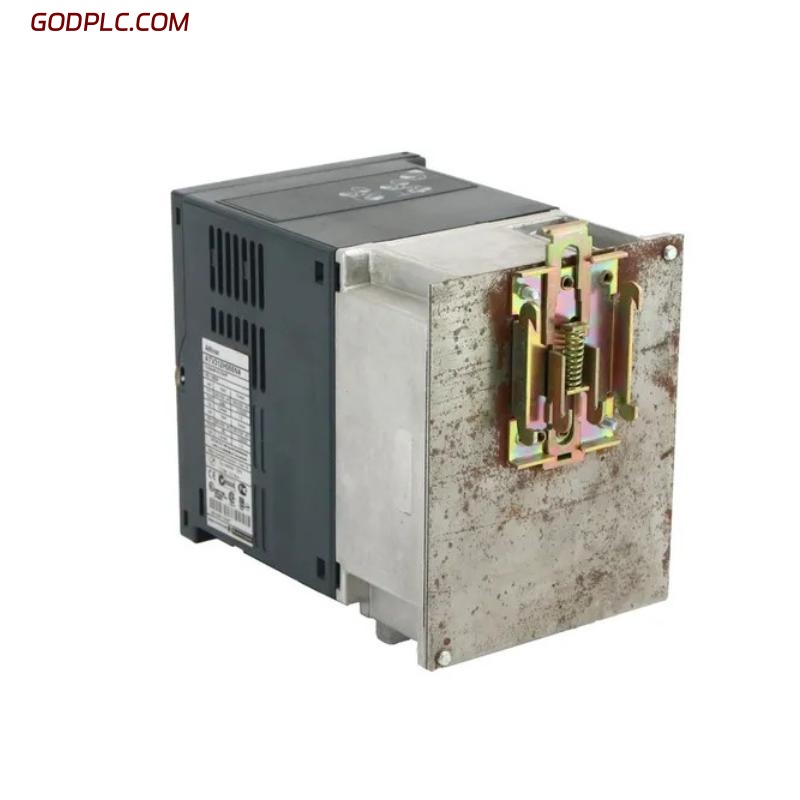

Schneider ATV312H055N4 Variable Speed Drive
Product Overview
The Schneider ATV312H055N4 is a compact, high-performance variable speed drive (VSD) designed to control three-phase asynchronous motors in industrial and commercial applications. Part of the Altivar 312 series, this model offers advanced motor control, energy efficiency, and versatile communication features, making it ideal for small machinery, conveyors, fans, and pumps.
Engineered for flexibility and ease of use, the ATV312H055N4 supports quick setup, robust operation, and reliable performance in demanding environments. It provides effective torque and speed control for motors up to 0.55 kW (0.75 HP) at 400 V.
Key Features
-
Precise Motor Control – Sensorless vector control for high dynamic performance and energy-efficient operation
-
User-Friendly Interface – Integrated display and navigation for quick configuration and diagnostics
-
Compact Size – Space-saving design suitable for tight control cabinets
-
Integrated Safety Features – Includes thermal protection, fault diagnostics, and fault history
-
Flexible Connectivity – Compatible with Modbus, CANopen, and optional communication modules
-
Multi-Application Support – Ideal for HVAC, packaging, textile, and material handling systems
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 143 x 107 x 152mm |
| Weight | 1.8 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Power Rating | 0.55 kW (0.75 HP) |
| Input Voltage | 380–500 V AC, 3-phase |
| Output Voltage | 0–Uin, 3-phase |
| Frequency Range | 0.5–400 Hz |
| Overload Capacity | 150% for 60 seconds |
| Control Method | V/F, Sensorless Vector Control |
| Switching Frequency | Adjustable from 2–16 kHz |
Mechanical & Environmental
| Item | Specification |
|---|---|
| Cooling Method | Forced air cooling |
| Enclosure Rating | IP20 (open type) |
| Operating Temperature | -10°C to +50°C (without derating) |
| Mounting Type | DIN rail or panel mounting |
| Vibration Resistance | 1.5 mm peak to peak (3–200 Hz) |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Motors | Three-phase asynchronous motors |
| Communication Options | Modbus (integrated), CANopen (integrated), optional expansion cards |
Industry Applications
-
HVAC Systems – Efficient speed control for fans and blowers
-
Material Handling – Smooth motor operation for conveyors and lifters
-
Textile Machinery – Delivers precise control for consistent production
-
Packaging Equipment – Increases throughput with adaptable motor speeds
-
Pumps & Compressors – Optimizes flow and pressure in process systems
The Schneider ATV312H055N4 Variable Speed Drive delivers a reliable, flexible, and compact motor control solution for a wide range of industrial applications. With its robust design and high-performance control algorithms, it helps reduce energy consumption and increase operational efficiency.
Schneider ATV312H055N4 Variable Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
