Technical Specifications

FAQ

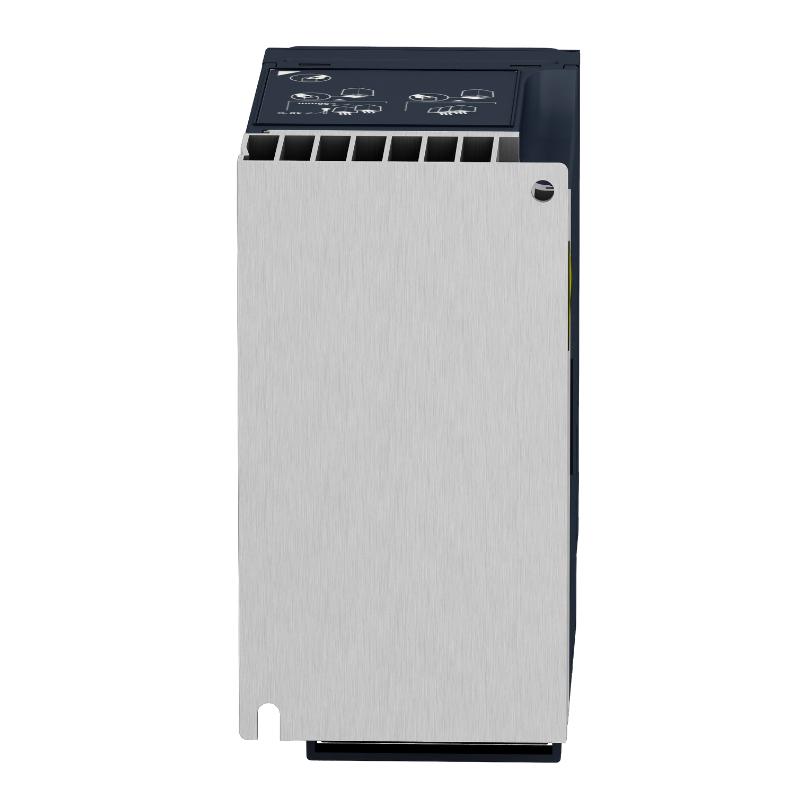

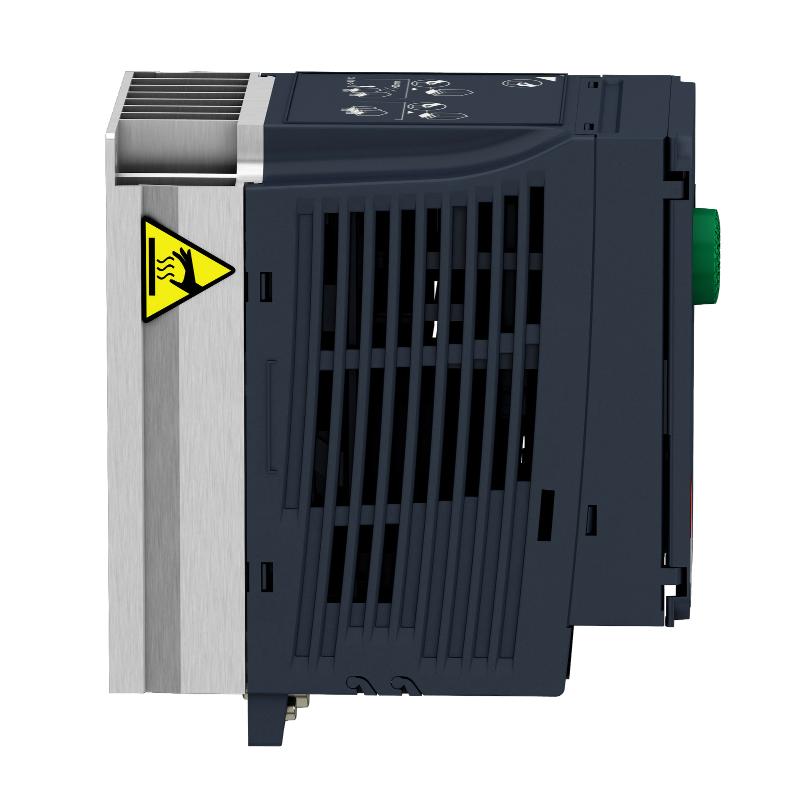

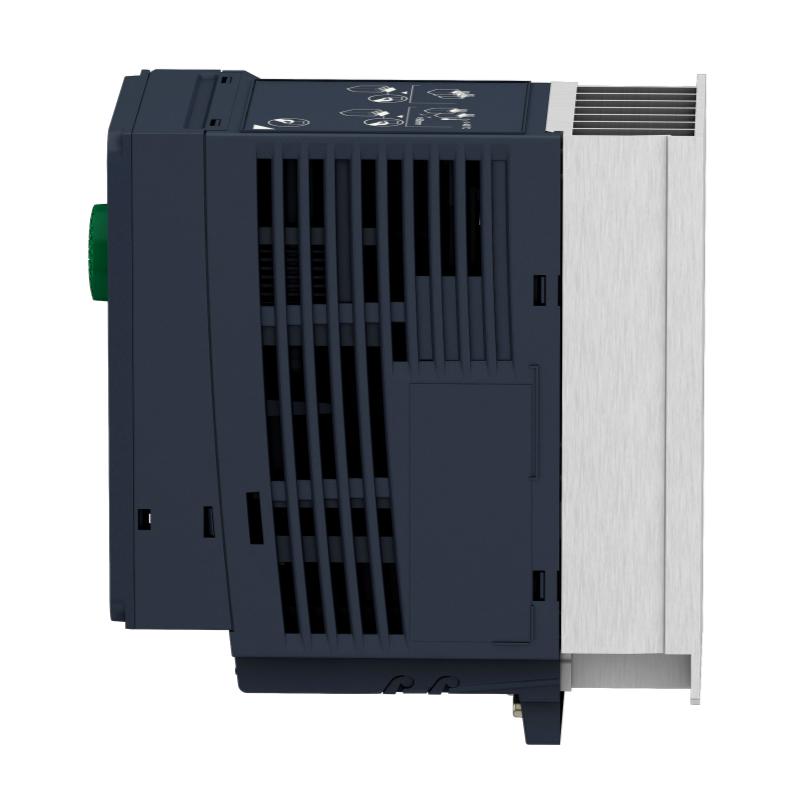

Q1: What is the main function of the Schneider ATV320U07M2C Variable Speed Drive?

A: The ATV320U07M2C from Schneider Electric is designed to regulate the speed and torque of three-phase asynchronous motors by adjusting output frequency and voltage. Instead of running the motor directly at fixed mains frequency, it allows the motor speed to be precisely matched to process requirements. This improves energy efficiency, reduces mechanical stress, and enhances overall process stability in industrial systems.

Q2: What types of industrial applications is this drive suitable for?

A: This drive is widely used in light and medium industrial applications such as small pumps, ventilation systems, conveyors, packaging equipment, textile machinery, and automated production lines. These applications require stable speed control, smooth operation, and compact installation, which the ATV320 series is designed to provide.

Q3: How does a variable speed drive improve energy efficiency in real operation?

A: A variable speed drive reduces energy consumption by adjusting motor speed according to actual load demand rather than running continuously at full speed. In systems like pumps and fans, reducing speed leads to a significant drop in power consumption, since energy demand decreases rapidly with speed reduction. This results in lower electricity costs, reduced heat generation, and improved system sustainability.

Q4: What control strategies are available in this drive?

A: The ATV320U07M2C supports both sensorless vector control and V/F control. Sensorless vector control provides improved torque response and better speed accuracy under varying load conditions, making it suitable for more dynamic applications. V/F control offers a simpler and more robust operating mode for general-purpose applications where high precision is not critical.

Q5: What protection mechanisms are integrated into the drive?

A: The device includes comprehensive protection functions such as overload protection, overcurrent protection, short circuit protection, and thermal protection. These functions continuously monitor electrical and thermal conditions of both the motor and the drive. If abnormal operating conditions occur, the system will react by limiting operation or shutting down to prevent equipment damage.

Q6: How does DC injection braking improve system performance?

A: DC injection braking works by injecting direct current into the motor windings during deceleration. This creates a stationary magnetic field that resists rotor movement, allowing the motor to slow down more quickly and in a controlled manner. It is particularly useful in applications where stopping time needs to be reduced or precise positioning is required.

Q7: Can this drive be integrated into industrial automation systems?

A: Yes, the drive is designed for seamless integration into industrial automation environments. It supports standard communication interfaces that allow connection to PLC systems, HMIs, and supervisory control systems. This enables remote monitoring, parameter configuration, fault diagnostics, and real-time control within automated production lines.

Q8: What practices ensure long-term stable operation of this drive?

A: Long-term stable operation depends on maintaining proper installation and environmental conditions. This includes ensuring adequate ventilation to prevent overheating, keeping electrical connections tight and clean, and avoiding dust or moisture accumulation inside the control cabinet. Regular inspection of operating logs and fault records is also important, as early detection of abnormal patterns allows preventive maintenance before failures occur.
