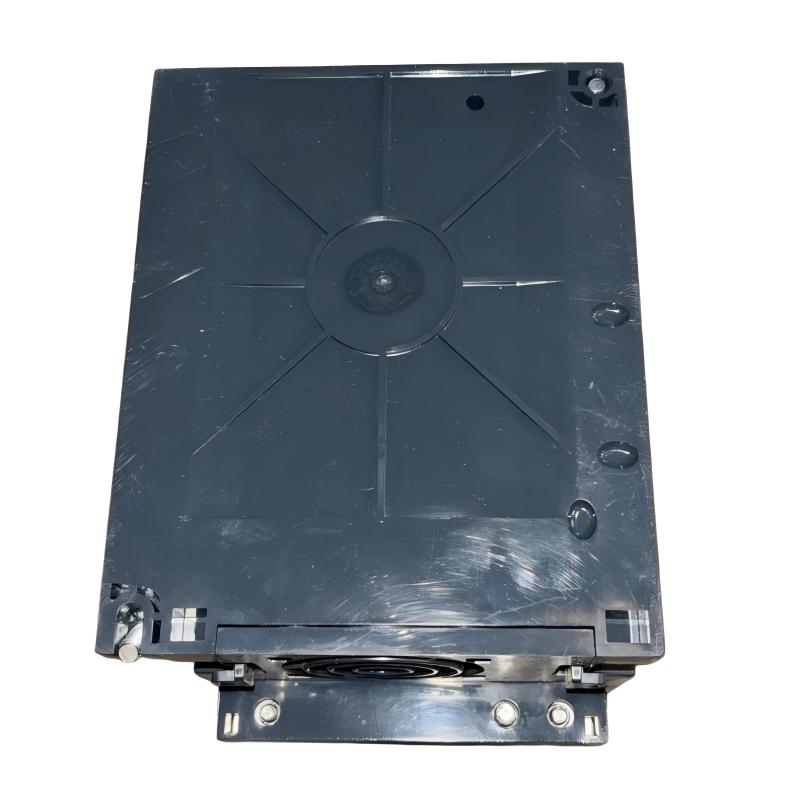

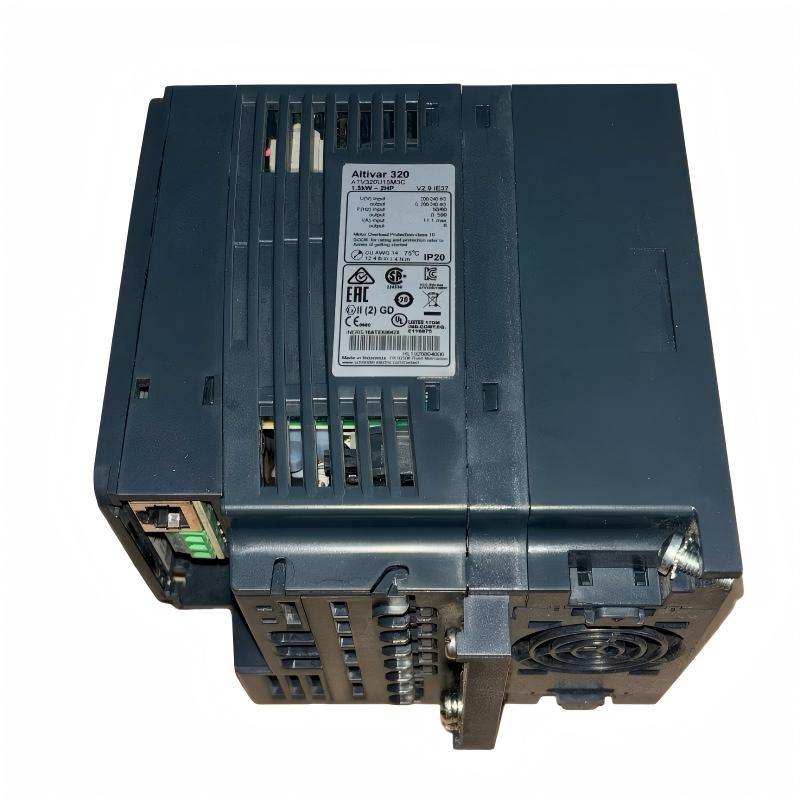

Schneider ATV320U15M3C Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATV320U15M3C |
| Product Type | Variable-Speed Drive |
| Brand | Schneider Electric |
| Product Series | Altivar Machine ATV320 |
| Compatible Motors | Asynchronous and synchronous motors |
| Number of Phases | 3-phase |
| Rated Input Voltage | 200–240 V AC |
| Input Frequency | 50/60 Hz |
| Rated Motor Power | 1.5 kW |
| Motor Power | 2 hp |
| Continuous Output Current | 8.0 A, Heavy Duty |
| Maximum Transient Current | 12.0 A for 60 seconds |
| Maximum Output Voltage | 240 V AC |
| Output Frequency Range | 0.1–599 Hz |
| Switching Frequency | 2–16 kHz, 4 kHz nominal |
| Motor Control | Sensorless Flux Vector Control, V/F Control |
| Energy-Saving Function | Supported |
| Braking Method | DC Injection Braking |
| Brake Chopper | Built-in |
| Braking Resistor | External option |
| EMC Filter | Without Built-in EMC Filter |
| Protection Degree | IP20 |
| Cooling Method | Forced Air Cooling |

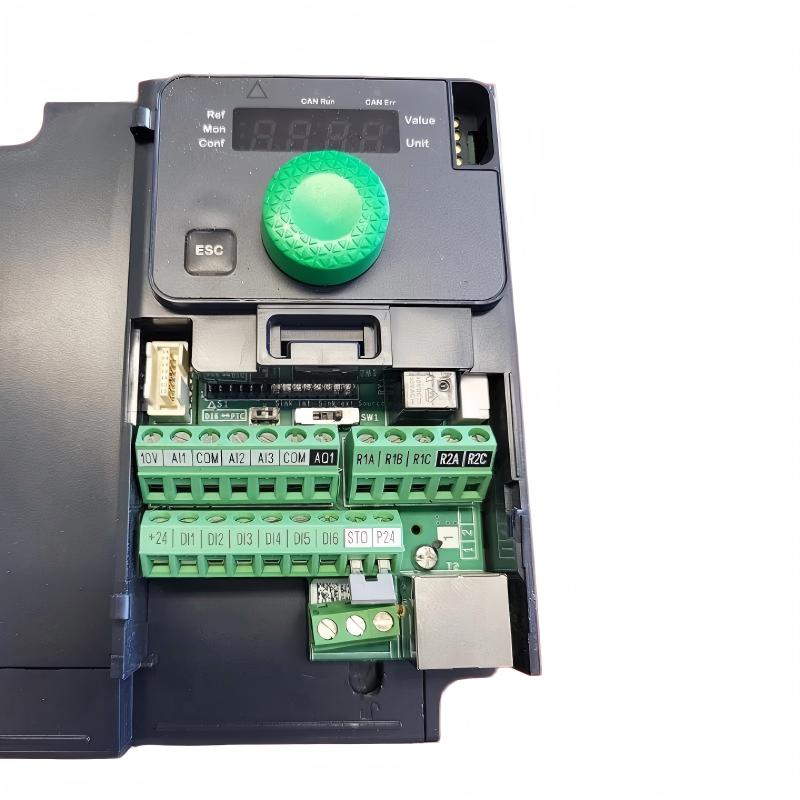

| Digital Inputs | 7 |
| Digital Outputs | 3 |
| Analog Inputs | 3 |
| Analog Output | 1 |
| Communication | Modbus Serial, CANopen |
| Safety Functions | STO, SS1 and other configurable safety functions |
| Motor Overload Protection | Supported |
| Short-Circuit Protection | Supported |
| Overvoltage Protection | Supported |
| Undervoltage Protection | Supported |
| Mounting | Wall mounting |
| Typical Applications | Conveyors, packaging machines, material handling, textile machinery and processing equipment |
| Operating Temperature | -10 to +50 °C, depending on load and installation conditions |
| Rated Short-Circuit Current | Up to 5 kA |
| Dimensions | 105 × 143 × 138 mm |
| Weight | 1.4 kg |
FAQ
1. What is the main function of the Schneider ATV320U15M3C variable-speed drive?
The ATV320U15M3C is designed to control the speed, torque, acceleration, and deceleration of three-phase AC motors. By regulating the motor’s output voltage and frequency, the drive provides controlled starting, stopping, and variable-speed operation for industrial machinery.
2. What type of motors can the ATV320U15M3C control?
The ATV320U15M3C supports asynchronous and synchronous motors. During commissioning, the motor rated voltage, current, frequency, and power should be entered according to the motor nameplate. Correct motor data helps optimize control performance and ensures that the drive’s motor protection functions operate correctly.
3. What input power supply does the ATV320U15M3C require?
The ATV320U15M3C is designed for a three-phase 200–240 V AC input supply at 50/60 Hz. The incoming voltage should remain within the specified operating range. Correct grounding, upstream protection, and phase wiring should be verified before energizing the drive.
4. What motor power is suitable for the ATV320U15M3C?
The ATV320U15M3C is intended for a 1.5 kW motor, equivalent to approximately 2 hp. Drive selection should also consider the motor’s rated current, load characteristics, starting requirements, overload conditions, and duty cycle. This is especially important for machines with high inertia or frequent acceleration and deceleration.
5. Which motor control modes are supported?
The ATV320U15M3C supports sensorless flux vector control and V/F control. V/F control is suitable for simpler speed-control applications, while sensorless flux vector control can provide improved torque response and speed regulation. The appropriate control method should be selected according to the motor and mechanical load.
6. Can the ATV320U15M3C communicate with a PLC?
Yes. The ATV320U15M3C supports Modbus serial communication and CANopen. These communication interfaces allow the drive to exchange start/stop commands, speed references, operating status, monitoring values, and diagnostic information with PLCs and other industrial automation controllers.
7. What protection and safety functions are available?
The ATV320U15M3C provides electronic motor overload protection, short-circuit protection, overvoltage protection, and undervoltage protection. The ATV320 platform also supports safety functions such as Safe Torque Off (STO) and Safe Stop 1 (SS1). Safety functions should be correctly wired, configured, and validated as part of the machine safety system.
8. What should be checked if the ATV320U15M3C trips with an overcurrent fault?
First check the displayed fault code and verify the motor’s rated voltage, current, and frequency settings. Excessive mechanical load, motor blockage, an acceleration time that is too short, incorrect control parameters, or damaged motor cables can cause overcurrent. If necessary, increase the acceleration time and inspect the motor, cables, terminals, and mechanical transmission system before restarting the drive.
Schneider ATV320U15M3C Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
