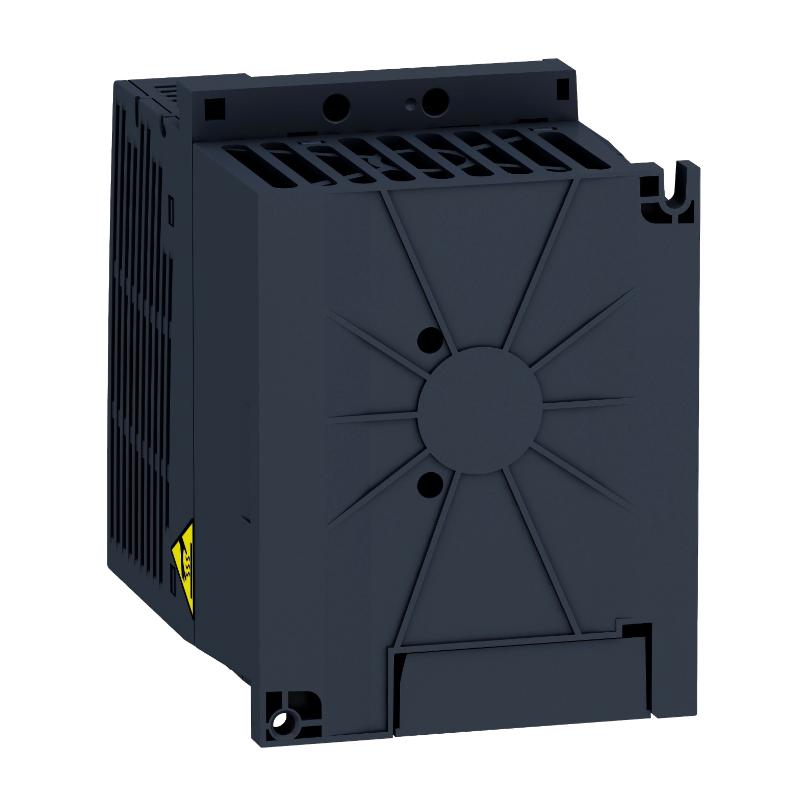

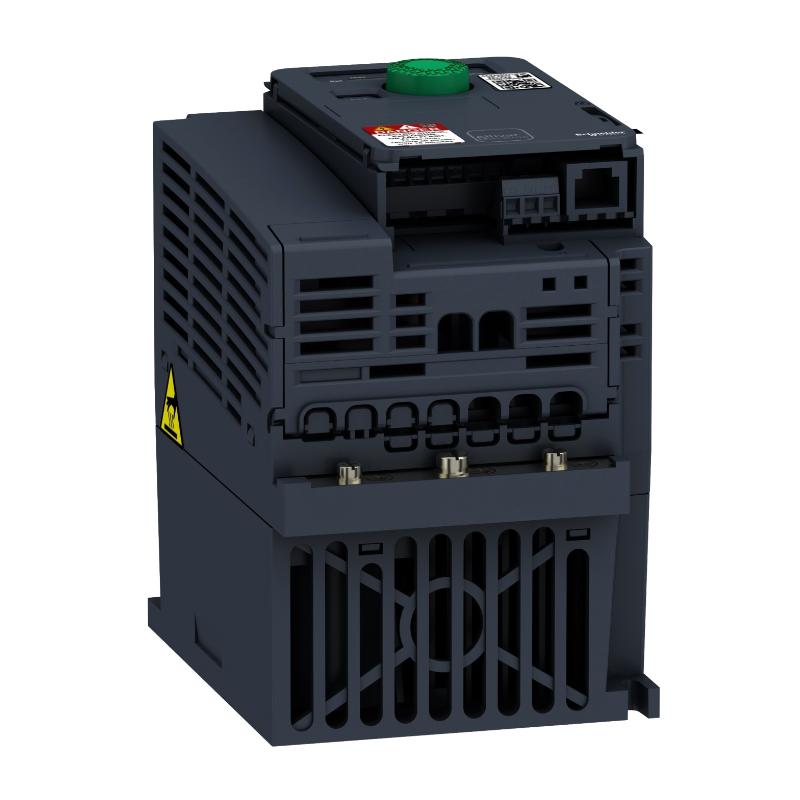

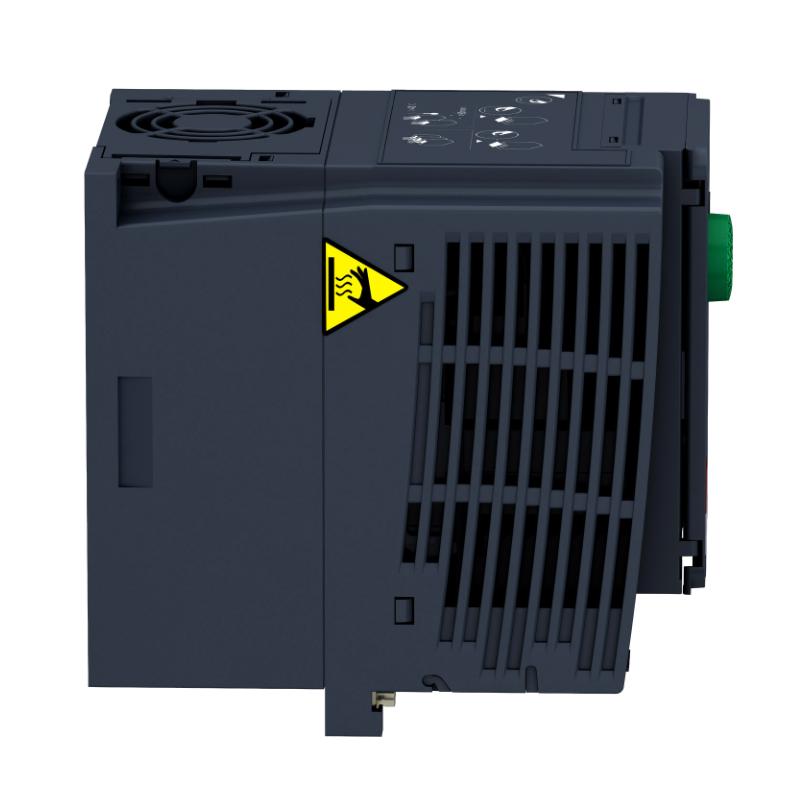

Q1: What is the main function of the ATV320U22M2C variable speed drive?
A: The ATV320U22M2C is used to control the speed, torque, and operating behavior of AC motors by adjusting output frequency and voltage. This allows smoother motor operation, reduced mechanical stress, and improved energy efficiency compared to fixed-speed operation. It is widely used in industrial automation systems where process demand varies over time.

Q2: What types of motors can be controlled by this drive?
A: This drive supports both asynchronous (induction) motors and synchronous motors. It can be configured for different motor control strategies depending on application needs, making it suitable for a wide range of industrial machinery and process systems.

Q3: What control methods are available?
A: The ATV320 series supports V/F control and sensorless vector control. V/F control is suitable for simple, stable loads such as fans and pumps, while sensorless vector control provides higher torque accuracy and better dynamic response for more demanding applications like conveyors and mechanical systems.

Q4: How does this drive contribute to energy savings?
A: By adjusting motor speed according to real-time load requirements, the drive avoids unnecessary full-speed operation. In variable torque applications such as pumps and fans, reducing speed significantly lowers energy consumption, resulting in substantial operational cost savings.

Q5: What protection features are built into the device?
A: The drive includes multiple built-in protections such as overcurrent, overvoltage, undervoltage, thermal overload, and short-circuit protection. These safety mechanisms help protect both the motor and the drive from electrical and thermal damage.

Q6: Can the ATV320U22M2C be integrated into automation systems?
A: Yes, it supports industrial communication protocols such as Modbus and CANopen (depending on configuration). This allows integration with PLCs, SCADA systems, and other industrial controllers for remote monitoring and control.

Q7: What are typical applications of this model?
A: It is commonly used in pumps, fans, conveyors, packaging systems, and general-purpose light industrial machinery. Its flexibility makes it suitable for both standalone machines and integrated automation systems.

Q8: What practices help ensure long-term reliable operation?
A: Proper ventilation, regular inspection of electrical connections, and keeping the installation environment clean are essential. Preventing dust accumulation in cooling areas and monitoring operational data can help detect early signs of issues and ensure stable long-term performance.
