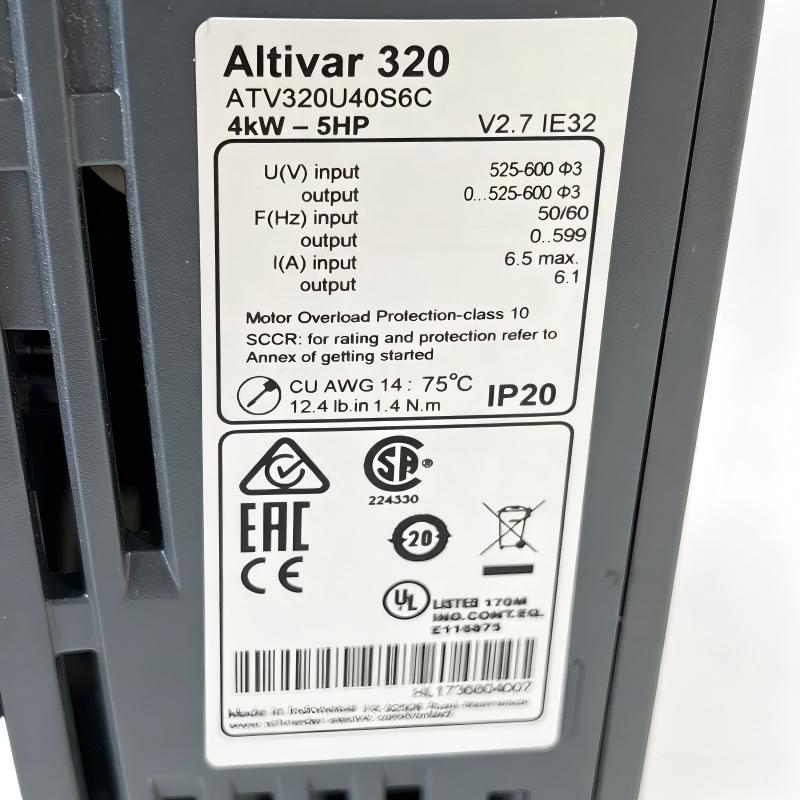

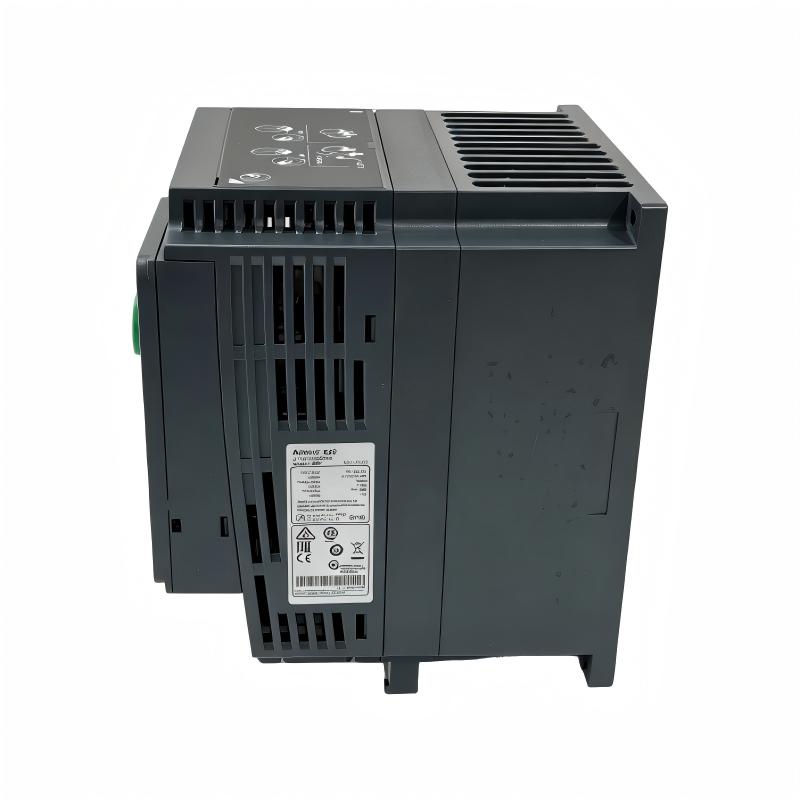

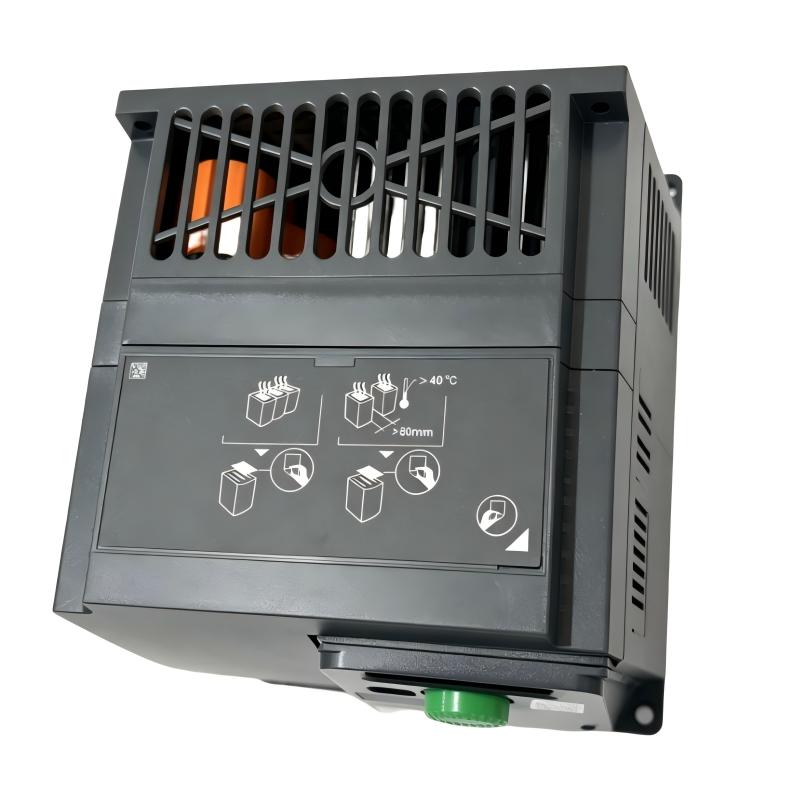

Schneider ATV320U40S6C Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Series | Altivar Machine ATV320 |
| Model | ATV320U40S6C |
| Product Type | Variable-Speed Drive / Variable Frequency Drive |
| Application | Complex machines and industrial motor control |
| Variant | Standard version |
| Drive Format | Compact |
| Mounting | Wall mounting |
| Rated Motor Power | 4.0 kW / 5 HP, heavy duty |
| Rated Supply Voltage | 525–600 V AC |
| Supply Voltage Tolerance | -15% to +10% |
| Supply Phase | 3-phase |
| Supply Frequency | 50–60 Hz |
| Line Current | 6.5 A at 525 V; 5.8 A at 600 V, heavy duty |
| Nominal Output Current | 6.1 A at 4 kHz, heavy duty |
| Maximum Transient Current | 9.2 A for 60 seconds |
| Apparent Power | 6 kVA at 600 V, heavy duty |
| Maximum Output Voltage | 600 V |
| Output Frequency | 0.1–599 Hz |
| Switching Frequency | 2–16 kHz adjustable; 4 kHz nominal |
| Motor Compatibility | Asynchronous and synchronous motors |
| Asynchronous Motor Control | 2-point V/F, 5-point V/F, sensorless flux vector control, energy-saving V/F, energy-saving sensorless flux vector control |
| Synchronous Motor Control | Sensorless vector control |
| Digital Inputs | 7 |
| STO Input | Safe Torque Off, 24 V DC |
| Pulse Input | DI5 programmable as 0–30 kHz pulse input |
| Digital Outputs | 3 open-collector outputs, up to 30 V DC / 100 mA |
| Analog Inputs | 3; 0–10 V DC, ±10 V differential, 0–20 mA and configurable current signals |
| Analog Output | 1; software-configurable 0–20 mA or 0–10 V |
| Communication | Modbus Serial, CANopen |
| Optional Communication | CANopen, EtherCAT, PROFIBUS DP V1, PROFINET, Ethernet Powerlink, EtherNet/IP, DeviceNet |
| EMC Filter | No integrated EMC filter |
| Braking | DC injection braking; integrated braking chopper |
| Transient Over-Torque | Approximately 170–200% of rated motor torque |
| Safety Functions | STO, SS1, SLS; additional safety functions available depending on configuration |
| Cooling | Fan cooling |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +50°C without derating; derating required at higher temperatures up to +60°C |
| Pollution Degree | 2 |
| Main Standard | IEC 61800-5-1 |
| Dimensions | 140 × 184 × 158 mm |
| Weight | 2.5 kg |
FAQ
1. What motor power is the Schneider ATV320U40S6C designed for?
The ATV320U40S6C is a 4.0 kW, 5 HP heavy-duty variable-speed drive designed for three-phase 525–600 V AC motor applications. It supports both asynchronous and synchronous motors and is suitable for industrial machines that require reliable speed and torque control.
2. What is the rated output current of the ATV320U40S6C?
The ATV320U40S6C has a continuous output current of 6.1 A at a 4 kHz switching frequency under heavy-duty conditions. It can provide a maximum transient current of approximately 9.2 A for 60 seconds, which helps handle temporary overloads and higher starting torque requirements.
3. What motor control methods does the ATV320U40S6C support?
The drive supports several control methods for asynchronous motors, including 2-point V/F control, 5-point V/F control, sensorless flux vector control, energy-saving V/F control, and energy-saving sensorless flux vector control. For synchronous motors, sensorless vector control is available. The appropriate control mode should be selected according to the motor characteristics and machine load.
4. Can the ATV320U40S6C communicate with a PLC?
Yes. The ATV320U40S6C includes Modbus Serial and CANopen communication. It can exchange operating commands, frequency references, status information, alarms, and other control data with PLCs, HMIs, and industrial automation controllers. Optional communication modules are available for networks such as PROFINET, EtherCAT, PROFIBUS DP V1, EtherNet/IP, DeviceNet, and Ethernet Powerlink.
5. What is the output frequency range of the ATV320U40S6C?
The drive provides an output frequency range of 0.1–599 Hz. This wide range allows it to control standard industrial motors as well as applications requiring higher operating speeds. The actual permissible motor speed must still be determined from the motor manufacturer’s specifications, mechanical limitations, load characteristics, and application safety requirements.
6. Does the ATV320U40S6C provide integrated safety functions?
Yes. The drive provides Safe Torque Off (STO) and supports safety functions such as Safe Stop 1 (SS1) and Safely Limited Speed (SLS). These functions can be integrated into machine safety circuits to control motor torque or speed during emergency stops, maintenance, and other hazardous operating conditions. The complete safety architecture should be designed according to the machine’s required safety level.
7. Does the ATV320U40S6C have a built-in EMC filter?
The standard ATV320U40S6C does not include an integrated EMC filter. Where electromagnetic compatibility is important, the installation may require an external EMC filter and proper grounding, shielding, and cable routing. Motor cables should be routed separately from sensitive control and communication cables to reduce electrical interference.
8. Can the ATV320U40S6C be used with a braking resistor for rapid deceleration?
Yes. The drive includes an integrated braking chopper and supports DC injection braking. When an application has high inertia or requires frequent and rapid deceleration, an appropriate external braking resistor can be used with the braking chopper to dissipate regenerative energy. The resistor rating should be selected according to the motor power, load inertia, deceleration time, braking frequency, and duty cycle.
Schneider ATV320U40S6C Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
