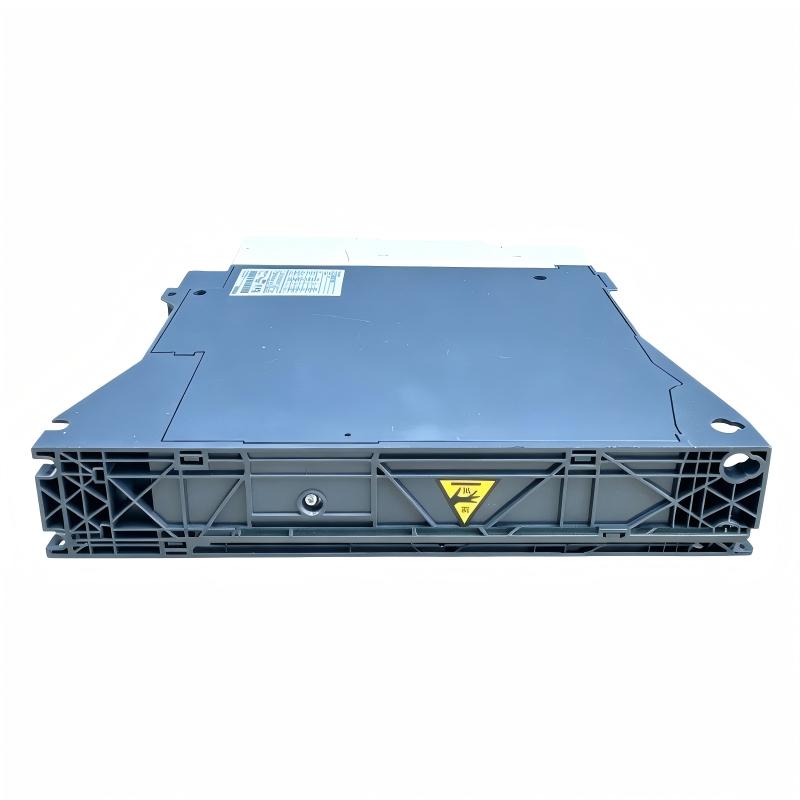

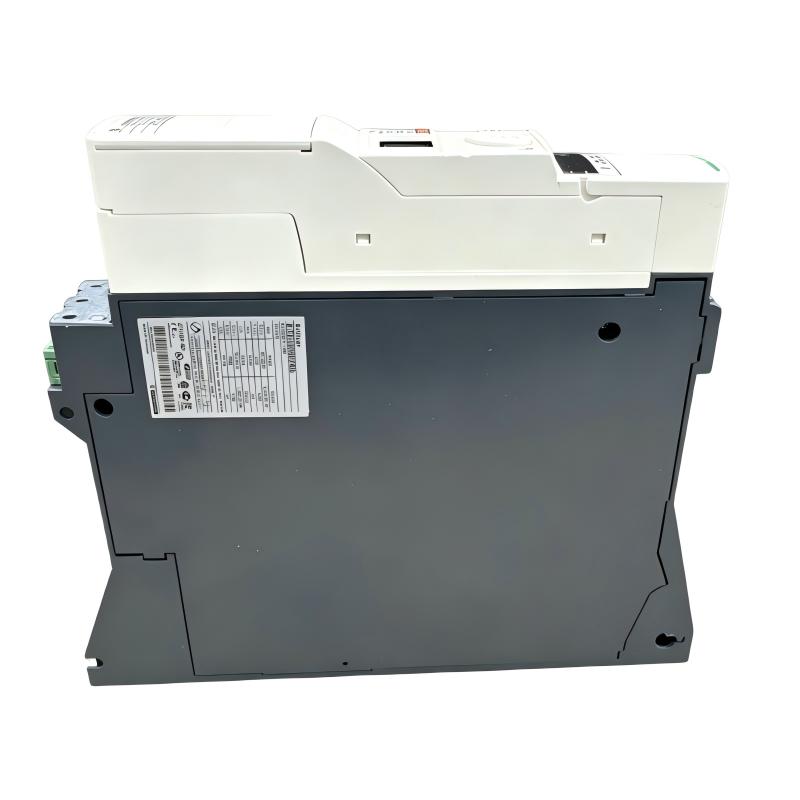

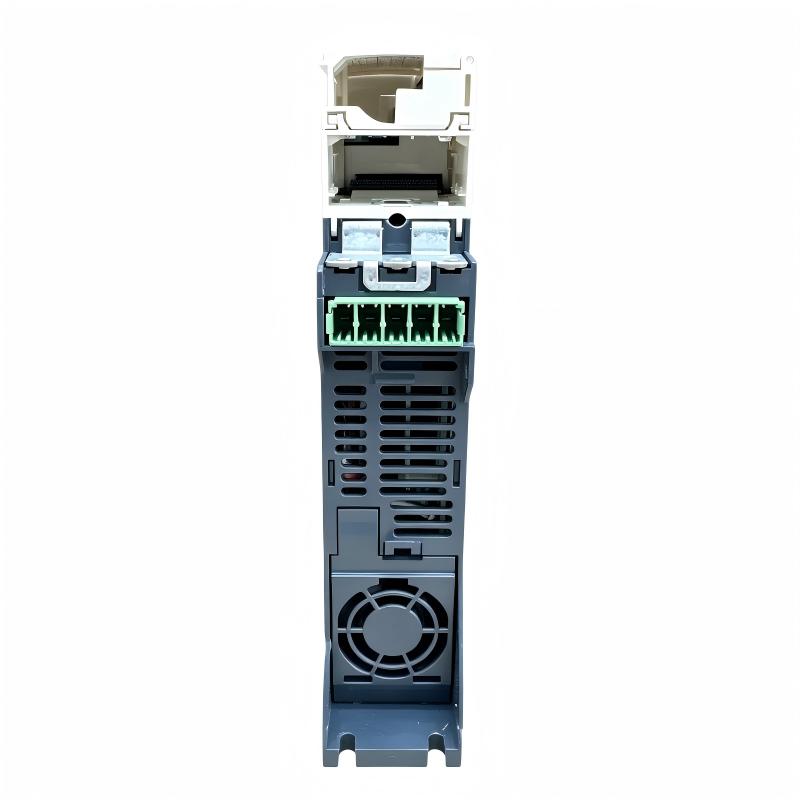

Schneider ATV32H075N4 Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Series | Altivar 32 |
| Model | ATV32H075N4 |
| Product Type | Variable-Speed Drive / Variable Frequency Drive |
| Application | Complex machines and industrial motor control |
| Drive Format | Compact modular drive with heat sink |
| Rated Motor Power | 0.75 kW / 1 HP |
| Rated Supply Voltage | 380–500 V AC |
| Supply Voltage Tolerance | -15% to +10% |
| Supply Phase | 3-phase |
| Supply Frequency | 50–60 Hz |
| Supply Voltage Limits | 323–550 V |
| Line Current | 3.6 A at 380 V; 2.7 A at 500 V |
| Apparent Power | 2.3 kVA at 500 V |
| Nominal Output Current | 2.3 A at 4 kHz, 500 V |
| Maximum Transient Current | 3.5 A for 60 seconds |
| Output Voltage | Up to supply voltage |
| Output Frequency | 0.5–599 Hz |
| Switching Frequency | 2–16 kHz adjustable; 4 kHz nominal |
| Motor Compatibility | Asynchronous and synchronous motors |
| Asynchronous Motor Control | 2-point V/F, 5-point V/F, sensorless flux vector control, energy-saving V/F and sensorless flux vector control |
| Synchronous Motor Control | Sensorless vector control |
| Speed Range | 1:100 for asynchronous motor in open-loop operation |
| Speed Accuracy | ±10% of nominal slip from 0.2 Tn to Tn |
| Torque Accuracy | ±15% |
| Transient Over-Torque | 170–200% |
| Braking Torque | Up to 170% with braking resistor |
| Digital Inputs | 7 programmable inputs |
| Analog Inputs | 3 configurable analog inputs |
| Digital Outputs | 3 programmable outputs |
| Analog Output | 1 configurable analog output |
| Communication | CANopen, Modbus Serial |
| EMC Filter | Integrated Class C2 EMC filter |
| PID Function | Adjustable PID regulator |
| Motor Slip Compensation | Automatic, adjustable 0–300% depending on control mode |
| Safety Functions | STO and integrated safety functions depending on configuration |
| Cooling | Heat sink / forced-air cooling |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +50°C without derating; +50°C to +60°C with derating |
| Relative Humidity | 5–95%, non-condensing |
| Storage Temperature | -25°C to +70°C |
| Noise Level | Approximately 43 dB |
| Main Standard | IEC 61800-5-1 |
| Dimensions | 45 × 325 × 245 mm |
| Weight | 2.5 kg |
FAQ
1. What motor power is the Schneider ATV32H075N4 designed for?
The ATV32H075N4 is a 0.75 kW, 1 HP variable-speed drive designed for three-phase 380–500 V AC motor applications. It belongs to the Altivar 32 series and is intended for complex machine applications requiring compact motor speed and torque control. It can be configured for both asynchronous and synchronous motor applications.
2. What is the rated output current of the ATV32H075N4?
The nominal output current is 2.3 A at a 4 kHz switching frequency and 500 V supply. The drive can provide a maximum transient current of approximately 3.5 A for 60 seconds, allowing it to handle temporary overload conditions during motor starting or acceleration.
3. What motor control methods are available on the ATV32H075N4?
The drive supports 2-point and 5-point voltage/frequency control, sensorless flux vector control, and energy-saving control modes for asynchronous motors. Sensorless vector control is also available for synchronous motors. The control method can be selected according to the motor characteristics, load requirements, and required speed or torque performance.
4. Does the ATV32H075N4 have an integrated EMC filter?
Yes. The ATV32H075N4 includes an integrated Class C2 EMC filter. This helps reduce conducted electromagnetic interference generated by the drive and simplifies installation in applications where EMC requirements must be considered. Proper grounding, cable shielding, and separation of power and control wiring are still important.
5. What communication functions does the ATV32H075N4 provide?
The ATV32H075N4 supports CANopen and Modbus Serial communication for integration with industrial automation systems. Communication can be used for start/stop commands, speed references, drive status, monitoring values, alarms, and parameter-related operations. This allows the drive to work with PLCs, HMIs, and other control devices.
6. Can the ATV32H075N4 provide sensorless vector control?
Yes. Sensorless flux vector control is available for asynchronous motors, while sensorless vector control can be used with synchronous motors. This control method does not require a physical encoder and can provide better low-speed torque and dynamic response than basic V/F control when the motor parameters are correctly configured.
7. Does the ATV32H075N4 support braking with an external braking resistor?
Yes. The ATV32H075N4 supports braking with an external braking resistor and can achieve braking torque of up to approximately 170% under suitable operating conditions. A braking resistor is particularly useful for applications with high inertia, short deceleration times, or frequent braking cycles. The resistor should be selected according to the load inertia, braking time, braking frequency, and drive requirements.
8. What environmental conditions are suitable for the ATV32H075N4?
The drive can normally operate from -10°C to +50°C without derating. Operation from +50°C to +60°C is possible with appropriate current derating. The specified relative humidity is generally 5–95% without condensation, while the storage temperature range is approximately -25°C to +70°C. Installation should also provide adequate ventilation and prevent excessive dust, moisture, and corrosive contaminants from affecting the drive.
Schneider ATV32H075N4 Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
