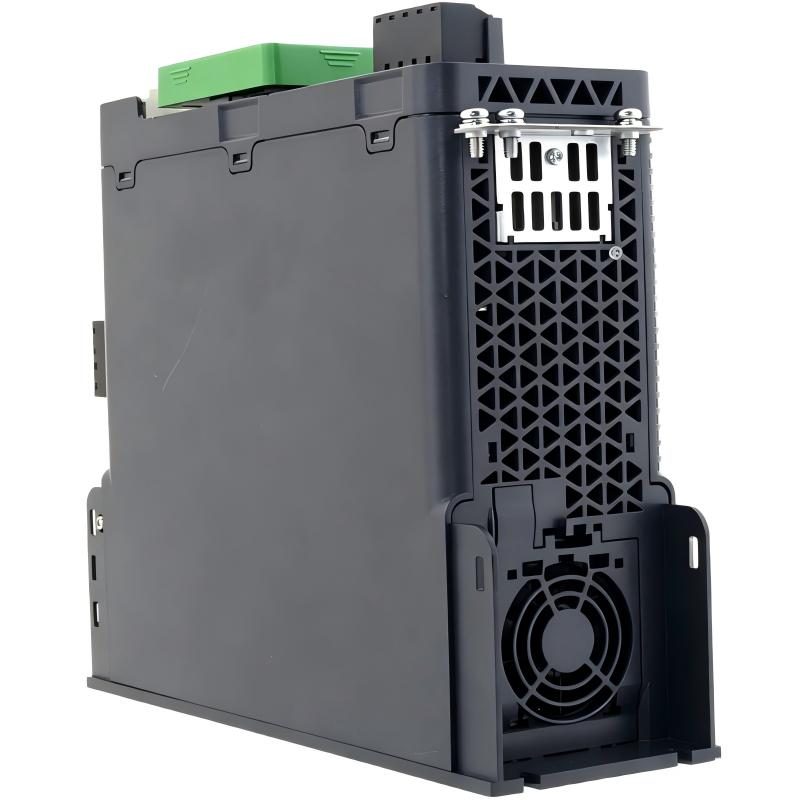

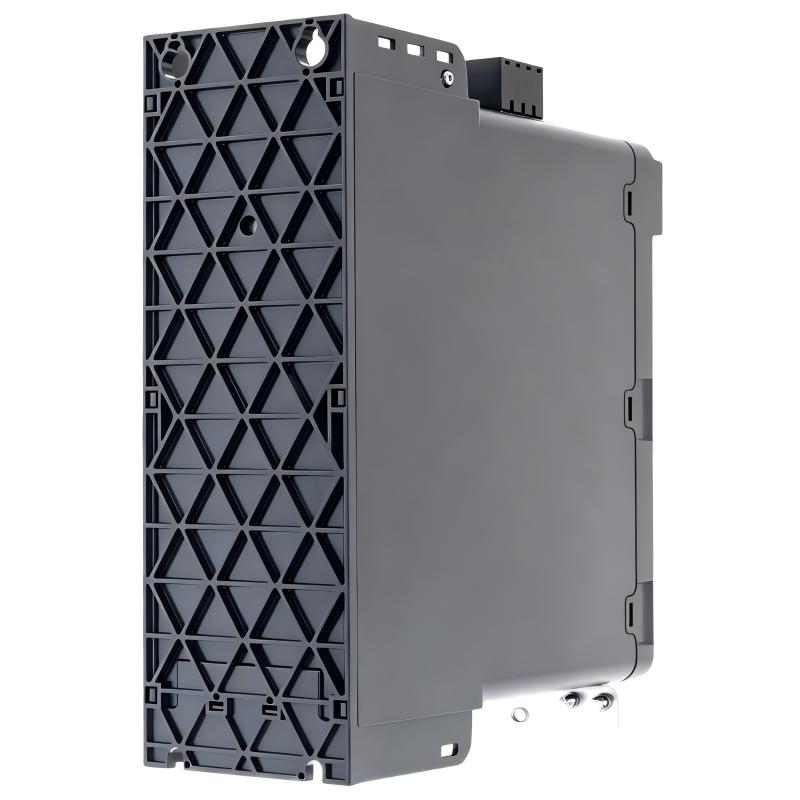

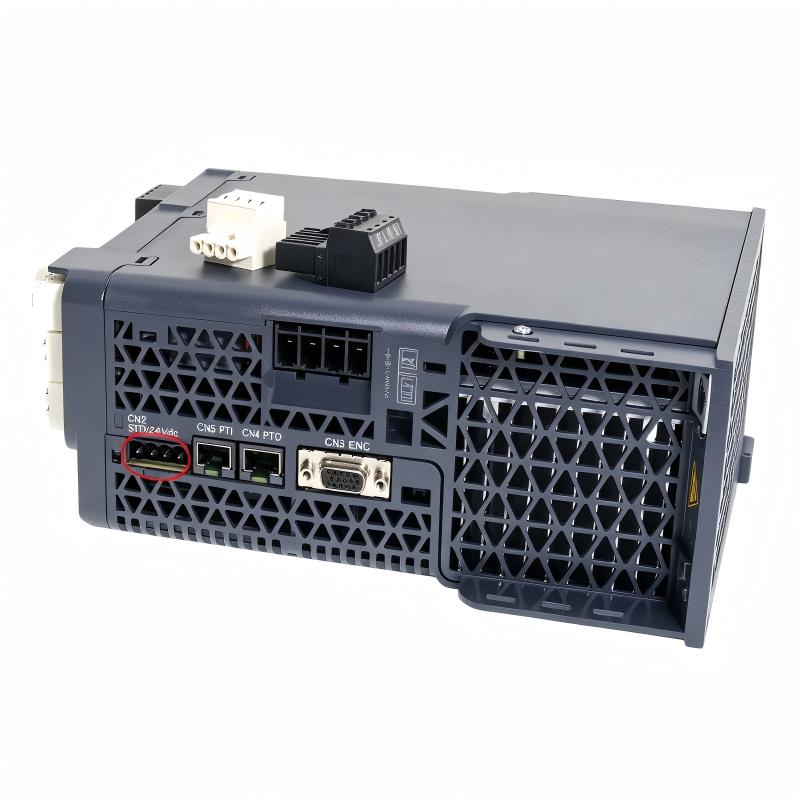

Schneider ATV340U40N4E Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV340U40N4E |
| Product Type | Variable-Speed Drive |
| Product Range | Altivar Machine ATV340 |
| Application | Machine motor control |
| Variant | Standard Ethernet version |
| Mounting | Cabinet mounting |
| Supply Voltage | 380–480 VAC, 3-phase |
| Supply Frequency | 50–60 Hz ±5% |
| Heavy-Duty Motor Power | 4 kW / 5 hp |
| Normal-Duty Motor Power | 5.5 kW / 7 hp |
| Heavy-Duty Continuous Output Current | 9.3 A at 4 kHz |
| Normal-Duty Continuous Output Current | 12.7 A at 4 kHz |
| Heavy-Duty Transient Current | 16.7 A for 2 s; 14 A for 60 s |
| Normal-Duty Transient Current | 17.1 A for 2 s; 14 A for 60 s |
| Compatible Motors | Three-phase asynchronous and synchronous motors |
| Motor Control | Open-loop and closed-loop control |
| Output Frequency | 0.1–599 Hz |
| Switching Frequency | 2–16 kHz adjustable |
| Nominal Switching Frequency | 4 kHz |
| Acceleration / Deceleration | 0.01–9999 s, linear, S-curve, U-curve or customized |
| Standard Communication | Modbus Serial, Modbus TCP, EtherNet/IP |
| Ethernet Interface | Integrated Ethernet communication |
| Digital Inputs | 5 programmable inputs |
| Pulse Input | 0–30 kHz, 24 VDC |
| Analog Inputs | 2 configurable inputs |
| Analog Output | 1 configurable output |
| Digital Outputs | 2 programmable outputs |
| Preset Speeds | Up to 16 preset speeds |
| Safety Function | Safe Torque Off (STO) |
| Braking Function | Integrated brake chopper and DC injection braking |
| EMC Filter | Integrated Class C3 EMC filter |
| Protection Rating | IP20 |
| Cooling Method | Forced convection |
| Mounting Position | Vertical ±10° |
| Operating Altitude | Up to 3000 m, with applicable derating above 1000 m |
| Configuration Tools | EcoStruxure Machine Expert and SoMove with compatible DTM |
| Typical Applications | Machine automation, conveyors, material handling, pumps, fans and general motor speed control |
| Certifications | UL, CSA, TÜV, EAC, C-Tick and CE |
| Dimensions | 85 × 270 × 232.5 mm |
| Weight | 2.3 kg |
FAQ
1. What is the motor power rating of the Schneider ATV340U40N4E?
The ATV340U40N4E supports a 4 kW / 5 hp motor under heavy-duty operation and a 5.5 kW / 7 hp motor under normal-duty operation.
2. What power supply does the ATV340U40N4E require?
It requires a three-phase 380–480 VAC power supply with a frequency of 50–60 Hz ±5%. The permitted supply voltage tolerance is -15% to +10%.
3. What is the continuous output current of the ATV340U40N4E?
The continuous output current is 9.3 A for heavy-duty operation and 12.7 A for normal-duty operation at a 4 kHz switching frequency.
4. Which motors can the ATV340U40N4E control?
The drive supports three-phase asynchronous motors and synchronous motors. Motor parameters should be entered according to the motor nameplate and selected control mode.
5. Which communication protocols are supported by the ATV340U40N4E?
The Ethernet version supports Modbus Serial, Modbus TCP and EtherNet/IP, allowing the drive to communicate with PLCs, HMIs and industrial Ethernet control systems.
6. What I/O interfaces are available?
The drive provides 5 programmable digital inputs, 2 configurable analog inputs, 1 configurable analog output and 2 programmable digital outputs. One digital input can be configured as a pulse input up to 30 kHz.
7. Does the ATV340U40N4E provide braking and safety functions?
Yes. It provides Safe Torque Off (STO), an integrated brake chopper and DC injection braking. These functions support controlled motor stopping and safety-related shutdown applications.
8. What should be checked if the ATV340U40N4E does not start the motor?
Check the three-phase power supply, motor wiring, motor nameplate parameters, run command, speed reference, STO status and active fault codes. For Ethernet-controlled systems, also check the Ethernet connection, communication settings and configured command channel.
Schneider ATV340U40N4E Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
