1. What is the Schneider Electric ATV610D15N4 used for?

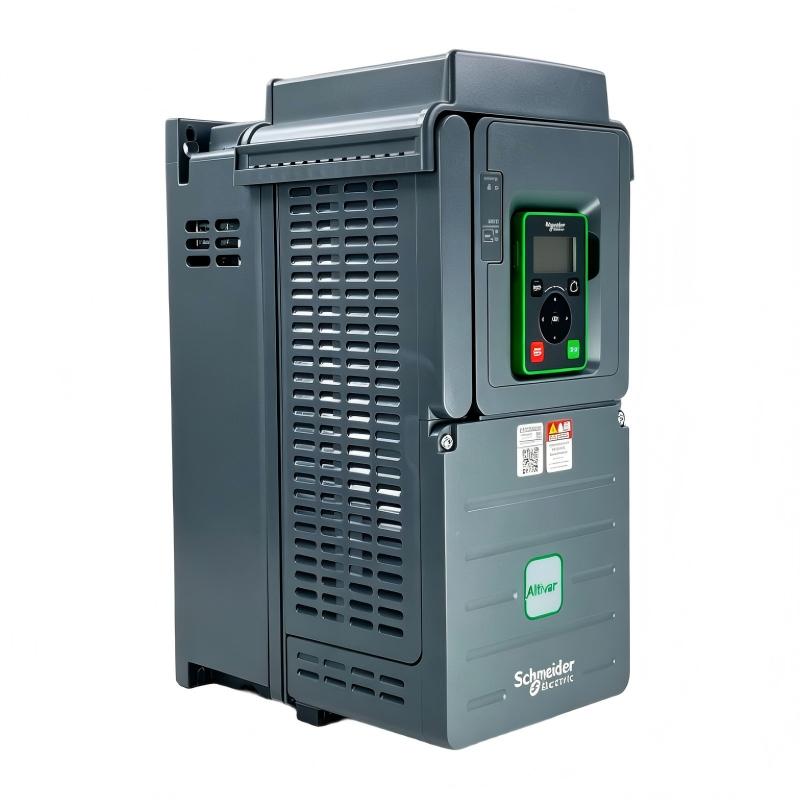

The ATV610D15N4 is a variable-speed drive from the Easy Altivar 610 family, designed to control three-phase motors in applications such as fans, pumps, compressors, and conveyors. It provides adjustable motor speed and torque control and is suitable for industrial systems where stable motor operation, controlled acceleration and deceleration, and straightforward integration with automation equipment are required.

2. What motor power does the ATV610D15N4 support?
The ATV610D15N4 is rated for 15 kW / 20 hp in Normal Duty applications and 11 kW / 15 hp in Heavy Duty applications. The Normal Duty rating is generally suitable for loads with moderate overload requirements, while the Heavy Duty rating is intended for more demanding operating conditions. Final selection should also consider motor rated current, load torque, acceleration requirements, starting conditions, and the machine duty cycle.

3. What power supply is required for the ATV610D15N4?

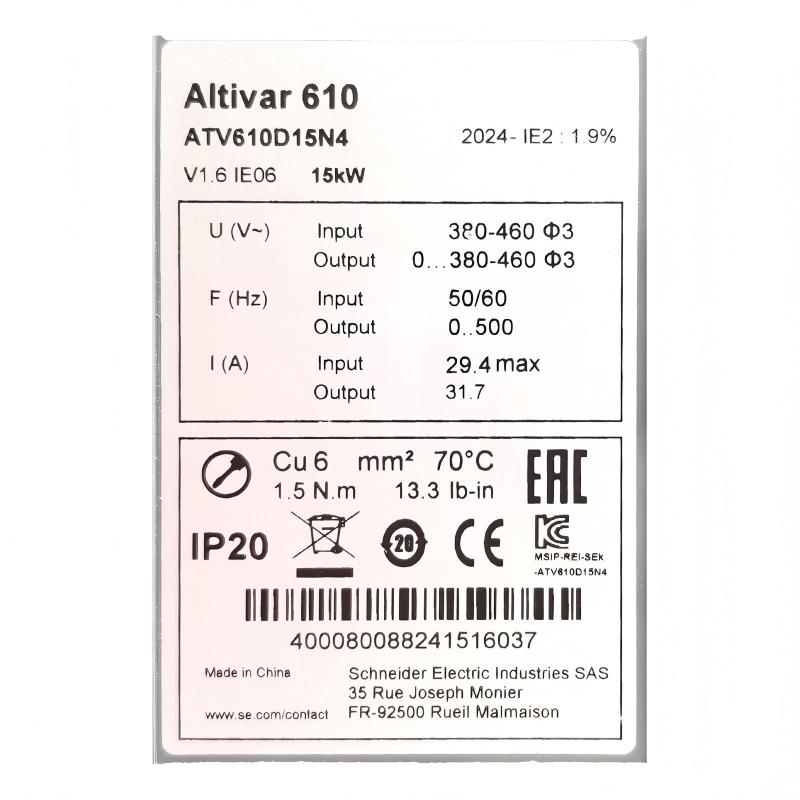

The drive is designed for a three-phase 380–460 V AC supply with a frequency of 50–60 Hz ±5%. The specified supply voltage tolerance is approximately -15% to +10%. The incoming circuit should include appropriate protection, isolation, grounding, and correctly sized conductors. Before commissioning, the actual supply voltage should be verified to ensure it is suitable for the drive and connected motor.

4. What are the continuous output current ratings of the ATV610D15N4?
At a nominal switching frequency of 4 kHz, the continuous output current is 31.7 A for Normal Duty and 23.5 A for Heavy Duty. The maximum transient current is approximately 34.9 A for 60 seconds in Normal Duty and 35.3 A for 60 seconds in Heavy Duty. These transient figures apply to the specified overload conditions and should not be treated as continuous current ratings.

5. Which motor control modes are available on the ATV610D15N4?
The ATV610D15N4 supports Variable Torque, Constant Torque, and Optimized Torque control modes. Variable Torque is commonly used for centrifugal pumps and fans, while Constant Torque is more suitable for applications such as conveyors where torque demand remains relatively stable. Optimized Torque can be used to improve the drive response according to the characteristics of the connected motor and mechanical load.

6. Can the ATV610D15N4 communicate with a PLC or industrial automation system?
Yes. The ATV610D15N4 provides a Modbus Serial communication interface for connection to PLCs, HMIs, SCADA systems, and other automation equipment. Through Modbus communication, the controller can monitor parameters such as operating frequency, current, drive status, alarms, and fault information, while also sending commands and speed references. Optional communication cards can be used when additional industrial network functions are required.

7. What are the common causes of overcurrent or overload faults on the ATV610D15N4?
Overcurrent and overload faults can be caused by excessive mechanical load, incorrect motor parameters, motor cable problems, phase-to-phase faults, ground faults, blocked machinery, or acceleration settings that are too aggressive. During troubleshooting, first verify the motor nameplate data programmed into the drive. Then inspect the motor wiring, insulation, mechanical load, acceleration and deceleration ramps, and active fault codes. If the fault occurs only during startup, load inertia and acceleration time should receive particular attention.

8. How should the ATV610D15N4 be commissioned after installation?

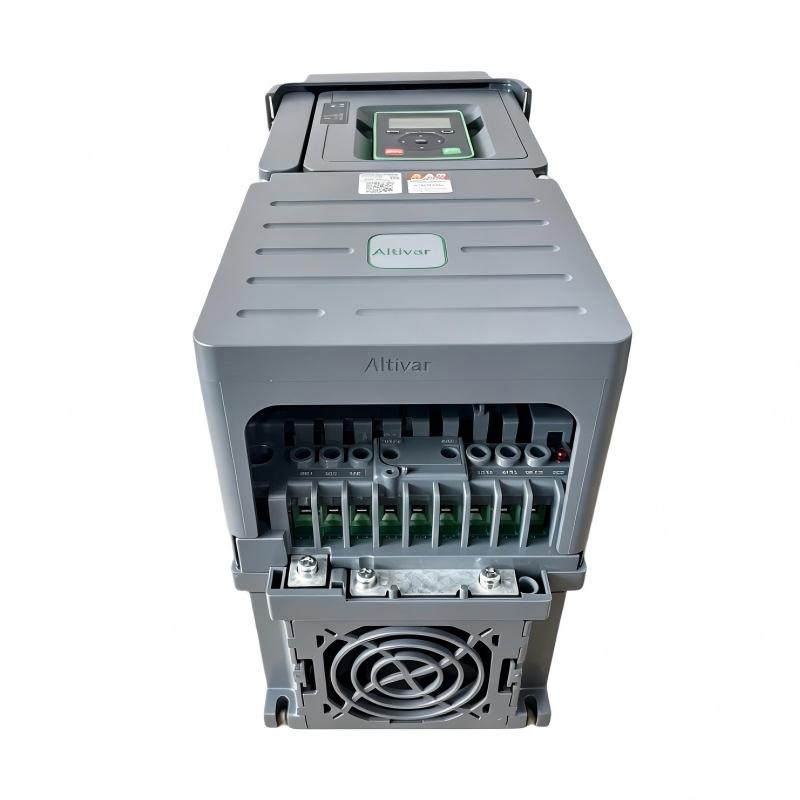

Before energizing the drive, check the three-phase power supply, protective earth, input terminals, motor U/V/W connections, control wiring, and communication connections. Enter the motor nameplate information accurately and select the appropriate Normal Duty or Heavy Duty application and motor-control mode. Configure frequency limits, acceleration and deceleration times, current limits, preset speeds, and protection settings. Perform the initial motor test at low speed and reduced load to verify rotation direction, output current, frequency response, and control operation. After basic operation is confirmed, test Modbus communication, remote commands, alarms, interlocks, and I/O functions before gradually bringing the machine to its normal operating condition.
