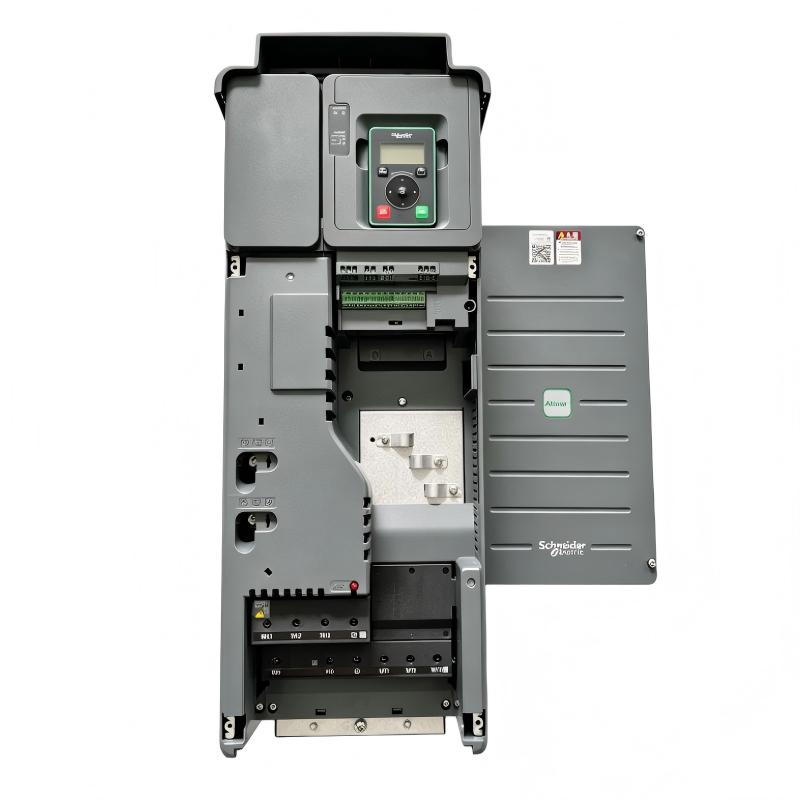

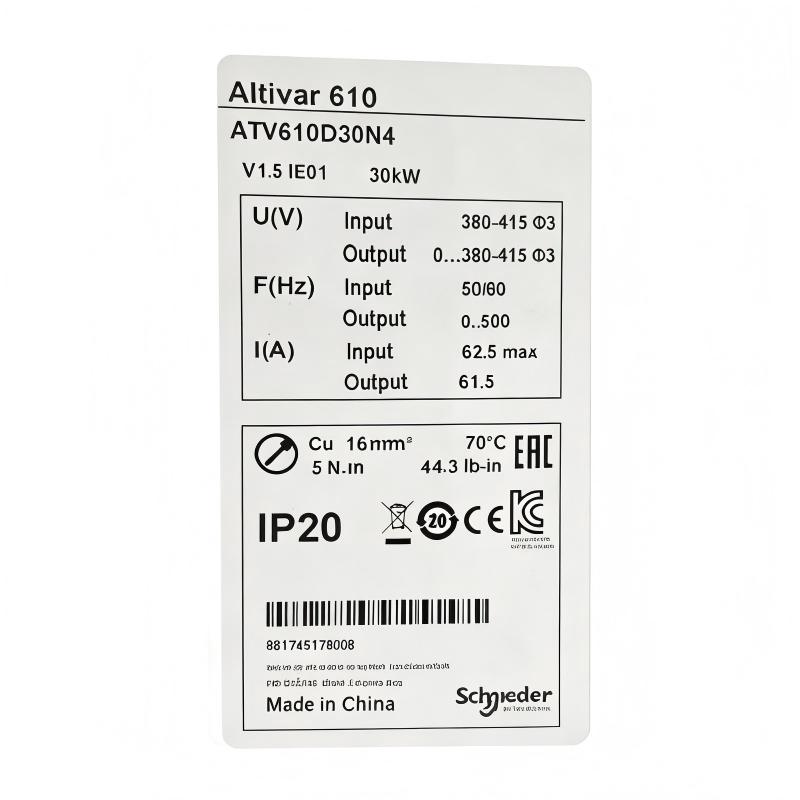

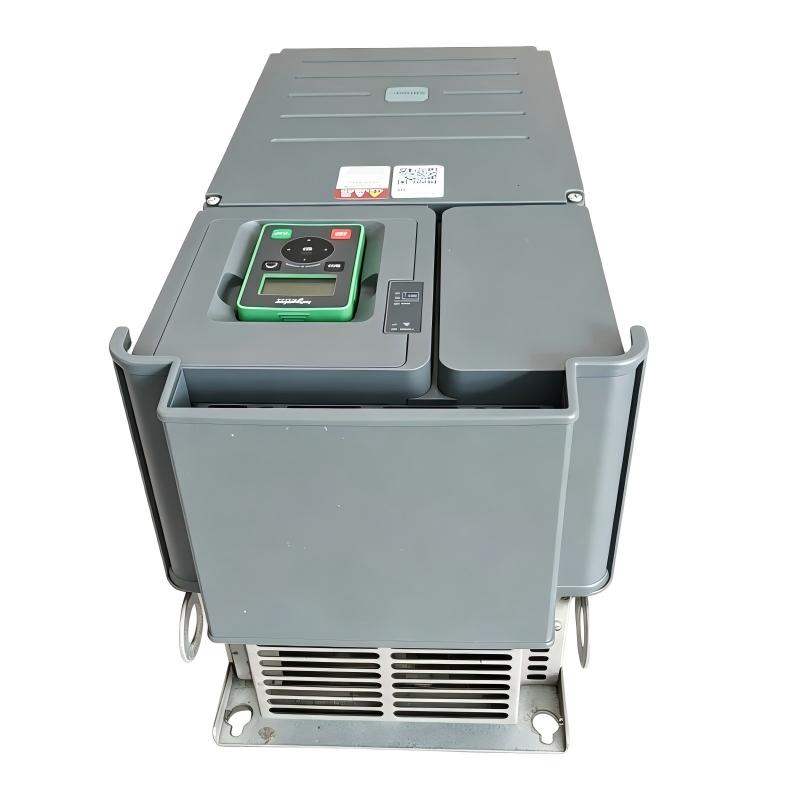

Schneider ATV610D30N4 Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | ATV610D30N4 |
| Product Type | Variable-Speed Drive |
| Product Series | Altivar Process ATV610 |
| Drive Type | Variable Frequency Drive (VFD) |
| Main Function | Controls motor speed, torque, acceleration, and deceleration in industrial applications |
| Rated Motor Power | 30 kW |
| Supply Voltage | 380–460 VAC |
| Supply Phase | 3-phase |
| Output Voltage | Up to the input voltage |
| Output Frequency | Adjustable according to motor and application requirements |
| Motor Control | Variable-frequency motor control |
| Motor Type | Compatible three-phase asynchronous motors |
| Speed Control | Adjustable motor speed through frequency and reference settings |
| Starting Control | Controlled acceleration and deceleration |
| Overload Protection | Motor and drive protection functions integrated |
| Communication | Industrial communication options depending on configuration |
| Control Interfaces | Digital and analog control interfaces |
| Installation | Electrical control cabinet or suitable industrial enclosure |
| Cooling Method | Forced-air cooling |
| Typical Applications | Pumps, fans, compressors, conveyors, material handling, and general industrial machinery |
| Application Environment | Industrial automation and process control |
| Maintenance | Inspect cooling airflow, terminals, wiring, motor connections, and fault history |
| Replacement Requirement | Confirm ATV610D30N4 model, power rating, supply voltage, and application compatibility |
| Dimensions | 226 × 613 × 271 mm |
| Weight | 25.5 kg |
FAQ
1. What is the main function of the Schneider ATV610D30N4?
The ATV610D30N4 is a variable-speed drive designed to control the speed and operating characteristics of three-phase motors. It adjusts the motor frequency and voltage according to the configured application requirements.
2. What motor power is supported by the ATV610D30N4?
The ATV610D30N4 is a 30 kW variable-speed drive. The actual motor selection should also consider rated current, load characteristics, starting requirements, and the operating conditions of the application.
3. What type of power supply does the ATV610D30N4 require?
The ATV610D30N4 is designed for a three-phase 380–460 VAC supply. The incoming power system should be checked against the drive nameplate and installation requirements before commissioning.
4. What types of motors can be controlled by the ATV610D30N4?
The drive is intended for compatible three-phase asynchronous motors commonly used in industrial machinery, pumps, fans, compressors, conveyors, and other variable-speed applications.
5. What are common causes of an ATV610D30N4 drive fault?
Common causes include input power abnormalities, motor overload, excessive current, overheating, incorrect motor parameters, wiring problems, poor ventilation, or mechanical problems in the driven equipment.
6. How can an ATV610D30N4 overcurrent fault be diagnosed?
Check the motor and output wiring first for short circuits, incorrect connections, or insulation problems. Then verify motor rated parameters, acceleration settings, load conditions, and mechanical resistance. The drive fault history can also help identify the operating condition that triggered the protection.
7. What should be checked if the ATV610D30N4 overheats?
Check that the cooling fan and ventilation path are operating correctly and are free from dust or obstruction. Also verify ambient conditions, cabinet ventilation, motor load, and whether the drive is operating continuously above its intended load level.
8. What should be considered when replacing an ATV610D30N4?
Confirm the replacement model, motor power, supply voltage, rated current, control configuration, communication requirements, and application parameters. After installation, configure the motor nameplate data and control parameters before performing a controlled commissioning test.
Schneider ATV610D30N4 Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
