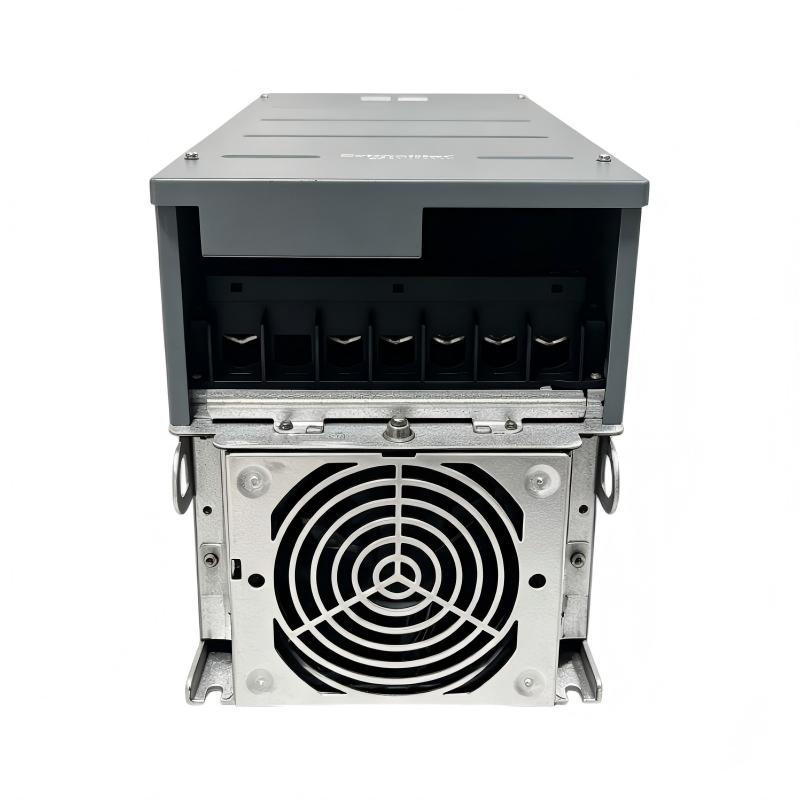

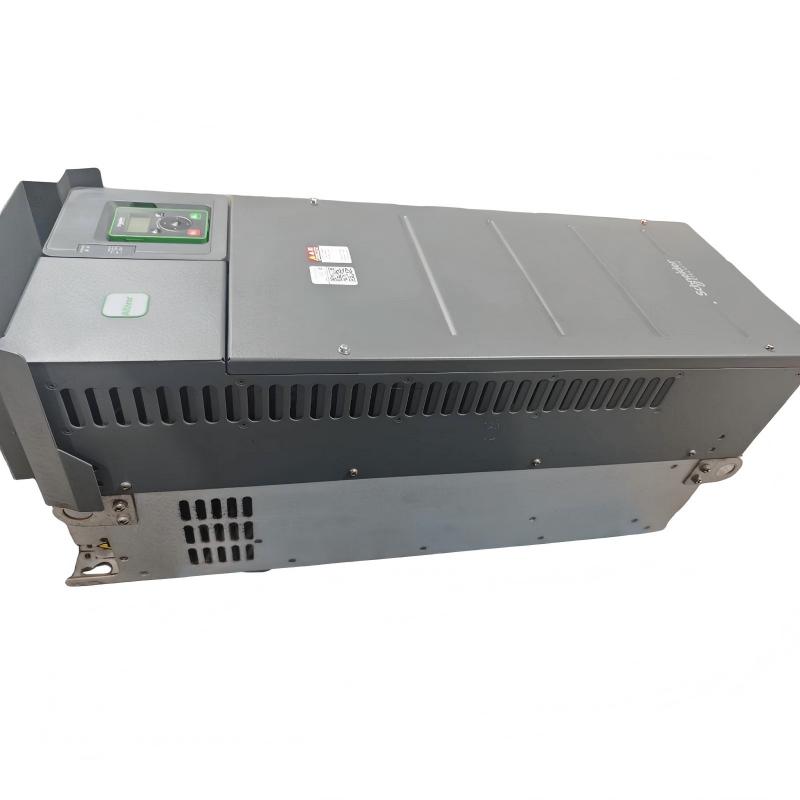

1. What is the main function of the Schneider ATV610D55N4 Variable-Speed Drive?
The ATV610D55N4 is designed to control the speed and operating characteristics of three-phase asynchronous motors. It provides adjustable motor speed, controlled acceleration and deceleration, and improved control of motor operation in industrial applications.

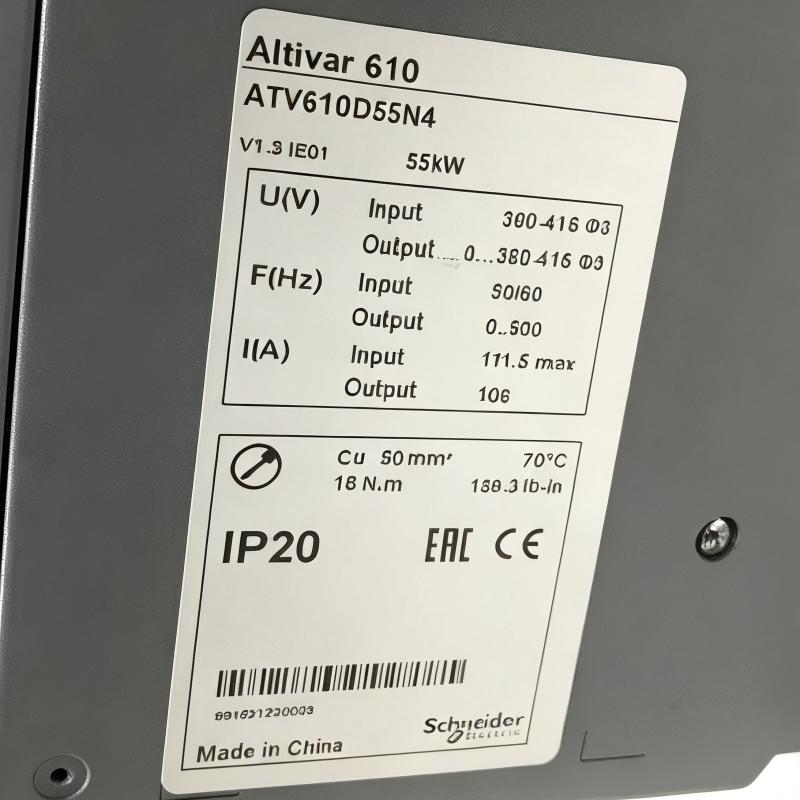

2. What motor power is the ATV610D55N4 designed for?
The ATV610D55N4 is a 55 kW variable-speed drive. Motor selection should also consider rated current, load characteristics, starting requirements, duty cycle, and actual operating conditions rather than relying on motor power alone.

3. What power supply does the ATV610D55N4 require?
The drive is designed for a three-phase 380–460 VAC power supply. Before installation, verify the incoming voltage, phase configuration, grounding arrangement, and upstream protection to ensure compatibility with the drive.

4. What type of motor can be connected to the ATV610D55N4?
The ATV610D55N4 is primarily intended for compatible three-phase asynchronous motors. Correct motor nameplate information should be entered into the drive so that the control system can operate the motor according to its electrical characteristics.

5. How should an overcurrent fault on the ATV610D55N4 be diagnosed?
Check the driven machine for mechanical blockage, excessive load, or sudden torque demand. Inspect motor cables and terminals for short circuits or insulation problems, then verify acceleration settings and motor parameters. Reviewing the stored fault information can also help identify the cause.

6. What should be checked if the ATV610D55N4 frequently reports an overheating condition?
Check the cooling airflow, ventilation path, cooling fan operation, and control cabinet ventilation. The motor and drive load should also be reviewed to determine whether the drive is operating continuously under excessive load or in an unsuitable environmental condition.

7. What should be checked when a motor connected to the ATV610D55N4 will not start?
Start by checking the incoming power, run command, speed reference, control terminals, and motor wiring. Then check the active fault status and fault history. External interlocks, emergency-stop circuits, or protection functions may also prevent the drive from receiving or executing the start command.

8. What should be verified when replacing an ATV610D55N4 in an existing system?
Confirm the replacement model, 55 kW motor rating, 380–460 VAC supply, motor type, load characteristics, control method, and communication requirements. Existing wiring, control parameters, protection settings, and motor data should also be reviewed before commissioning the replacement drive.
