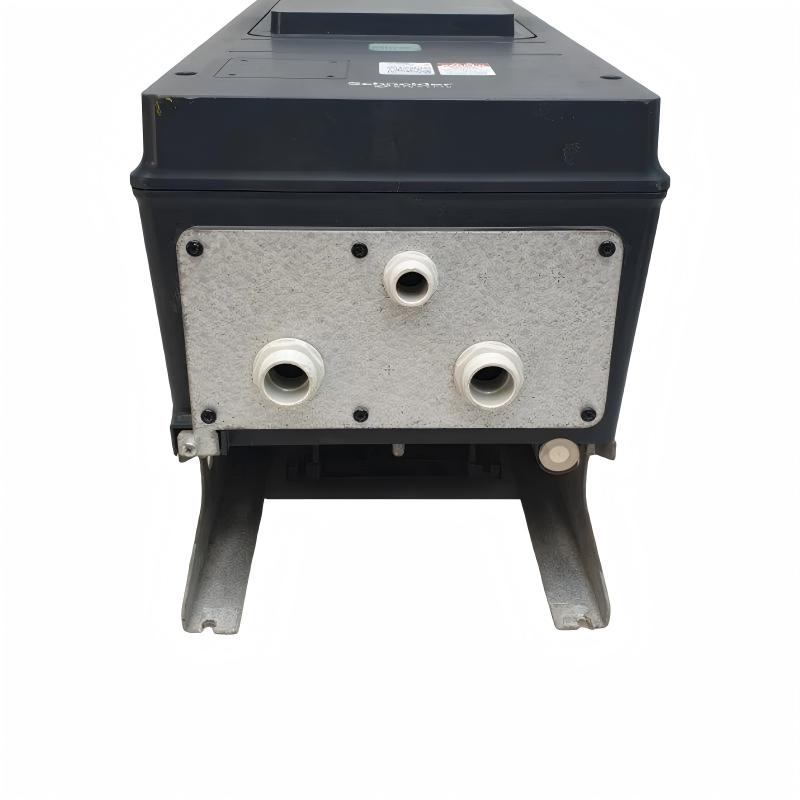

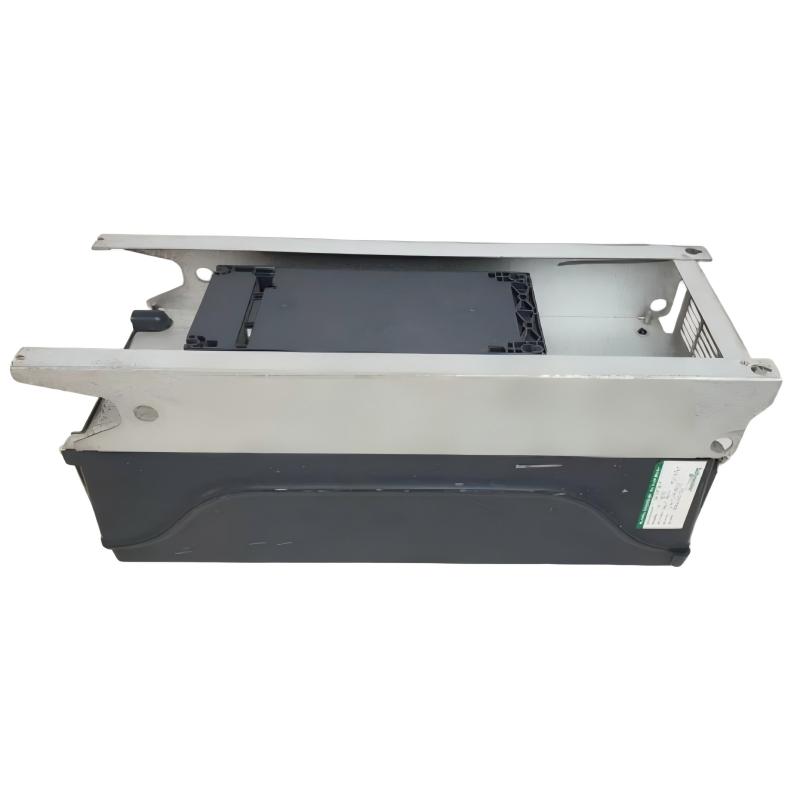

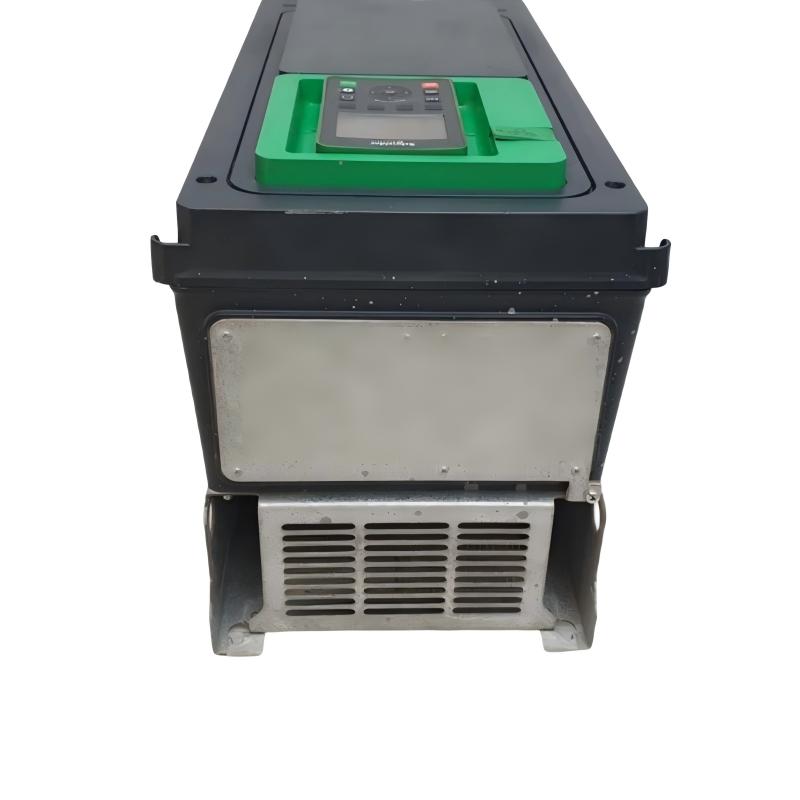

Schneider ATV650D11N4 Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | ATV650D11N4 |
| Product Type | Variable-Speed Drive |
| Product Series | Altivar Process ATV650 |
| Drive Type | Variable Frequency Drive (VFD) |
| Rated Motor Power | 11 kW |
| Supply Voltage | 380–460 VAC |
| Supply Phase | 3-phase |
| Supply Frequency | 50–60 Hz |
| Motor Control | Variable-frequency control |
| Control Method | V/F control and sensorless flux vector control |
| Compatible Motor Type | Three-phase asynchronous motors |
| Output Frequency | Adjustable |
| Speed Control | Adjustable through frequency and speed reference settings |
| Starting Control | Controlled acceleration and deceleration |
| Overload Protection | Integrated |
| Communication | Industrial communication options depending on configuration |
| Control Interfaces | Digital and analog inputs/outputs |
| Cooling Method | Forced-air cooling |
| Installation | Industrial control cabinet or suitable electrical enclosure |
| Typical Applications | Pumps, fans, compressors, conveyors, material handling, water treatment, and general industrial equipment |
| Application Environment | Industrial automation and process control |
| Maintenance | Check cooling airflow, terminals, motor wiring, load conditions, and fault history |
| Replacement Requirement | Confirm model, motor power, supply voltage, control method, and application compatibility |
| Dimensions | 264 × 678 × 299 mm |
| Weight | 13.7 kg |
FAQ
1. What is the main function of the Schneider ATV650D11N4 Variable-Speed Drive?
The ATV650D11N4 is designed to control the speed, torque, acceleration, and deceleration of compatible three-phase asynchronous motors. It is suitable for industrial process and equipment applications requiring reliable variable-speed motor control.
2. What motor power is the ATV650D11N4 designed for?
The ATV650D11N4 is designed for an 11 kW motor. During drive selection, motor rated current, load characteristics, duty cycle, starting requirements, and actual operating conditions should also be evaluated.
3. What power supply does the ATV650D11N4 require?
The drive uses a three-phase 380–460 VAC power supply with a typical frequency of 50–60 Hz. The incoming voltage, phase configuration, grounding, and upstream protection should be verified before installation.
4. What type of motor can be controlled by the ATV650D11N4?
The ATV650D11N4 is primarily intended for compatible three-phase asynchronous motors. Correct motor nameplate parameters should be entered during commissioning to ensure suitable control and protection.
5. How should an overcurrent fault on the ATV650D11N4 be diagnosed?
Check the motor and driven equipment for excessive load, mechanical blockage, or sudden torque demand. Inspect the motor cables and terminals for short circuits, incorrect wiring, or insulation problems. Acceleration settings and motor parameters should also be verified before reviewing the fault history.
6. What should be checked if the ATV650D11N4 overheats during operation?
Check the cooling airflow, ventilation passages, cooling fan, and control cabinet ventilation. The motor load should also be evaluated to determine whether the drive is operating under excessive load or unfavorable environmental conditions.
7. How can communication problems with the ATV650D11N4 be diagnosed?
Check communication cables, connectors, device addressing, network parameters, and controller settings. Verify that the physical connection is stable before checking communication status and diagnostic information to determine whether the problem is caused by wiring or configuration.
8. What should be verified when replacing an ATV650D11N4 in an existing system?
Confirm the replacement model, 11 kW motor rating, 380–460 VAC supply, motor type, control method, communication requirements, and load characteristics. Existing power wiring, control wiring, motor parameters, protection settings, and automation commands should be reviewed before commissioning.
Schneider ATV650D11N4 Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
