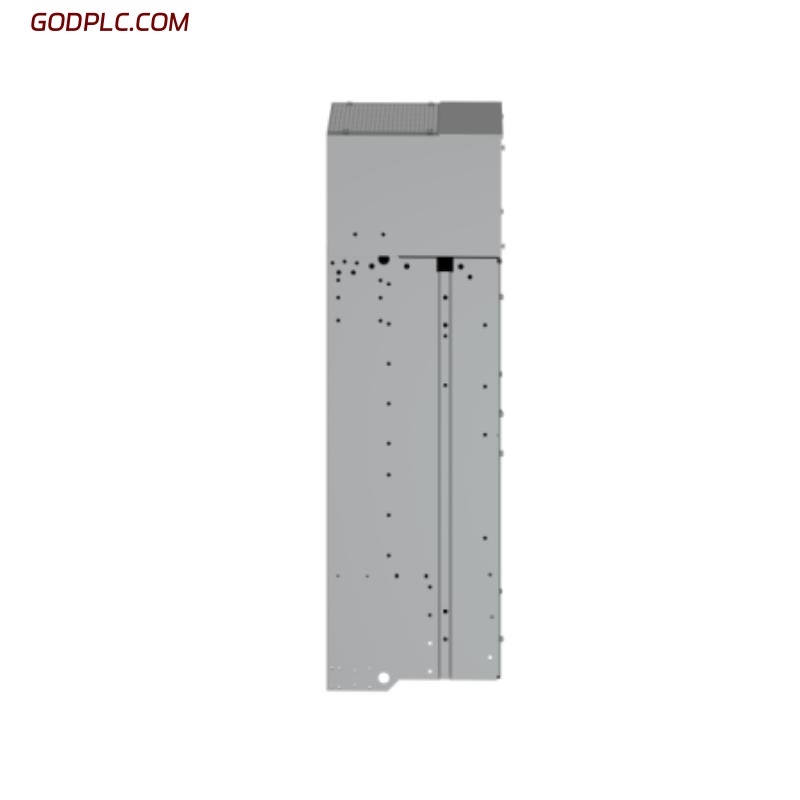

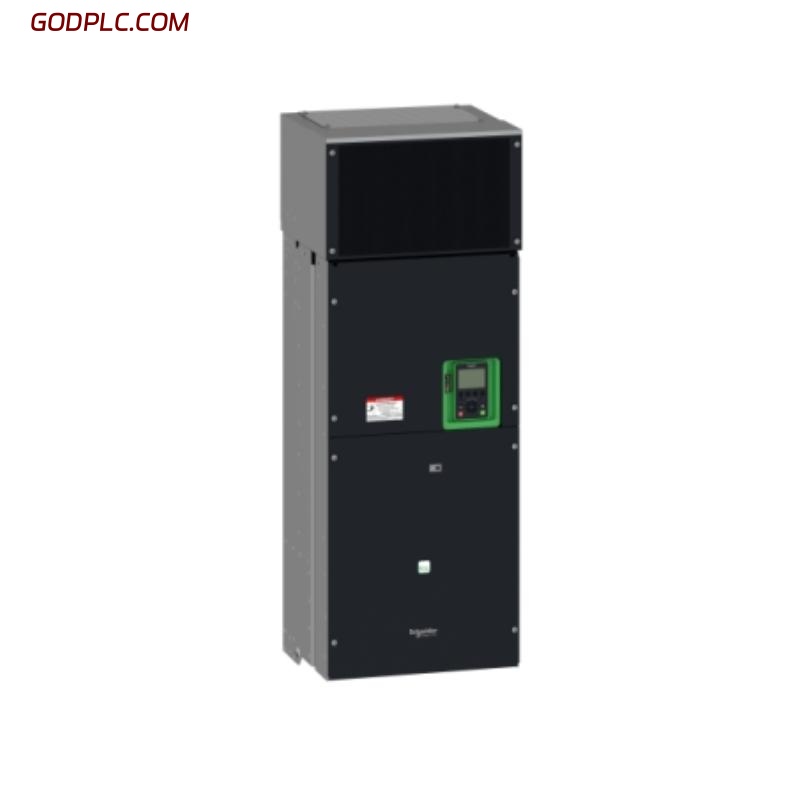

Schneider ATV630C22N4 Variable Speed Drive
Product Overview
The Schneider ATV630C22N4 Variable Speed Drive is a high-performance motor controller designed to provide precise control over three-phase motors in industrial settings. With a robust design and advanced features, this drive helps optimize energy consumption, improve system reliability, and enhance operational efficiency. The ATV630C22N4 is suitable for a wide range of applications including HVAC, pumps, fans, compressors, and conveyors, offering superior motor protection and enhanced control over motor speeds and torque.
Key Features
-
High Power Output: Delivers 22 kW of power for controlling larger motors in demanding applications
-
Energy Efficiency: Incorporates energy-saving technologies to reduce operating costs and improve the overall energy performance of your system
-
Flexible Motor Control: Supports various motor types, including induction motors and permanent magnet motors, for versatile application use
-
Advanced Protection Features: Built-in protection against common issues such as overcurrent, overheating, and voltage imbalances, ensuring motor longevity
-
Versatile Communication Options: Supports multiple communication protocols including Modbus, CANopen, and EtherNet/IP, enabling easy integration with existing control systems
-
User-Friendly Interface: Equipped with an intuitive graphical display for easy setup, programming, and monitoring of motor parameters
-
Compact and Robust Design: Designed for reliable operation in harsh industrial environments with a compact footprint, ideal for tight spaces and challenging conditions
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 440 x 1195 x 380mm |
| Weight | 172 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 380–480 V AC, 3-phase |
| Output Voltage | 0–480 V AC |
| Output Frequency | 0–500 Hz |
| Output Power | 22 kW |
| Input Current | 36 A |
| Efficiency | > 98% |
| Power Factor | > 0.98 |
Mechanical & Environmental
| Item | Specification |
|---|---|
| Mounting Type | DIN rail or panel mount |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5–95% RH, non-condensing |
| Protection Rating | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Supported Systems | Schneider Electric control systems, third-party automation systems |
| Application Types | Motor speed control for HVAC, pumps, fans, conveyors, compressors, and industrial equipment |
Industry Applications
-
HVAC Systems: Optimizes energy consumption and controls fan and pump speeds for heating, ventilation, and air conditioning systems
-
Water & Wastewater Treatment: Regulates pumps and mixers in treatment facilities, improving flow consistency and system efficiency
-
Manufacturing & Production: Manages motors in conveyors, compressors, and other machinery, enhancing automation and production line control
-
Mining & Minerals Processing: Drives motors in crushers, conveyors, and other equipment in mining operations, ensuring reliable performance
-
Pumps & Fans: Provides precise control for pumps and ventilation systems, improving process consistency and reducing energy consumption
The Schneider ATV630C22N4 Variable Speed Drive is a highly efficient and reliable solution for controlling larger motors in a wide range of industrial applications, ensuring operational efficiency and optimal motor protection.
Schneider ATV630C22N4 Variable Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
