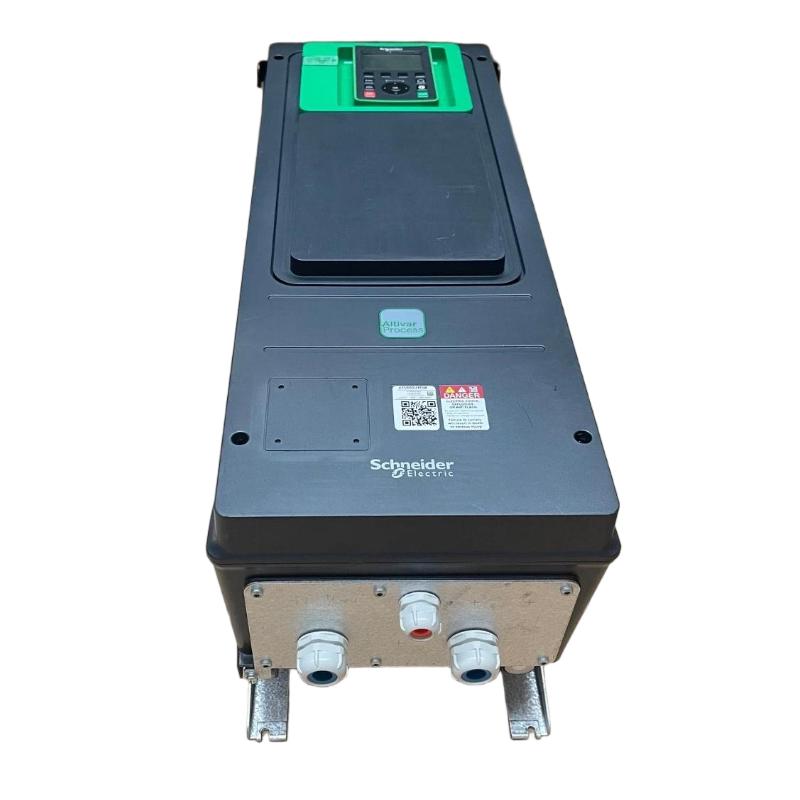

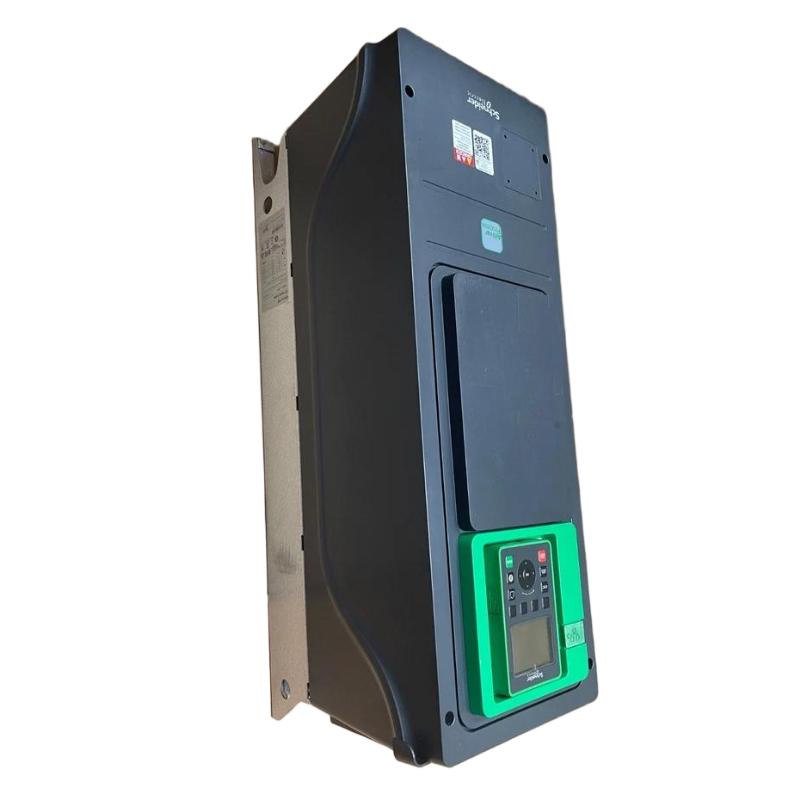

1. What is the main function of the Schneider Electric ATV650U15N4?
The ATV650U15N4 is a variable-speed drive designed to control the speed, torque and operating characteristics of three-phase motors. It belongs to the Altivar Process ATV600 family and is intended primarily for process and utility applications. By adjusting the motor supply frequency and voltage, the drive can provide controlled acceleration, deceleration and speed regulation while also supporting motor protection and process monitoring functions.

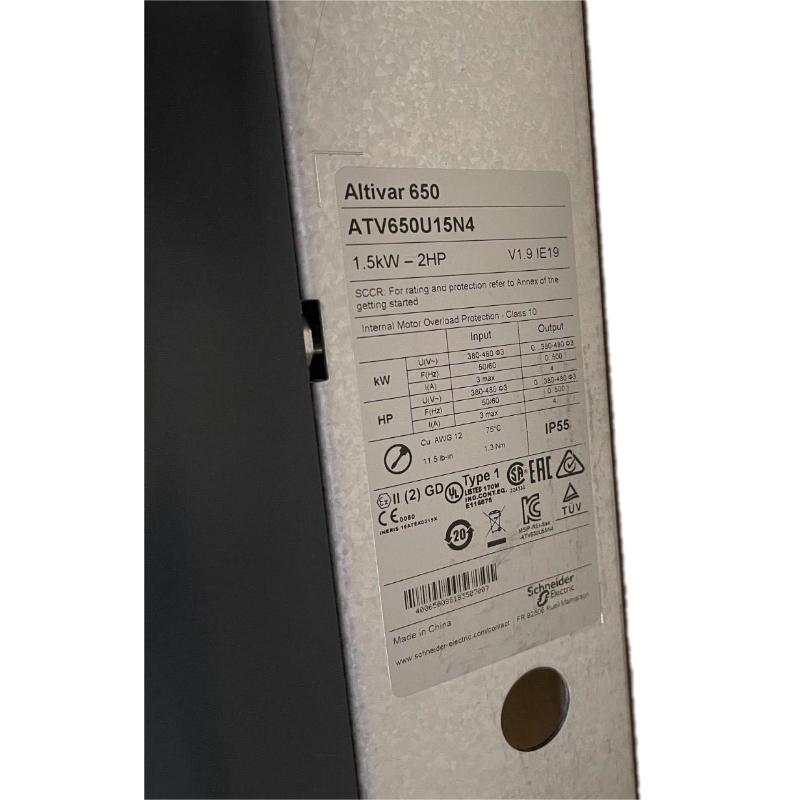

2. What motor power is supported by the ATV650U15N4?
The ATV650U15N4 is rated for a 1.5 kW motor under normal-duty conditions. For heavy-duty applications, the corresponding motor rating is lower, at approximately 0.75 kW. The correct rating should be selected according to the motor load profile, required overload capability, ambient conditions and application duty cycle rather than simply matching the motor nameplate power.

3. What input voltage does the ATV650U15N4 require?
The drive is designed for a three-phase 380–480 VAC supply with a nominal frequency of 50–60 Hz. The actual installation should comply with the applicable supply voltage limits and grounding requirements. Before energizing the drive, the incoming voltage, phase sequence, protective devices and grounding should be checked to prevent damage or unexpected operation.

4. What types of motors can the ATV650U15N4 control?
The ATV650U15N4 supports both asynchronous and synchronous motor applications. Its supported motor-control capabilities include variable-torque, constant-torque and optimized-torque operation. It can also be configured for permanent-magnet and synchronous-reluctance motors. Correct motor identification and parameter configuration are important because the control strategy, current limits and acceleration characteristics depend on the motor type.

5. What should be checked if the ATV650U15N4 reports an overcurrent fault?
An overcurrent fault can result from excessive mechanical load, incorrect motor parameters, an acceleration ramp that is too short, motor cable problems or an electrical fault in the motor. First check the motor and driven equipment for mechanical obstruction or excessive load. Then verify the motor nameplate parameters and acceleration settings. The motor cable, insulation and terminal connections should also be inspected. If the fault occurs immediately after starting, incorrect motor data or a motor/cable fault should be considered before changing the drive.

6. Why might the ATV650U15N4 overheat or generate a thermal fault?
Drive overheating can be caused by insufficient ventilation, blocked airflow, excessive ambient temperature, a heavily loaded motor or incorrect switching-frequency settings. Because the ATV650U15N4 uses forced convection cooling, the cooling path and fan operation should be checked during maintenance. The cabinet installation should also provide adequate clearance and airflow. If the drive operates continuously near its current limit, the application duty cycle and required derating should be reviewed.

7. How should the ATV650U15N4 be commissioned with a new motor?
Before commissioning, verify the incoming three-phase supply, motor wiring, grounding and motor nameplate data. Enter the rated motor voltage, current, frequency, power and other required parameters into the drive. Select the appropriate motor-control profile and configure acceleration, deceleration, minimum and maximum speed limits. Perform an initial low-speed test while monitoring motor current and direction. If the drive supports motor identification or tuning for the selected control mode, the procedure should be completed according to the applicable configuration requirements.

8. What maintenance is recommended for the ATV650U15N4?
Routine maintenance should include inspection of the cooling fan and airflow path, power and motor terminals, grounding connections, motor cables and cabinet conditions. Dust accumulation should be removed before it restricts ventilation. It is also useful to review the drive’s fault history, operating current and thermal status to identify developing problems. During troubleshooting, avoid replacing the drive immediately based only on a fault code; first determine whether the underlying cause is related to the motor, mechanical load, wiring, power supply, parameter configuration or the drive itself.
