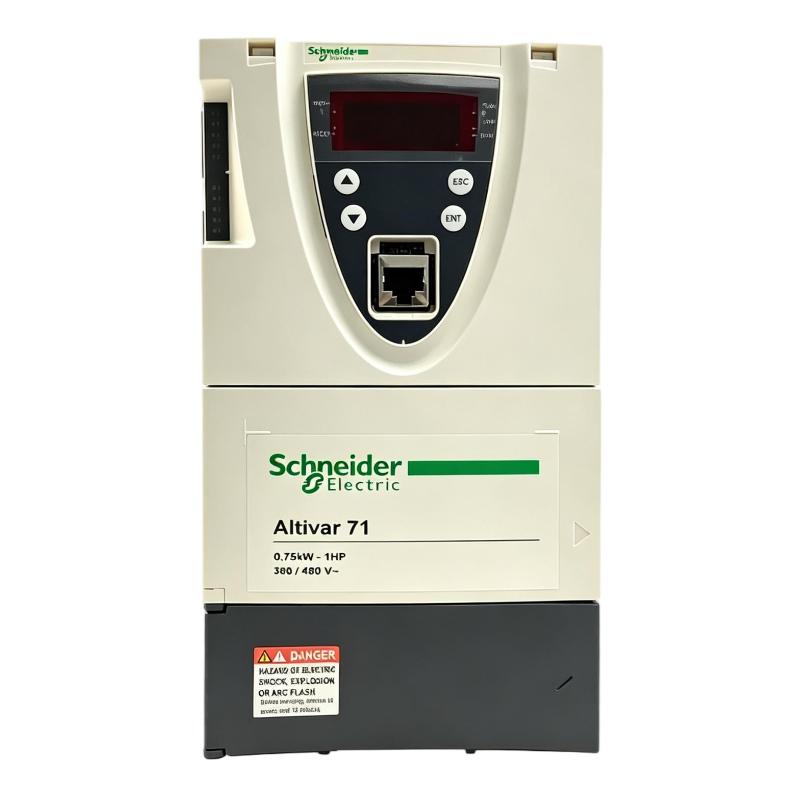

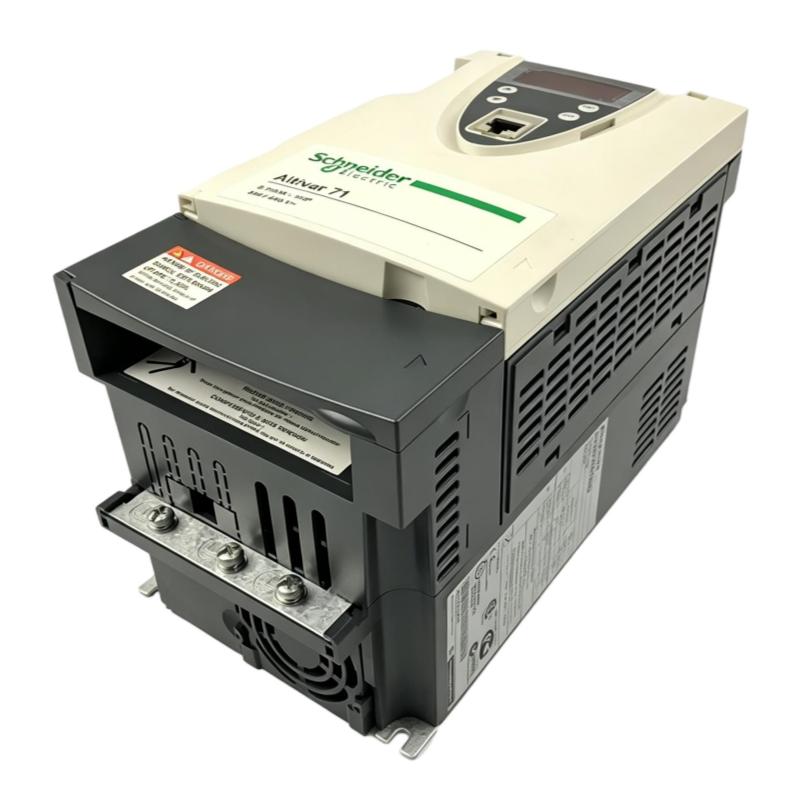

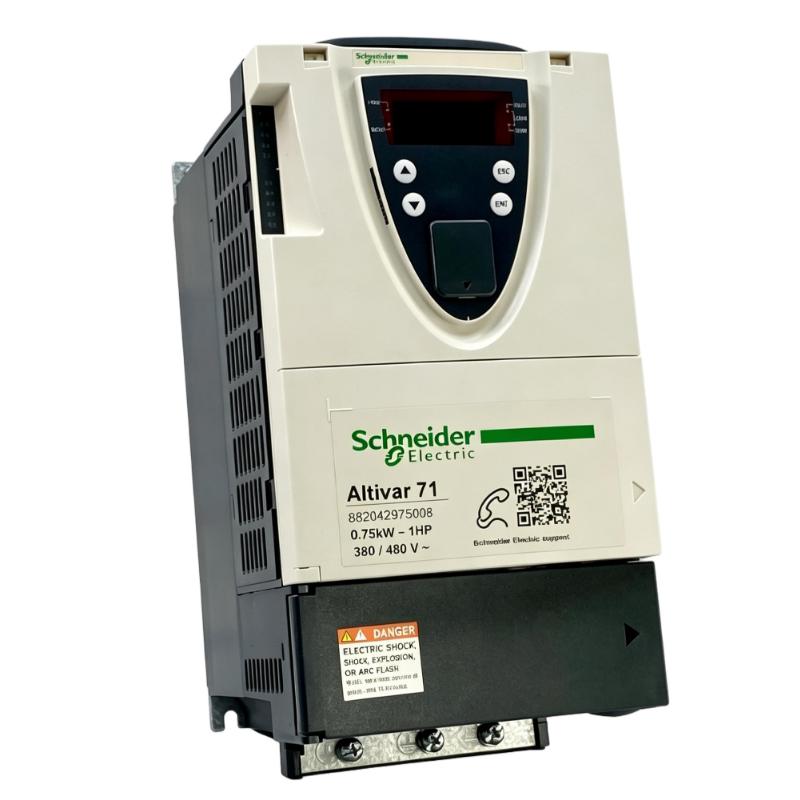

Schneider ATV71H075N4Z Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV71H075N4Z |
| Product Series | Altivar 71 |
| Product Type | Variable-Speed Drive / Frequency Converter |
| Application | Complex and high-power machines |
| Rated Motor Power | 0.75 kW / 1 HP |
| Rated Supply Voltage | 380–480 VAC |
| Input Phase | Three-phase |
| Input Voltage Tolerance | -15% to +10% |
| Line Current | 3.7 A at 380 V; 3 A at 480 V |
| Apparent Power | 2.4 kVA at 380 V |
| Nominal Output Current | 2.3 A at 380 V / 4 kHz; 2.1 A at 460 V / 4 kHz |
| Maximum Transient Current | 3.5 A for 60 s; 3.8 A for 2 s |
| Output Frequency | 0.1–599 Hz |
| Switching Frequency | 1–16 kHz adjustable; 4–16 kHz with derating |
| Nominal Switching Frequency | 4 kHz |
| Motor Type | Asynchronous and synchronous motors |
| Motor Control | V/F, sensorless flux vector control, flux vector control with sensor |
| EMC Filter | Integrated |
| Motor Cable Length | Up to 50 m with shielded cable; up to 100 m with unshielded cable |
| Communication Interfaces | Modbus and CANopen |
| Modbus Interface | 2-wire RS-485 |
| Modbus Transmission Rate | 4.8, 9.6, 19.2, 38.4 kbps on terminal; 9.6 and 19.2 kbps on front interface |
| CANopen Transmission Rate | 20, 50, 125, 250, 500 kbps, 1 Mbps |
| Modbus Address Range | 1–247 |
| CANopen Address Range | 1–127 |
| Remote Graphic Terminal | Not included |
| Optional Communication | PROFIBUS DP, Modbus TCP, Ethernet/IP, DeviceNet, CC-Link and other option cards |
| Installation Position | Vertical ±10° |
| Noise Level | 43 dB |
| Operating Temperature | -10 to 50°C without derating |
| Storage Temperature | -25 to 70°C |
| Operating Altitude | Up to 1000 m without derating; derating required above 1000 m |
| Relative Humidity | 5–95%, non-condensing |
| Protection / Environmental Design | Industrial-duty enclosure with integrated heat sink |
| Typical Applications | Conveyors, pumps, fans, compressors, machine tools and other industrial machinery |
| System Integration | PLC, DCS, SCADA and industrial automation systems |
| Dimensions | 230 × 175 × 130 mm |
| Weight | 3 kg |
FAQ
1. What is the main function of the Schneider ATV71H075N4Z?
The ATV71H075N4Z is a 0.75 kW Altivar 71 variable-speed drive designed to regulate the speed, torque and operating characteristics of industrial motors. It supports advanced motor control functions and is suitable for machinery requiring accurate speed and torque control.
2. What power supply does the ATV71H075N4Z require?
The drive uses a three-phase 380–480 VAC power supply with an allowable voltage range of approximately -15% to +10%. The line current is approximately 3.7 A at 380 V and 3 A at 480 V for a 0.75 kW motor application.
3. What is the output current of the ATV71H075N4Z?
The nominal output current is 2.3 A at 380 V and 2.1 A at 460 V when operating at the nominal 4 kHz switching frequency. The drive can provide a maximum transient current of 3.5 A for 60 seconds and 3.8 A for 2 seconds.
4. Which motor control methods are supported?
The ATV71H075N4Z supports several motor control strategies, including voltage/frequency control, sensorless flux vector control and flux vector control with speed feedback. These functions allow the drive to be configured according to the motor type and application requirements.
5. What communication protocols are available on the ATV71H075N4Z?
The standard drive supports Modbus and CANopen communication. Modbus uses a 2-wire RS-485 physical interface, while CANopen supports transmission rates from 20 kbps up to 1 Mbps. Additional communication options such as PROFIBUS DP, Modbus TCP and Ethernet/IP can be provided through compatible option cards.
6. What should be checked if the ATV71H075N4Z reports an overcurrent fault?
Check the motor cable, motor insulation, mechanical load and motor parameters first. An acceleration time that is too short, excessive mechanical resistance, incorrect motor rated current or abnormal motor wiring can cause excessive output current. The fault history should also be reviewed before changing operating parameters.
7. What is the recommended motor cable length for the ATV71H075N4Z?
For this drive, the recommended maximum motor cable length is up to 50 m when using shielded cable and up to 100 m when using unshielded cable. For longer installations, cable type, EMC conditions, motor insulation and additional output filtering should be evaluated before commissioning.
8. How should the ATV71H075N4Z be maintained?
Routine maintenance should include checking the cooling path, heat sink, electrical terminals, motor cables, grounding connections and communication interfaces. Keep the drive free from excessive dust and moisture, and check for unusual noise, temperature rise or repeated fault conditions. Before servicing, disconnect and isolate the power supply and allow sufficient time for the DC bus to discharge.
Schneider ATV71H075N4Z Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
