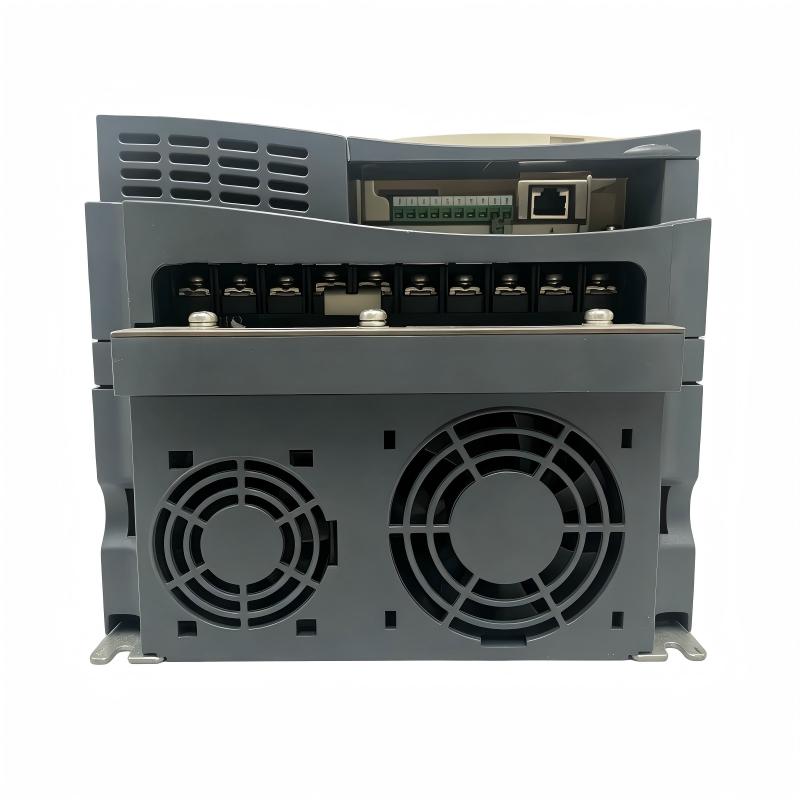

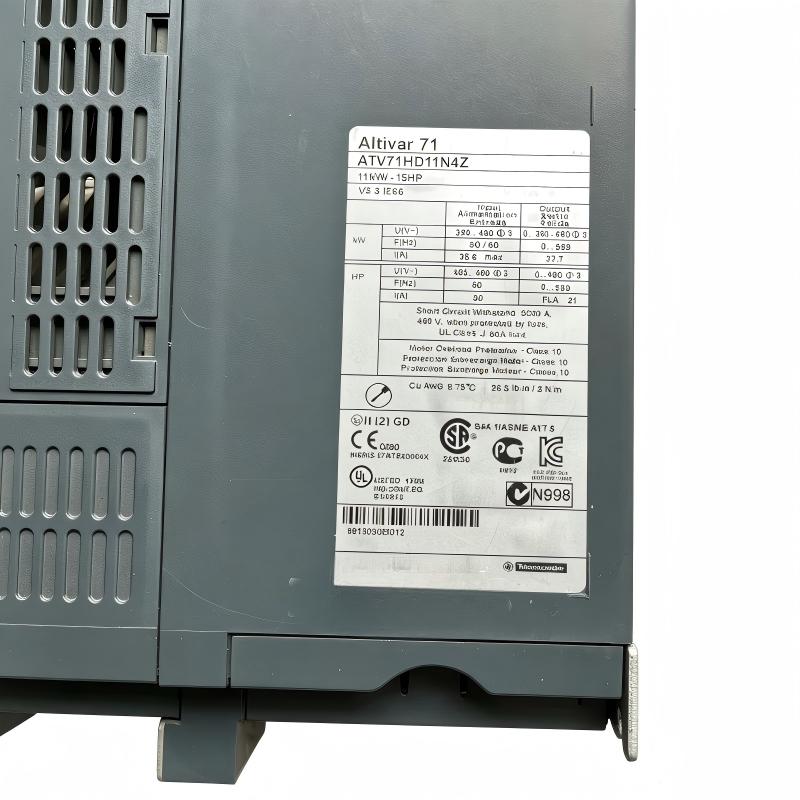

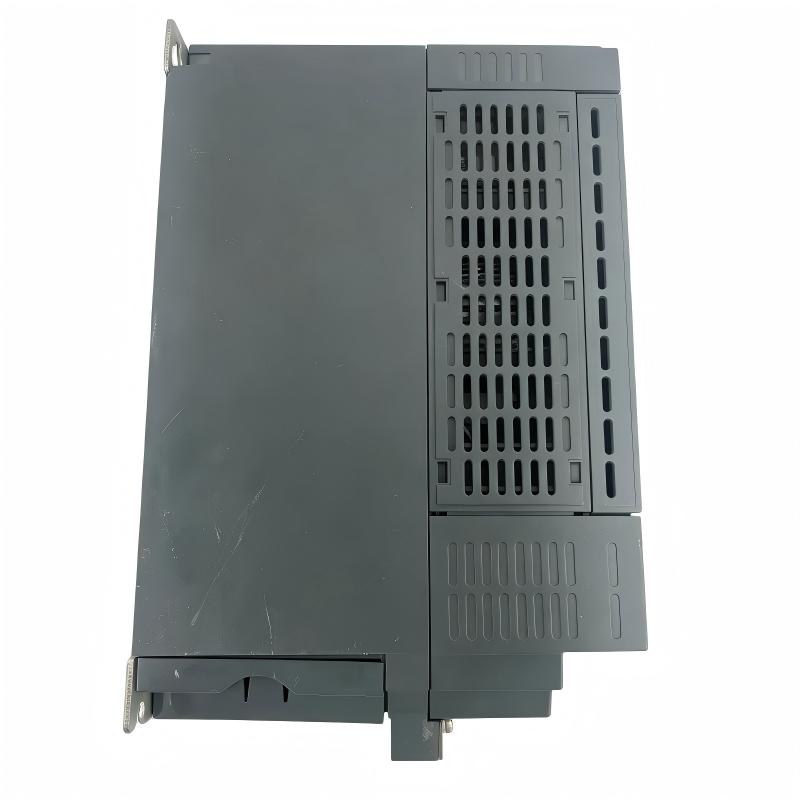

Schneider ATV71HD11N4Z Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | ATV71HD11N4Z |
| Product Series | Altivar 71 |
| Product Type | Variable-Speed Drive |
| Application | Complex, high-power industrial machines |
| Rated Motor Power | 11 kW / 15 HP |
| Input Voltage | 380–480 VAC, 3-phase |
| Input Voltage Tolerance | -15% to +10% |
| Line Current | 36.6 A at 380 V; 30 A at 480 V |
| Apparent Power | 24.1 kVA at 380 V |
| Rated Output Current | 27.7 A at 380 V, 4 kHz; 21 A at 460 V, 4 kHz |
| Maximum Transient Current | 41.6 A for 60 s; 45.7 A for 2 s |
| Output Frequency | 0.1–599 Hz |
| Nominal Switching Frequency | 4 kHz |
| Switching Frequency | 1–16 kHz adjustable; 4–16 kHz with derating |
| Compatible Motors | Asynchronous and synchronous motors |
| Motor Control Methods | V/F, Sensorless Flux Vector Control (SFVC), Flux Vector Control with Sensor (FVC), ENA Energy Adaptation |
| EMC Filter | Integrated |
| Motor Cable Length | Up to 50 m shielded; up to 100 m unshielded |
| Prospective Short-Circuit Current | ≤22 kA, 3-phase |
| Communication | Modbus, CANopen |
| Communication Interface | 2-wire RS-485 |
| Remote Graphic Terminal | Not included |
| Cooling | Heat-sink cooling |
| Protection Rating | IP20 |
| Noise Level | Approximately 57.4 dB |
| Product Status | Discontinued; service/support availability depends on region |
| Product Dimensions | 295 × 213 × 210 mm |
| Weight | 8 kg |
FAQ
1. What is the Schneider ATV71HD11N4Z used for?
The ATV71HD11N4Z is an 11 kW / 15 HP variable-speed drive from the Altivar 71 series. It is designed for industrial machinery requiring adjustable motor speed, controlled acceleration and deceleration, and reliable torque management.
2. What input power supply does the ATV71HD11N4Z require?
The drive operates from a 380–480 VAC, three-phase supply. The permitted input voltage tolerance is -15% to +10%. The upstream protection and power distribution system should be selected according to the actual installation voltage and available short-circuit current.
3. What is the rated output current of the ATV71HD11N4Z?
The rated output current is 27.7 A at 380 V and 4 kHz, or 21 A at 460 V and 4 kHz. The actual continuous current capability depends on switching frequency, ambient conditions, installation method, and required overload duty.
4. Which motor control modes are available?
The ATV71HD11N4Z supports V/F control, Sensorless Flux Vector Control (SFVC), Flux Vector Control with Sensor (FVC), and ENA Energy Adaptation. These control methods allow the drive to be configured for applications ranging from basic speed control to applications requiring improved low-speed torque and dynamic response.
5. What is the maximum motor cable length?
The recommended maximum motor cable length is 50 m for shielded cable and 100 m for unshielded cable. When longer cables are required, cable capacitance, EMC interference, motor insulation stress, grounding, and leakage current should be evaluated carefully.
6. What should be checked when an overcurrent fault occurs?
Check the motor and mechanical load for blockage, excessive torque demand, or sudden load changes. The U/V/W output wiring should also be inspected for phase-to-phase or phase-to-ground short circuits. Motor nameplate parameters, acceleration settings, current limits, and the selected control mode should be verified as well.
7. Can the ATV71HD11N4Z operate at a switching frequency higher than 4 kHz?
Yes. The switching frequency can be adjusted from 1 to 16 kHz. Operation at higher frequencies can require derating, so the allowable output current should be checked before selecting a high switching-frequency setting.
8. Does the ATV71HD11N4Z support industrial communication networks?
The standard drive supports Modbus and CANopen communication. The drive uses a 2-wire RS-485 interface for serial communication. Additional communication functions can be implemented through compatible option cards where required by the control system.
Schneider ATV71HD11N4Z Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
