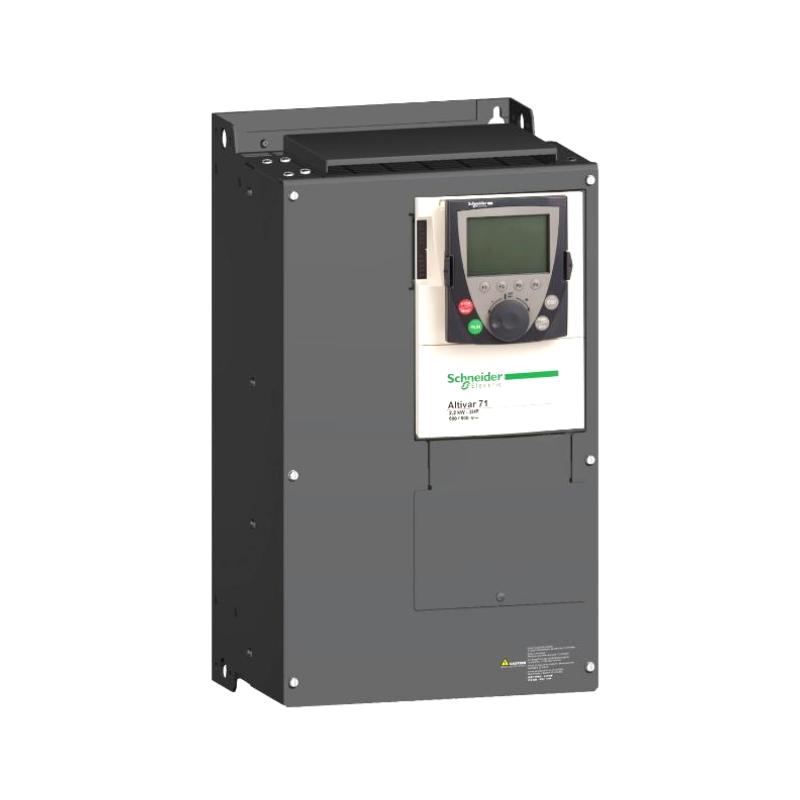

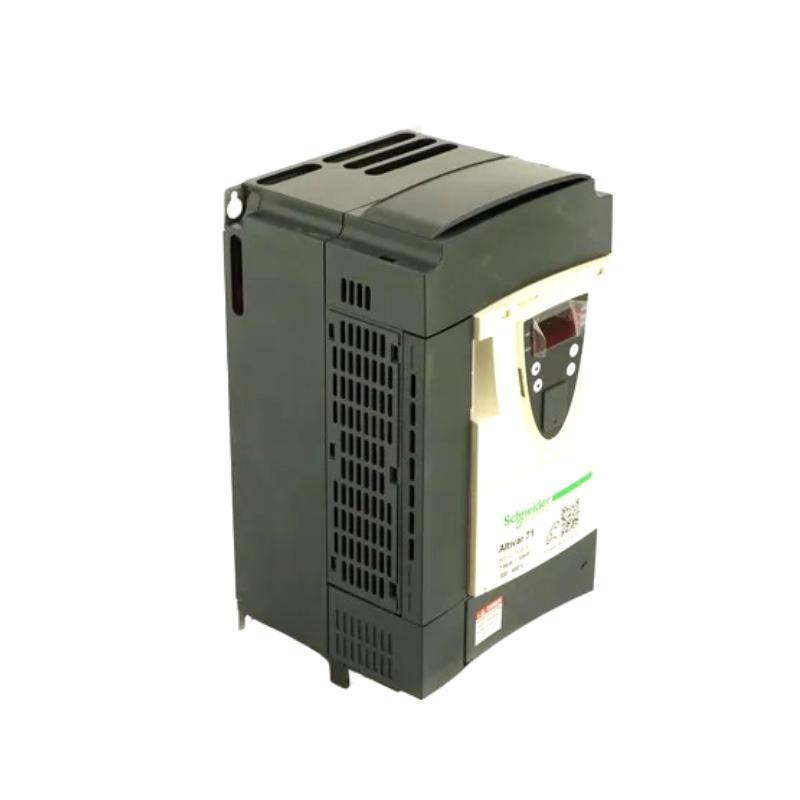

Schneider ATV71HD90N4 Variable Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | ATV71HD90N4 |
| Manufacturer | Schneider Electric |
| Product Type | Variable Speed Drive (VFD) |
| Product Series | Altivar 71 |
| Drive Type | AC Variable Frequency Drive |
| Application | Complex Machines, Hoists, Conveyors, Material Handling, Industrial Automation |
| Motor Compatibility | 3-Phase Asynchronous and Synchronous Motors |
| Rated Motor Power | 90 kW (125 HP) |
| Supply Voltage | 380–480V AC (-15% / +10%) |
| Supply Phases | 3-Phase |
| Supply Frequency | 50/60 Hz |
| Apparent Power | 135 kVA |
| Line Current | 205 A @ 380V, 170 A @ 480V |
| Continuous Output Current | 180 A |
| Maximum Transient Current | 270 A for 60 s |
| Output Frequency Range | 0.1–599 Hz |
| Switching Frequency | 1–16 kHz Adjustable |
| Nominal Switching Frequency | 4 kHz |
| Motor Control Modes | Sensorless Flux Vector Control (SFVC), Flux Vector Control (FVC), V/F Control, Closed-Loop Vector Control (with encoder option) |
| Communication Protocol | Modbus, CANopen |
| Optional Communication | Ethernet/IP, Profibus DP, DeviceNet, Interbus-S, Modbus TCP |
| EMC Filter | Integrated |
| Protection Rating | IP20 |
| Cooling Method | Forced Air Cooling |
| Mounting Type | Panel / Cabinet Mount |
| Maximum Motor Cable Length | 100 m Shielded, 200 m Unshielded |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -25°C to 70°C |
| Dimensions (H × W × D) | 650 × 320 × 310 mm |
| Weight | 50 kg |
| Typical Applications | Packaging Machines, Cranes, Hoists, Conveyors, Textile Machinery, Process Automation |
| Lifecycle Status | Discontinued / Legacy Product |
FAQ
Q1: What is the ATV71HD90N4 used for?
A1: It is a high-performance variable frequency drive designed for demanding industrial applications such as cranes, hoists, conveyors, packaging equipment, and process automation systems.
Q2: What motor size can it control?
A2: It supports three-phase asynchronous and synchronous motors up to 90 kW (125 HP) operating on 380–480V AC.
Q3: Which communication protocols are included?
A3: Modbus and CANopen are standard, with optional communication cards available for Ethernet/IP, Profibus DP, DeviceNet, Interbus-S, and Modbus TCP.
Q4: What control methods does the drive support?
A4: It supports sensorless flux vector control, flux vector control with feedback, V/F control, and closed-loop vector control using optional encoder feedback.
Q5: What are the dimensions and weight?
A5: The drive measures 650 × 320 × 310 mm and weighs approximately 50 kg.
Q6: What protection rating does the drive have?
A6: It has an IP20 protection rating and includes an integrated EMC filter.
Q7: What applications is this drive designed for?
A7: It is optimized for material handling systems, lifting equipment, packaging machinery, textile machines, conveyors, and complex industrial automation applications.
Q8: Is the ATV71HD90N4 still available?
A8: No. The ATV71HD90N4 is a legacy/discontinued Altivar 71 model and is generally available only through surplus, refurbished, or aftermarket suppliers.
