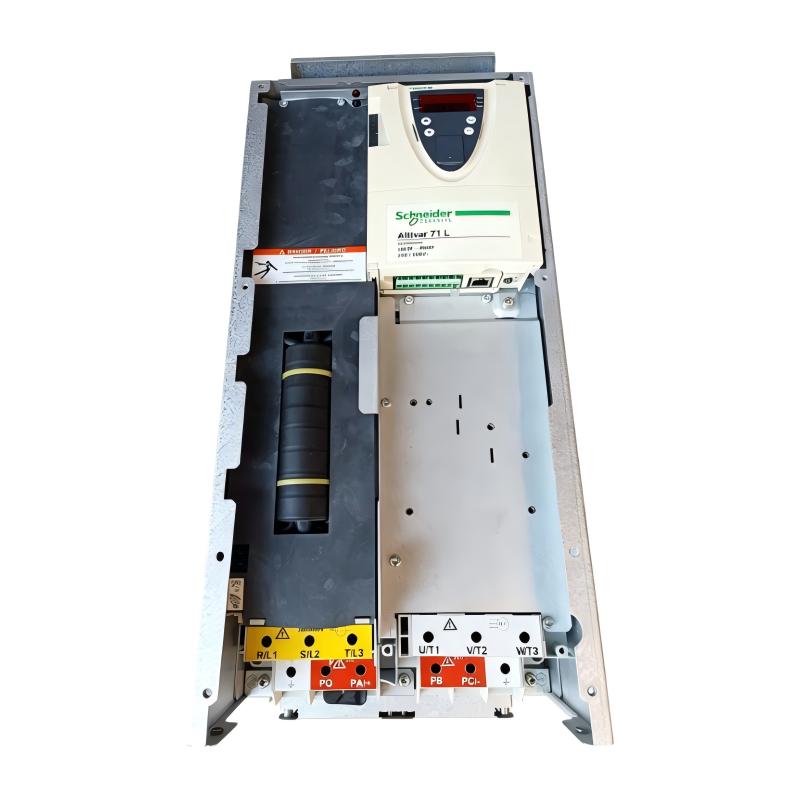

1. What is the main function of the Schneider ATV71LD30N4Z Variable-Speed Drive?
The ATV71LD30N4Z is a 30 kW Altivar 71 variable-speed drive designed for controlling three-phase industrial motors in demanding machine applications. It regulates motor speed, torque, acceleration, and deceleration by controlling the output voltage and frequency. The drive supports several control strategies, making it suitable for machinery where stable speed control, controlled acceleration, and reliable motor operation are required.

2. What motor is suitable for the ATV71LD30N4Z?
The ATV71LD30N4Z is rated for a 30 kW, approximately 40 HP, three-phase motor operating from a 380–480 V AC supply. Motor selection should be based not only on rated power but also on the motor’s rated current, voltage, frequency, load characteristics, and operating duty. For high-inertia machinery or applications with frequent acceleration and deceleration, the motor current and overload requirements should be compared carefully with the drive’s output rating.

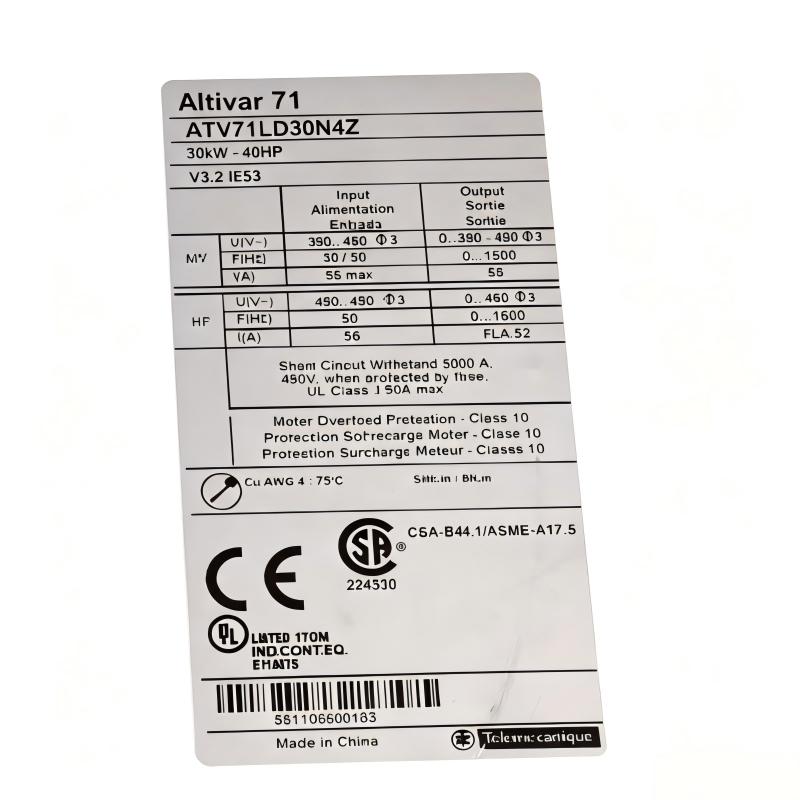

3. What are the rated input and output current values of the ATV71LD30N4Z?
The input line current is approximately 66 A at 380 V and 56 A at 480 V. The nominal output current is 66 A at 380 V and 52 A at 460 V when operating at the specified 4 kHz switching frequency. The drive provides short-duration overload capability, with a maximum transient current of approximately 109 A for 2 seconds and 99 A for 60 seconds. Actual operating capability depends on load conditions, switching frequency, ambient temperature, and installation conditions.

4. What motor-control modes are supported by the ATV71LD30N4Z?
The drive supports V/F control, sensorless flux vector control, and flux vector control with a speed sensor. V/F control can be used for applications with relatively straightforward speed requirements, while sensorless flux vector control provides improved torque control without requiring a speed feedback device. Closed-loop flux vector control can be used when more precise speed regulation is required. The appropriate control mode should be selected according to motor type, load characteristics, low-speed torque requirements, and required speed accuracy.

5. What should be checked if the ATV71LD30N4Z trips on overcurrent during acceleration?
First check whether the driven machine has excessive mechanical resistance, blockage, bearing problems, or an unusually high starting load. A very short acceleration time can also cause a large current demand, particularly when the motor is driving a high-inertia load. Verify the motor nameplate parameters programmed into the drive, including rated voltage, current, frequency, and power. The motor cable should also be inspected for phase-to-phase short circuits, ground faults, insulation damage, or incorrect wiring. If the mechanical system is healthy, gradually increasing the acceleration time can help determine whether the fault is related to the acceleration profile.

6. Why might the motor connected to the ATV71LD30N4Z fail to reach the commanded speed?
The first step is to verify the actual frequency or speed reference received by the drive. For analog control, check the input signal, scaling, wiring, and configured minimum and maximum frequency. For CANopen or Modbus control, verify the communication data and command/reference channel configuration. The mechanical load should also be inspected because excessive load torque can prevent the motor from reaching the requested speed. Current limits, torque limits, acceleration settings, and other configured restrictions should be reviewed if the motor runs but remains below the commanded speed.

7. How can CANopen or Modbus communication faults be diagnosed on the ATV71LD30N4Z?
Begin with the physical communication network by checking cables, connectors, shielding, grounding, and termination. Confirm that the drive’s communication address, baud rate, and other parameters match those configured in the PLC or supervisory controller. The command source and speed-reference source must also be correctly assigned to the communication channel. If communication failures occur intermittently, inspect the installation for electromagnetic interference from motor cables, contactors, switching equipment, and other high-power devices. Reviewing the drive’s communication status and diagnostic information can help distinguish between wiring problems, incorrect configuration, and electrical interference.

8. What should be checked if the ATV71LD30N4Z overheats or repeatedly enters thermal protection?
Check the control cabinet ventilation and make sure the heat sink and airflow paths are not blocked. High ambient temperature, continuous operation near rated current, frequent acceleration and deceleration, and high switching frequency can all increase thermal loading. The driven machine should also be checked for mechanical overload that may force the drive to operate at high current for extended periods. If the drive is configured for a high switching frequency, evaluate whether a lower setting is acceptable for the application. When the drive is installed at higher altitudes, the applicable current derating should also be considered. Regular inspection of cooling airflow and cabinet ventilation can help prevent repeated thermal protection events.
