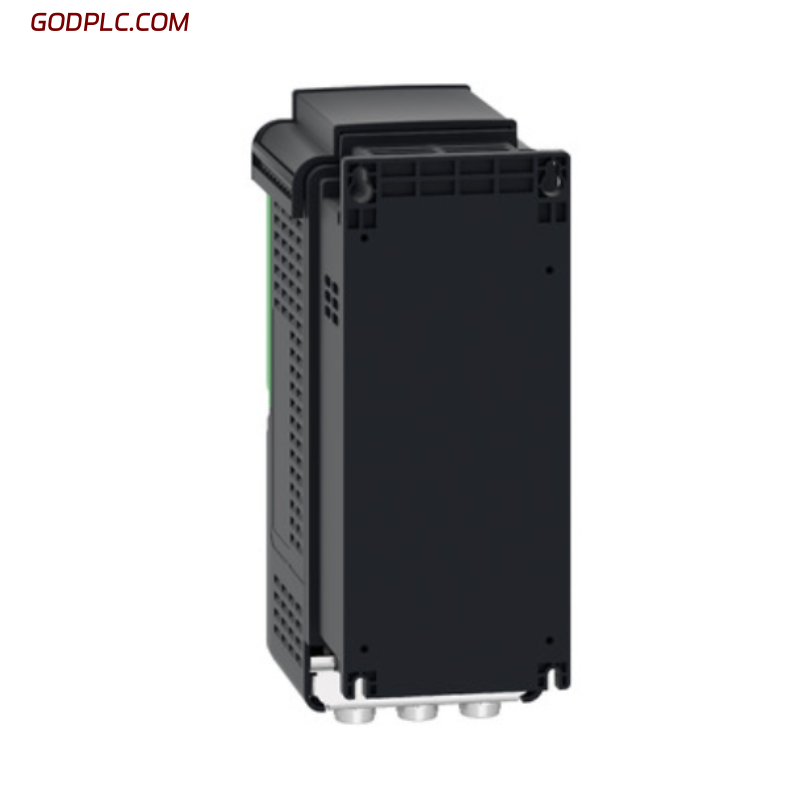

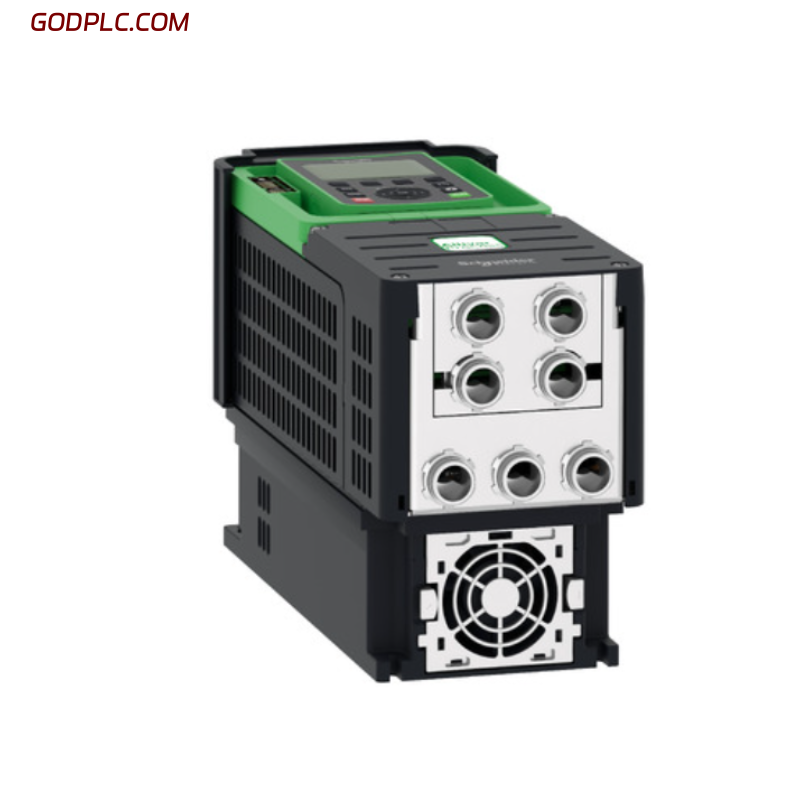

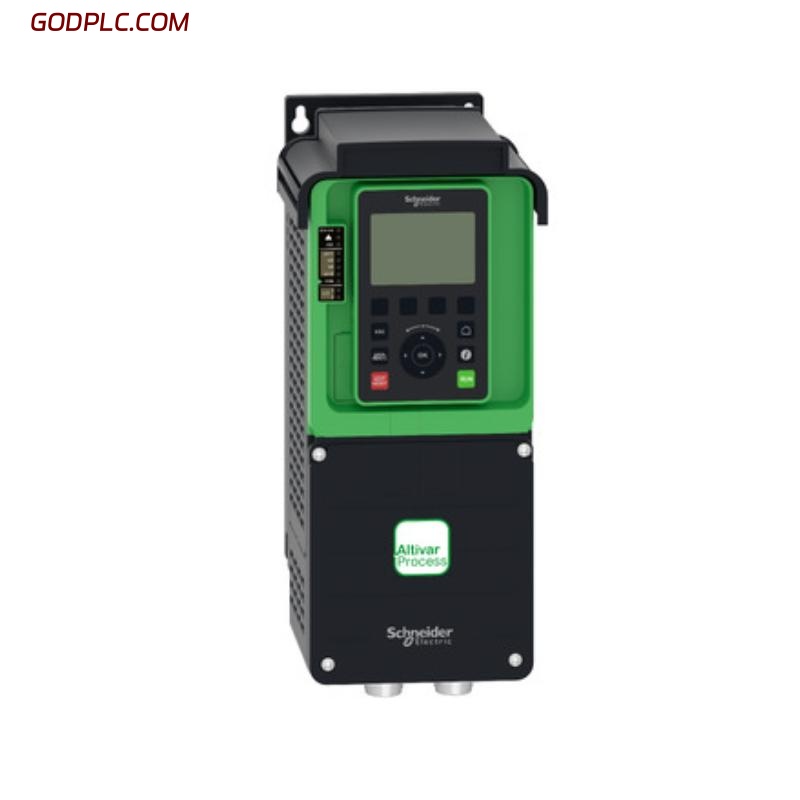

Schneider ATV930U55N4 Variable Speed Drive
Product Overview
The Schneider ATV930U55N4 is a robust, high-performance Variable Speed Drive (VSD) from the Altivar Process ATV900 series, designed for intensive and critical industrial motor control applications. With a power rating of 5.5 kW (7.5 HP) and support for three-phase 380–480 V systems, this drive is optimized for energy efficiency, process optimization, and high-end motor control. Its advanced features make it suitable for demanding environments across industries such as water & wastewater, oil & gas, mining, and manufacturing.
Key Features
-
Power Rating: 5.5 kW / 7.5 HP – Delivers reliable motor control for medium-duty industrial loads.
-
Input Voltage: 380–480 V AC (3-phase) – Suitable for standard industrial power grids.
-
Advanced Motor Control – Supports asynchronous, synchronous, and permanent magnet motors.
-
Integrated Safety Functions – Includes STO (Safe Torque Off) and other safety options.
-
Embedded Ethernet – Built-in Modbus TCP and Ethernet/IP for seamless communication.
-
Energy Monitoring – Real-time energy consumption feedback to improve operational efficiency.
-
IP21 Protection – Designed for installation in industrial control cabinets.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 144 x 350 x 206mm |
| Weight | 4.7 kg |
General Specifications
| Item | Specification |
|---|---|
| Product Series | Altivar Process ATV900 |
| Model Number | ATV930U55N4 |
| Function | Variable Speed Drive for motor control |
| Power Rating | 5.5 kW / 7.5 HP |
| Input Voltage | 380–480 V AC, 3-phase |
| Output Voltage | 0–480 V AC |
| Output Frequency | 0–599 Hz |
| Motor Type Supported | Asynchronous, Synchronous, PM |
Electrical & Control Features
| Item | Specification |
|---|---|
| Control Method | Sensorless Vector, Flux Vector, V/f |
| Overload Capacity | 150% for 60 seconds |
| Switching Frequency | Adjustable, up to 16 kHz |
| Safety Function | STO (SIL3, PLe) |
| EMC Filter | Integrated |
Communication and Interfaces
| Item | Specification |
|---|---|
| Communication Ports | Ethernet/IP, Modbus TCP, CANopen, Modbus RTU |
| Display Interface | Graphical keypad (removable) |
| Programming Software | SoMove, EcoStruxure Control Expert |
Environmental Specifications
| Item | Specification |
|---|---|
| Protection Rating | IP21 (front panel) |
| Operating Temperature | -15°C to +50°C (derating above 40°C) |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Cooling Method | Forced air |
Industry Applications
-
Water & Wastewater – Pump and fan control with energy-saving features.
-
Oil & Gas – Drives for compressors, separators, and process motors.
-
Manufacturing – Conveyor systems, mixers, extruders, and machine tools.
-
Mining & Minerals – High-torque control for crushers, mills, and hoists.
-
HVAC Systems – Energy-efficient control of fans and pumps in large facilities.
The Schneider ATV930U55N4 Variable Speed Drive delivers outstanding performance, precise motor control, and robust communication features tailored for complex industrial automation environments. With integrated energy monitoring, safety functions, and flexible communication protocols, it helps reduce downtime, optimize energy usage, and extend equipment life—making it a vital component in high-demand process applications.
Schneider ATV930U55N4 Variable Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
