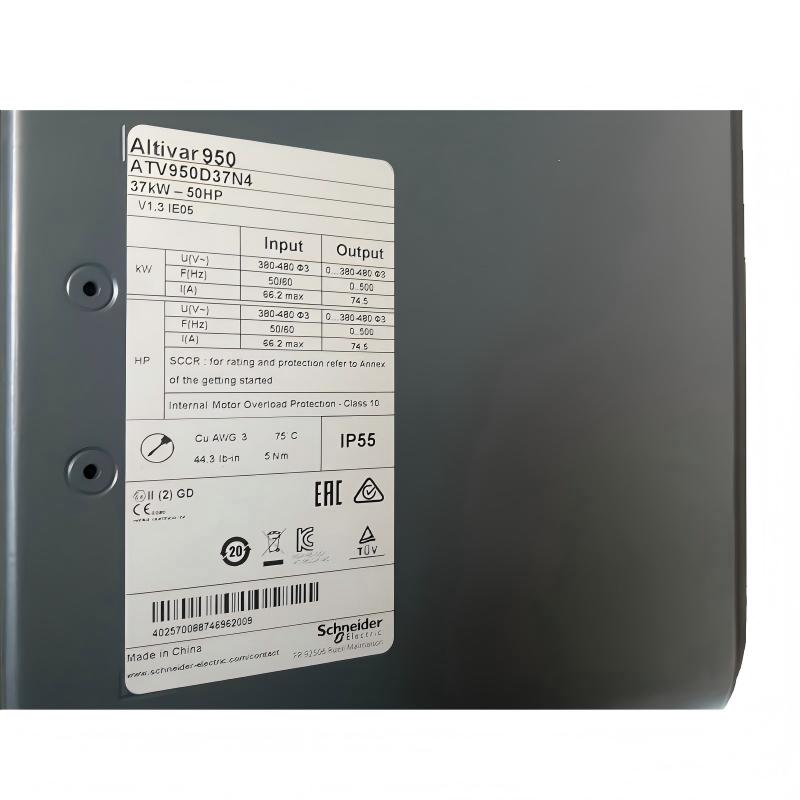

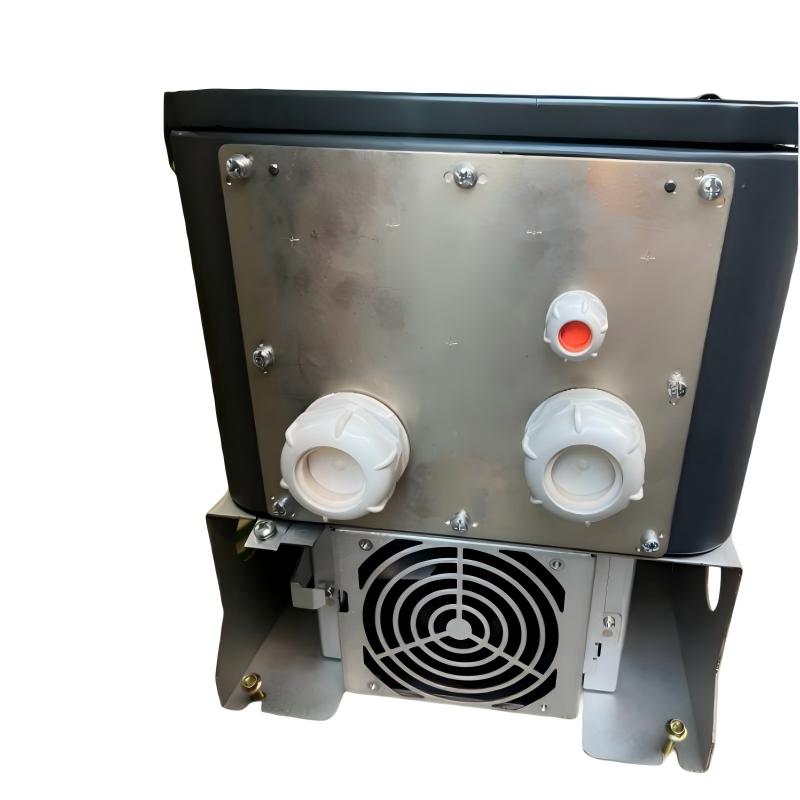

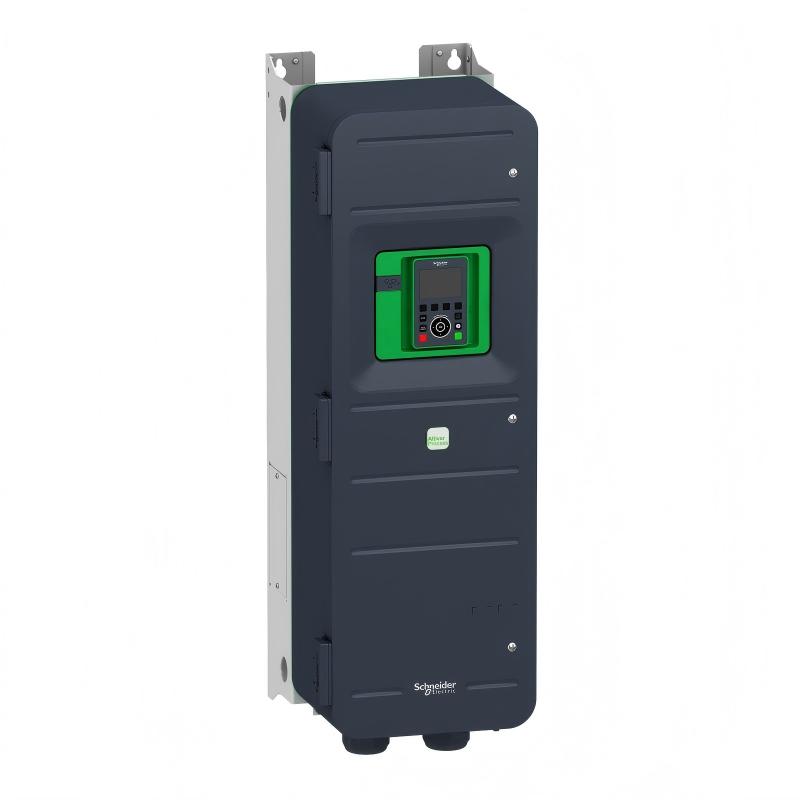

Schneider ATV950D37N4 Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | ATV950D37N4 |
| Brand | Schneider Electric |
| Product Series | Altivar Process ATV900 |
| Product Type | Variable-Speed Drive |
| Device Model | ATV950 |
| Application | Industrial process and motor control |
| Rated Supply Voltage | 380–480 VAC |
| Supply Voltage Tolerance | -15% to +10% |
| Supply Frequency | 50–60 Hz |
| Input Phases | 3-phase |
| Mounting | Wall mounting |
| Motor Power – Normal Duty | 37 kW / 50 HP |
| Motor Power – Heavy Duty | 30 kW / 40 HP |
| Line Current – Normal Duty | 66.2 A at 380 V / 57.3 A at 480 V |
| Line Current – Heavy Duty | 54.8 A at 380 V / 48.3 A at 480 V |
| Continuous Output Current – Normal Duty | 74.5 A at 4 kHz |
| Continuous Output Current – Heavy Duty | 61.5 A at 4 kHz |
| Maximum Transient Current – Normal Duty | 89.4 A for 60 s |
| Maximum Transient Current – Heavy Duty | 92.3 A for 60 s |
| Output Frequency Range | 0.1–599 Hz |
| Compatible Motor Types | Synchronous and asynchronous motors |
| Asynchronous Motor Control | Constant torque, optimized torque and variable torque |
| Synchronous Motor Control | Permanent magnet motor control |
| Braking Function | Integrated braking chopper |
| EMC Filter | Integrated |
| EMC Class | C2 up to 50 m motor cable; C3 up to 150 m motor cable |
| Protection Rating | IP55 |
| Cooling Method | Forced convection |
| Switching Frequency | 2–16 kHz adjustable |
| Nominal Switching Frequency | 4 kHz |
| Communication Protocols | Modbus Serial, Modbus TCP, EtherNet/IP |
| Optional Communication | PROFIBUS DP V1, PROFINET, DeviceNet, EtherCAT, CANopen and Ethernet Powerlink |
| Safety Functions | Safe Torque Off and other configurable safety functions |
| Preset Speeds | 16 preset speeds |
| Typical Applications | Pumps, fans, compressors, conveyors and industrial process equipment |
| Dimensions | 290 × 910 × 340 mm |
| Weight | 50 kg |
FAQ
1. What is the Schneider ATV950D37N4 Variable-Speed Drive used for?
The ATV950D37N4 is an Altivar Process ATV900 variable-speed drive designed for industrial motor control and process applications. It can be used for pumps, fans, compressors, conveyors and other industrial machinery requiring controlled motor speed and torque.
2. What motor power does the ATV950D37N4 support?
The drive supports motors up to 37 kW / 50 HP under normal-duty operation and 30 kW / 40 HP under heavy-duty operation. The correct duty rating should be selected according to the motor nameplate current and actual load conditions.
3. What are the power supply requirements for the ATV950D37N4?
The ATV950D37N4 requires a three-phase 380–480 VAC supply at 50–60 Hz. The permitted supply voltage tolerance is -15% to +10%. Proper upstream protection and power capacity should be provided during installation.
4. What is the continuous output current of the ATV950D37N4?
The continuous output current is 74.5 A at 4 kHz under normal-duty operation and 61.5 A at 4 kHz under heavy-duty operation. The maximum transient current is 89.4 A for 60 seconds in normal duty and 92.3 A for 60 seconds in heavy duty.
5. What types of motors can the ATV950D37N4 control?
The ATV950D37N4 supports both asynchronous and synchronous motors. It provides control modes for constant torque, optimized torque and variable torque applications, as well as permanent-magnet motor control.
6. Does the ATV950D37N4 have an integrated braking function?
Yes. The ATV950D37N4 is equipped with an integrated braking chopper. When higher braking energy needs to be dissipated, an appropriately rated braking resistor should be selected based on the application and braking requirements.
7. Which communication protocols are supported by the ATV950D37N4?
Standard communication includes Modbus Serial, Modbus TCP and EtherNet/IP. Optional communication modules can provide connectivity to PROFIBUS DP V1, PROFINET, DeviceNet, EtherCAT, CANopen and Ethernet Powerlink networks.
8. How should an overcurrent or overload fault on the ATV950D37N4 be diagnosed?
First check the displayed fault code and verify the input supply, motor wiring and motor parameter settings. Then check motor current, mechanical load, acceleration and deceleration settings, cooling conditions and operating temperature. If the fault continues, inspect the motor insulation, mechanical load and drive configuration for abnormal conditions.
Schneider ATV950D37N4 Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
