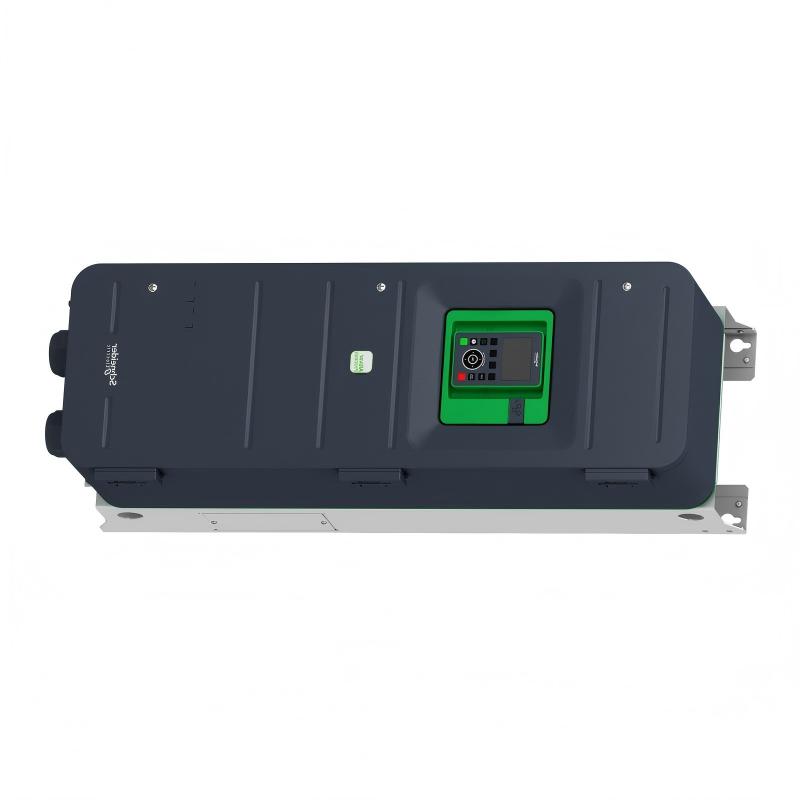

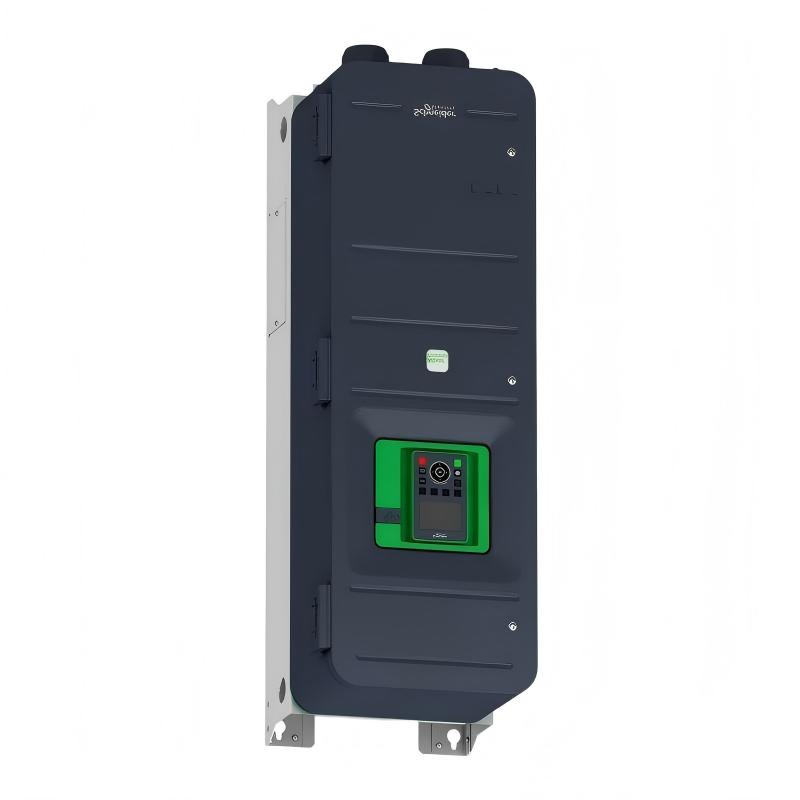

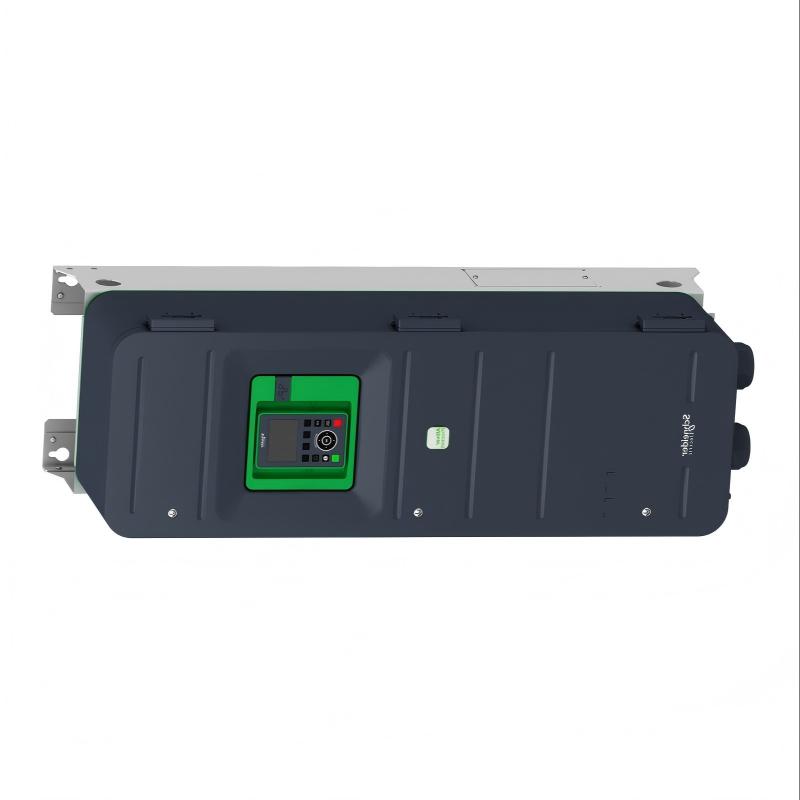

Schneider ATV950D45N4 Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | ATV950D45N4 |
| Brand | Schneider Electric |
| Product Series | Altivar Process ATV900 |
| Product Type | Variable-Speed Drive |
| Device Model | ATV950 |
| Application | Industrial process and motor control |
| Rated Supply Voltage | 380–480 VAC |
| Supply Voltage Tolerance | -15% to +10% |
| Supply Frequency | 50–60 Hz |
| Input Phases | 3-phase |
| Mounting | Wall mounting |
| Motor Power – Normal Duty | 45 kW / 60 HP |
| Motor Power – Heavy Duty | 37 kW / 50 HP |
| Line Current – Normal Duty | 79.8 A at 380 V / 69.1 A at 480 V |
| Line Current – Heavy Duty | 67.1 A at 380 V / 59 A at 480 V |
| Continuous Output Current – Normal Duty | 88 A at 4 kHz |
| Continuous Output Current – Heavy Duty | 74.5 A at 4 kHz |
| Maximum Transient Current – Normal Duty | 105.6 A for 60 s |
| Maximum Transient Current – Heavy Duty | 111.8 A for 60 s |
| Output Frequency Range | 0.1–599 Hz |
| Compatible Motor Types | Synchronous and asynchronous motors |
| Asynchronous Motor Control | Constant torque, variable torque and optimized torque |
| Synchronous Motor Control | Permanent magnet and synchronous reluctance motor control |
| Braking Function | Integrated braking chopper |
| EMC Filter | Integrated |
| EMC Performance | Category C2 up to 50 m motor cable; Category C3 up to 150 m motor cable |
| Protection Rating | IP55 |
| Cooling Method | Forced convection |
| Switching Frequency | 2–16 kHz adjustable |
| Nominal Switching Frequency | 4 kHz |
| Safety Function | Safe Torque Off (STO), SIL 3 |
| Preset Speeds | 16 preset speeds |
| Standard Communication Protocols | Modbus Serial, Modbus TCP, EtherNet/IP |
| Optional Communication | PROFIBUS DP V1, PROFINET, DeviceNet, EtherCAT, CANopen and Ethernet Powerlink |
| Typical Applications | Pumps, fans, compressors, conveyors and industrial process equipment |
| Dimensions | 290 × 910 × 340 mm |
| Weight | 50 kg |
FAQ
1. What is the Schneider ATV950D45N4 Variable-Speed Drive used for?
The ATV950D45N4 is an Altivar Process ATV900 variable-speed drive designed for industrial motor control and process applications. It is suitable for pumps, fans, compressors, conveyors and other equipment requiring controlled motor speed and torque.
2. What motor power does the ATV950D45N4 support?
The drive supports 45 kW / 60 HP motors under normal-duty operation and 37 kW / 50 HP motors under heavy-duty operation. The appropriate duty rating should be selected according to the motor rated current and actual load conditions.
3. What are the power supply requirements for the ATV950D45N4?
The ATV950D45N4 requires a three-phase 380–480 VAC power supply at 50–60 Hz. The allowable supply voltage tolerance is -15% to +10%. The upstream power system should provide suitable protection and sufficient capacity for the drive.
4. What is the continuous output current of the ATV950D45N4?
The continuous output current is 88 A at 4 kHz for normal-duty operation and 74.5 A at 4 kHz for heavy-duty operation. The maximum transient current is 105.6 A for 60 seconds in normal duty and 111.8 A for 60 seconds in heavy duty.
5. Can the ATV950D45N4 control synchronous and asynchronous motors?
Yes. The ATV950D45N4 supports both asynchronous and synchronous motors. Asynchronous motor applications can use constant torque, variable torque and optimized torque control, while synchronous applications support permanent-magnet and synchronous-reluctance motors.
6. Does the ATV950D45N4 have an integrated braking chopper?
Yes. The ATV950D45N4 is equipped with an integrated braking chopper for dynamic braking applications. When additional braking capacity is required, the braking resistor should be selected according to the required braking energy and operating cycle.
7. Which communication protocols are supported by the ATV950D45N4?
Standard communication supports Modbus Serial, Modbus TCP and EtherNet/IP. Optional communication modules can provide connectivity to PROFIBUS DP V1, PROFINET, DeviceNet, EtherCAT, CANopen and Ethernet Powerlink networks.
8. How should an overcurrent or overload fault on the ATV950D45N4 be diagnosed?
Start by checking the displayed fault code and verifying the input supply, motor wiring and motor parameter settings. Then check motor current, mechanical load, acceleration and deceleration settings, cooling conditions and operating temperature. If the fault persists, inspect the motor insulation, mechanical system and drive configuration for abnormal conditions.
