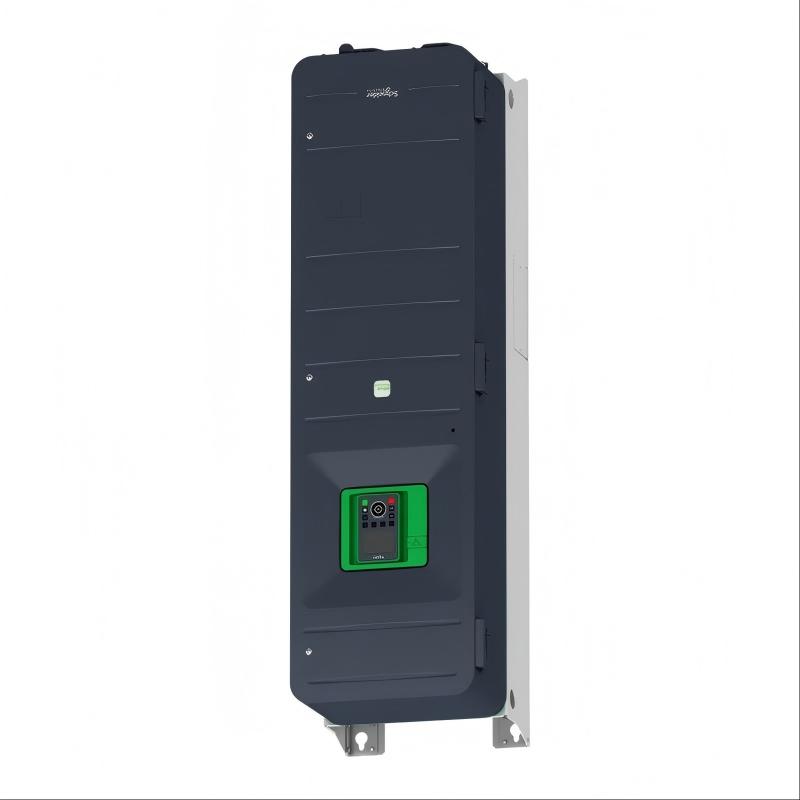

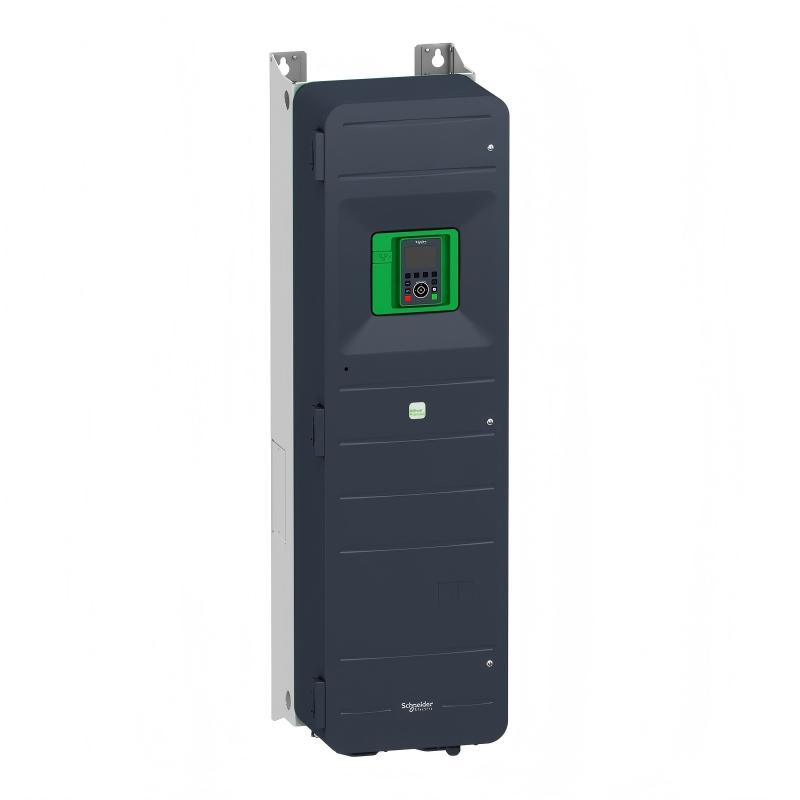

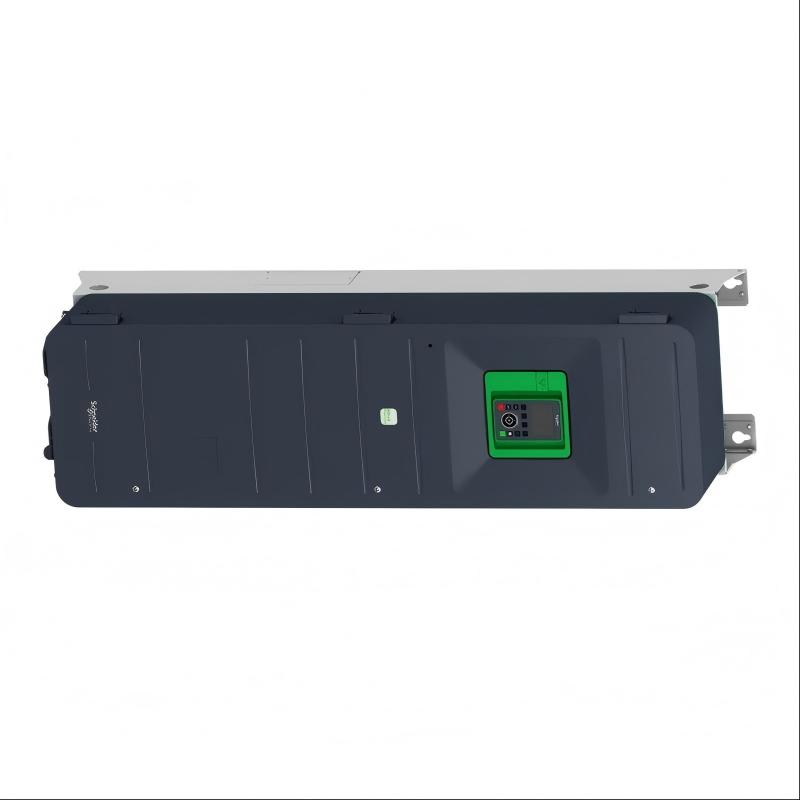

Schneider ATV950D90N4 Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | ATV950D90N4 |
| Product Name | Variable-Speed Drive |
| Product Type | Variable-Speed Drive |
| Product Family | Altivar Process ATV900 |
| Rated Motor Power | 90 kW (Normal Duty); 75 kW (Heavy Duty) |
| Motor Power Rating | 125 hp (Normal Duty); 100 hp (Heavy Duty) |
| Input Voltage | 380–480 VAC |
| Input Phase | 3-phase |
| Supply Frequency | 50–60 Hz |
| Normal-Duty Continuous Output Current | 173 A |
| Heavy-Duty Continuous Output Current | 145 A |
| Maximum Transient Current | 207.6 A / 60 s (Normal Duty); 217.5 A / 60 s (Heavy Duty) |
| Output Frequency | 0.1–599 Hz |
| Rated Switching Frequency | 2.5 kHz |
| Motor Compatibility | Asynchronous and synchronous motors |
| Mounting Method | Wall mounting |
| Cooling Method | Forced-air cooling |
| Protection Rating | IP55 |
| Braking Function | Integrated braking chopper |
| EMC Filter | Integrated |
| Communication Interfaces | Modbus Serial, Modbus TCP, EtherNet/IP |
| Optional Communication Extensions | PROFIBUS DP, PROFINET, DeviceNet, EtherCAT, CANopen, etc. |
| Motor Control Modes | Constant torque, variable torque and optimized torque control |
| Safety Function | Safe Torque Off (STO) |
| Typical Applications | Pumps, fans, compressors, conveyors, water treatment equipment and industrial process systems |
| Operating Temperature | −15°C to 50°C |
| Dimensions | 345 × 1250 × 375 mm |
| Weight | 87.7 kg |
FAQ
1. What is the Schneider ATV950D90N4 used for?
The Schneider ATV950D90N4 is a 90 kW variable-speed drive from the Altivar Process ATV900 family. It is designed for industrial motor speed and torque control in applications such as pumps, fans, compressors, conveyors, water treatment systems and process equipment.
2. What motor power does the ATV950D90N4 support?
The ATV950D90N4 supports a 90 kW motor under Normal Duty operation and a 75 kW motor under Heavy Duty operation. The correct duty rating should be selected according to the motor rated current, load characteristics, starting conditions and required overload capacity.
3. What power supply does the ATV950D90N4 require?
The drive requires a three-phase 380–480 VAC power supply with a 50–60 Hz frequency range. Before installation, verify the incoming voltage, frequency, grounding system and upstream protection to ensure compatibility with the drive.
4. What is the rated output current of the ATV950D90N4?
The continuous output current is 173 A under Normal Duty operation and 145 A under Heavy Duty operation. The maximum transient current is 207.6 A for 60 seconds in Normal Duty and 217.5 A for 60 seconds in Heavy Duty.
5. What types of motors can the ATV950D90N4 control?
The ATV950D90N4 supports both asynchronous and synchronous motors, including applications using permanent-magnet synchronous motors and synchronous reluctance motors. The correct motor control mode and nameplate parameters should be configured during commissioning.
6. What communication protocols are supported by the ATV950D90N4?
The drive supports Modbus Serial, Modbus TCP and EtherNet/IP. Optional communication modules can provide additional protocols such as PROFIBUS DP, PROFINET, DeviceNet, EtherCAT and CANopen, allowing integration with PLC, DCS, HMI and SCADA systems.
7. How should an overcurrent fault on the ATV950D90N4 be diagnosed?
Check the motor cables and terminals for short circuits, grounding faults or incorrect wiring. Then verify the motor parameters, acceleration time, current limits and mechanical load. If the overcurrent occurs immediately during startup, check for mechanical blockage and incorrect motor connections.
8. What commissioning checks are required after replacing an ATV950D90N4?
Check the three-phase input power, protective grounding, motor connections, control wiring and communication connections. Re-enter the motor rated voltage, current, frequency and speed parameters, then verify the control mode, acceleration/deceleration times and current limits. During the test run, monitor output current, frequency, alarms and motor operating conditions.
Schneider ATV950D90N4 Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13950166376 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Company Introduction
Xiamen Shengruite Trading Co., Ltd. is a company specializing in the supply of industrial PLC spare parts.
We provide high-quality PLC spare parts to customers in the global manufacturing, energy and power, chemical and other fields.
Since its establishment in 2011, after 13 years of rapid development, the cumulative global shipments have reached 223,650 pieces, with an annual output value of US$50 million.
Successfully served more than 500 customers in more than 100 countries and regions including Saudi Arabia, UAE, the United States, Europe, Africa, and Southeast Asia
Our Mission
Provide customers with the best quality PLC spare parts and the fastest delivery service to ensure that their industrial automation systems are always in the best operating condition.
We provide a 1-year warranty service, and we support returns and exchanges for any issues to ensure your rights and interests are fully protected.
We can provide detailed product images upon request, and our team can arrange warehouse photos for confirmation to ensure you have all the information you need before making a purchase.
Shipping times vary depending on your location. With the support of our 16 global warehouses, we strive to deliver orders as quickly as possible. Contact us to get an estimated delivery time for your specific location.
The minimum order quantity (MOQ) is typically one unit. However, for larger orders, please contact us for potential discounts and pricing details.
Yes, we offer competitive pricing for bulk purchases. Please reach out to our sales team with the specifics of your order to receive a custom quote.
We accept various payment methods for wholesale orders, including bank transfers (T/T), letters of credit, and other options upon agreement. For large transactions, please contact us directly for payment terms.
Yes, we offer flexible ordering options for both small and large quantities. Whether youre looking for a single unit or a large batch, we can accommodate your needs.
We occasionally offer promotional discounts for new wholesale customers. Contact us to learn more about any current offers available for first-time buyers.
If you are unsure of compatibility with your existing setup please provide your system details and our support team can verify compatibility prior to purchase.
Returns are accepted within 30 days if the product is unused, unopened, and in its original packaging. Please note that return shipping and associated costs are the buyer\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\’s responsibility.
Yes, we offer technical support for the installation and integration of our products. Our team can assist with setup, configuration, and troubleshooting to ensure a smooth installation.
