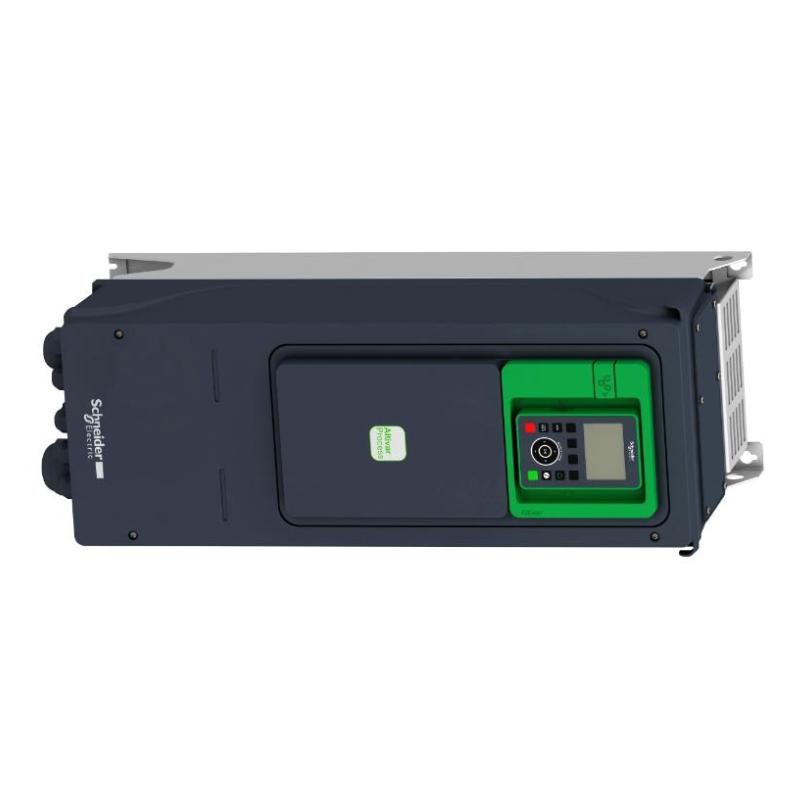

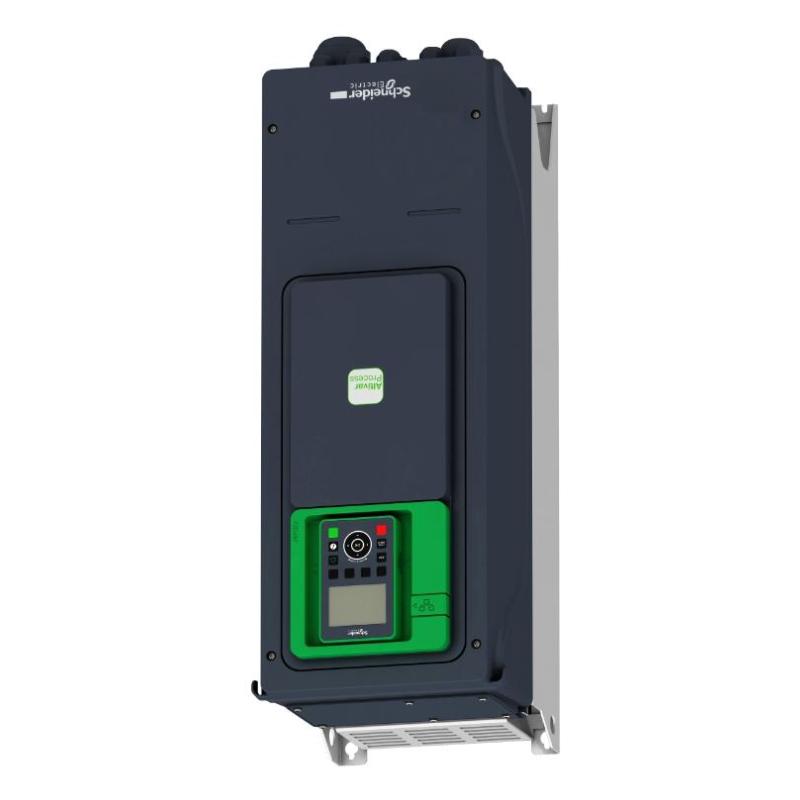

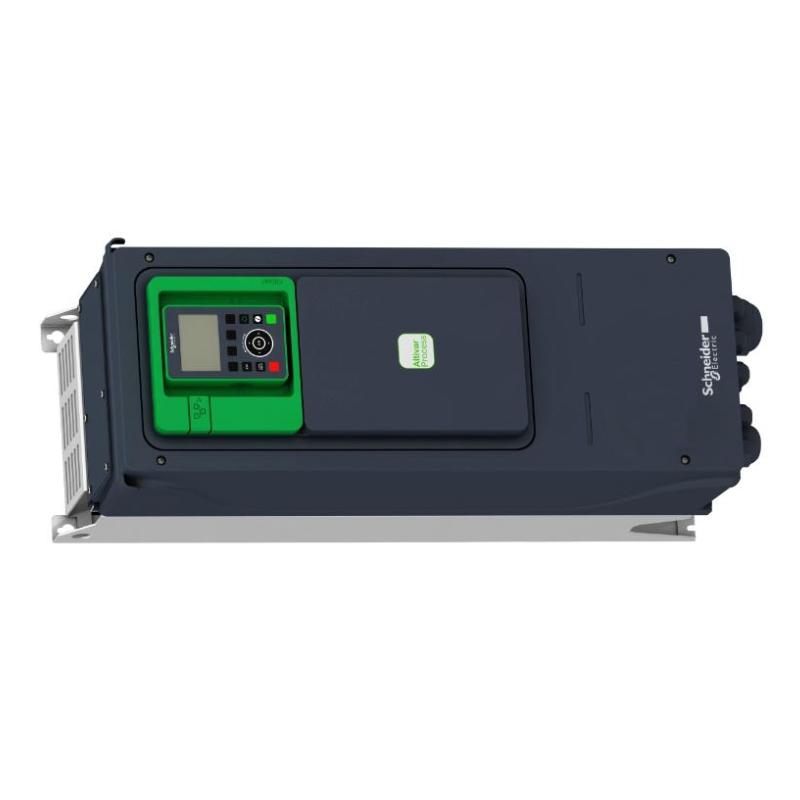

Schneider ATV950U07N4 Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | ATV950U07N4 |
| Product Name | Variable-Speed Drive |
| Product Type | Variable-Speed Drive |
| Product Family | Altivar Process ATV900 |
| Product Series | ATV950 |
| Rated Motor Power | 0.75 kW (Normal Duty); 0.37 kW (Heavy Duty) |
| Motor Power Rating | 1 hp (Normal Duty) |
| Input Voltage | 380–480 VAC |
| Input Phases | Three-phase |
| Input Frequency | 50–60 Hz |
| Continuous Output Current | 2.2 A at 4 kHz (Normal Duty); 1.5 A at 4 kHz (Heavy Duty) |
| Maximum Transient Output Current | 2.6 A for 60 s (Normal Duty) |
| Maximum Output Frequency | 599 Hz |
| Rated Switching Frequency | 4 kHz |
| Switching Frequency Range | 2–16 kHz |
| Compatible Motors | Asynchronous and synchronous motors |
| Mounting Method | Wall mounting |
| Cooling Method | Forced-air cooling |
| Protection Rating | IP55 |
| Braking Function | Integrated braking chopper |
| EMC Filter | Integrated |
| Communication Protocols | Modbus Serial, Modbus TCP, EtherNet/IP |
| Optional Communication | PROFIBUS DP, PROFINET, DeviceNet, EtherCAT, CANopen and other options |
| Communication Interface | Ethernet RJ45, RS-485 |
| Motor Control | Constant torque, variable torque, optimized torque |
| Safety Function | Safe Torque Off (STO) |
| Typical Applications | Pumps, fans, compressors, conveyors, water treatment and industrial process equipment |
| Operating Temperature | −15°C to +40°C |
| Standards | IEC/EN 61800-3, IEC/EN 61800-5-1, IEC 61508, IEC 13849-1, UL 508C |
| Dimensions | 678 × 264 × 272 mm |
| Weight | 10.5 kg |
FAQ
1. What is the Schneider ATV950U07N4 used for?
The ATV950U07N4 is a 0.75 kW variable-speed drive from the Altivar Process ATV900 series. It is designed for industrial motor speed and torque control and can be used in pumps, fans, compressors, conveyors, water treatment systems, and other process applications.
2. What motor power is supported by the ATV950U07N4?
The ATV950U07N4 is rated for 0.75 kW motors under normal-duty operation and 0.37 kW under heavy-duty operation. Motor selection should also consider the motor rated current, load characteristics, starting requirements, and required overload capacity.
3. What power supply does the ATV950U07N4 require?
The drive uses a three-phase 380–480 VAC power supply with a 50–60 Hz input frequency. The installation should include appropriate grounding and upstream protection according to the electrical installation requirements.
4. What is the continuous output current of the ATV950U07N4?
The continuous output current is 2.2 A at a 4 kHz switching frequency for normal-duty operation and 1.5 A for heavy-duty operation. The maximum transient current for normal-duty operation is 2.6 A for up to 60 seconds.
5. Can the ATV950U07N4 control both synchronous and asynchronous motors?
Yes. The ATV950U07N4 supports both synchronous and asynchronous motors. The correct motor type and control profile should be selected during commissioning, with motor nameplate parameters entered accurately.
6. Which communication protocols are supported by the ATV950U07N4?
The standard communication protocols include Modbus Serial, Modbus TCP, and EtherNet/IP. Optional communication modules can provide support for PROFIBUS DP, PROFINET, DeviceNet, EtherCAT, CANopen, and other industrial network configurations.
7. What should be checked if the ATV950U07N4 reports an overcurrent fault?
Check the motor cables, terminals, insulation, and grounding for short circuits or wiring problems. Then verify motor parameters, acceleration time, current limits, and mechanical load conditions. If the fault occurs during startup, inspect the driven machine for excessive starting torque or mechanical blockage.
8. What commissioning checks are required after replacing an ATV950U07N4?
Verify the incoming three-phase power, protective grounding, motor connections, control wiring, and communication connections. Re-enter the correct motor nameplate data and confirm the motor control mode, acceleration and deceleration settings, and current limits. During the first test run, monitor output current, frequency, diagnostic messages, and motor operating conditions.
Schneider ATV950U07N4 Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
