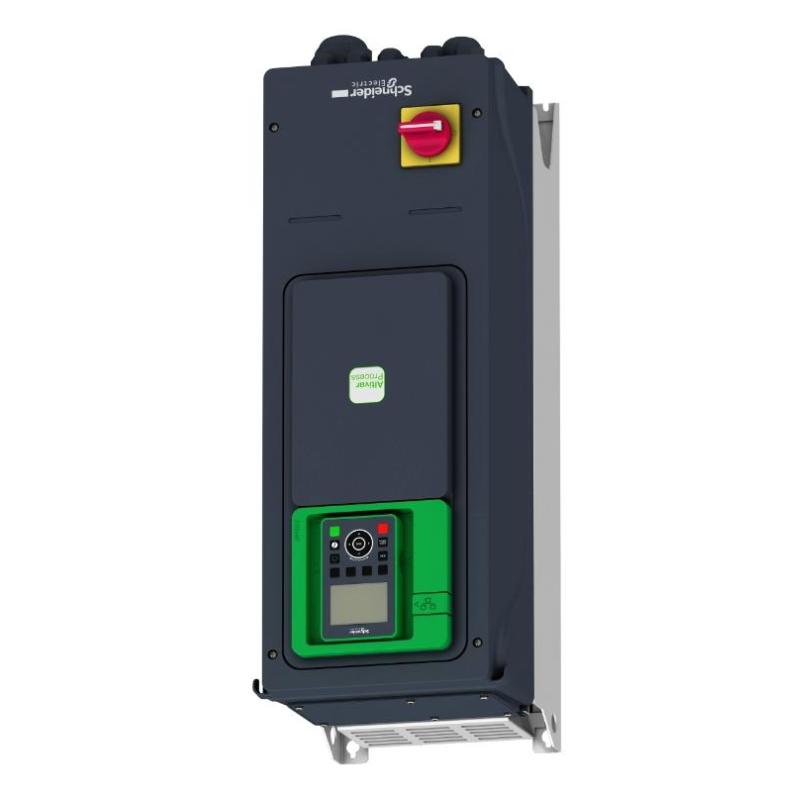

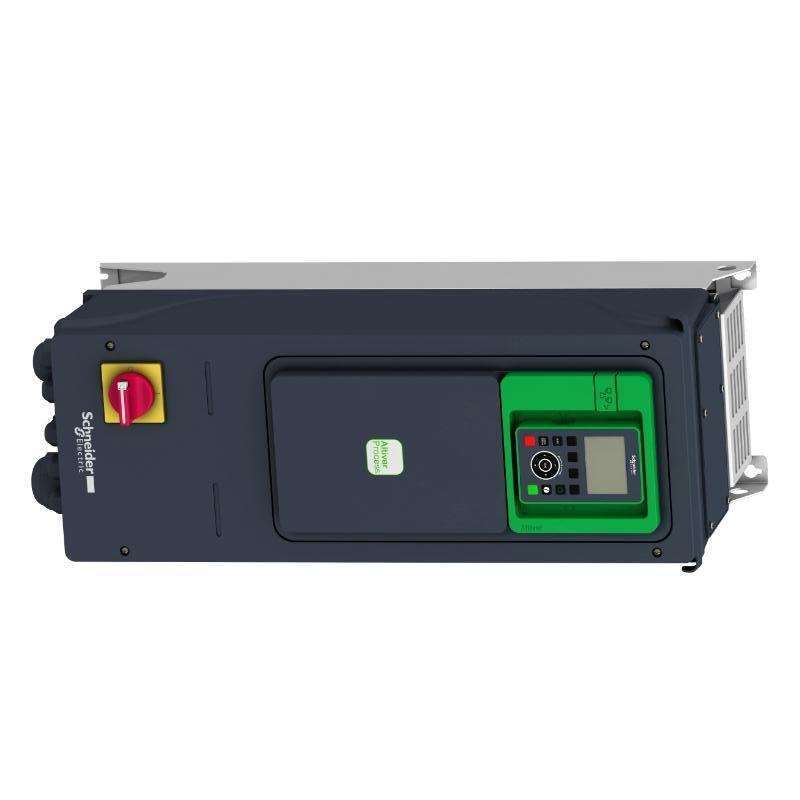

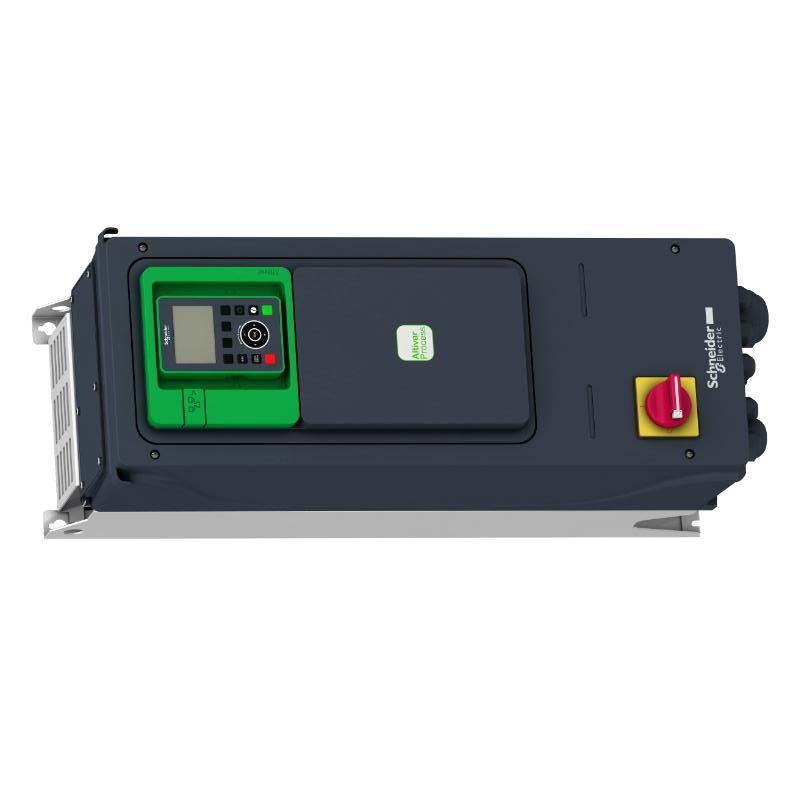

Schneider ATV950U55N4E Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV950U55N4E |
| Product Type | Variable-Speed Drive |
| Product Family | Altivar Process ATV900 |
| Drive Series | Altivar 950 |
| Application | Industrial process control and automation |
| Compatible Motors | Asynchronous and synchronous motors |
| Motor Power | Normal Duty: 5.5 kW; Heavy Duty: 4.0 kW |
| Horsepower Rating | Normal Duty: 7.5 HP; Heavy Duty: 5 HP |
| Rated Supply Voltage | 3-phase 380–480 VAC |
| Supply Voltage Tolerance | -15% to +10% |
| Supply Frequency | 50–60 Hz |
| Line Current | Normal Duty: 10.4 A at 380 V, 9.1 A at 480 V; Heavy Duty: 8 A at 380 V, 7.2 A at 480 V |
| Continuous Output Current | Normal Duty: 12.7 A at 4 kHz; Heavy Duty: 9.3 A at 4 kHz |
| Maximum Transient Current | Normal Duty: 15.2 A for 60 s; Heavy Duty: 14 A for 60 s |
| Output Frequency | 0.1–599 Hz |
| Rated Switching Frequency | 4 kHz |
| Switching Frequency Range | 2–16 kHz adjustable; 4–16 kHz with derating |
| Motor Control | Constant torque, variable torque, optimized torque, permanent magnet synchronous motor control |
| Braking Function | Integrated braking chopper |
| Load Disconnect Switch | Integrated load break switch |
| EMC Filter | Integrated EMC filter |
| Communication Protocols | Modbus Serial, Modbus TCP, EtherNet/IP |
| Optional Communication | PROFINET, PROFIBUS DP V1, DeviceNet, EtherCAT, CANopen |
| Encoder Options | 5/12 V digital encoder, analog encoder and resolver interface options |
| Preset Speeds | 16 preset speeds |
| Safety Function | Safe Torque Off (STO) |
| Mounting | Wall mounting |
| Cooling | Forced convection |
| Protection Rating | IP55 |
| Operating Temperature | -15°C to 50°C |
| Typical Applications | Pumps, fans, compressors, conveyors, process machinery and industrial automation systems |
| Dimensions | 678 × 264 × 330 mm |
| Weight | 10.7 kg |
FAQ
1. What is the Schneider ATV950U55N4E mainly used for?
The ATV950U55N4E is an Altivar Process ATV950 variable-speed drive designed for industrial motor control. It is suitable for applications such as pumps, fans, compressors, conveyors and other process machinery requiring controlled motor speed and torque.
2. What motor power does the ATV950U55N4E support?
The drive supports 5.5 kW motors under Normal Duty conditions and 4.0 kW motors under Heavy Duty conditions. Motor selection should also be checked against the motor rated current, load characteristics and required overload performance.
3. What power supply does the ATV950U55N4E require?
The ATV950U55N4E requires a three-phase 380–480 VAC supply with a 50–60 Hz frequency range. The permitted supply voltage tolerance is -15% to +10%.
4. What is the continuous output current of the ATV950U55N4E?
The continuous output current is 12.7 A at 4 kHz for Normal Duty operation and 9.3 A at 4 kHz for Heavy Duty operation. The maximum transient current is 15.2 A for 60 seconds in Normal Duty and 14 A for 60 seconds in Heavy Duty.
5. Which communication protocols are supported by the ATV950U55N4E?
The drive supports Modbus Serial, Modbus TCP and EtherNet/IP. Optional communication modules can extend connectivity to PROFINET, PROFIBUS DP V1, DeviceNet, EtherCAT and CANopen networks.
6. Does the ATV950U55N4E include a braking function?
Yes. The ATV950U55N4E includes an integrated braking chopper. An external braking resistor can be used when the application requires additional braking capacity during deceleration. The resistor should be selected according to the load inertia, braking frequency and deceleration requirements.
7. Can the ATV950U55N4E control both asynchronous and synchronous motors?
Yes. The drive is designed for both asynchronous motors and synchronous motors, including permanent magnet motors. Correct motor nameplate data and control parameters should be entered during commissioning to achieve stable motor operation.
8. What should be checked when the ATV950U55N4E reports an overcurrent, overvoltage or overheating fault?
For an overcurrent fault, check motor wiring, motor parameters, mechanical load and acceleration settings. For an overvoltage fault, check the deceleration time and braking circuit. For an overheating fault, inspect ambient temperature, ventilation, cooling fans and switching-frequency settings. Before maintenance, disconnect the power supply and verify that the DC bus voltage has reached a safe level.
