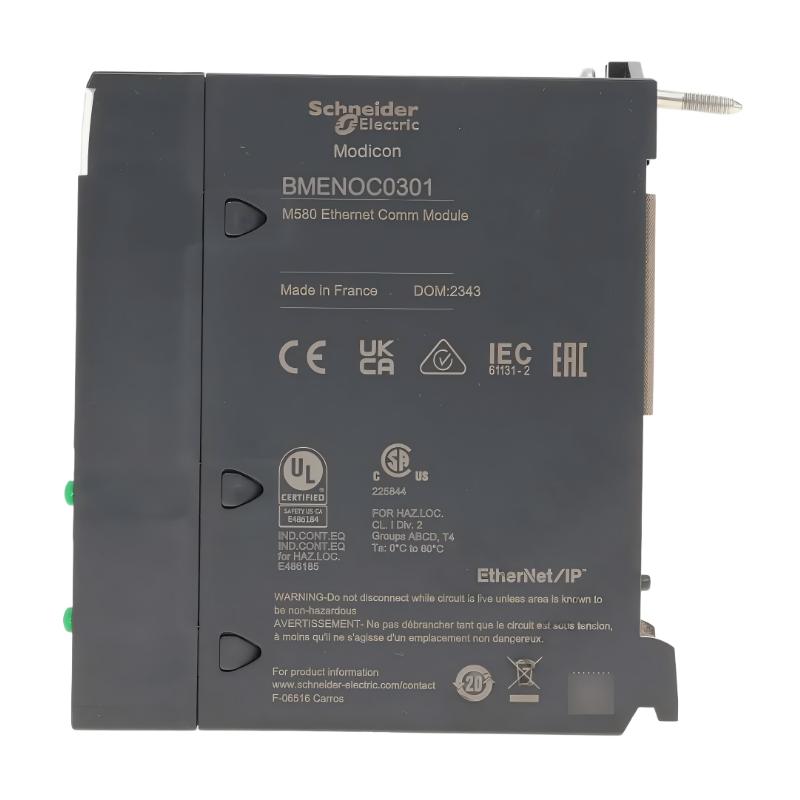

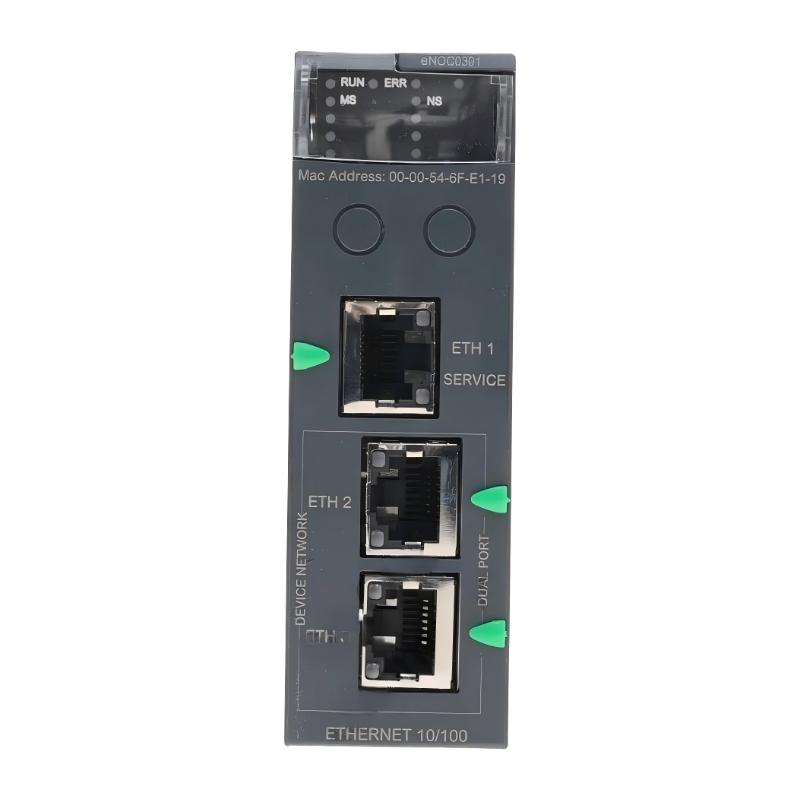

Q1: What is the main function of the Schneider BMENOC0301 Ethernet Communication Module?
A1: The Schneider BMENOC0301 is designed to provide reliable industrial Ethernet communication for the Modicon M580 automation platform. Its primary function is to act as a communication gateway between the PLC system and external devices such as HMIs, SCADA systems, remote I/O modules, and third-party controllers. It enables real-time data exchange, remote monitoring, and distributed control across industrial networks, forming a critical part of modern industrial communication architecture.

Q2: Which communication protocols are supported by this module?
A2: The module supports widely used industrial communication protocols including Modbus TCP, EtherNet/IP, and standard TCP/IP communication. This multi-protocol capability allows seamless integration with a broad range of automation devices from different manufacturers, improving system interoperability and reducing integration complexity in heterogeneous industrial environments.

Q3: How does the BMENOC0301 improve industrial network performance?
A3: The module is designed for real-time industrial data handling, ensuring fast and deterministic communication between devices. It manages data traffic efficiently, reduces communication delays, and maintains stable network performance even under heavy load conditions. This makes it suitable for time-sensitive control applications where reliable data transmission is essential.

Q4: What role does this module play in a Modicon M580 system?
A4: Within the Modicon M580 architecture, the BMENOC0301 acts as the dedicated Ethernet communication interface for the CPU. It enables the controller to communicate with external systems, including SCADA platforms, engineering workstations, and distributed field devices. It essentially serves as the network backbone for data exchange in the automation system.

Q5: Does the module support remote access and monitoring?
A5: Yes, the module supports remote access capabilities, allowing engineers and operators to monitor system status, retrieve diagnostic information, and perform configuration tasks from remote locations. This significantly improves maintenance efficiency, reduces onsite intervention requirements, and enables centralized system management.

Q6: How does the module ensure communication reliability in industrial environments?
A6: The BMENOC0301 is designed with industrial-grade electromagnetic compatibility (EMC) protection to withstand harsh electrical environments. It also includes continuous network monitoring, link status detection, and fault diagnostics. These features help detect communication issues early and maintain stable data exchange even in electrically noisy industrial settings.

Q7: Can this module be used in redundant network architectures?
A7: Yes, it supports integration into redundant network configurations. In such setups, multiple communication paths are established so that if the primary network link fails, communication can automatically switch to a backup path. This redundancy significantly increases system availability and reduces the risk of communication downtime in critical industrial processes.

Q8: What are the key advantages of the BMENOC0301 Ethernet Communication Module?
A8: The main advantages include multi-protocol support, high-speed industrial Ethernet communication, strong system integration with Modicon M580, and advanced diagnostic capabilities. Additionally, its robust design ensures reliable operation in harsh industrial environments, while its support for remote access and redundancy makes it highly suitable for modern, large-scale automation systems requiring stable and flexible network communication.
