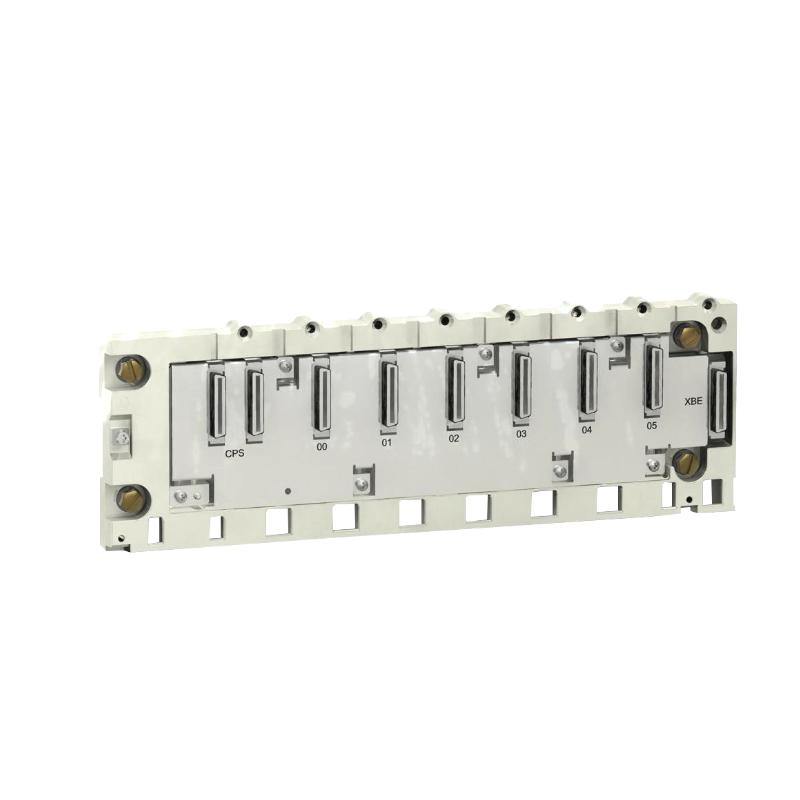

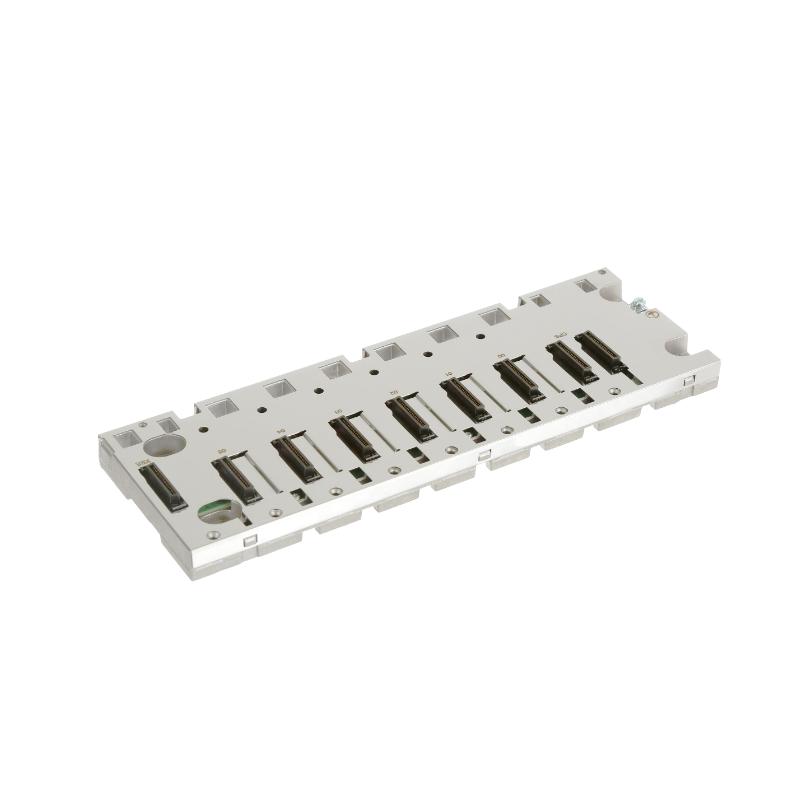

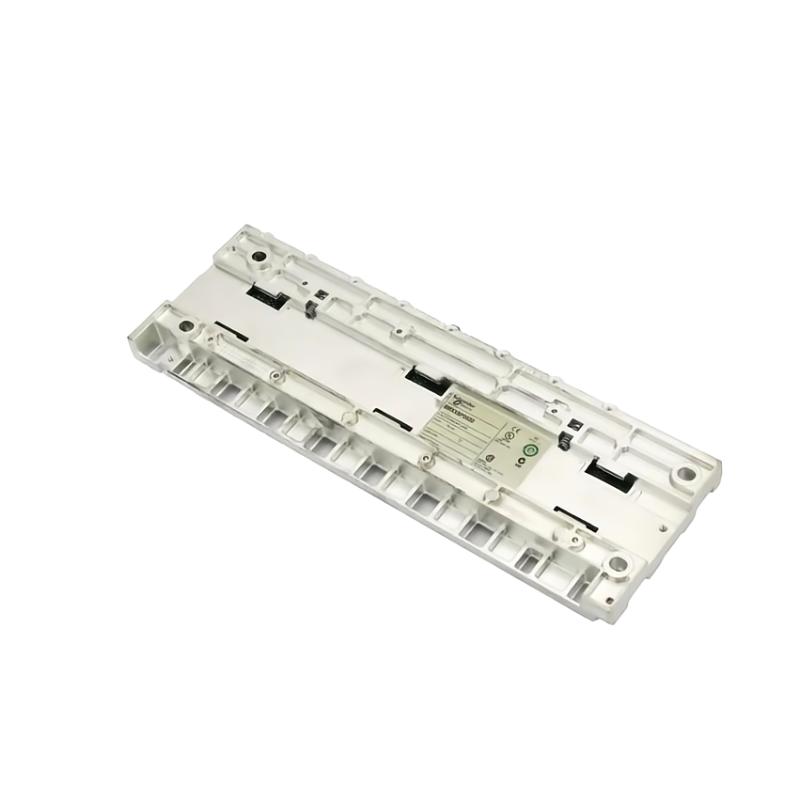

Schneider BMEXBP0602 Ethernet Backplane Rack
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | BMEXBP0602 |
| Manufacturer | Schneider Electric |
| Product Family | Modicon X80 |
| Product Type | Ethernet Backplane Rack |
| Number of Slots | 6 Slots (X Bus + Ethernet) |
| Backplane Type | Redundant Ethernet Backplane |
| Compatible Controllers | Modicon M580 PAC, Modicon M340 PAC |
| Compatible Modules | BMX Processors, BME Processors, I/O Modules, Application Modules |
| Expansion Capability | 1 × XBE Expansion Connector |
| Power Consumption | 191 mW @ 3.3 VDC, 3.6 W @ 24 VDC |
| Current Consumption | 58 mA @ 3.3 VDC, 152 mA @ 24 VDC |
| Integrated Redundancy | Yes |
| Protection Rating | IP20 |
| Mounting Options | DIN Rail, Panel Mount, Plate Mount |
| DIN Rail Type | 35 mm Symmetrical DIN Rail |
| Fixing Method | Clips or 4 Screws (M6 / 4.32–6.35 mm Diameter) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (Non-condensing) |
| MTBF Reliability | Up to 1,353,797 Hours |
| Standards Compliance | EN 61131-2, EN 61000-6-2, EN 61000-6-4, EN 61010-2-201 |
| EMC Compliance | 2014/30/EU |
| Low Voltage Directive | 2014/35/EU |
| Dimensions (W × H × D) | 376 × 105 × 19 mm |
| Weight | Approximately 1.02 kg |
| Country of Origin | France |
| Typical Applications | Process Automation, PLC Systems, Industrial Control Panels, Redundant Automation Architectures |
| Lifecycle Status | Active / Current Product |
FAQ
Q1: What is the BMEXBP0602?
A1: It is a Modicon X80 Ethernet backplane rack with 6 slots and redundant Ethernet architecture designed for Modicon M580 and M340 automation platforms.
Q2: How many modules can be installed?
A2: The rack provides 6 slots for a combination of processors, I/O modules, communication modules, and application-specific modules.
Q3: Does it support redundant Ethernet networks?
A3: Yes. The BMEXBP0602 features a redundant Ethernet backplane for high-availability automation systems.
Q4: Which PLC families are compatible?
A4: It is compatible with Schneider Electric Modicon M580 and Modicon M340 PAC systems using Modicon X80 modules.
Q5: What mounting methods are supported?
A5: The rack can be mounted on a 35 mm DIN rail, directly on a panel, or on a mounting plate.
Q6: What is the environmental protection rating?
A6: The rack has an IP20 protection rating and is intended for installation inside electrical control cabinets.
Q7: What are the dimensions and weight?
A7: The BMEXBP0602 measures approximately 376 × 105 × 19 mm and weighs about 1.02 kg.
Q8: Is the BMEXBP0602 still available?
A8: Yes. The BMEXBP0602 remains an active Schneider Electric product within the Modicon X80 platform and is widely used in modern process automation systems.
