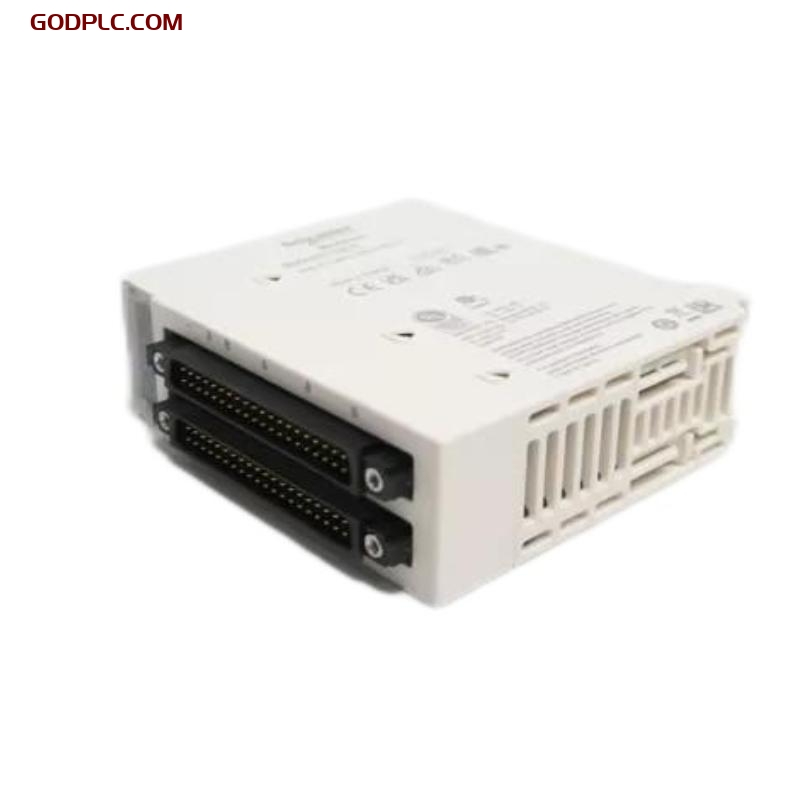

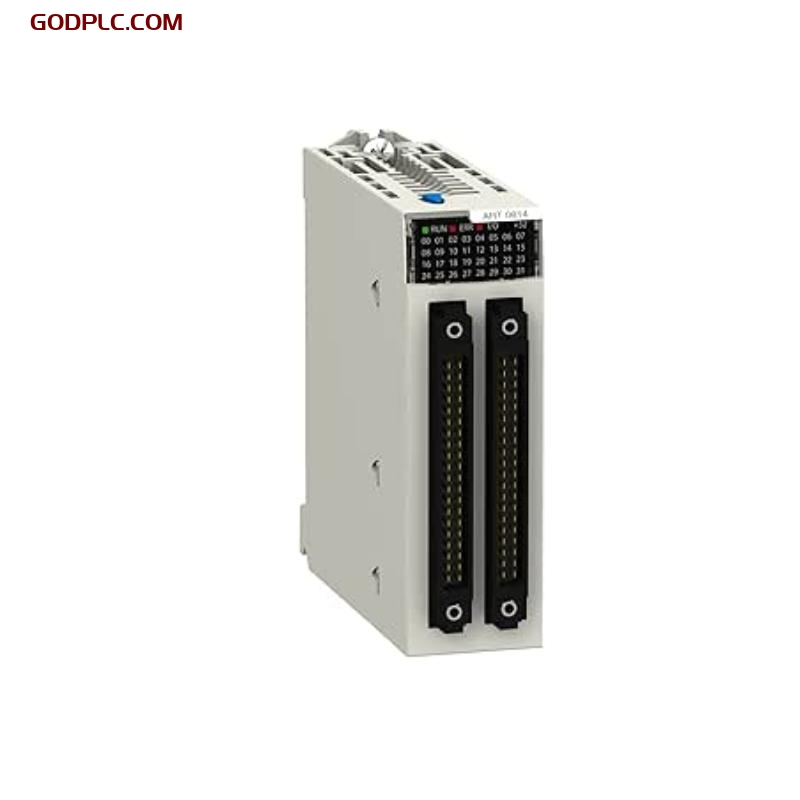

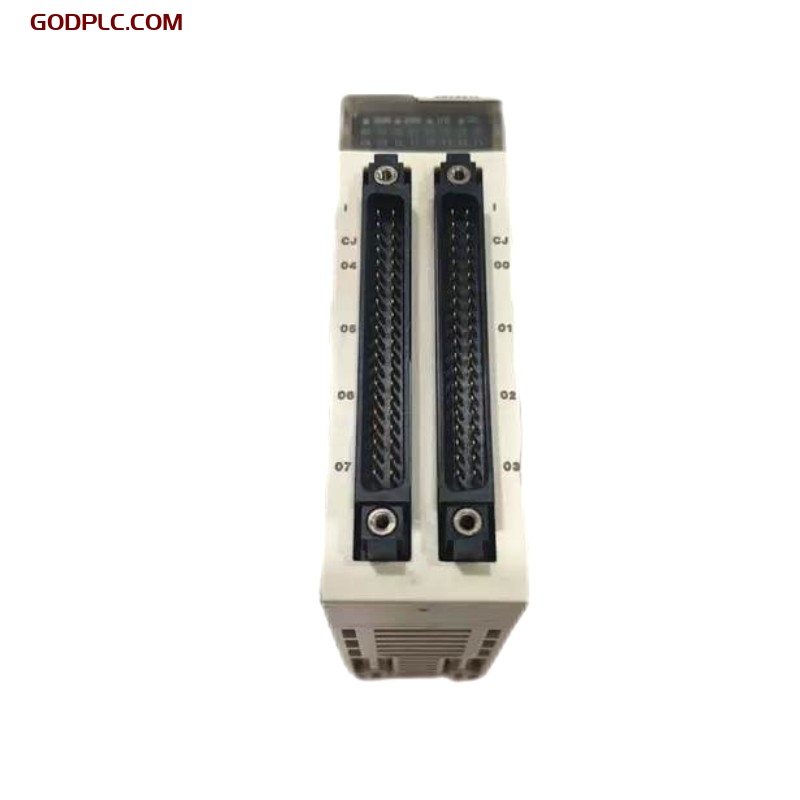

Schneider BMXART0814 Analog Input Module

Product Overview

The Schneider BMXART0814 Analog Input Module is designed to provide high-performance analog signal processing for industrial automation systems. It is equipped to handle multiple input channels, converting real-world analog signals from sensors, transducers, and other devices into accurate digital values for system analysis and control. With its robust design and high precision, the BMXART0814 module is ideal for use in demanding applications such as process control, manufacturing, and energy sectors. This module ensures reliable data acquisition and is engineered to perform effectively in harsh industrial environments.

Key Features

• Multiple Analog Inputs – Supports 8 analog input channels, capable of monitoring a wide range of signals, including voltage, current, and resistance from various industrial devices

• High-Precision Conversion – Offers high-resolution analog-to-digital conversion (ADC) to ensure accurate data for critical process control and monitoring applications

• Flexible Signal Input – Accepts a variety of analog signal types, such as 0-10 V, 4-20 mA, and other standard input ranges, providing versatility for different industrial applications

• Real-Time Data Processing – Ensures continuous and real-time monitoring of input signals, enabling prompt responses to changes in system conditions

• Industrial Durability – Designed to withstand harsh operating conditions, including extreme temperatures, high vibrations, and electrical noise, ensuring long-term reliable operation

• Easy Integration – Seamlessly integrates with Schneider Electric automation platforms and other third-party control systems, simplifying system setup and operation

• Compact Design – Space-efficient design reduces the need for extensive panel space, making it suitable for applications with space constraints

Technical Specifications

3.1 Dimensions and Weight

3.2 Electrical Characteristics

3.3 Environmental Characteristics

3.4 System Compatibility

Industry Applications

• Process Control – Monitors process variables such as temperature, pressure, and flow in industries such as chemical, pharmaceutical, and food processing, ensuring precise system regulation

• Manufacturing – Collects analog signals from production equipment and machinery, providing real-time feedback for performance monitoring and optimization

• Energy & Utilities – Used in power plants and utility systems to monitor critical parameters like temperature, pressure, and vibration, ensuring safe and efficient operations

• Building Automation – Monitors analog signals from HVAC systems, lighting controls, and other building management systems to optimize energy use and maintain system efficiency

• Environmental Monitoring – Collects data from environmental sensors such as air quality and water quality monitoring devices, helping to ensure compliance with environmental regulations

The Schneider BMXART0814 Analog Input Module is a key component in industrial automation systems, offering high-precision data acquisition and robust performance in challenging environments. With its multiple input channels, flexible signal compatibility, and real-time processing capabilities, it is well-suited for a wide range of industrial applications. Whether used in process control, manufacturing, energy, or building automation, the BMXART0814 module ensures reliable monitoring and control of critical parameters, contributing to enhanced system performance and operational efficiency.
