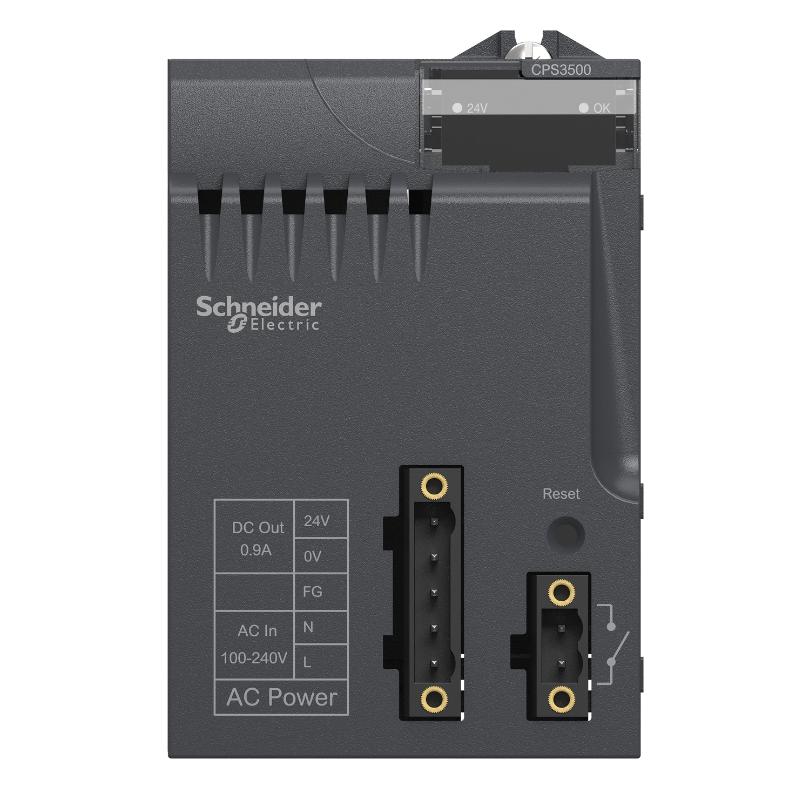

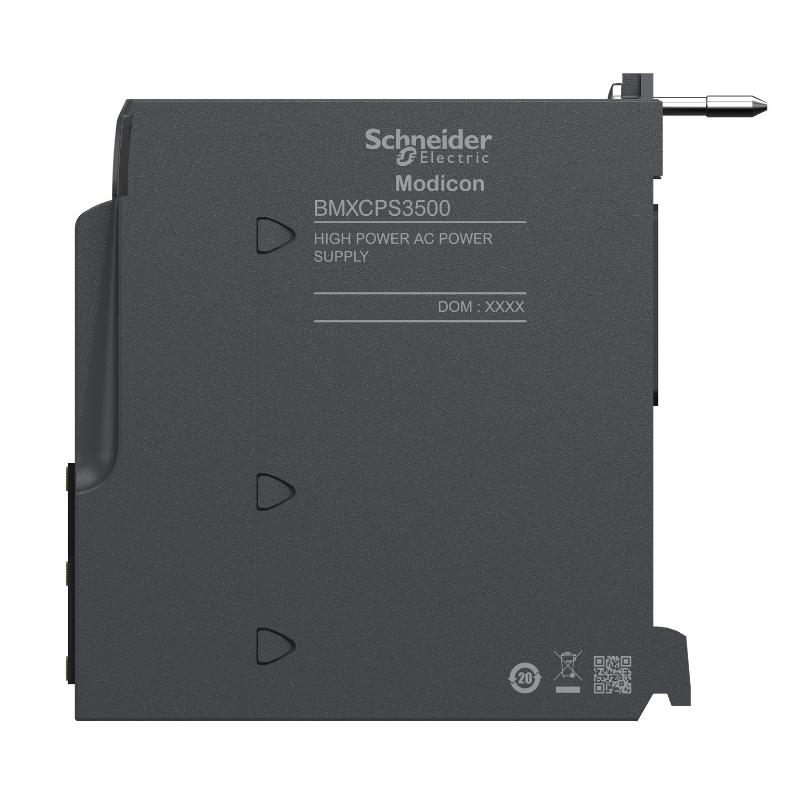

Q1: What is the main function of the Schneider BMXCPS3500 Power Module?
A: The BMXCPS3500 is designed to provide a stable and regulated power supply for the Modicon X80 automation system. It converts incoming AC power into a stable DC output that feeds the PLC CPU, I/O modules, and communication modules through the backplane. Its primary role is to ensure that all system components receive continuous and clean power, which is essential for reliable automation performance and uninterrupted process control.

Q2: How does this power module contribute to system stability?
A: System stability in PLC architectures heavily depends on power quality. The BMXCPS3500 reduces voltage fluctuations, electrical noise, and power disturbances through internal regulation and filtering circuits. By providing a consistent and clean power source, it prevents unexpected controller resets, communication errors, and I/O malfunctions, thereby ensuring stable long-term system operation in industrial environments.

Q3: What protection mechanisms are built into this module?
A: The module includes multiple layers of electrical protection such as overvoltage protection, overcurrent limitation, and short-circuit protection. These mechanisms automatically respond to abnormal conditions by limiting or shutting down output power to prevent damage to connected modules. This significantly enhances the safety and durability of the entire automation system.

Q4: Can this power module support redundant configurations?
A: Yes, the BMXCPS3500 is designed to support redundant power architectures when used in combination with compatible modules. In such configurations, if one power supply fails or becomes unstable, the redundant unit can immediately take over the load. This ensures uninterrupted system operation, which is particularly important in continuous industrial processes where downtime is unacceptable.

Q5: What happens if a power fault occurs?
A: When a fault such as overload, voltage instability, or short circuit is detected, the module activates its internal protection system. Depending on the severity of the issue, it may limit output, trigger an alarm, or shut down the affected channel. Diagnostic information is then transmitted to the control system so operators can quickly identify and resolve the issue.

Q6: How is this module installed in the system?

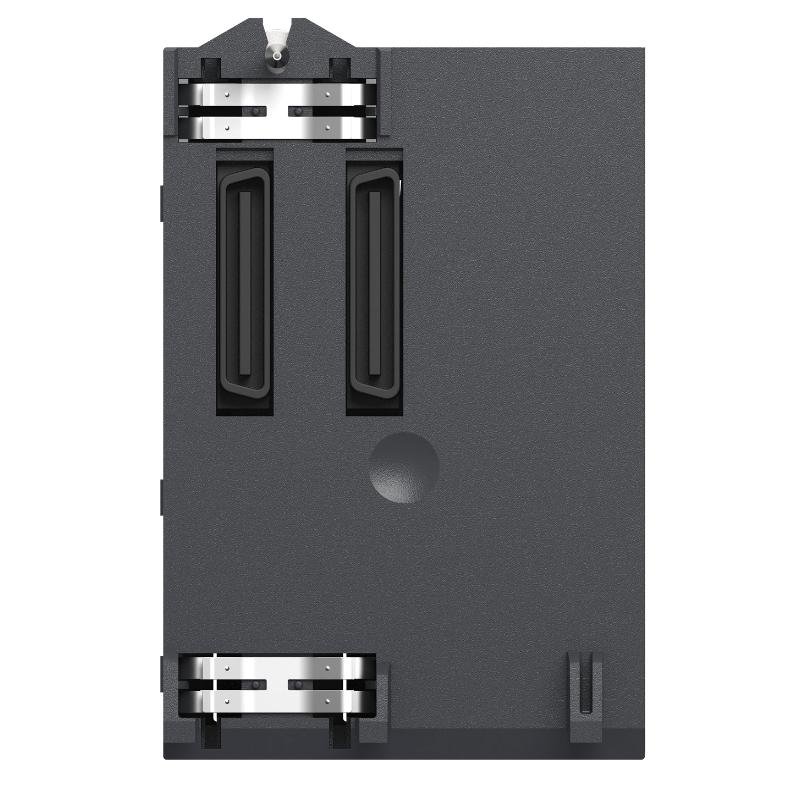

A: The BMXCPS3500 is installed as a plug-in module within the Modicon X80 rack. It connects directly to the system backplane, eliminating the need for complex wiring between modules. Proper installation requires ensuring secure seating in the rack and correct alignment with the backplane connectors to guarantee stable electrical contact.

Q7: What maintenance approach does this module support?
A: The module supports modular maintenance and, in many configurations, hot-swappable replacement. This means it can be replaced without fully shutting down the system, provided that redundancy or system design allows it. Its built-in diagnostic indicators also help maintenance personnel quickly assess operational status and detect potential issues before failure occurs.

Q8: Why is the power module considered critical in a PLC system?
A: The power module is the foundation of any PLC system because every controller, I/O module, and communication device depends on stable power to function correctly. Without reliable power, even the most advanced control logic cannot operate. The BMXCPS3500 ensures continuous, stable, and protected power delivery, making it a key component for maintaining overall system reliability and uptime in industrial automation environments.
