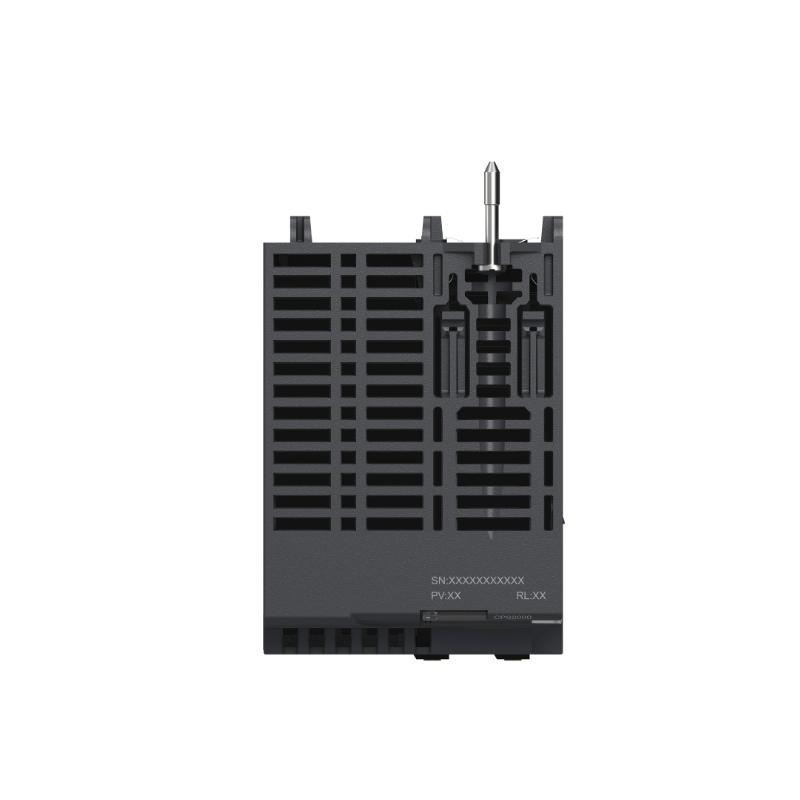

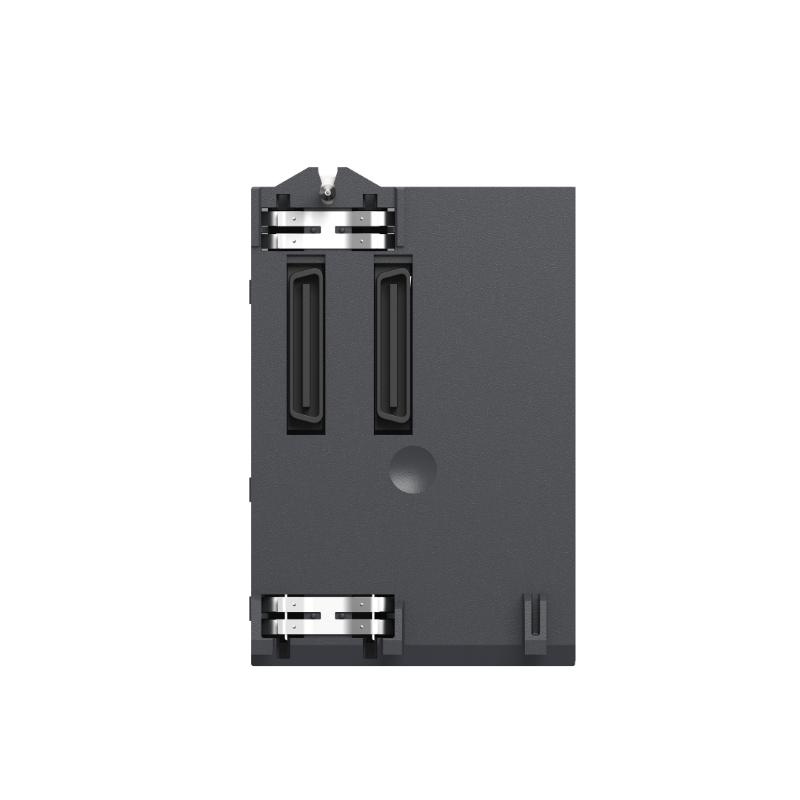

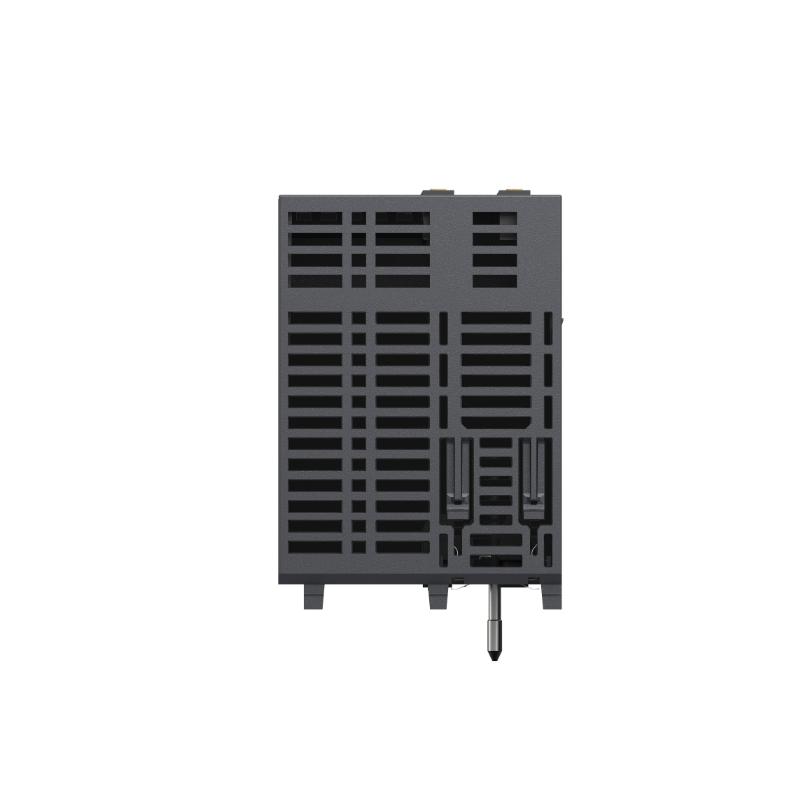

Schneider BMXCPS4002 Redundant Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | BMXCPS4002 |
| Manufacturer | Schneider Electric |
| Product Family | Modicon X80 |
| Product Type | Redundant Power Supply Module |
| Compatible Platforms | Modicon M580 PAC, Modicon M340 PAC |
| Backplane Compatibility | All Modicon X80 Backplanes |
| Input Voltage | 100–240 VAC |
| Input Voltage Limits | 85–264 VAC |
| Supply Circuit Type | AC |
| Network Frequency | 50/60 Hz |
| Frequency Limits | 47–63 Hz |
| Apparent Power | 0.07–0.13 kVA |
| Input Current | 0.52 A @ 240 V AC, 1.04 A @ 115 V AC |
| Inrush Current | 30 A @ 120 V AC, 60 A @ 240 V AC |
| Secondary Output Power (24 VDC) | 40 W |
| Secondary Output Power (3.3 VDC) | 18 W |
| Output Current (24 VDC) | 1.67 A |
| Output Current (3.3 VDC) | 5.5 A |
| Maximum Power Dissipation | 8.5 W |
| Redundancy Support | Yes |
| Advanced Diagnostics | Temperature Sensing, Redundancy Test, Uptime Monitoring, Remaining Lifetime Information |
| Status Indicators | 3 Green LEDs (Voltage OK, Redundancy OK, Power Supply Status) |
| Control Function | RESET Push Button (Cold Restart) |
| Protection Features | Overload, Overvoltage, Short-Circuit Protection |
| Primary Circuit Protection | Internal Fuse |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 1500 V |
| Immunity to Microbreaks | 1 ms |
| Electrical Connections | 5-pin Power Connector, 2-pin Alarm Relay Connector |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 30 gn |
| MTBF Reliability | Up to 792,000 Hours |
| Mounting Method | Installed in X80 Rack |
| Dimensions (Approx.) | 32 × 100 × 130 mm |
| Weight | Approximately 0.51 kg |
| Typical Applications | Process Automation, Power Redundancy Systems, Industrial PLC Control Panels |
| Lifecycle Status | Active / Current Product |
FAQ
Q1: What is the BMXCPS4002 used for?
A1: It is a redundant power supply module for Schneider Electric Modicon X80 automation systems, providing reliable power to M580 and M340 PLC racks.
Q2: What input voltage does it support?
A2: The module accepts 100–240 VAC input with an operating range of 85–264 VAC.
Q3: What output power does it provide?
A3: It provides 40 W at 24 VDC and 18 W at 3.3 VDC for processors and I/O modules.
Q4: Does it support redundancy?
A4: Yes. The BMXCPS4002 is designed for redundant power architectures and includes redundancy monitoring and diagnostics.
Q5: What diagnostics are available?
A5: Temperature monitoring, redundancy status, uptime information, remaining lifetime estimation, and power supply diagnostics are available through the network.
Q6: What protection features are included?
A6: The module includes overload, overvoltage, short-circuit protection, and an internal primary-side fuse.
Q7: What are the dimensions and weight?
A7: The module weighs approximately 0.51 kg and fits directly into Modicon X80 racks.
Q8: Is the BMXCPS4002 still available?
A8: Yes. The BMXCPS4002 remains an active Schneider Electric product in the Modicon X80 automation platform.
