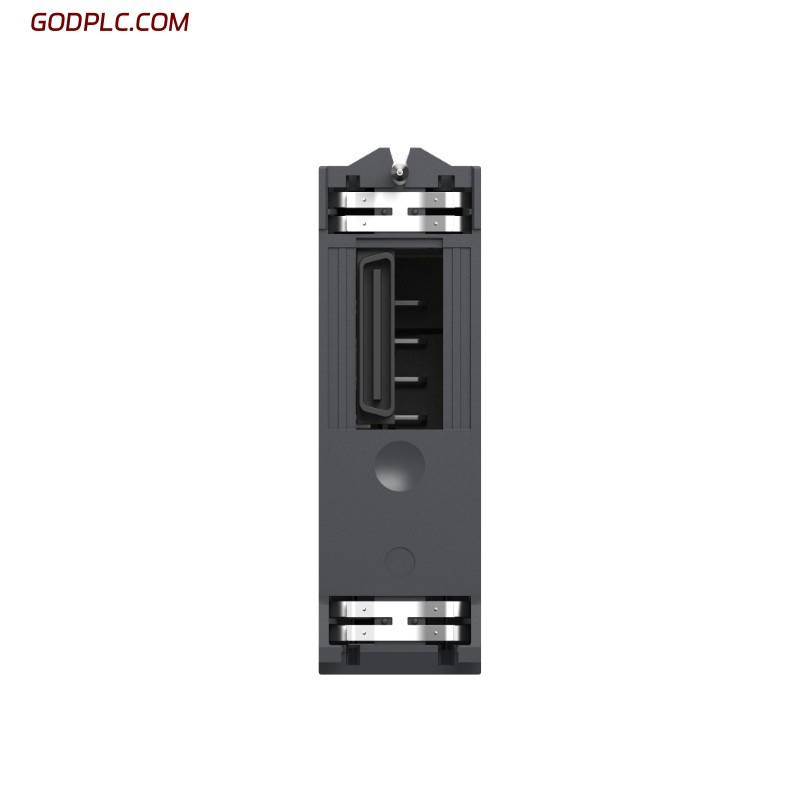

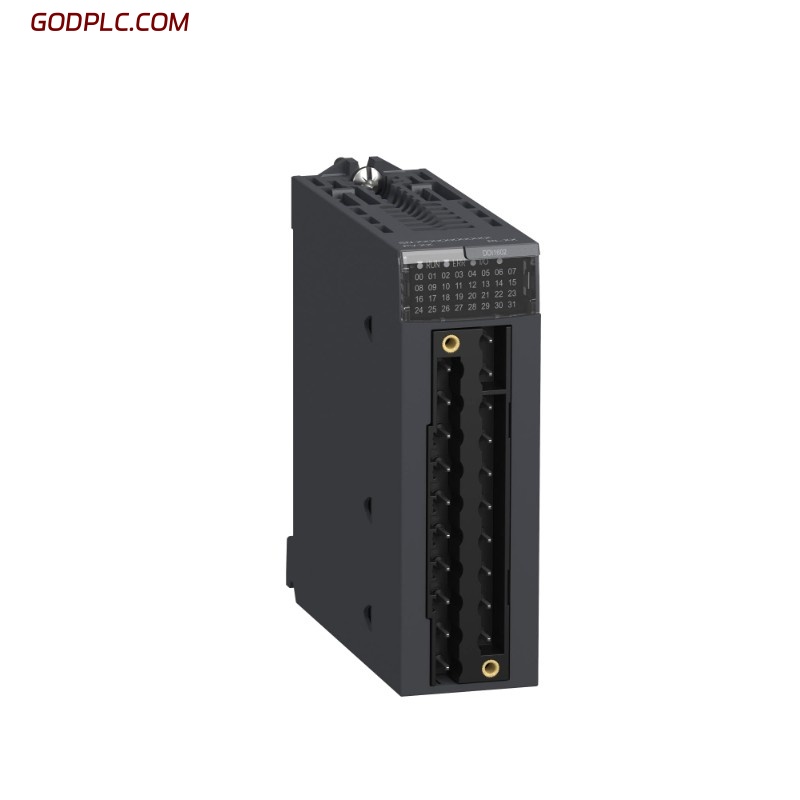

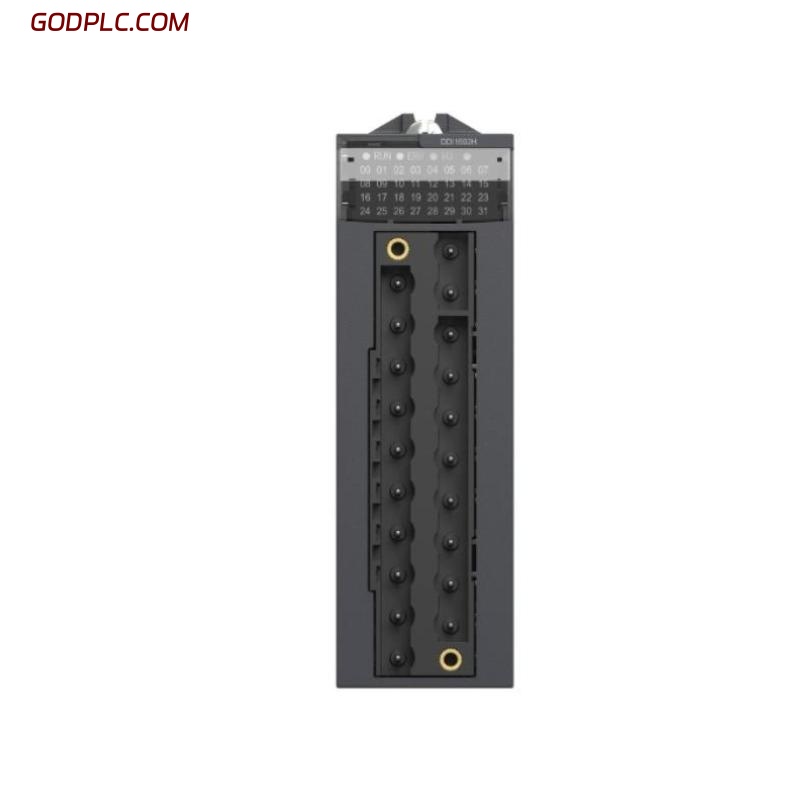

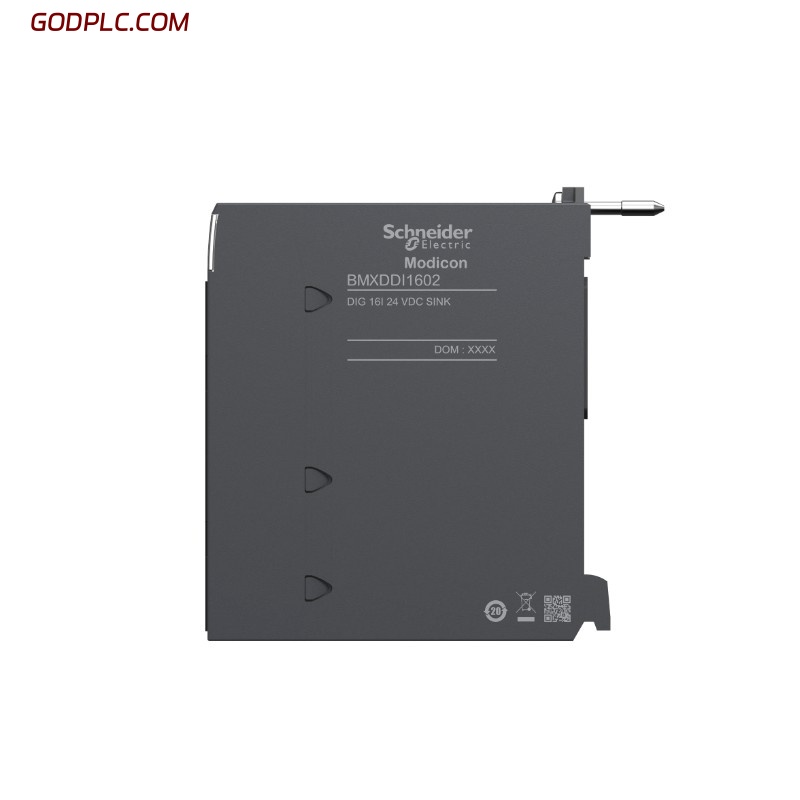

Schneider BMXDDI1602 Discrete Input Module
Product Overview
The Schneider BMXDDI1602 is a high-performance 16-channel discrete input module designed for use with the Modicon M340 PLC series. It supports both sink and source wiring configurations, offering flexibility for a wide range of industrial control applications. Operating on 24 VDC, the module delivers reliable signal acquisition and features integrated input diagnostics to enhance system monitoring and maintenance.
Key Features
-
16 discrete input channels
-
Supports both sink (NPN) and source (PNP) wiring
-
24 VDC operating voltage
-
Fast response time suitable for high-speed logic operations
-
Diagnostics for open or short circuit detection
-
LED indicators for each input channel
-
Hot-swappable in M340 backplane
-
Compact and robust DIN rail-mountable design
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 160 x 100 x 35 mm |
| Weight | 0.115 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Rated Input Voltage | 24 VDC ±20% |
| Input Type | Sink or Source |
| Number of Inputs | 16 channels |
| Input Impedance | Approx. 3.5 kΩ |
| Input Current | 5 mA typical at 24 VDC |
| Isolation | 500 V RMS between channels and logic |
| Input Delay | 4 ms (OFF to ON), 4 ms (ON to OFF) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Relative Humidity | 5%–95% non-condensing |
| Shock/Vibration | IEC 60068-2 compliant |
3.4 System Compatibility
| Item | Specification |
|---|---|
| PLC Compatibility | Modicon M340 |
| Backplane Bus | X-Bus |
| Terminal Type | Removable spring terminal block |
| Hot-Swappable | Yes |
| Diagnostic Capability | Yes (channel diagnostics) |
Industry Applications
-
Factory Automation – Ideal for machine control and sequencing logic
-
Water and Wastewater – Monitoring of field sensors and equipment status
-
Building Automation – Integration with access and environmental control systems
-
Food & Beverage – Input interface for rapid production line controls
-
Energy Sector – Digital signal acquisition in substations and control systems
The Schneider BMXDDI1602 module combines high-density input capacity with flexible wiring and diagnostic features, making it a powerful and efficient choice for industrial automation environments requiring reliable discrete input acquisition.
Schneider BMXDDI1602 Discrete Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
