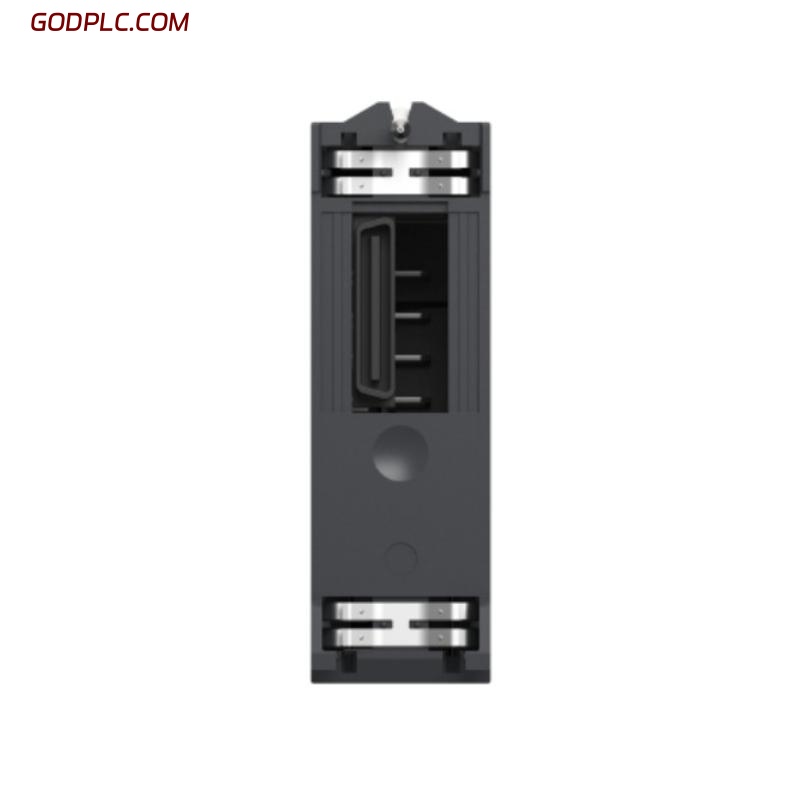

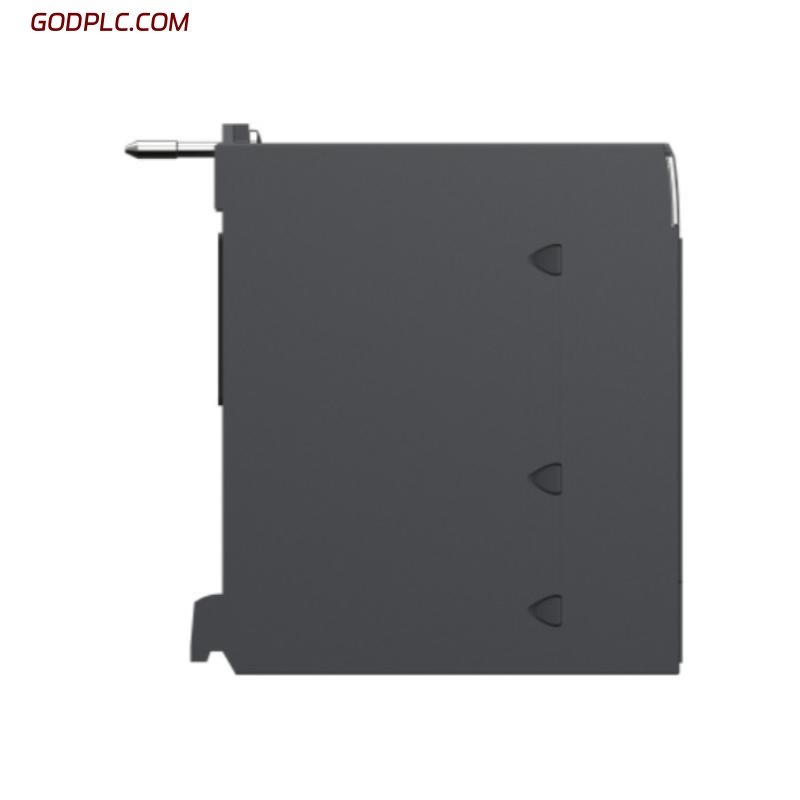

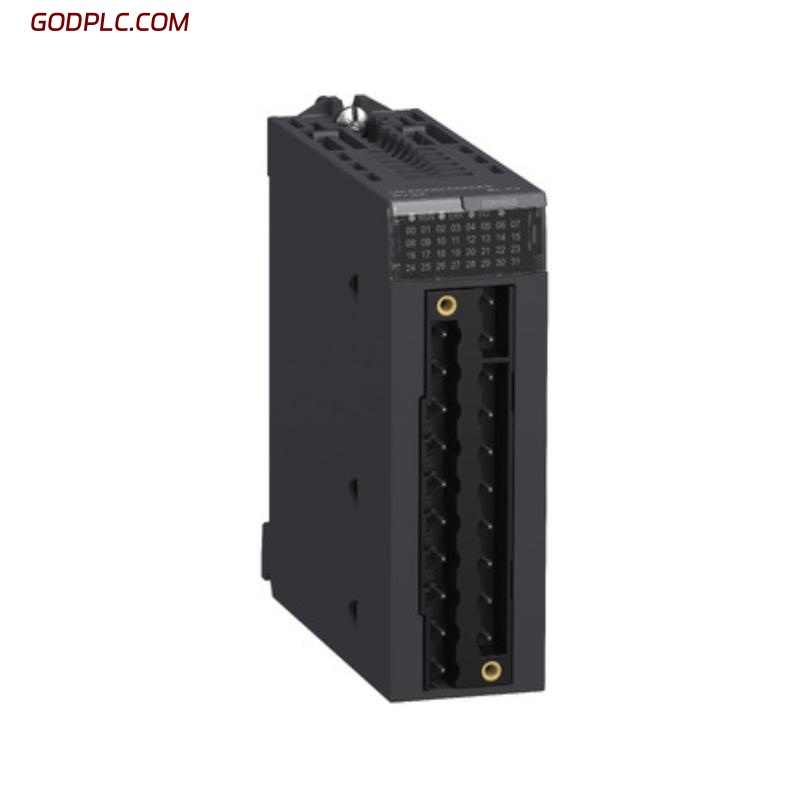

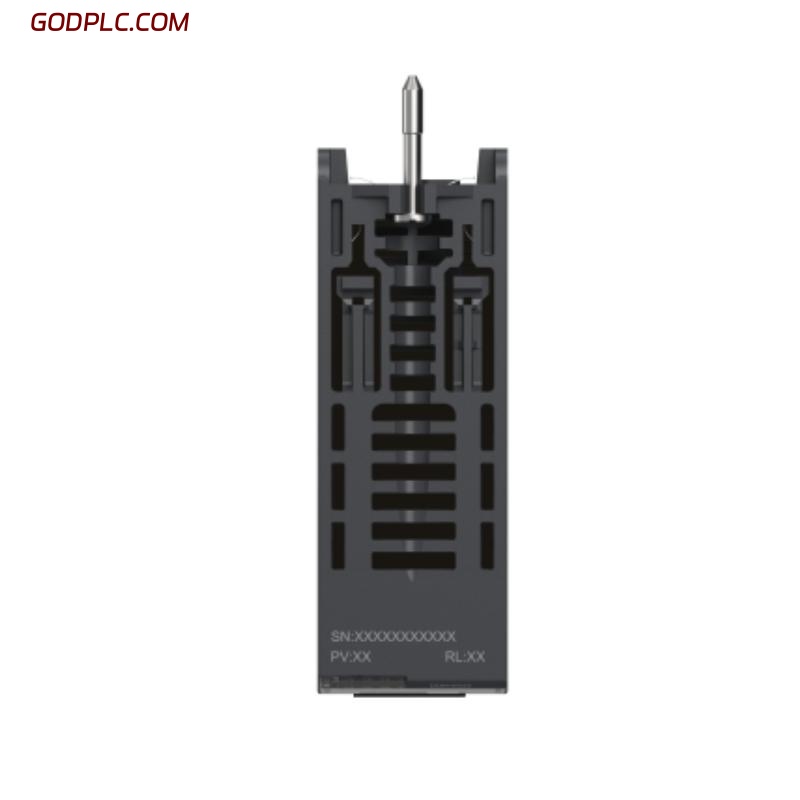

Schneider BMXDDM16025 Discrete Mixed IO Modules
Product Overview
The Schneider BMXDDM16025 is a discrete mixed input/output (I/O) module designed for Modicon M221 and M340 PLC platforms. Combining both digital inputs and outputs in a single compact unit, this module provides flexible, reliable control and monitoring of discrete signals essential for industrial automation processes. Its design ensures high noise immunity, fast response, and easy integration, making it ideal for a wide range of industrial applications.
Key Features
-
16 Discrete Inputs and 16 Discrete Outputs – Compact module combining input and output functionality.
-
24 V DC Nominal Voltage – Compatible with standard industrial control voltages.
-
Fast Switching and Response – Enables real-time digital signal processing.
-
LED Status Indicators – Visual monitoring of I/O status for quick diagnostics.
-
High Noise Immunity – Robust design to minimize false triggering from electrical interference.
-
Compact Form Factor – Saves space in control cabinets.
-
Wide Operating Temperature Range – Suitable for diverse industrial environments.
-
Seamless Integration – Compatible with Modicon M221 and M340 PLC families.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Package size: 51 x 116 x 118mm |
| Weight | 0.135 kg |
Electrical Specifications
| Item | Specification |
|---|---|
| Number of Inputs | 16 discrete inputs |
| Number of Outputs | 16 discrete outputs |
| Input Voltage | 24 V DC nominal |
| Output Voltage | 24 V DC nominal |
| Output Current | Max. 0.5 A per output |
| Input Current | 7 mA per input |
| Output Type | Sourcing or sinking (refer to wiring specifications) |
| Response Time | < 5 ms |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Protection | IP20 (standard module enclosure) |
Industry Applications
-
Manufacturing Automation – Monitoring and controlling sensors, switches, and actuators.
-
Building Automation – Managing lighting, security inputs, and control outputs.
-
Water and Wastewater Treatment – Controlling pumps, valves, and alarms.
-
Material Handling – Operating conveyors, gates, and safety interlocks.
-
Process Control – Automation of discrete control logic in various industrial processes.
The Schneider BMXDDM16025 Discrete Mixed IO Module offers a reliable and flexible solution for managing digital input and output signals in automation systems. Its combined I/O design, rugged construction, and compatibility with Modicon PLCs make it a valuable component for enhancing control and monitoring capabilities in diverse industrial settings.
Schneider BMXDDM16025 Discrete Mixed IO Modules is in stock. Please contact us for a quick quote and competitive pricing.
