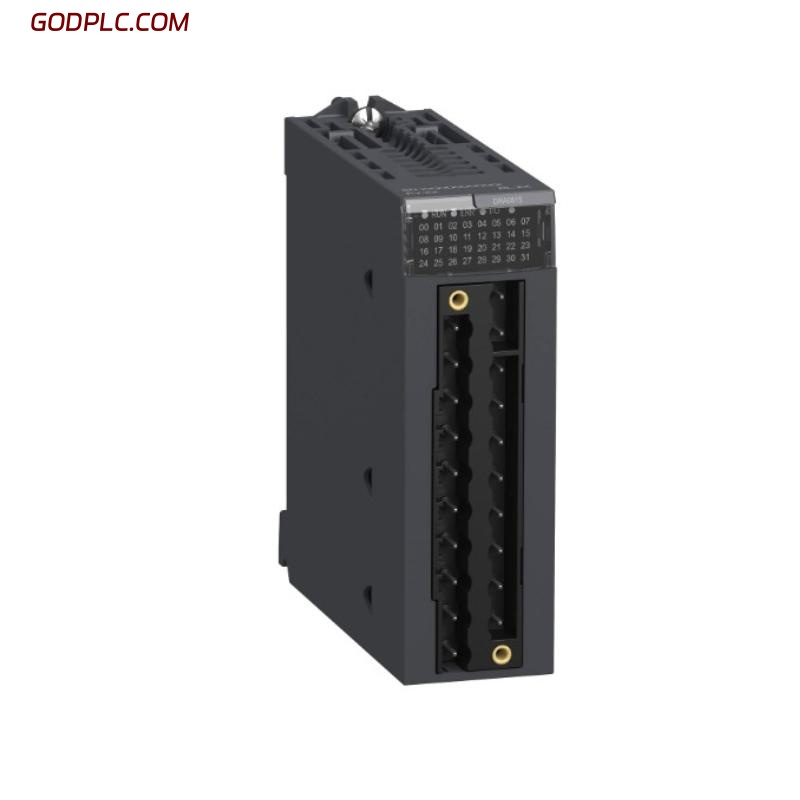

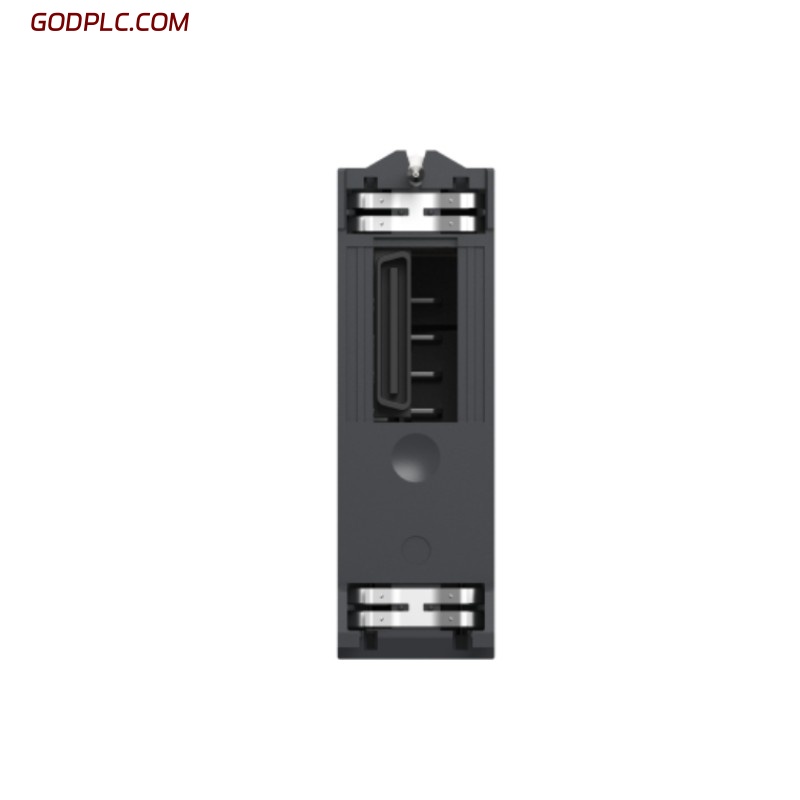

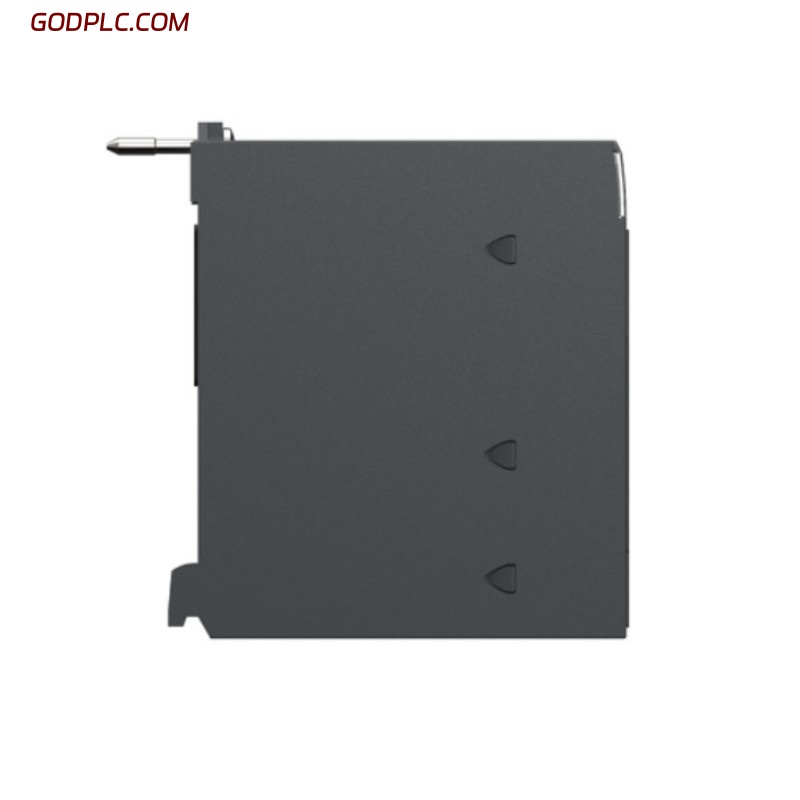

Schneider BMXDRA0815 Discrete Output Module
Product Overview
The Schneider BMXDRA0815 is an 8-channel relay-type discrete output module designed for use with the Modicon M340 PLC platform. Each channel provides isolated relay contacts for reliable switching of AC and DC loads, making this module ideal for applications requiring robust electrical isolation and flexible control.
Key Features
-
8 individually isolated relay output channels
-
Supports both AC and DC output loads
-
High isolation between channels to minimize cross-talk
-
LED indicators for real-time channel status monitoring
-
Suitable for direct switching of electromechanical devices
-
Plug-in terminal block for easy wiring and maintenance
-
Compatible with Modicon M340 PLC racks
-
High durability and electrical life for industrial use
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 160 x 100 x 35 mm |
| Weight | 0.169 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Output Channels | 8 relay channels |
| Output Type | Electromechanical relay (Form A – SPST) |
| Contact Rating (AC) | 250 VAC, 5 A resistive |
| Contact Rating (DC) | 30 VDC, 5 A resistive |
| Isolation Between Channels | 250 V RMS minimum |
| Relay Contact Life | >100,000 operations at rated load |
| Switching Delay (ON/OFF) | 10 ms (typical) |
| Output Status Indication | Individual LED indicators |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Relative Humidity | 5%–95% non-condensing |
| Vibration/Shock | IEC 60068-2 compliant |
3.4 System Compatibility
| Item | Specification |
|---|---|
| PLC Compatibility | Modicon M340 |
| Bus Type | X-bus (backplane) |
| Connector Type | Removable terminal block |
| Hot-Swappable | Yes |
| Diagnostics | Channel-level LED indication |
Industry Applications
-
Factory Automation – Switching of lights, solenoids, alarms, and control relays
-
Building Management – Controlling HVAC relays and access control systems
-
Energy and Utilities – Managing auxiliary control outputs in substations
-
Material Handling – Operating motors, gates, and actuators in logistics systems
-
Water and Wastewater – Reliable switching in pump and valve control systems
The Schneider BMXDRA0815 discrete output module offers a robust and flexible solution for industrial relay control. With individual channel isolation and broad voltage compatibility, it ensures safe and reliable operation in automation systems across various industries.
Schneider BMXDRA0815 Discrete Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
