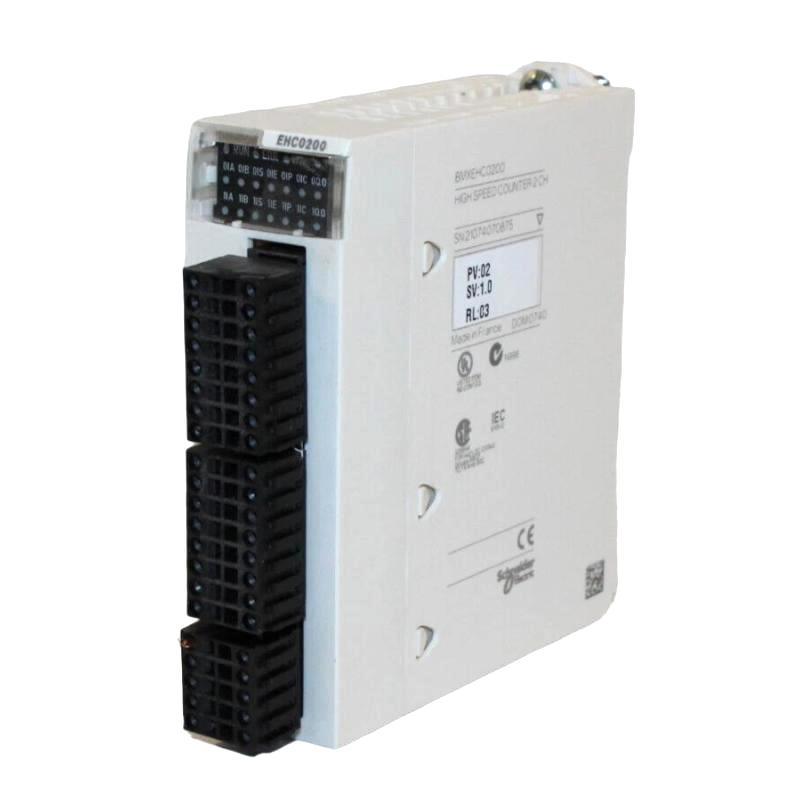

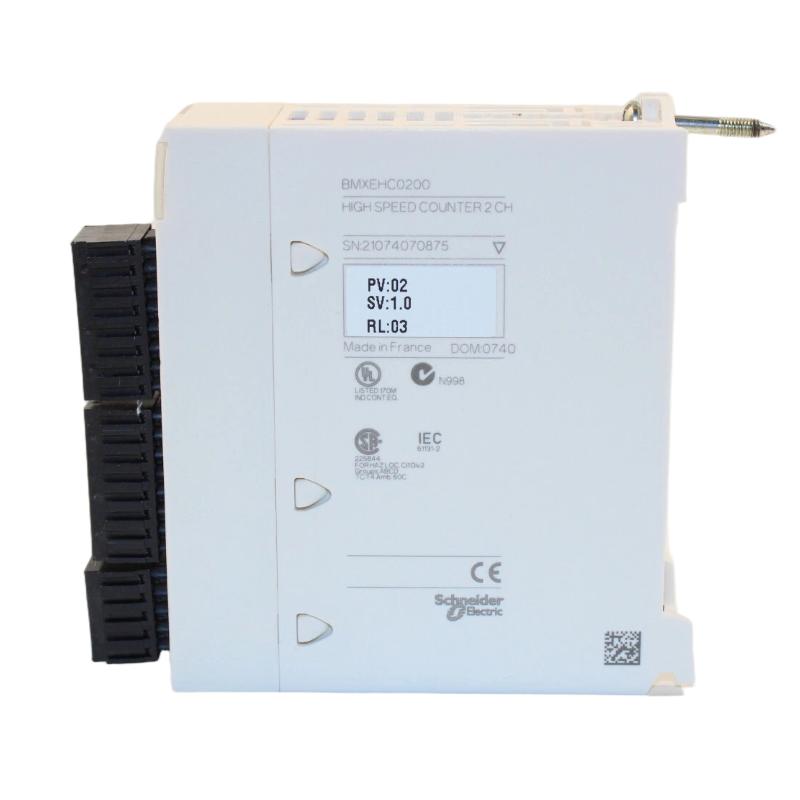

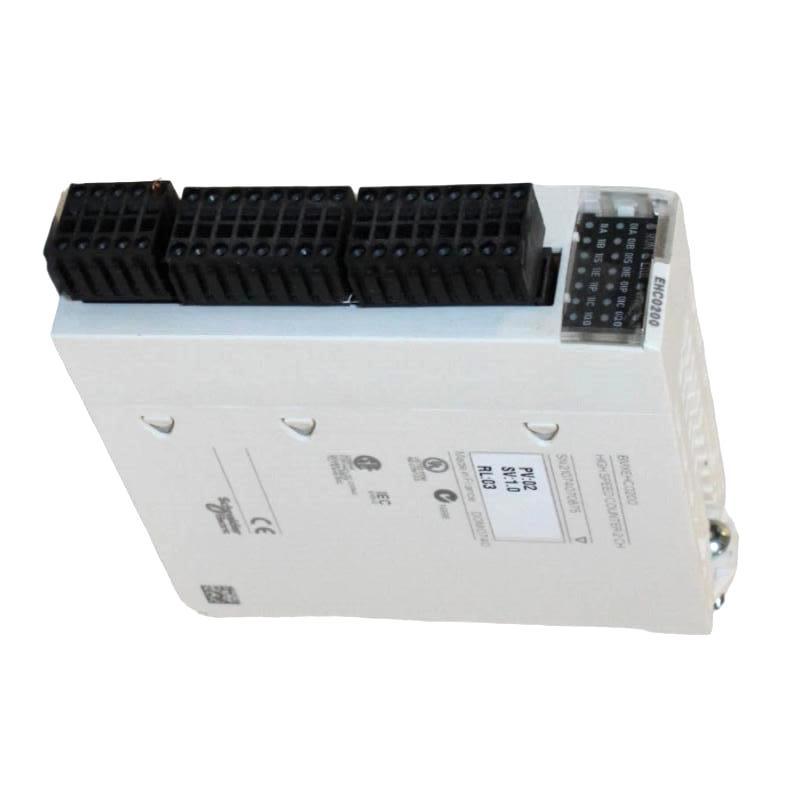

Schneider BMXEHC0200 High-Speed Counter Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BMXEHC0200 |
| Brand | Schneider Electric |
| Product Type | High-Speed Counter Module |
| Product Range | Modicon M340 |
| Number of Channels | 2 |
| Maximum Counting Frequency | 60 kHz |
| Number of Inputs | 6 |
| High-Speed Inputs | 3 |
| Auxiliary Inputs | 3 |
| Number of Outputs | 2 |
| Output Voltage | 24 VDC |
| Compatible Sensors | 24 VDC 2-wire/3-wire proximity sensors; incremental encoders with 10–30 VDC push-pull outputs |
| Counter Type | 32-bit counter |
| Counter Functions | Up counting, down counting, modulo counting, event counting, period measurement, frequency measurement, ratio counting |
| Frequency Generator | Supported |
| Cycle Time | 1 ms |
| Input Voltage | 24 VDC Type 3 |
| Input Voltage Limits | Up to 30 VDC |
| Logic High Voltage | 11–30 VDC |
| Logic Low Voltage | <5 VDC |
| Minimum High-State Current | 6 mA |
| Maximum Low-State Current | 1.5 mA |
| Output Logic | Positive or negative configurable |
| Output Current | 0.5 A per output; 2 A maximum per module |
| Output Voltage Range | 19.2–30 VDC |
| Output Overload Protection | Integrated |
| Output Short-Circuit Protection | Integrated |
| Output Voltage Drop | <3 V at state 1 |
| Isolation Voltage | 1500 V for 60 s |
| Electrical Connection | 10-pin connector for auxiliary inputs and sensor supply; two 16-pin connectors for counter sensors |
| Sensor Supply | 19.2–30 VDC |
| Installation | Modicon M340 backplane |
| Module Format | Standard |
| Operating Temperature | 0–60°C |
| Protection Rating | IP20 |
| Software Configuration | EcoStruxure Control Expert |
| Typical Applications | High-speed pulse counting, encoder feedback, speed measurement, frequency measurement, positioning and axis monitoring |
| Dimensions | 32 × 103.7 × 86 mm |
| Weight | 0.112 kg |
FAQ
1. What is the main function of the Schneider BMXEHC0200?
The BMXEHC0200 is a high-speed counter module designed for the Modicon M340 automation platform. It captures and processes high-frequency pulses from proximity sensors or incremental encoders and provides counting, frequency measurement, period measurement and other high-speed control functions without relying solely on the normal PLC scan cycle.
2. How many counting channels does the BMXEHC0200 provide?
The BMXEHC0200 provides two independent high-speed counting channels. Each channel can process signals from compatible 24 VDC proximity sensors or incremental encoders with push-pull outputs. The two-channel architecture allows multiple speed, position or pulse-counting signals to be handled within the same M340 system.
3. What is the maximum counting frequency of the BMXEHC0200?
The maximum counting frequency is 60 kHz. This allows the module to process high-speed pulse signals that would be difficult to handle reliably using standard digital inputs. The actual achievable performance depends on the sensor signal quality, wiring, signal level and configured operating mode.
4. What types of sensors can be connected to the BMXEHC0200?
The module supports 24 VDC two-wire and three-wire proximity sensors, as well as incremental encoders with 10–30 VDC push-pull or totem-pole outputs. Before commissioning, the sensor output type, voltage level and wiring should be checked against the input specifications of the selected counter channel.
5. What counting functions are available on the BMXEHC0200?
The BMXEHC0200 supports several functions, including 32-bit counting, up counting, down counting, modulo counting, event counting, ratio counting, period measurement and frequency measurement. It can also be used for frequency generation and applications involving speed or axis monitoring.
6. What should be checked if the BMXEHC0200 does not count pulses correctly?
First verify the sensor supply voltage and signal wiring. Check that the input signal reaches the required logic-high level and that the pulse frequency does not exceed 60 kHz. The sensor type, input configuration and counting mode should also be checked in EcoStruxure Control Expert. Electrical noise, incorrect shielding, poor grounding or unsuitable sensor output signals can also cause missed or unstable counts.
7. What is the purpose of the BMXEHC0200’s two 24 VDC outputs?
The two outputs can be used for fast control actions associated with the counting functions, such as alarms, actuator control or position-related responses. Each output supports up to 0.5 A, while the module has integrated overload and short-circuit protection. Output behavior can be configured according to the application requirements.
8. How is the BMXEHC0200 configured in a Modicon M340 system?
The BMXEHC0200 is installed on the Modicon M340 backplane and configured through EcoStruxure Control Expert. During commissioning, the counting mode, sensor parameters, input configuration, frequency or measurement functions and output behavior should be matched to the field application. The module can be installed in an available M340 rack slot and is designed for high-speed counting applications requiring deterministic pulse processing.
Schneider BMXEHC0200 High-Speed Counter Module is in stock. Please contact us for a quick quote and competitive pricing.
