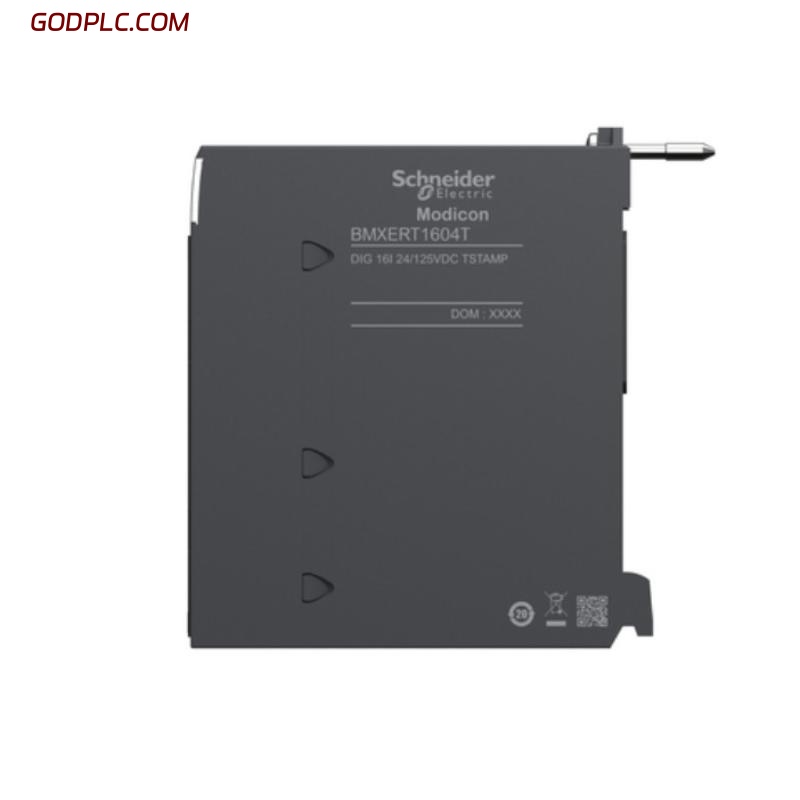

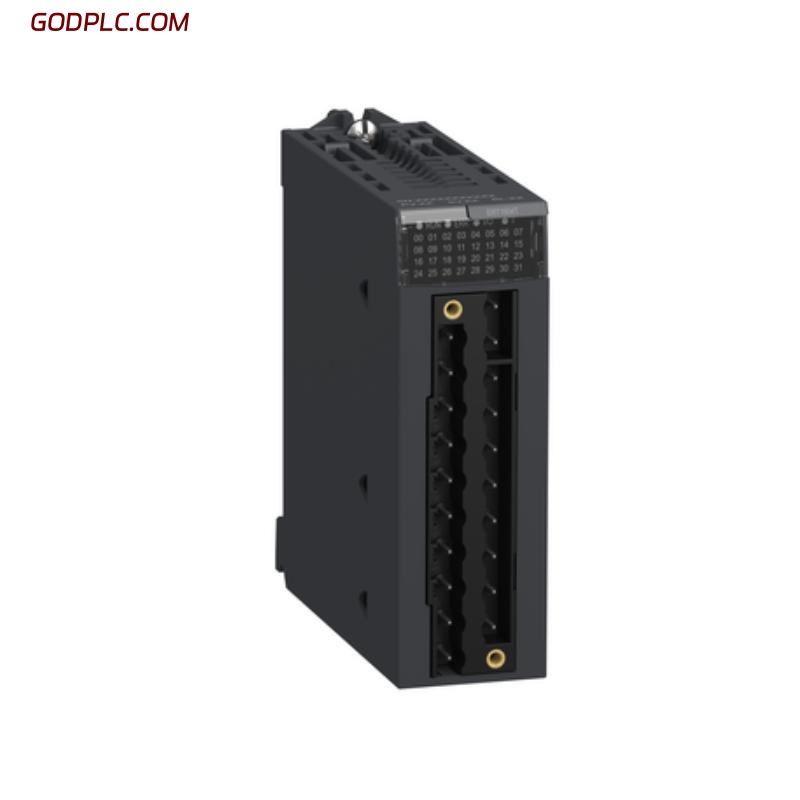

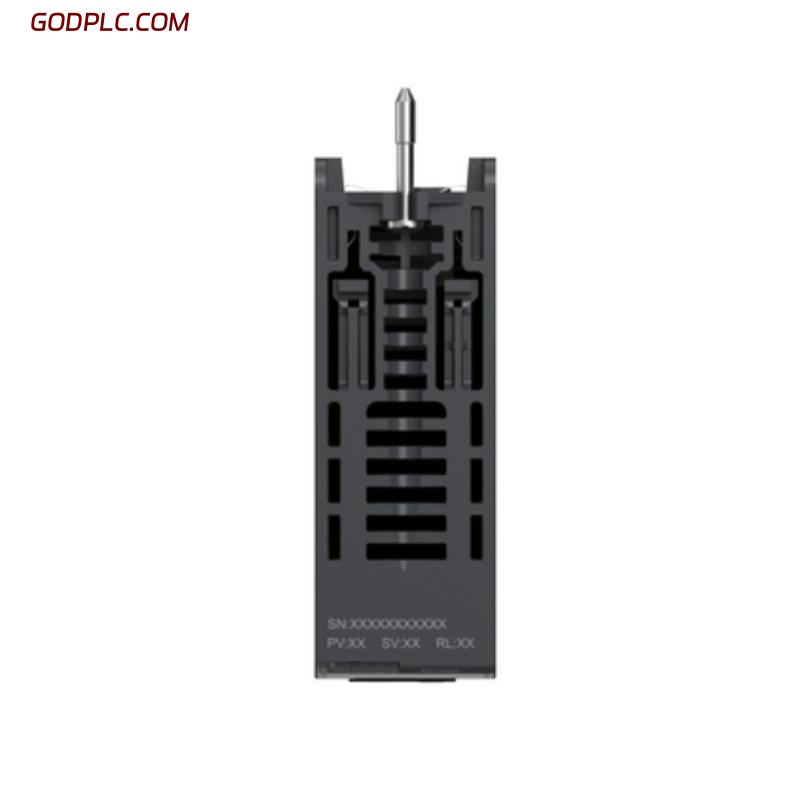

Schneider BMXERT1604T Multi-function Input Module
Product Overview
The Schneider BMXERT1604T is a high-performance multi-function digital input module designed for use in Modicon M340 automation platforms. It supports Ethernet-based remote I/O communication and features four high-speed counter channels, allowing real-time acquisition of fast digital signals from field devices such as encoders, sensors, and proximity switches. With its robust design and precise signal handling, the BMXERT1604T is ideal for high-speed automation and motion control tasks in demanding industrial environments.
Key Features
-
4 High-Speed Digital Inputs – Supports counting, frequency, and pulse-width measurement
-
Ethernet Connectivity – Enables remote I/O operation via Ethernet TCP/IP networks
-
Real-Time Processing – Dedicated input processing ensures low-latency signal acquisition
-
Wide Input Compatibility – Accepts signals from a variety of industrial sensors
-
Diagnostics & Status LEDs – Provides clear indication of channel and module status
-
Compact Form Factor – Easily fits within standard Modicon M340 configurations
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 32 x 100 x 86 mm |
| Weight | Package weight 0.15kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 4 high-speed digital inputs |
| Input Voltage | 24 VDC (nominal), sink/source type |
| Input Current | 7 mA at 24 VDC |
| Input Frequency | Up to 100 kHz |
| Isolation | 500 V RMS between channels and bus |
| Response Time | < 1 ms |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP20 (module only) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Modicon M340 and Ethernet I/O platforms |
| Programming Software | Unity Pro / EcoStruxure Control Expert |
| Communication Port | Ethernet (RJ45), TCP/IP |
| Module Mounting | Standard M340 rack |
Industry Applications
-
Material Handling – For monitoring high-speed encoder feedback in conveyor systems
-
Packaging – Captures pulse and position data in automated packaging machinery
-
Machine Tools – Monitors limit switches and tool sensors in CNC machines
-
Automotive Manufacturing – Synchronizes high-speed production lines
-
Textile Industry – Tracks position and speed of rollers and feeders
The Schneider BMXERT1604T Multi-function Input Module is engineered for real-time responsiveness and dependable performance in high-speed applications. Its seamless Ethernet integration, combined with precision input capabilities, makes it an essential component in modern automation systems requiring fast and accurate digital signal processing.
Schneider BMXERT1604T Multi-function Input Module is in stock. Please contact us for a quick quote and competitive pricing.
