Q1: What is the primary function of the BMXFCA152 cable assembly?

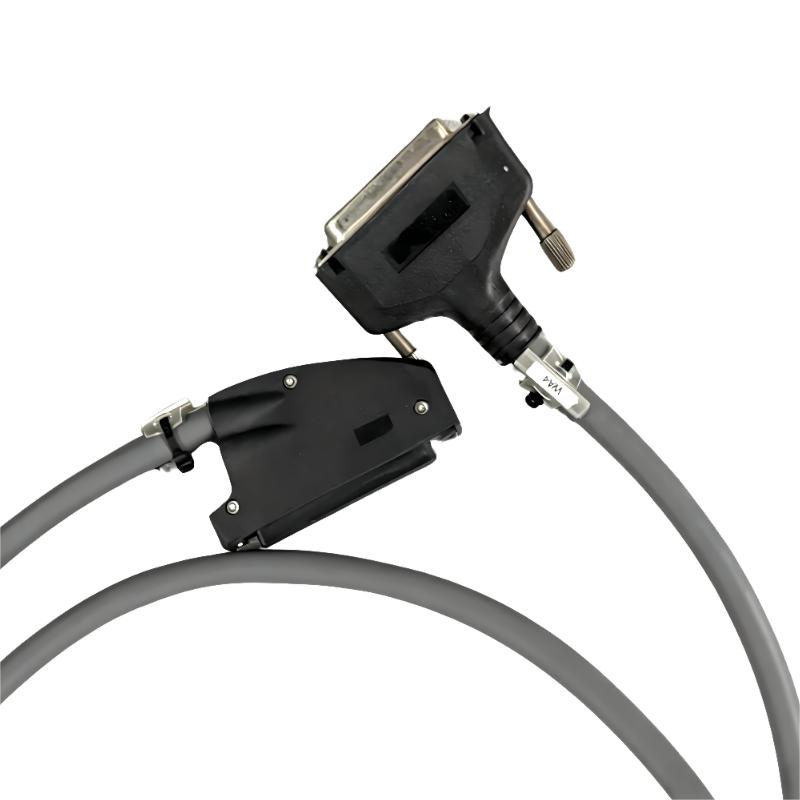

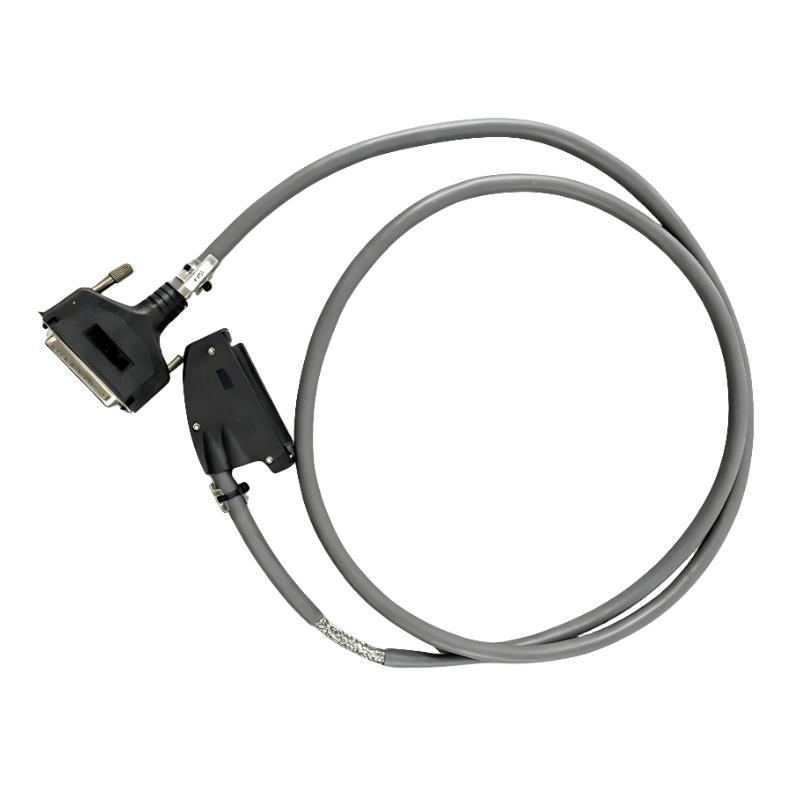

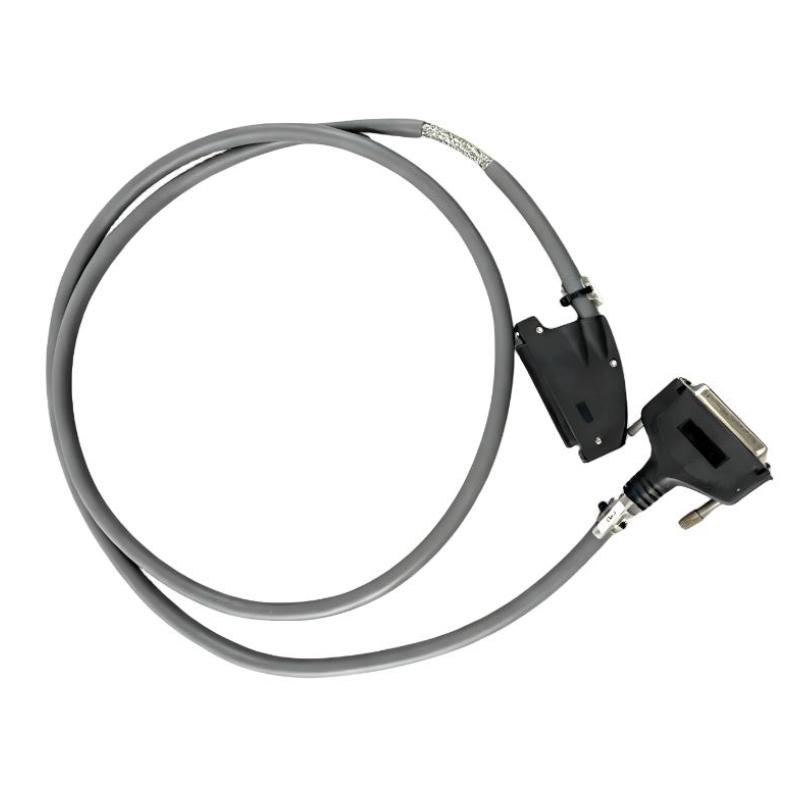

The BMXFCA152 is designed to provide a reliable physical and electrical connection between I/O modules and the backplane system in Schneider Electric Modicon X80 architectures. Its main role is to ensure stable, high-integrity data transmission between distributed I/O modules and the PLC controller. In practical operation, this cable acts as a communication backbone within the rack system, allowing multiple modules to exchange data in real time without signal degradation or interruption. This is essential for maintaining synchronized control in industrial automation systems where timing accuracy and data consistency are critical.

Q2: What systems is this cable compatible with?

This cable is specifically designed for use with Modicon X80 I/O systems and is commonly deployed in Modicon M340 and M580 PLC architectures. It is fully integrated into Schneider Electric’s distributed control ecosystem, meaning it works seamlessly with compatible racks, I/O modules, and backplane communication systems. Because of this tight integration, it is not a generic cable but a system-specific component engineered to maintain deterministic communication performance in industrial environments.

Q3: What type of signals does the BMXFCA152 carry?

The cable carries internal system-level communication signals between I/O modules and the PLC backplane rather than direct field sensor signals. These signals include synchronized data updates, module status information, and control communication packets. Because these are high-speed digital system communications, the cable is engineered to maintain signal integrity and minimize latency, ensuring that the PLC receives accurate and timely information from all connected modules.

Q4: How does the cable maintain signal stability in harsh environments?

Industrial environments often contain electromagnetic interference from motors, drives, switching devices, and power distribution systems. The BMXFCA152 uses shielding technology designed specifically to suppress external electrical noise and prevent signal distortion. In addition, its internal construction minimizes crosstalk between conductors. These design features ensure stable communication even in electrically noisy environments such as manufacturing plants, water treatment facilities, and process industries.

Q5: Is any configuration required after installation?

No configuration is required for the BMXFCA152 itself. It is a passive communication cable designed for plug-and-play installation within compatible systems. Once properly connected between modules and racks, it immediately becomes part of the system backplane communication network. All configuration is handled at the PLC and module level, not at the cable level, which simplifies installation and reduces commissioning time.

Q6: What happens if the cable is disconnected or damaged?

If the cable becomes disconnected or damaged, communication between affected I/O modules and the PLC will be interrupted. This can lead to module failure detection, loss of input/output data, or system diagnostic alarms. Depending on the system configuration, the PLC may enter a safe state or continue operating with reduced functionality. In critical automation processes, such a failure could also trigger redundancy mechanisms or fault-handling routines to maintain system safety.

Q7: What are the key installation best practices?

Proper installation involves ensuring that connectors are fully seated and locked into place to prevent intermittent contact. The cable should be routed away from high-voltage power lines, variable frequency drives, and other sources of electromagnetic interference. It is also important to avoid sharp bends, excessive tension, or mechanical stress on connectors. Maintaining proper cable routing within the control cabinet improves long-term signal stability and reduces the risk of communication faults.

Q8: What maintenance practices help ensure long-term reliability?

Long-term reliability depends on periodic inspection and preventive maintenance. This includes checking connectors for looseness, corrosion, or contamination, as well as verifying that the cable is not subjected to mechanical wear or vibration stress. In environments with high temperature or humidity variation, more frequent inspections are recommended. Ensuring clean installation conditions and stable cable routing significantly reduces the likelihood of communication disruptions and helps maintain consistent system performance over time.
