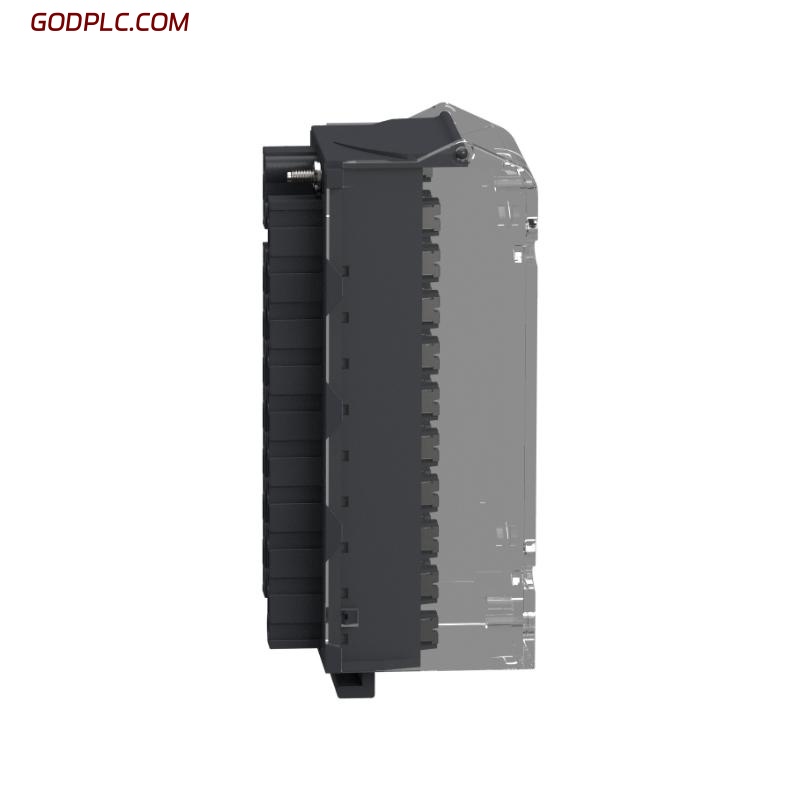

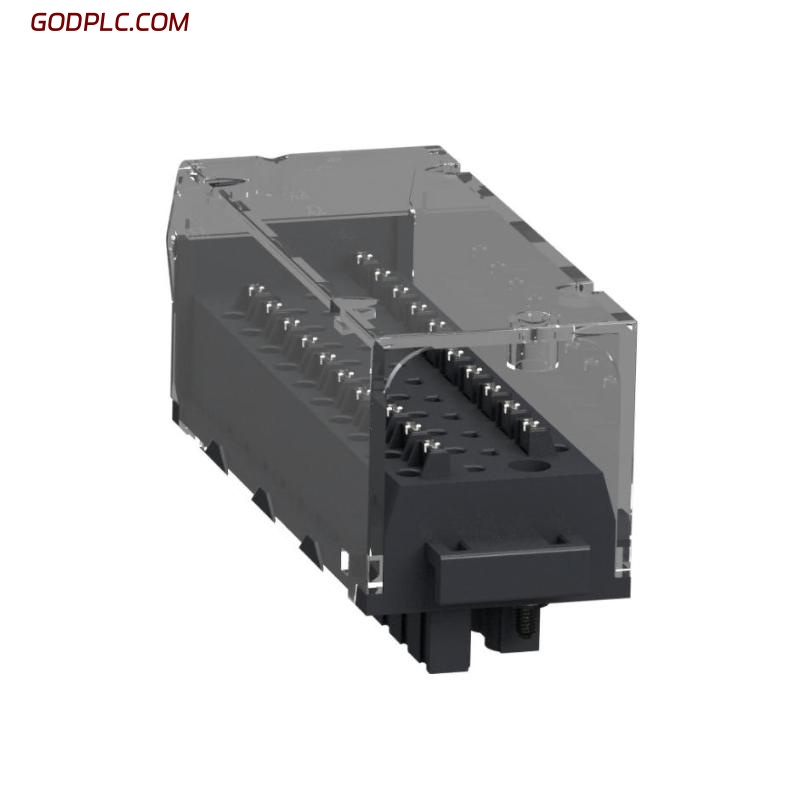

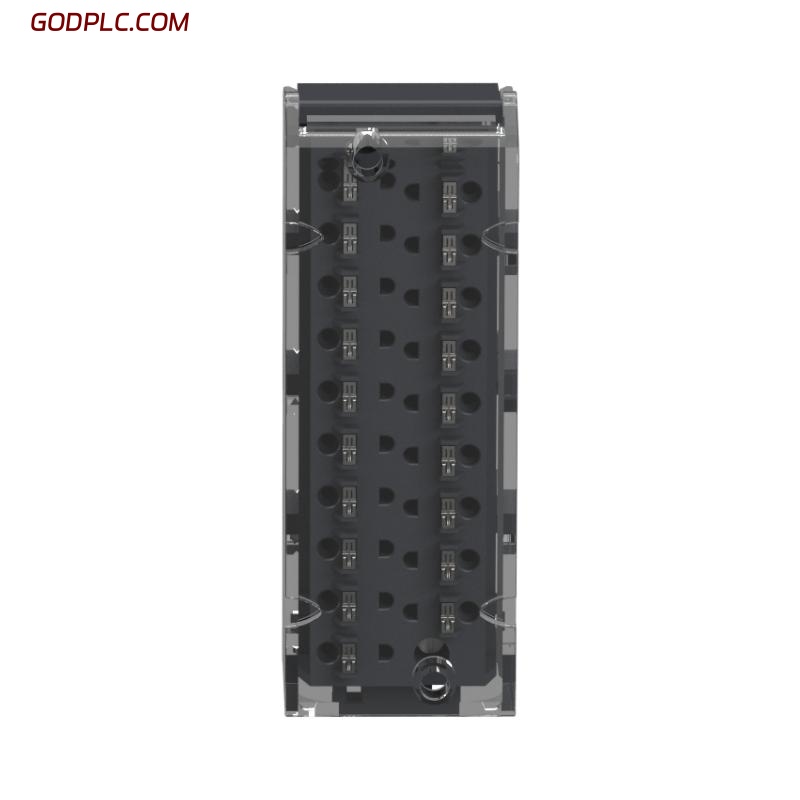

Schneider BMXFTB2020 20 Removable Spring Terminals
Product Overview
The Schneider BMXFTB2020 20 Removable Spring Terminals are high-quality, removable spring-type terminals designed for use with Schneider Modicon X80 I/O modules. These terminals provide an efficient and secure connection for field devices, offering flexibility in wiring and ensuring reliable signal transmission. The spring terminal design eliminates the need for screws, simplifying installation and maintenance. With a 20-terminal configuration, the BMXFTB2020 provides a versatile and compact solution for industrial automation systems, reducing wiring time and minimizing the risk of connection issues.
Key Features
-
Spring Terminal Design – Uses a spring mechanism to secure the wires, eliminating the need for screws and ensuring fast, tool-free installation and removal
-
Removable Design – Allows for easy removal and reinstallation of connections without disturbing the entire wiring system, reducing downtime during maintenance or upgrades
-
20-Terminal Configuration – Supports a wide range of I/O connections, ideal for applications that require multiple field device connections in a compact space
-
Reliable Connection – Offers a stable and secure electrical connection, ensuring reliable performance in industrial automation systems
-
Flexible Wiring Options – Provides multiple wiring channels for different field devices such as sensors, actuators, and other I/O modules, supporting various industrial applications
-
Durable Construction – Built to withstand harsh industrial environments, ensuring longevity and reducing the need for frequent maintenance or replacements
-
Space-Saving Design – Compact and efficient, reducing the need for excessive space in control panels and automation cabinets
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 91.4 x 41.8 x 32 mm |
| Weight | 0.093 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Voltage Rating | 250 V AC / 24 V DC |
| Current Rating | 10 A per terminal |
| Insulation Resistance | ≥100 MΩ @ 500 VDC |
| Conductor Gauge | 24–14 AWG (0.2–2.5 mm²) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP20 (dust-tight) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Compatible with Schneider Modicon X80 I/O modules |
| Mounting | DIN rail mounted |
Industry Applications
-
Industrial Automation – Ensures secure and reliable connections for a wide variety of field devices in automation systems, improving operational efficiency
-
Manufacturing – Used in production lines for quick and easy wiring connections, reducing setup time and improving system performance
-
Building Automation – Ideal for wiring connections in building control systems, such as HVAC, lighting, and security monitoring systems
-
Energy Systems – Provides stable, secure connections for field devices in power generation, distribution, and monitoring systems
-
Process Control – Ensures reliable signal transmission for temperature, pressure, and other process control measurements in industries like chemical, pharmaceutical, and food processing
The Schneider BMXFTB2020 20 Removable Spring Terminals offer a practical and efficient solution for wiring Schneider Modicon X80 I/O modules. The tool-free spring terminal design provides ease of installation and maintenance, making it a perfect fit for industrial automation and control systems.
Schneider BMXFTB2020 20 Removable Spring Terminals is in stock. Please contact us for a quick quote and competitive pricing.
